AE86 ACT Xtreme Race Sprung 4-Pad Clutch Kit | 4A-GE (Corolla 1983-1987)

ACT Xtreme Race Sprung 4-Pad Clutch Kit

For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1985–1987 Toyota Corolla Sport GT-S AE86 with 1.6L 4A-GE

Overview

The ACT Xtreme Race Sprung 4-Pad Clutch Kit is the highest-capacity single-disc ACT clutch in this AE86 lineup, combining an Xtreme diaphragm pressure plate with a spring-centered 4-pad ceramic race disc. It is designed for high-output Toyota AE86 builds where maximum holding capacity, heat tolerance, and fast engagement take priority over factory-like clutch behavior.

The clutch is rated for 365 lb-ft of torque at the engine/crank, approximately 157% greater capacity than the OE clutch configuration. The 4-pad ceramic disc provides extremely direct engagement and rapid shifts, while its sprung center helps absorb torsional vibration and drivetrain shock compared with a rigid race disc.

With moderate-to-heavy pedal effort and aggressive engagement, this clutch is best suited to high-horsepower street builds, turbocharged or supercharged 4A-GE engines, serious drift cars, track cars, and competition-oriented AE86s.

Key Features

• 365 lb-ft engine/crank torque capacity
• Approximately 157% greater torque capacity than OE
• 200 mm / 7.9-inch clutch disc
• 4-pad ceramic race friction material
• Spring-centered hub helps damp torsional vibration
• Xtreme diaphragm pressure plate for maximum clamp load
• 21-spline clutch hub
• 15/16-inch / 0.9375-inch input shaft diameter
• Moderate-to-heavy pedal effort
• Aggressive, fast engagement
• OE to mild gear rattle
• Designed for high-horsepower street and race applications

Xtreme Pressure Plate & 4-Pad Race Disc

The Xtreme pressure plate provides substantially greater clamp load than ACT's Heavy Duty pressure plate, allowing this clutch to achieve the highest torque capacity of the ACT AE86 single-disc options offered by Preserve Rad.

Its 4-pad ceramic disc concentrates the friction surface into four high-temperature-resistant pads. This provides quicker engagement and strong heat tolerance during repeated hard launches, aggressive shifts, clutch kicks, and demanding motorsport use.

The spring-centered hub adds torsional cushioning between the engine and transmission, making it somewhat more forgiving to the drivetrain than a rigid 4-pad race disc. Engagement remains intentionally aggressive, however, and this clutch should not be expected to behave like a full-face organic street clutch.

Vehicle Fitment

Toyota Corolla Levin

• 1983–1987 Toyota Corolla Levin – AE86 – RWD – 1.6L 4A-GE – Manual Transmission

Toyota Sprinter Trueno

• 1983–1987 Toyota Sprinter Trueno – AE86 – RWD – 1.6L 4A-GE – Manual Transmission

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport GT-S – AE86 – RWD – 1.6L 4A-GE – Manual Transmission

Fitment Notes

• For 1.6L 4A-GE applications only
• Rear-wheel-drive applications only
• Manual transmission applications only
• Designed for the factory-style 200 mm clutch configuration
• Uses a 21-spline, 15/16-inch input shaft configuration
• Torque capacity is measured at the engine/crank, not at the wheels
• Flywheel is not included
• Moderate-to-heavy pedal effort is normal for the Xtreme pressure plate
• Aggressive ceramic engagement is normal and intentional
• Mild drivetrain or gear rattle may occur
• Best suited to high-output street, drift, track, and competition builds
• Professional clutch installation is recommended

Product Specifications

Brand: ACT – Advanced Clutch Technology
Product Type: Performance Race Clutch Kit
Engine: 1.6L 4A-GE
Pressure Plate: Xtreme Diaphragm
Disc Type: 4-Pad Spring-Centered Race Disc
Disc Material: Ceramic
Disc Diameter: 200 mm / 7.9 in.
Torque Capacity: 365 lb-ft at Engine/Crank
Torque Capacity Increase: 157% Over OE
Input Shaft Diameter: 15/16 in. / 0.9375 in.
Spline Count: 21
Pedal Effort: Moderate to Heavy
Engagement: Aggressive
Gear Rattle: OE to Mild
Friction Life: Moderate
Product Weight: 10.9 lb
Flywheel Included: No
Warranty: 12 Months

Which ACT AE86 Clutch Should You Choose?

The ACT Xtreme Race Sprung 4-Pad Clutch Kit is the most aggressive and highest-capacity option of these four for a 4A-GE AE86. Its 365 lb-ft crank torque capacity, Xtreme pressure plate, and ceramic 4-pad sprung disc make it the best choice for high-output turbo or supercharged builds, serious drifting, repeated clutch kicks, hard launches, and competition use. The tradeoff is moderate-to-heavy pedal effort and considerably more abrupt engagement than the organic street clutches.

For drivers who want a ceramic 4-pad race disc but do not need the Xtreme clutch's 365 lb-ft capacity, the ACT Heavy Duty Race Sprung 4-Pad Clutch Kit provides 265 lb-ft of crank torque capacity with lighter pedal effort while retaining aggressive ceramic engagement.

For higher-output AE86s that still spend significant time on the street, the ACT Xtreme Performance Street Sprung Clutch Kit combines the Xtreme pressure plate with a full-face organic sprung disc. It provides 285 lb-ft of crank torque capacity with smoother engagement, making it the better choice when substantial holding capacity is needed without switching to a puck-style ceramic clutch.

For naturally aspirated, mildly modified, or primarily street-driven AE86s, the ACT Heavy Duty Performance Street Sprung Clutch Kit offers the best everyday balance with 210 lb-ft of crank torque capacity, lighter pedal effort, and smooth full-face organic engagement.

Choose the Heavy Duty Performance Street for everyday drivability, the Heavy Duty 4-Pad for drift and track use at moderate power levels, the Xtreme Performance Street for higher-output street builds, and the Xtreme 4-Pad Race when maximum single-disc holding capacity and aggressive engagement are the priority.

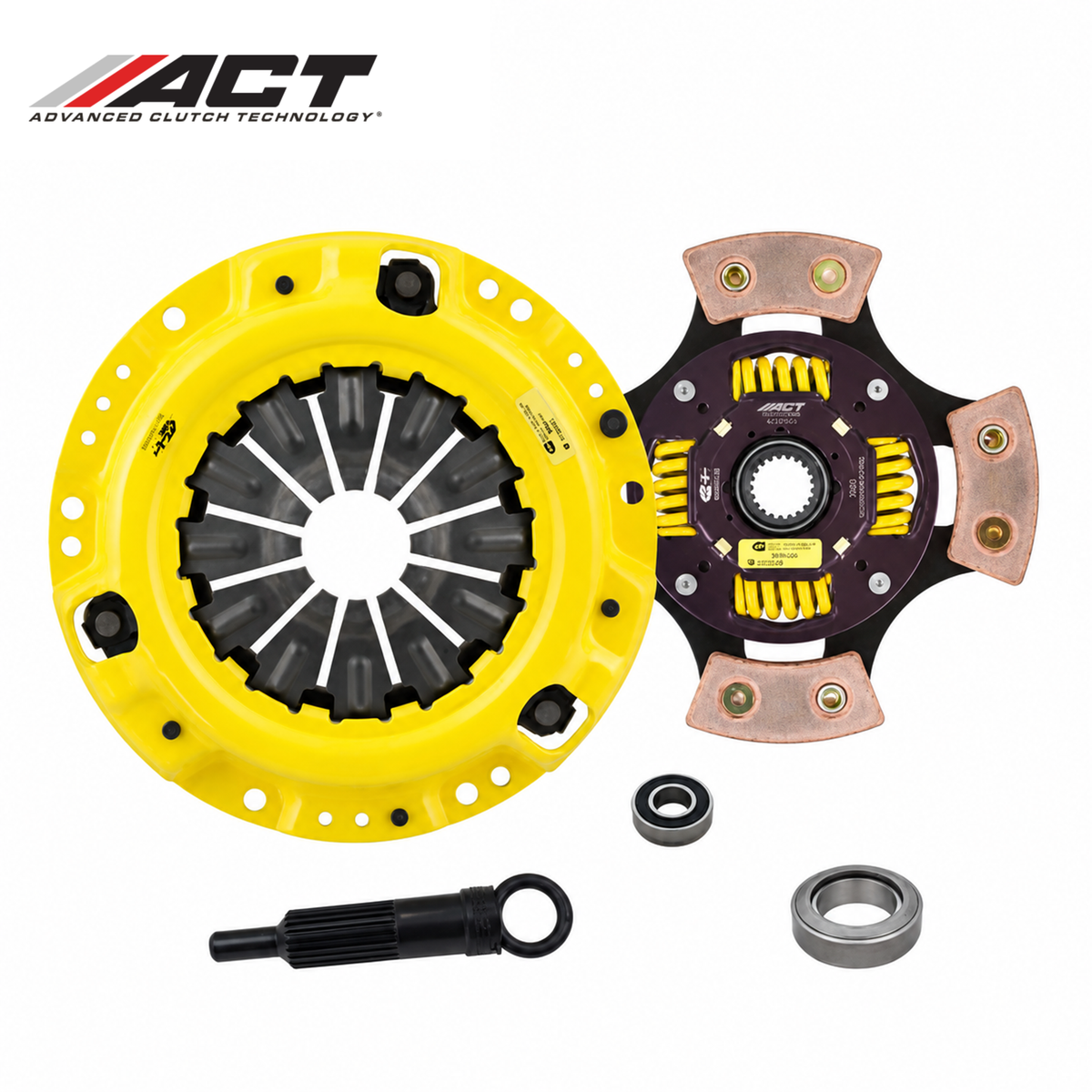

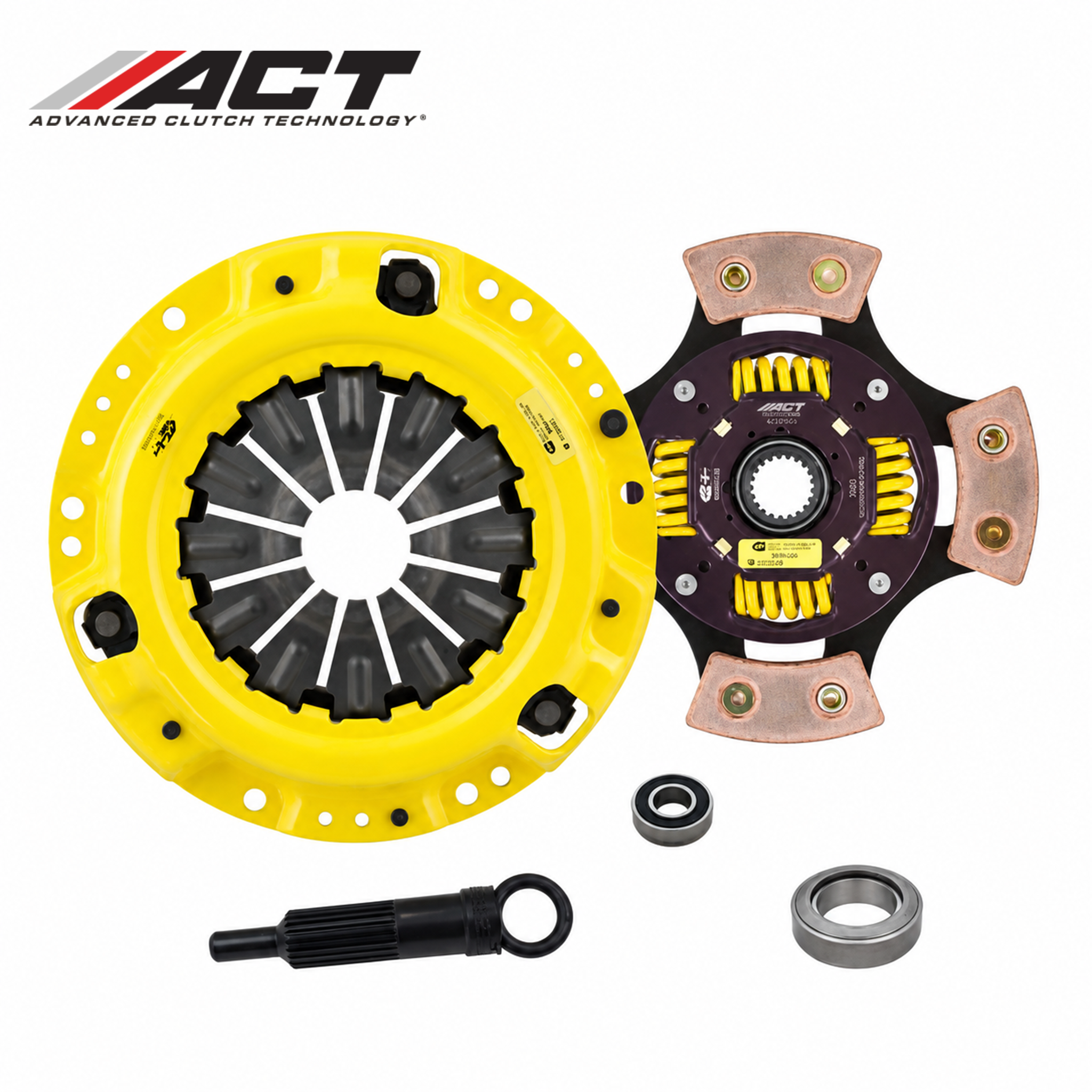

What's Included

• (1) ACT Xtreme pressure plate
• (1) 4-pad spring-centered ceramic race clutch disc
• (1) Clutch release bearing
• (1) Pilot bearing
• (1) Clutch alignment tool
