AE86 EXEDY Hyper Single 6-Puck Cerametallic Clutch & Flywheel Kit | 4A-GE (Corolla 1983-1987)

EXEDY Hyper Single 6-Puck Cerametallic Clutch & Flywheel Kit

For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1985–1987 Toyota Corolla Sport GT-S AE86 with 1.6L 4A-GE

Overview

The EXEDY Hyper Single Clutch & Flywheel Kit is a high-performance single-disc clutch system designed for modified Toyota AE86 4A-GE applications that need substantially more holding capacity and quicker drivetrain response than a conventional street clutch.

The system combines a 200 mm 6-puck cerametallic sprung clutch disc, forged aluminum clutch cover, high-clamp-load pressure plate, and matched chromoly steel flywheel. EXEDY's low-inertia design reduces rotating mass at the clutch disc and flywheel, improving engine response and allowing quicker shifts while maintaining a sprung center to help reduce drivetrain shock.

With approximately twice the holding torque of an OE-style clutch and substantially greater heat resistance, the Hyper Single is best suited to aggressively modified street cars, drift builds, track cars, time-attack cars, and other motorsport-oriented AE86s that do not yet require a multi-plate clutch.

Key Features

• 200 mm single-disc performance clutch system
• 6-puck T5001 cerametallic friction disc
• Sprung-center damper design helps reduce drivetrain shock
• High-friction, low-wear, heat-resistant friction material
• 9,800 N clamp load
• Push-type clutch cover configuration
• Forged aluminum clutch cover provides greater rigidity than a conventional stamped-steel cover
• Matched lightweight chromoly steel flywheel included
• Low-inertia design improves engine response and shift speed
• 21-tooth / approximately 24.1 mm spline configuration
• Strap-driven pressure plate design improves disengagement and helps reduce typical lug-drive clutch rattle
• Designed for performance street and motorsport-oriented 4A-GE builds

Low-Inertia Hyper Single Design

The Hyper Single system is engineered as a complete clutch-and-flywheel package rather than simply increasing pressure-plate clamp load on an OE-style assembly.

Its smaller, lighter clutch disc reduces rotational inertia, allowing the transmission synchronizers to match speeds more quickly during shifting. The included chromoly flywheel further reduces rotating mass compared with the factory assembly, producing quicker engine response and a more immediate performance-oriented feel.

The T5001 cerametallic friction material provides a high coefficient of friction along with strong heat resistance and low wear. This allows the 200 mm single-disc system to achieve substantially greater holding capacity while remaining compact.

Because this is a 6-puck cerametallic clutch, engagement is more direct and aggressive than an organic street clutch. It is intended for drivers who prioritize heat resistance, response, and holding capacity over factory-like engagement.

Vehicle Fitment

Toyota Corolla Levin

• 1983–1987 Toyota Corolla Levin – AE86 – RWD – 1.6L 4A-GE – Manual Transmission

Toyota Sprinter Trueno

• 1983–1987 Toyota Sprinter Trueno – AE86 – RWD – 1.6L 4A-GE – Manual Transmission

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport GT-S – AE86 – RWD – 1.6L 4A-GE – Manual Transmission

Fitment Notes

• For 1.6L 4A-GE applications only
• Rear-wheel-drive applications only
• Manual transmission applications only
• 200 mm clutch configuration
• 21-tooth / approximately 24.1 mm spline
• Push-type clutch actuation
• Matched chromoly steel flywheel is included
• Genuine/OE flywheel mounting bolts are required for installation
• Flywheel mounting bolts are not included
• More aggressive engagement should be expected compared with an organic street clutch
• Replacing the release and pilot bearings during clutch service is recommended
• Professional installation is recommended

Product Specifications

Brand: EXEDY
Series: Hyper Single
Product Type: Performance Clutch & Flywheel Kit
Engine: 1.6L 4A-GE
Drivetrain: Rear-Wheel Drive
Clutch Design: Single Disc
Disc Design: 6-Puck Spring-Centered Damper Disc
Friction Material: T5001 Cerametallic
Clutch Diameter: 200 mm
Spline Count: 21
Spline Diameter: Approximately 24.1 mm
Cover Type: Push Type
Clamp Load: 9,800 N
Clutch Cover: Forged Aluminum
Flywheel: Chromoly Steel
Flywheel Included: Yes
Engagement: Performance-Oriented / Aggressive
Recommended Use: Modified Street, Drift, Track & Motorsport

Which EXEDY AE86 Clutch Should You Choose?

The Hyper Single is the strongest performance-oriented step in this EXEDY AE86 lineup before moving into multi-plate clutch systems. Its 6-puck cerametallic disc, high clamp load, low-inertia construction, and matched chromoly flywheel make it the better choice for aggressively modified 4A-GE builds, serious drift cars, and track-focused AE86s.

For a naturally aspirated street car or mildly modified AE86, the EXEDY Performance Clutch Kit provides less aggressive alternatives. Stage 1 uses a full-face organic disc for smoother everyday engagement, while Stage 2 uses a cerametallic puck-style disc for increased heat resistance and more aggressive performance use.

For an otherwise stock GT-S where factory-like engagement, quiet operation, and everyday drivability are the priorities, the EXEDY OE Replacement Clutch Kit is the most appropriate option.

Choose the OE Replacement clutch for factory-style driving, the Stage 1 or Stage 2 Performance clutch for street and moderate performance builds, and the Hyper Single when low inertia, high heat capacity, and serious motorsport performance are the priority.

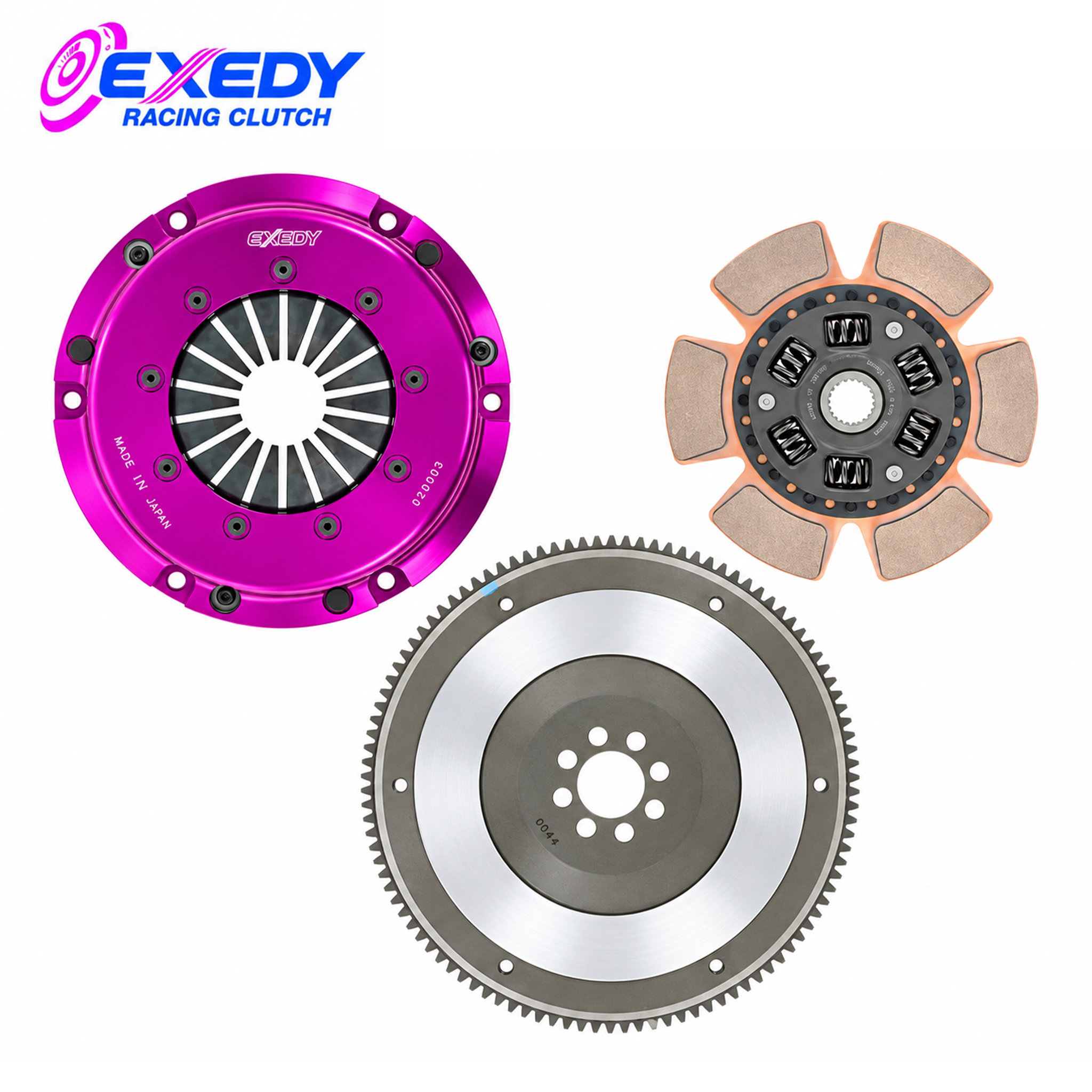

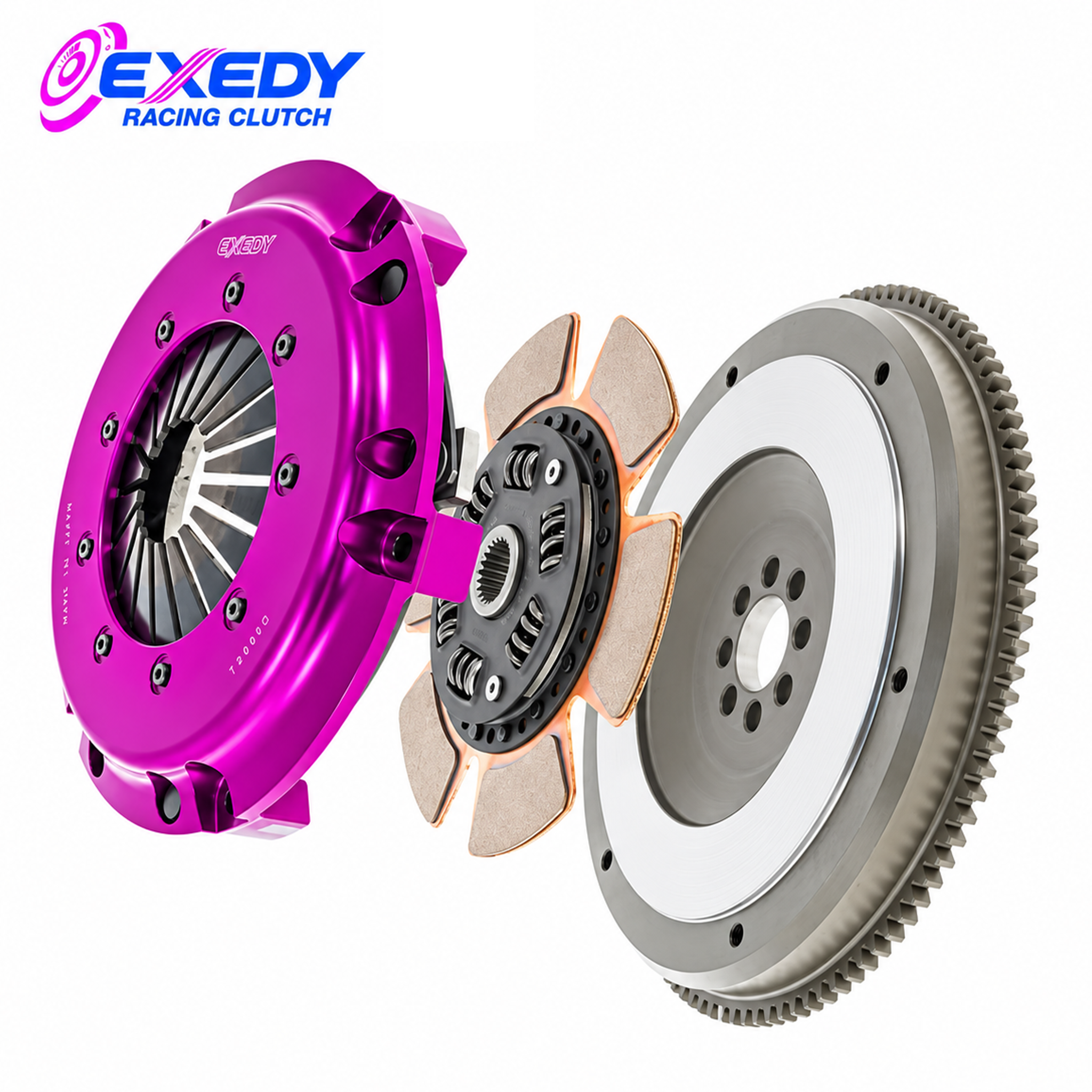

What's Included

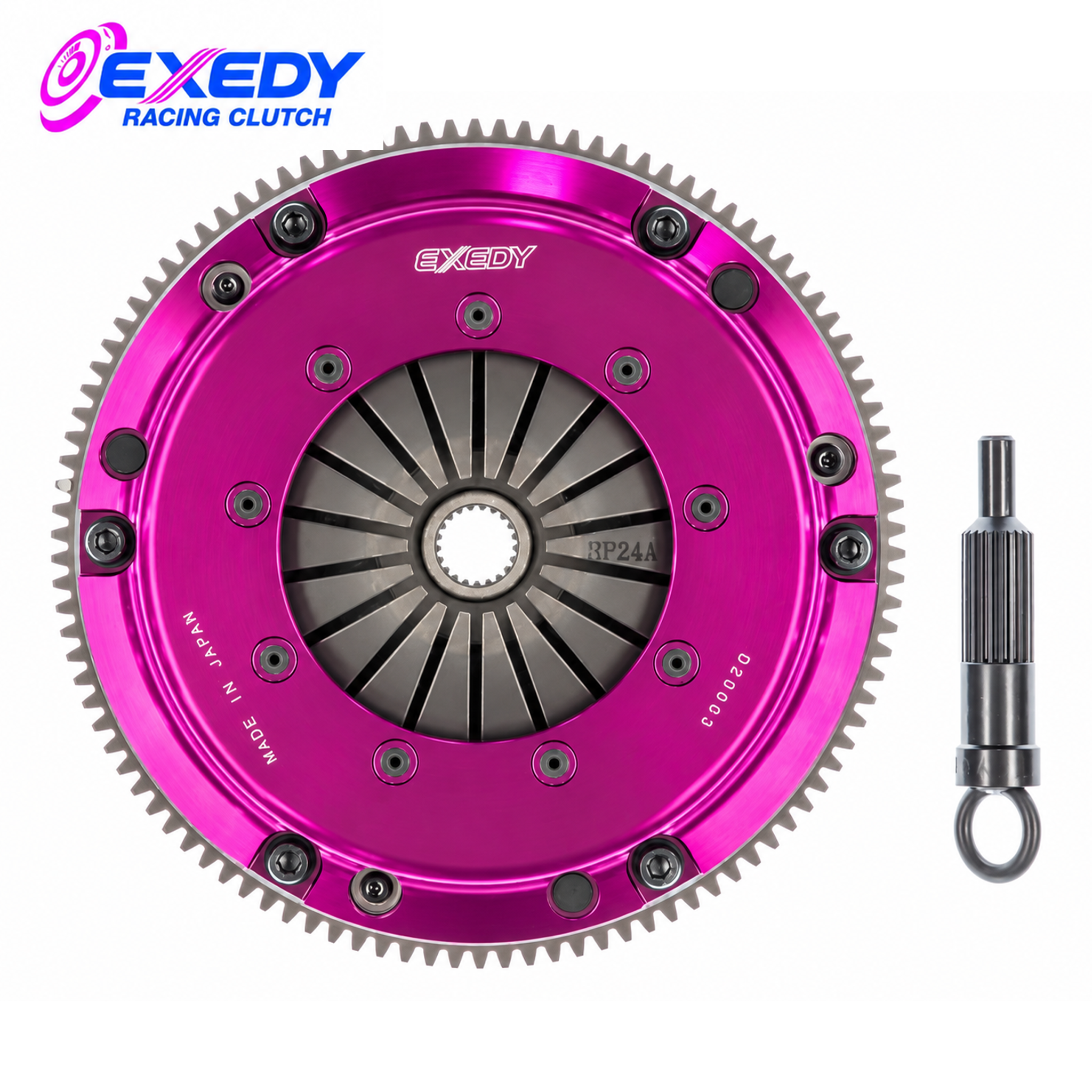

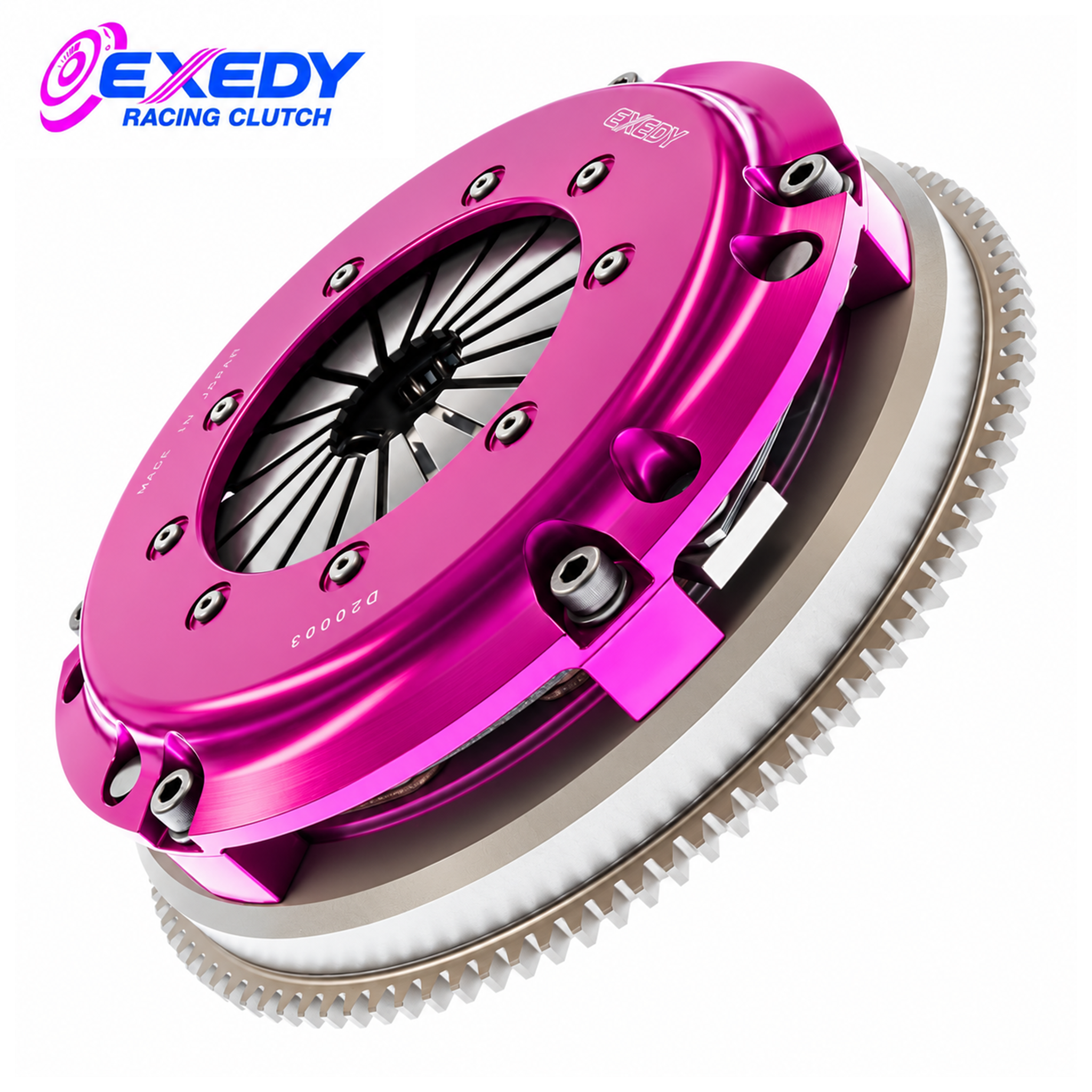

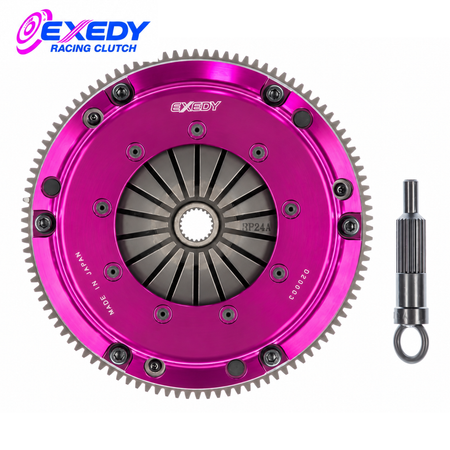

• (1) EXEDY Hyper Single forged-aluminum clutch cover / pressure plate assembly
• (1) 200 mm 6-puck sprung cerametallic clutch disc
• (1) Matched chromoly steel flywheel
