ACT HDG4 Sprung 4-Pad Race Clutch Kit | 4-Cylinder (1989-95 Pickup)

ACT HDG4 Heavy Duty Sprung 4-Pad Race Clutch Kit

For 1989–1995 Toyota Pickup 4-Cylinder Manual Transmission Models

Overview

The ACT HDG4 Heavy Duty Sprung 4-Pad Race Clutch Kit pairs a Heavy Duty pressure plate with a ceramic race disc for 3rd Gen Toyota Pickup builds that demand increased clutch holding capacity.

Three selectable applications make it easier to match the kit to your truck. The early applications cover both drivetrains, while the later trucks are separated into 2WD and 4WD configurations.

Designed for race-focused use, the HDG4 has aggressive engagement and prioritizes performance over everyday driving comfort.

Key Features

• Heavy Duty pressure plate with increased clamping force
• Four-pad ceramic disc for high heat tolerance
• Spring-centered hub to help absorb torsional loads
• Reinforced spring windows and retainers
• Dynamically balanced clutch assembly
• Release bearing, pilot bearing, and alignment tool included

HDG4 vs. HDSS

Choose the HDG4 when your build needs a ceramic race clutch and you accept abrupt takeup and possible gear rattle.

Choose the HDSS when smooth launches, daily driving, and progressive clutch control matter more. The HDG4’s sprung hub helps damp vibration, but it does not make the ceramic disc behave like the HDSS organic street disc.

Vehicle Fitment

Toyota Pickup — 3rd Gen

• 1989–1992 Toyota Pickup — 3rd Gen — 2.4L 22R / 22RE — 2WD & 4WD — Manual Transmission
• 1993–1995 Toyota Pickup — 3rd Gen — 2.4L 22R / 22RE — 2WD — Manual Transmission
• 1993–1995 Toyota Pickup — 3rd Gen — 2.4L 22RE — 4WD — Manual Transmission

Fitment Notes

• Manual transmission, 4-cylinder models only.
• Does not fit 3.0L 3VZ-E V6 models.
• 1993–1995 4WD trucks use a different clutch configuration from 2WD trucks.
• Select the variant matching the truck’s year and drivetrain.
• For transmission or flywheel swaps, confirm the installed components before selecting a kit.
• Follow the supplied ceramic race-disc bedding instructions. Do not substitute the organic HDSS 300–500-mile break-in procedure.

Product Specifications

Brand: ACT – Advanced Clutch Technology
Series: HDG4
Product Type: Heavy Duty Sprung 4-Pad Race Clutch Kit
Pressure Plate: Heavy Duty Diaphragm
Disc Material: Ceramic
Hub Design: Sprung
Input Shaft Diameter: 1-1/8 in.
Input Spline Count: 21
Pedal Effort: Light to Moderate
Engagement: Aggressive
Noise Characteristics: OE to Mild Gear Rattle
Warranty: 12 Months, Subject to Warranty Terms

Available Configurations

1989–1992 — 22R / 22RE — 2WD & 4WD

• 224 mm clutch disc
• 355 lb-ft engine torque capacity

1993–1995 — 22R / 22RE — 2WD

• 224 mm clutch disc
• 355 lb-ft engine torque capacity

1993–1995 — 22RE — 4WD

• 236 mm clutch disc
• 365 lb-ft engine torque capacity

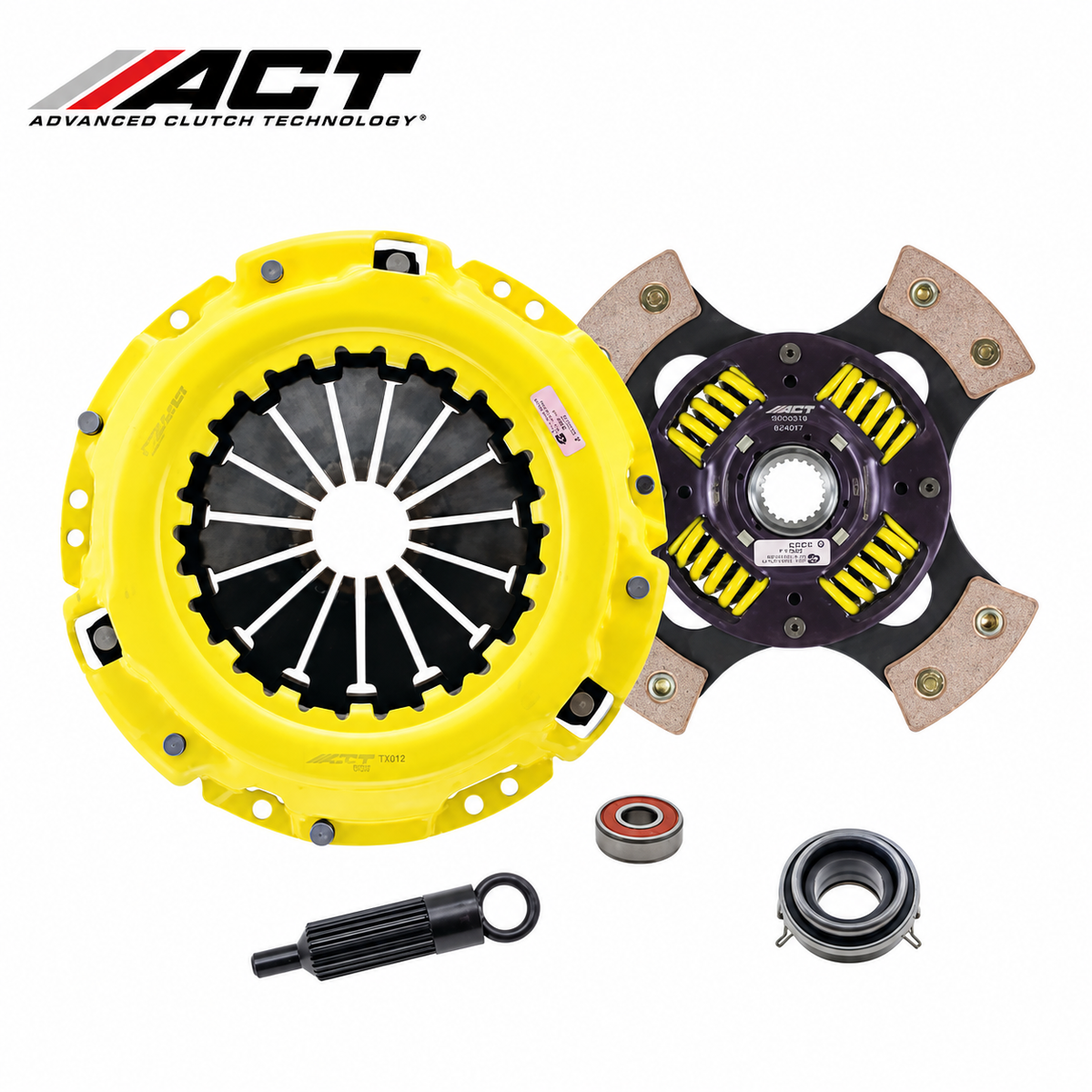

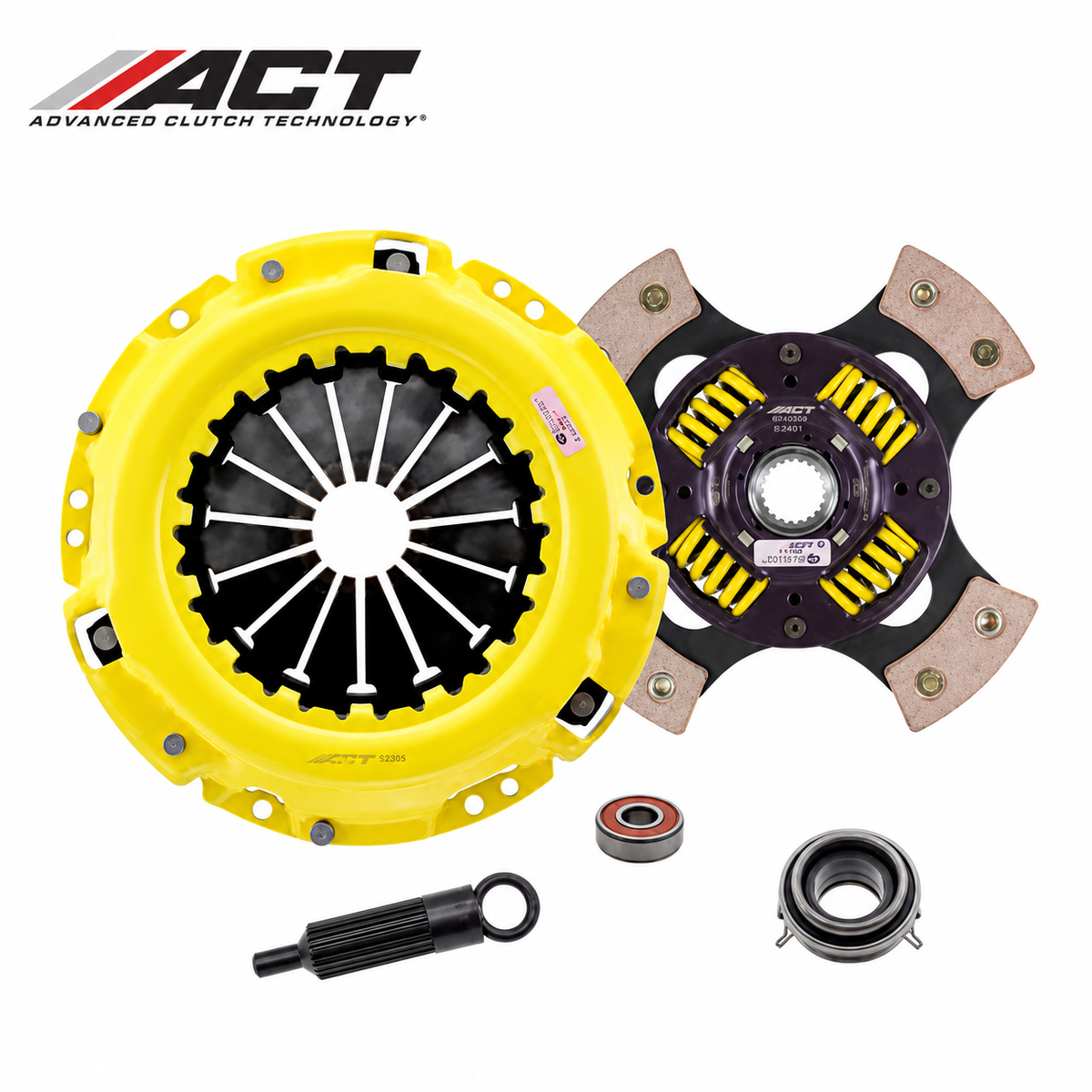

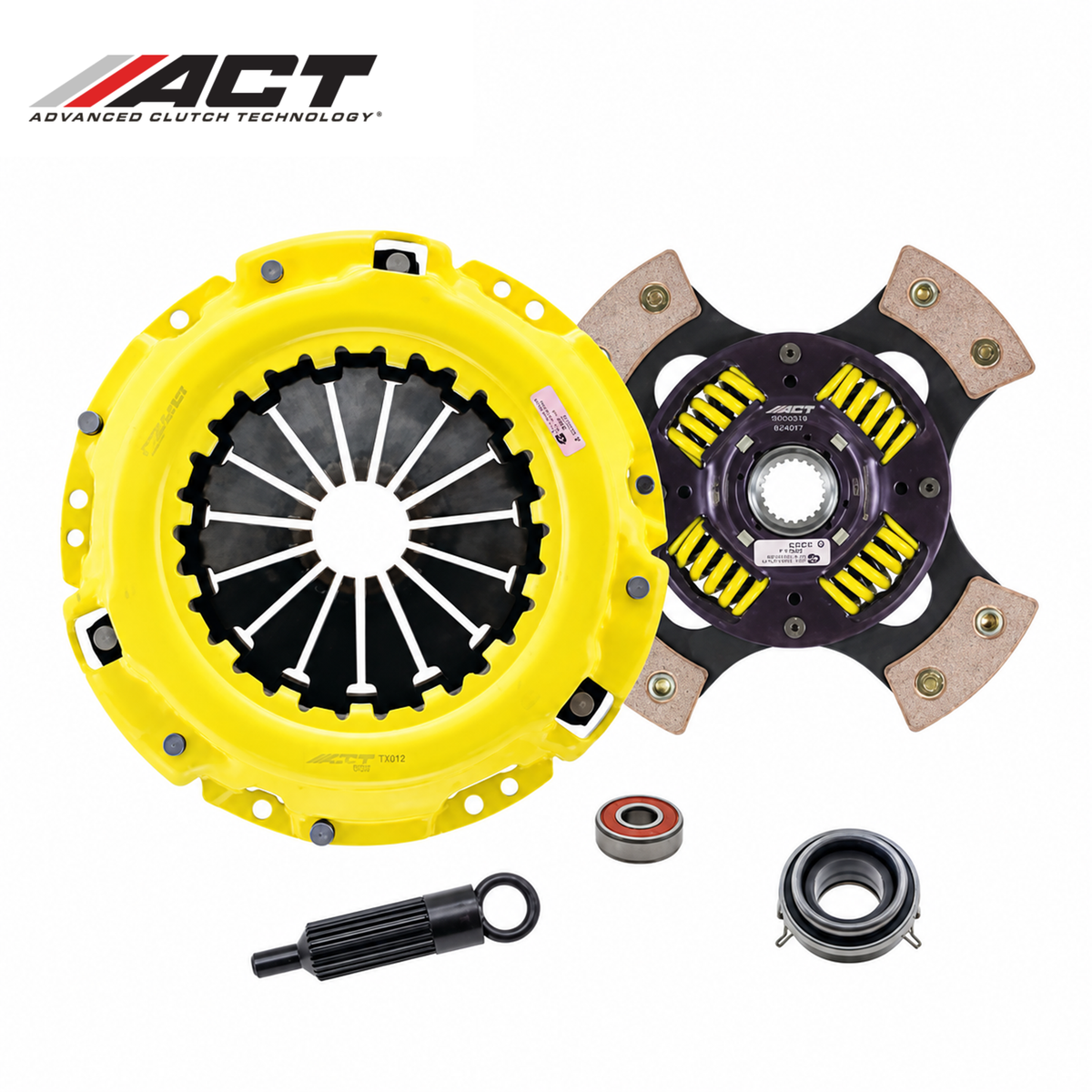

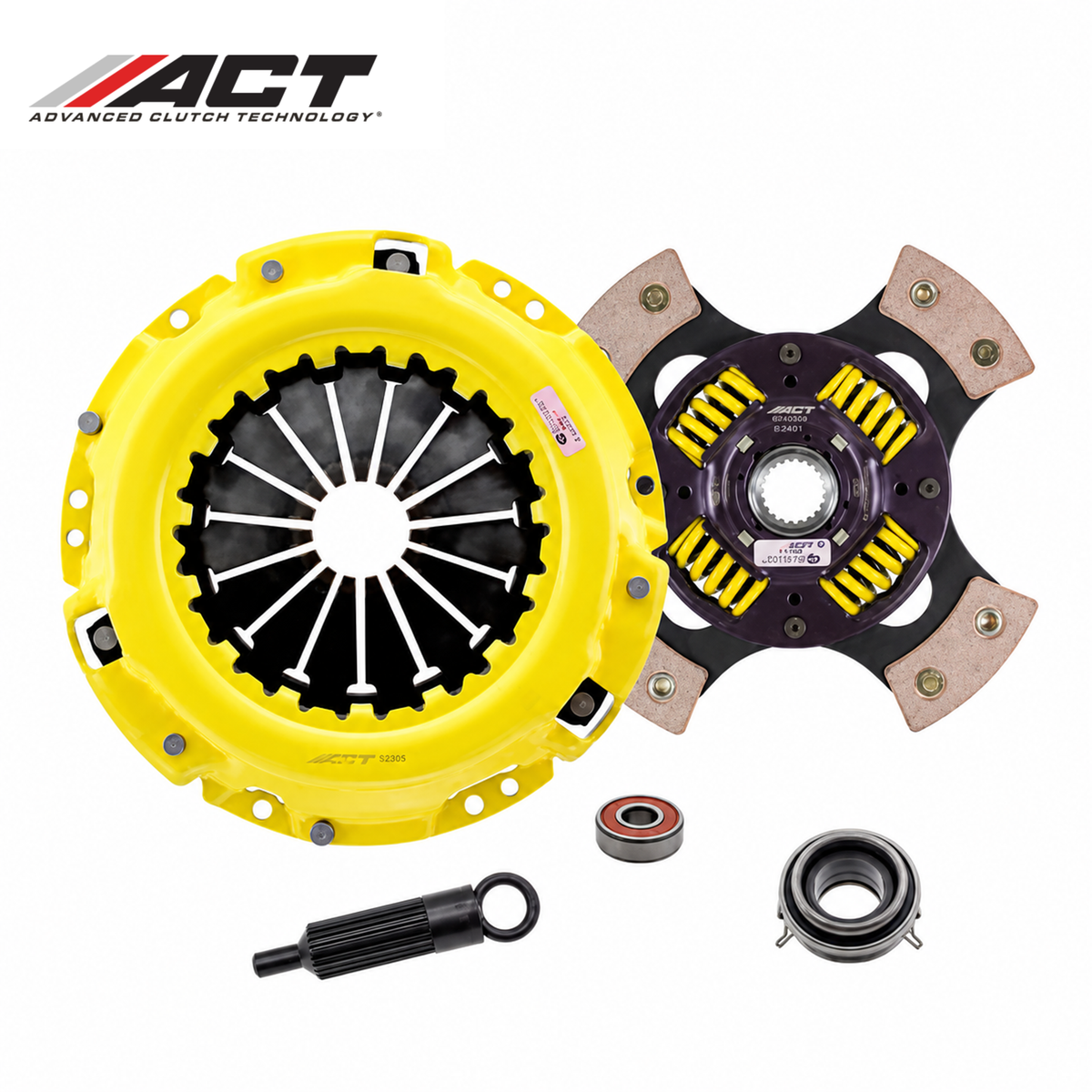

Each configuration includes:

• (1) ACT Heavy Duty Pressure Plate
• (1) ACT Sprung 4-Pad Ceramic Race Clutch Disc
• (1) Release Bearing
• (1) Pilot Bearing
• (1) Clutch Alignment Tool

Flywheel is not included. Torque ratings are measured at the engine, not the wheels.
