ACT HDG4 Sprung 4-Pad Race Clutch Kit | 4-Cylinder (1979-88 Pickup)

ACT HDG4 Heavy Duty Sprung 4-Pad Race Clutch Kit

For 1979–1988 Toyota Pickup 4-Cylinder Manual Transmission Models

Overview

The ACT HDG4 Heavy Duty Sprung 4-Pad Race Clutch Kit combines a Heavy Duty pressure plate with a spring-centered ceramic race disc for Toyota Pickup builds that prioritize clutch holding capacity and heat tolerance.

Three configurations cover the listed non-turbo and factory turbo applications. Choose the version matching your engine and production date, especially for 1987 turbo trucks.

This is a race-focused clutch with aggressive engagement. It suits drivers who accept reduced low-speed smoothness in exchange for a more competition-oriented clutch.

Key Features

• Heavy Duty diaphragm pressure plate for increased clamp load
• Four ceramic friction pads for high-temperature operation
• Sprung hub to help damp torsional vibration
• Reinforced spring retention for demanding use
• Clamp-load-tested and dynamically balanced assembly
• Application-specific bearings and alignment tool included

HDG4 Sprung 4-Pad Design

The ceramic puck-style disc engages more abruptly than a full-face organic street disc. Its sprung center helps cushion torsional loads, but it does not give the clutch the progressive takeup of an organic design.

For a daily-driven restoration or a truck where smooth clutch modulation is the priority, an EXEDY OE replacement or ACT HDSS is the more appropriate choice. The HDG4 serves a different purpose: race use where holding capacity and heat tolerance take priority over street comfort.

Vehicle Fitment

Toyota Pickup — 1st Gen

• 1979–1980 Toyota Pickup — 1st Gen — 2.2L 20R — 2WD & 4WD — Manual Transmission
• 1981–1983 Toyota Pickup — 1st Gen — 2.4L 22R — Non-Turbo — 2WD & 4WD — Manual Transmission

Toyota Pickup — 2nd Gen

• 1984–1988 Toyota Pickup — 2nd Gen — 2.4L 22R / 22RE — Non-Turbo — 2WD & 4WD — Manual Transmission
• 1985–05/1987 Toyota Pickup — 2nd Gen — 2.4L 22R-TE Turbo — 2WD & 4WD — Manual Transmission
• 06/1987–1988 Toyota Pickup — 2nd Gen — 2.4L 22R-TE Turbo — 2WD & 4WD — Manual Transmission

Fitment Notes

• Manual transmission, gasoline 4-cylinder models only.
• Does not fit 3.0L 3VZ-E V6 or diesel applications.
• Both factory turbo configurations cover 2WD and 4WD.
• The turbo kit changes at June 1987 production. Check the build date before ordering for a 1987 truck.
• A turbo conversion on a non-turbo engine does not automatically change its clutch application. Match the installed transmission and flywheel configuration.
• Follow the ceramic race-disc bedding instructions supplied with the kit. The organic HDSS 300–500-mile break-in guidance does not apply to this disc.

Product Specifications

Brand: ACT – Advanced Clutch Technology
Series: HDG4
Product Type: Heavy Duty Sprung 4-Pad Race Clutch Kit
Pressure Plate: Heavy Duty Diaphragm
Disc Material: Ceramic
Hub Design: Sprung
Input Shaft Diameter: 1-1/8 in.
Input Spline Count: 21
Pedal Effort: Light to Moderate
Engagement: Aggressive
Noise Characteristics: OE to Mild Gear Rattle
Warranty: 12 Months, Subject to Warranty Terms

Available Configurations

1979–1980 20R / 1981–1988 22R & 22RE — Non-Turbo — 2WD & 4WD

• 224 mm clutch disc
• 355 lb-ft engine torque capacity

1985–05/1987 — 22R-TE Turbo — 2WD & 4WD

• 236 mm clutch disc
• 365 lb-ft engine torque capacity

06/1987–1988 — 22R-TE Turbo — 2WD & 4WD

• 236 mm clutch disc
• 365 lb-ft engine torque capacity

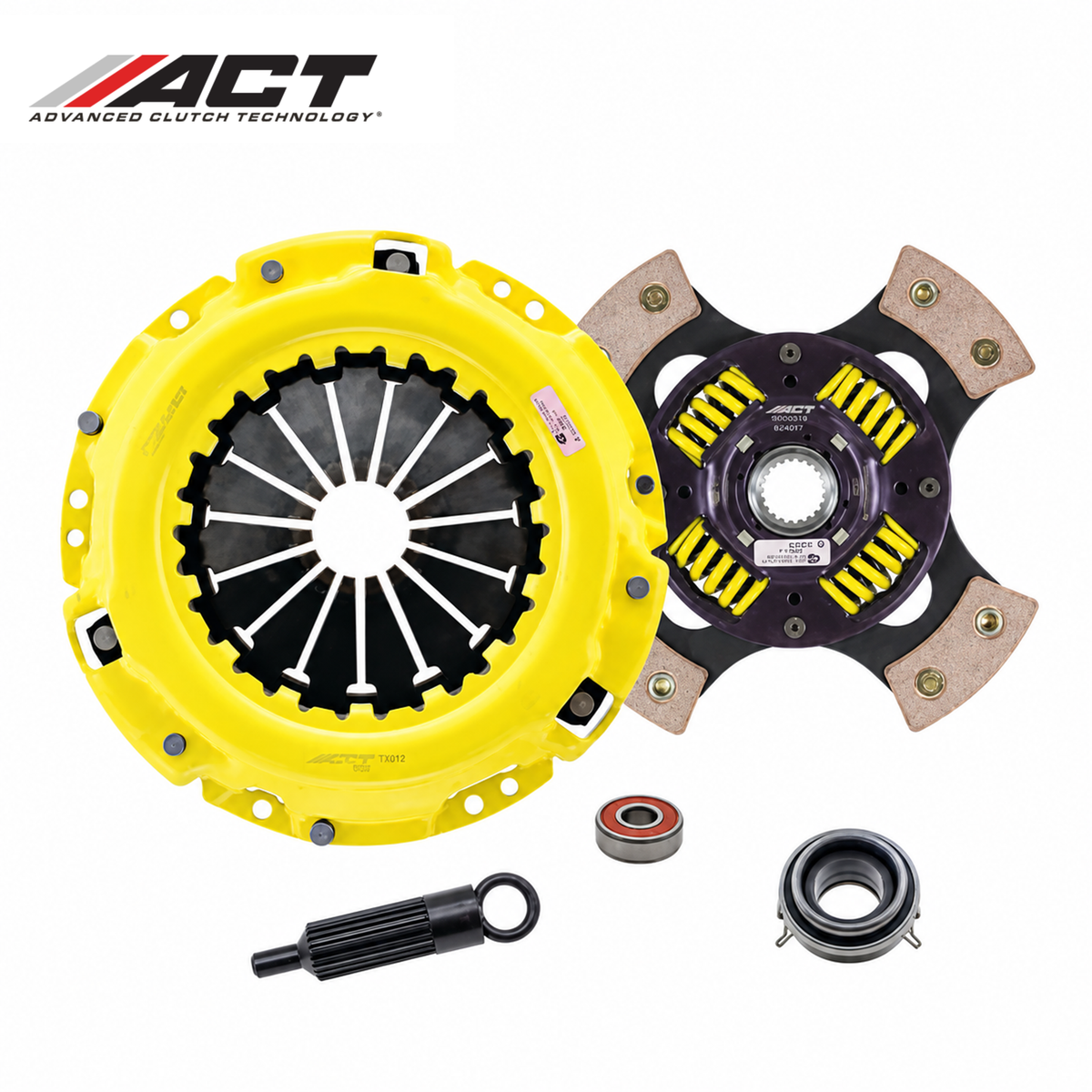

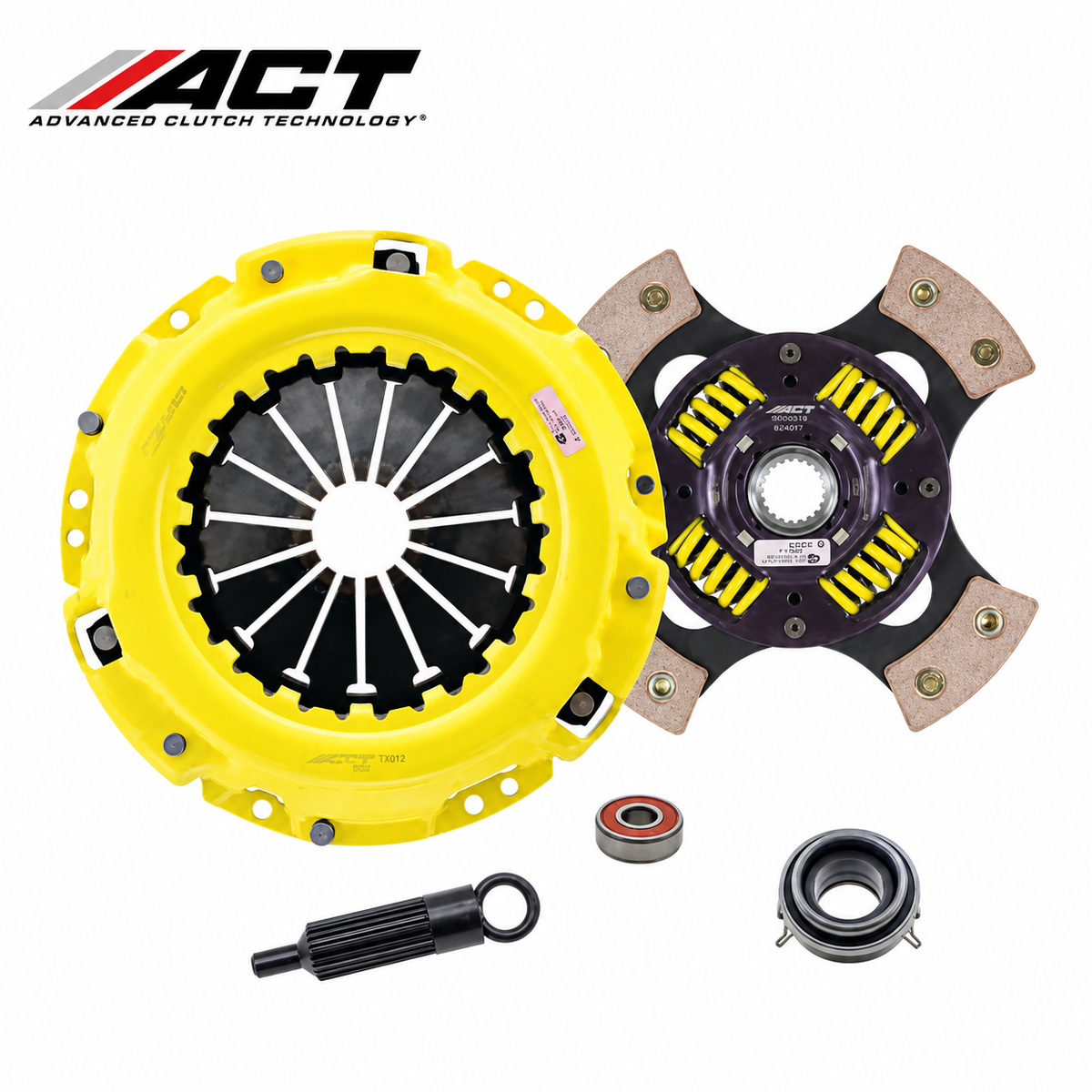

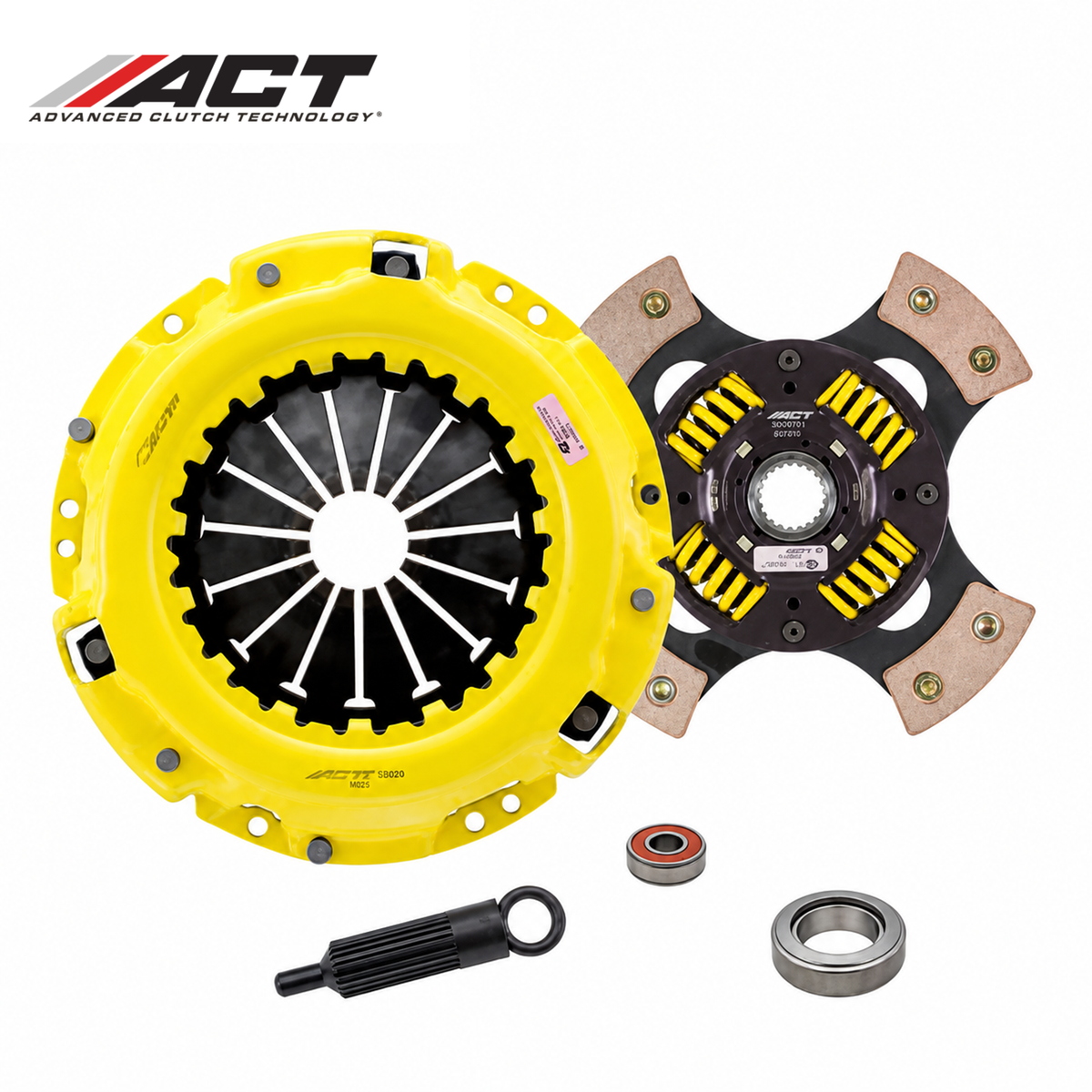

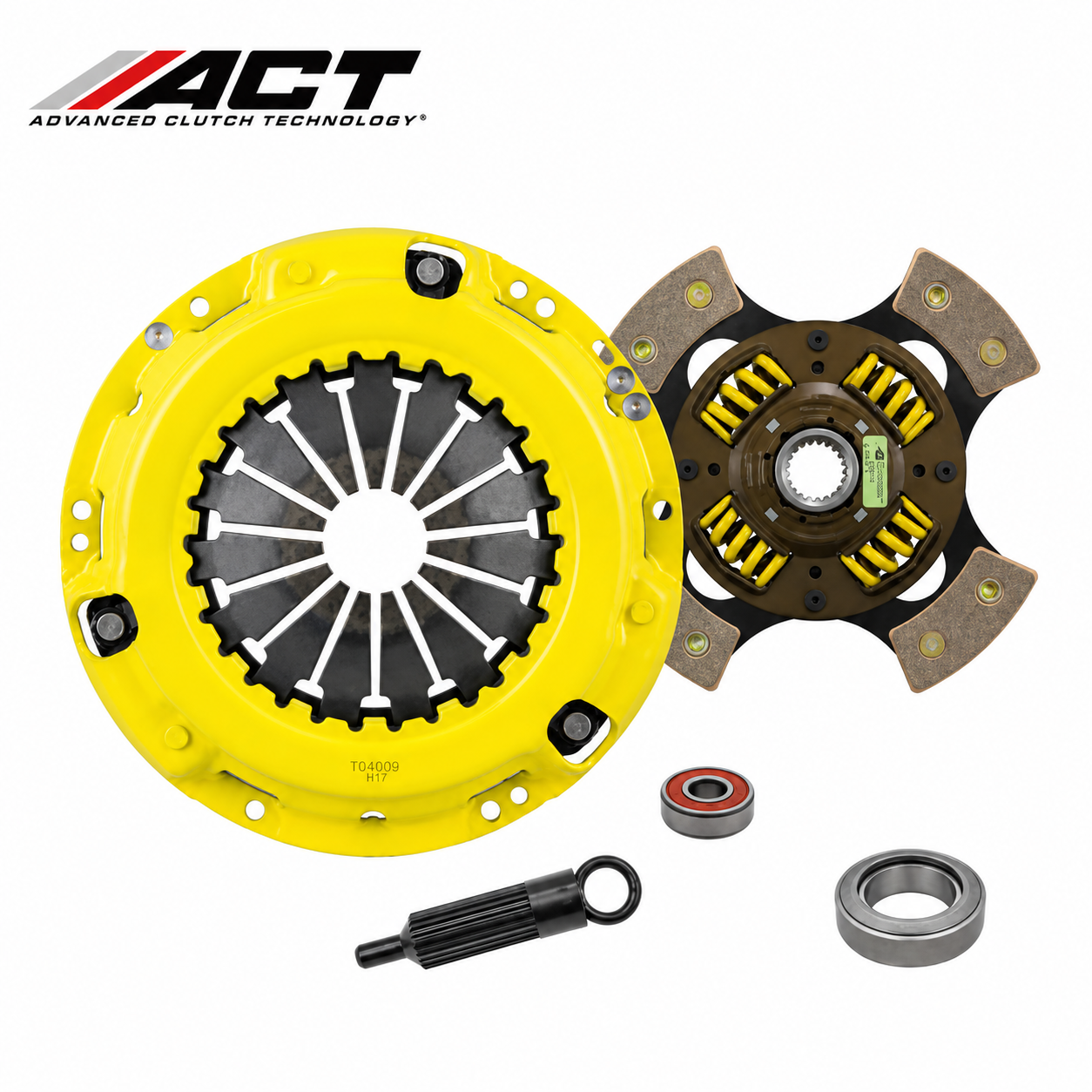

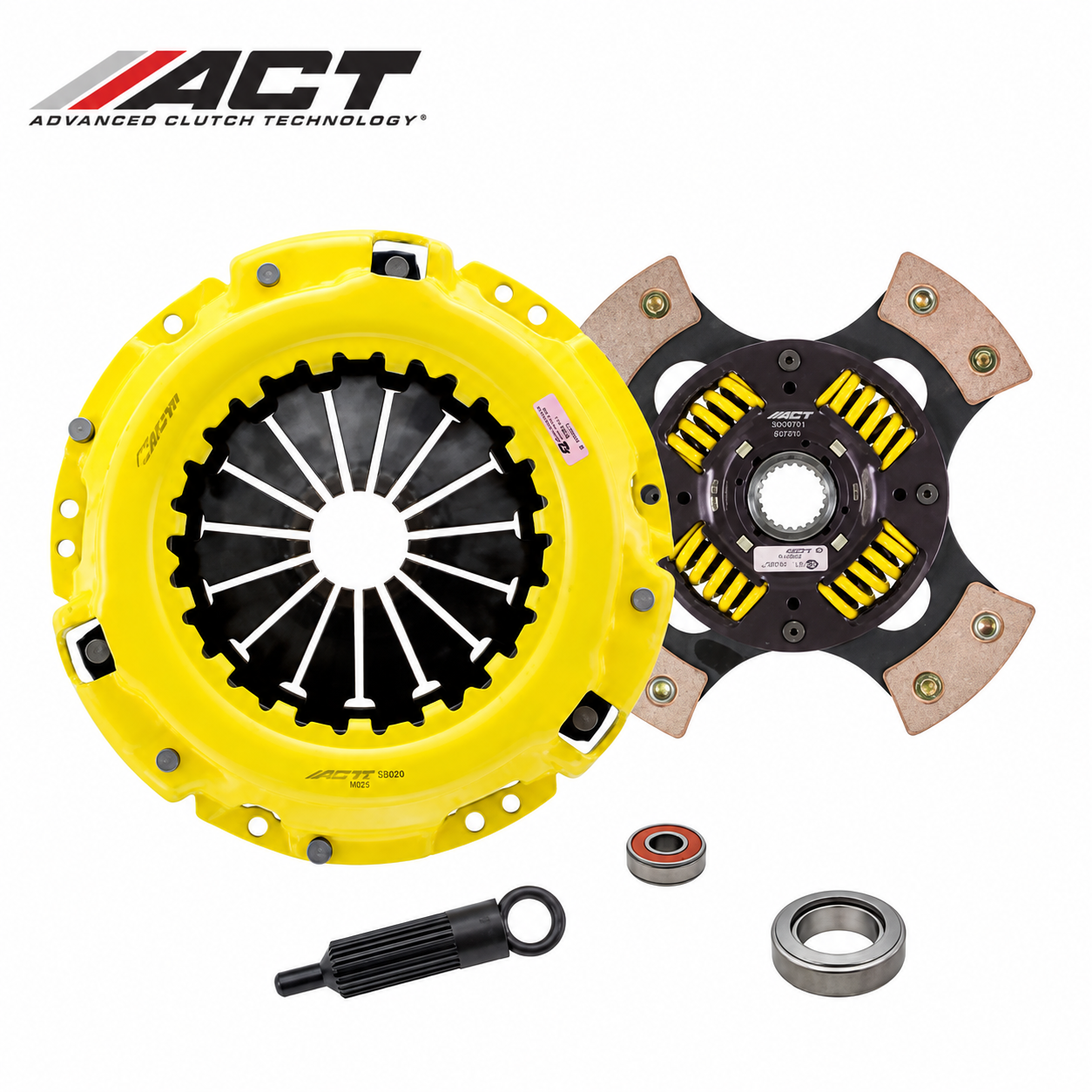

Each configuration includes:

• (1) ACT Heavy Duty Pressure Plate
• (1) ACT Sprung 4-Pad Ceramic Race Clutch Disc
• (1) Release Bearing
• (1) Pilot Bearing
• (1) Clutch Alignment Tool

Flywheel is not included. Torque ratings are measured at the engine, not the wheels.
