ACT HDSS Performance Street Clutch Kit | 4-Cylinder (1979-88 Pickup)

ACT HDSS Heavy Duty Performance Street Clutch Kit

For 1979–1988 Toyota Pickup 4-Cylinder Manual Transmission Models

Overview

The ACT HDSS Heavy Duty Performance Street Clutch Kit is a performance clutch upgrade for 1979–1988 Toyota Pickup models equipped with a 20R, 22R, 22RE, or 22R-TE 4-cylinder engine and manual transmission.

The HDSS combines ACT's Heavy Duty pressure plate with a sprung organic Performance Street clutch disc, increasing clutch holding capacity while maintaining smooth, progressive engagement suitable for street-driven and off-road Toyota trucks. Depending on the application, torque capacity is 275 or 285 lb-ft at the engine.

Three configurations cover this year range. Non-turbo 20R, 22R, and 22RE trucks share one configuration, while turbocharged 22R-TE models use a larger clutch with an important production-date change during the 1987 model year.

Key Features

• ACT Heavy Duty diaphragm-style pressure plate

• Sprung Performance Street organic clutch disc

• 275 or 285 lb-ft engine torque capacity, depending on application

• 224 mm or 236 mm clutch disc, depending on engine

• 1-1/8-inch, 21-spline transmission input configuration

• Light-to-moderate pedal effort

• Smooth, positive street-oriented engagement

• Steel-backed organic friction material

• Designed for street and off-road use

• Dynamically computer-balanced clutch assembly

HDSS Performance Street Design

The HDSS is designed for Toyota Pickup owners who need increased clutch capacity without the abrupt engagement associated with a puck-style race disc.

The Heavy Duty pressure plate increases clamp load, while the sprung organic disc provides progressive engagement and helps absorb drivetrain shock. This makes the HDSS well suited to daily drivers, restorations, trail trucks, off-road builds, and mildly modified engines.

Vehicle Fitment

Toyota Pickup – 1st Gen

• 1979–1980 Toyota Pickup – 1st Gen – 2.2L 20R – 2WD & 4WD – Manual Transmission

• 1981–1983 Toyota Pickup – 1st Gen – 2.4L 22R – Non-Turbo – 2WD & 4WD – Manual Transmission

Toyota Pickup – 2nd Gen

• 1984–1988 Toyota Pickup – 2nd Gen – 2.4L 22R / 22RE – Non-Turbo – 2WD & 4WD – Manual Transmission

• 1985–05/1987 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – 2WD & 4WD – Manual Transmission

• 06/1987–1988 Toyota Pickup – 2nd Gen – 2.4L 22R-TE Turbo – 2WD & 4WD – Manual Transmission

Fitment Notes

• Manual transmission models only

• 4-cylinder applications only

• Non-turbo 20R, 22R, and 22RE applications use the 224 mm clutch configuration.

• 22R-TE turbo applications use the larger 236 mm clutch configuration.

• Both turbo configurations cover 2WD and 4WD applications.

• 1985–05/1987 and 06/1987–1988 22R-TE trucks use different clutch kits.

• Verify the vehicle production date before ordering for a 1987 22R-TE truck.

• Organic Performance Street discs require approximately 300–500 miles of mild engagement break-in before racing or spirited driving.

Product Specifications

Brand: ACT – Advanced Clutch Technology
Series: HDSS
Product Type: Heavy Duty Performance Street Clutch Kit
Pressure Plate: Heavy Duty Diaphragm
Clutch Disc: Sprung Performance Street Disc
Disc Material: Organic
Disc Diameter: 224 mm or 236 mm depending on application
Torque Capacity: 275 or 285 lb-ft at the engine depending on application
Input Shaft Diameter: 1-1/8 in.
Input Spline Count: 21
Pedal Feel: Light to Moderate
Engagement: Smooth, Positive
Warranty: 12 Months

Available Configurations

1979–1988 – 20R / 22R / 22RE – 2WD & 4WD

• 224 mm clutch configuration

• 275 lb-ft engine torque capacity

1985–05/1987 – 22R-TE Turbo – 2WD & 4WD

• 236 mm clutch configuration

• 285 lb-ft engine torque capacity

06/1987–1988 – 22R-TE Turbo – 2WD & 4WD

• 236 mm clutch configuration

• 285 lb-ft engine torque capacity

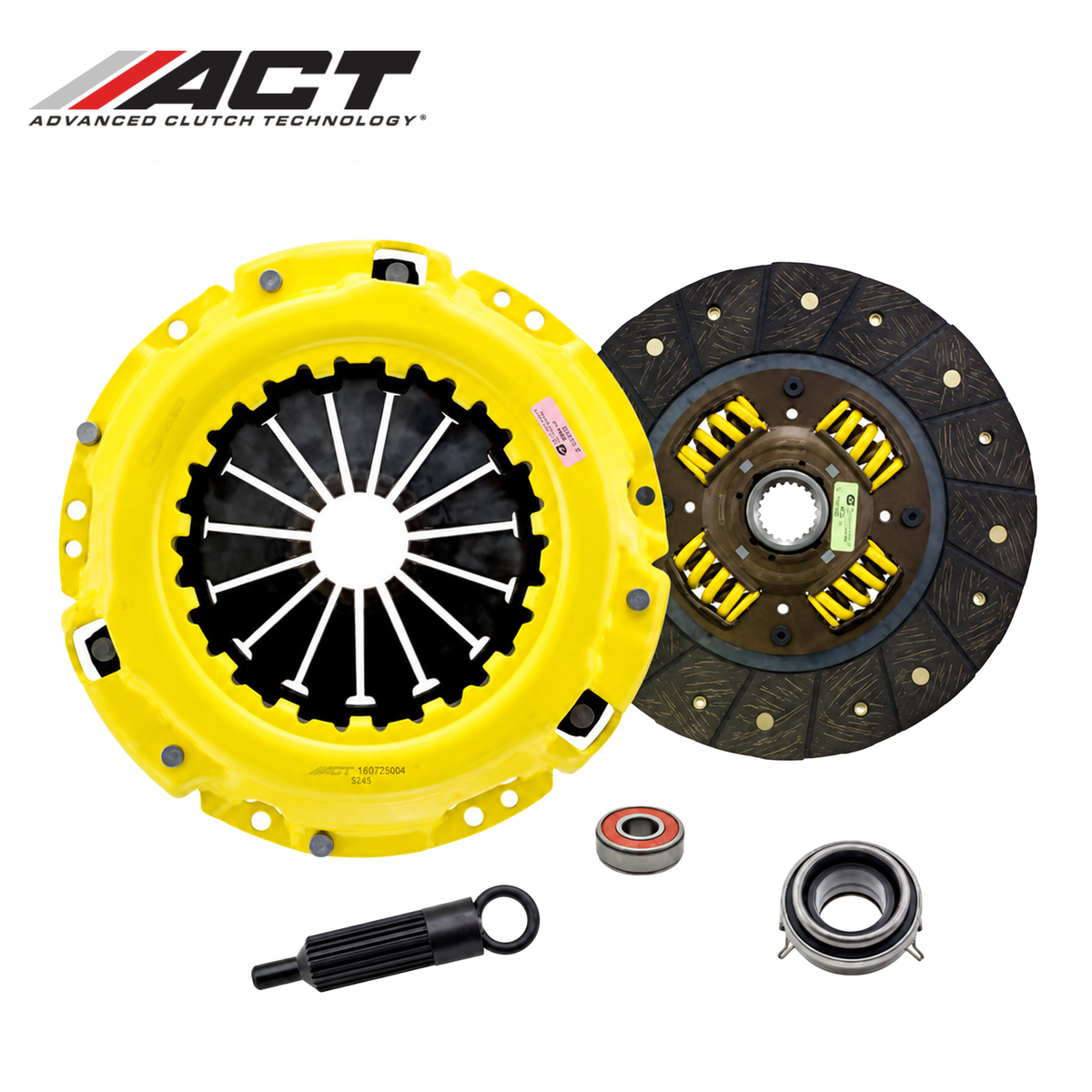

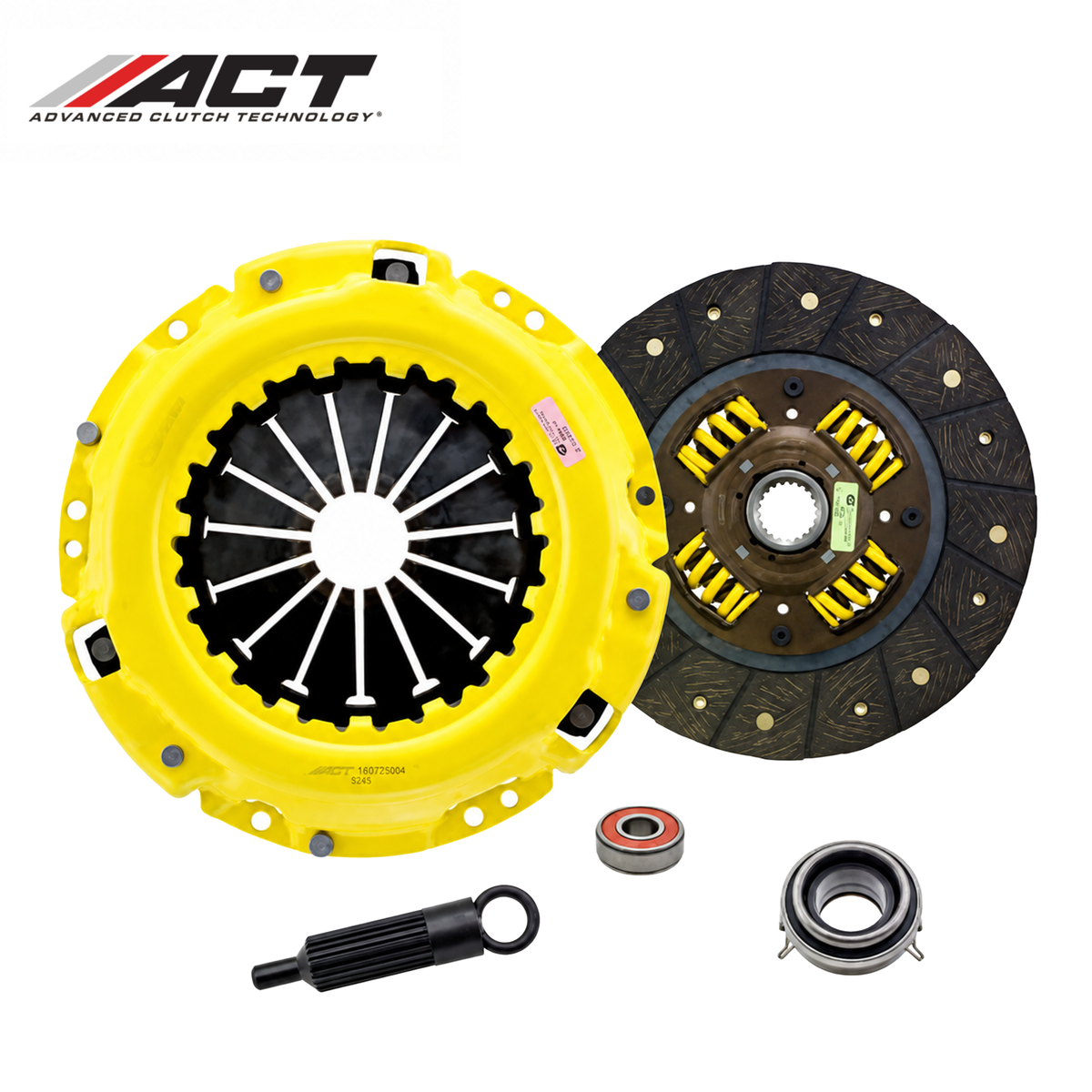

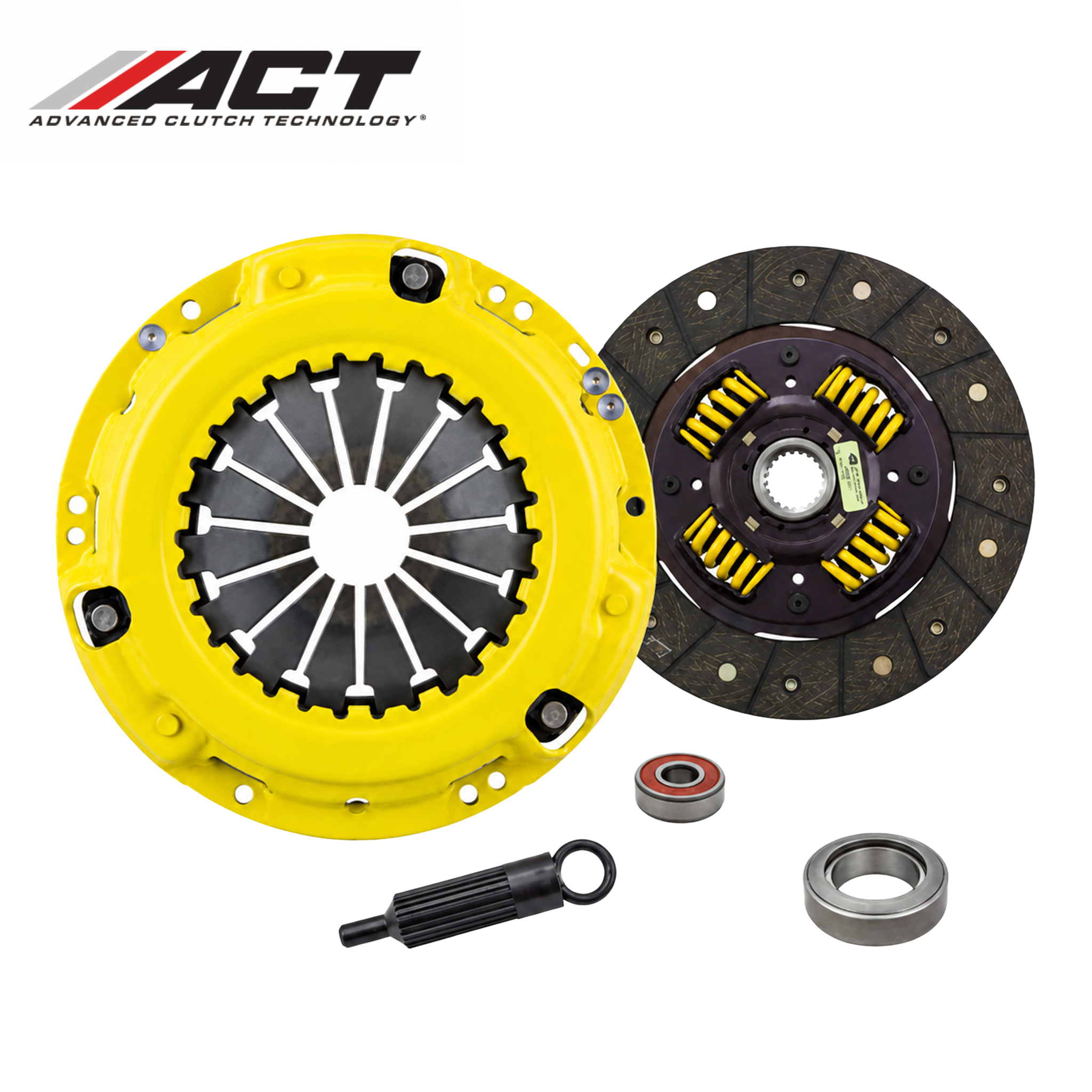

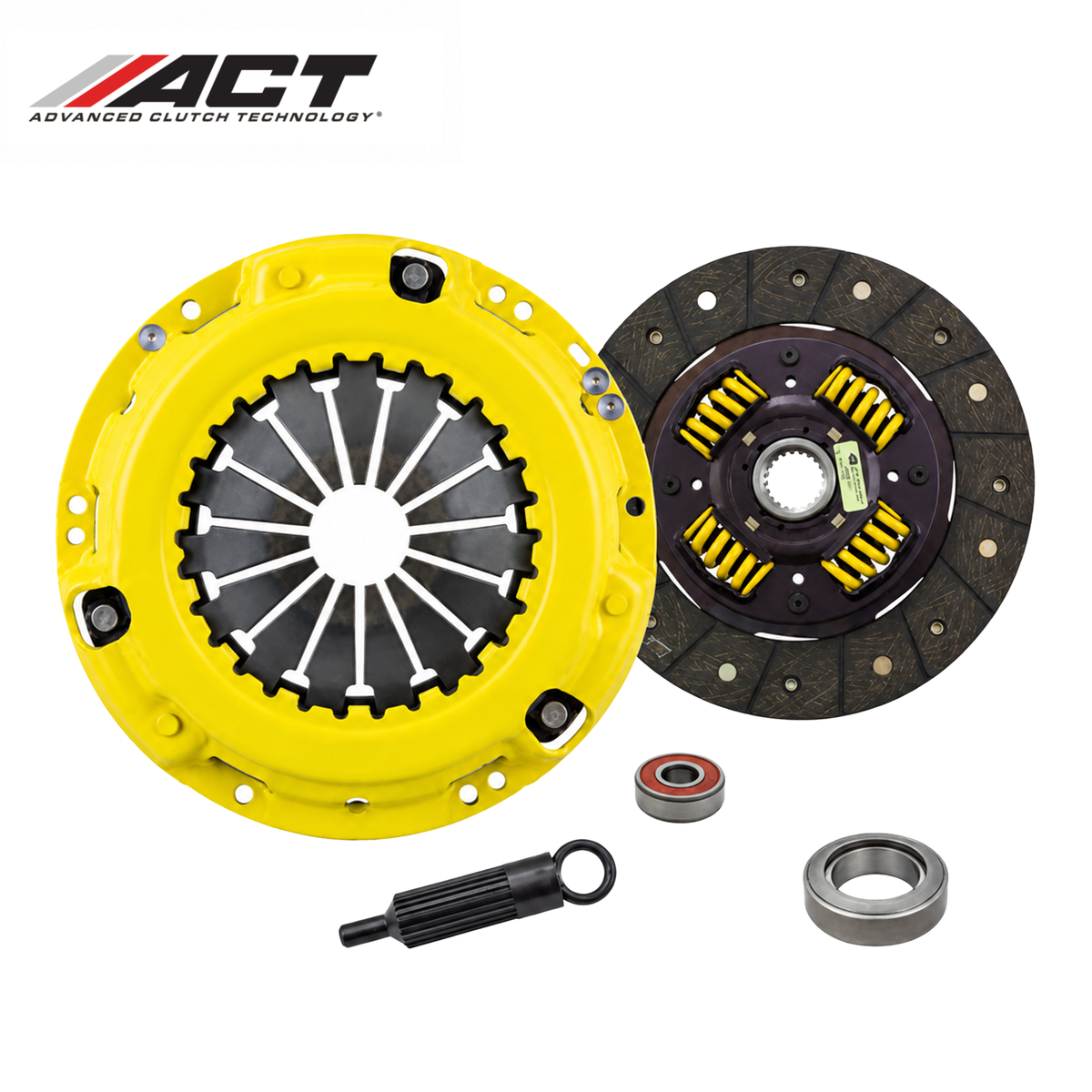

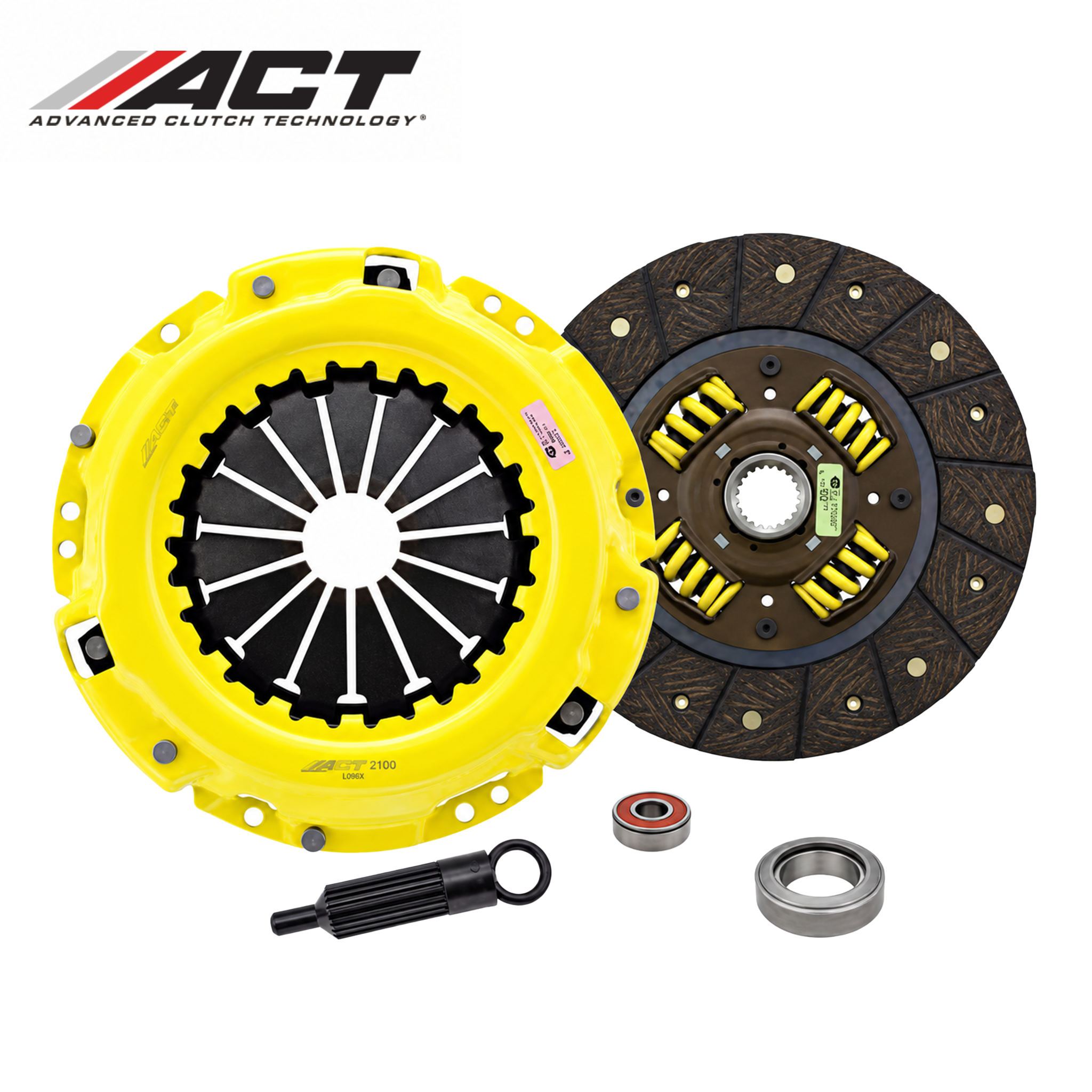

Each configuration includes:

• (1) ACT Heavy Duty Pressure Plate

• (1) ACT Performance Street Sprung Organic Clutch Disc

• (1) Release Bearing

• (1) Pilot Bearing

• (1) Clutch Alignment Tool

Flywheel is not included.
