ACT HDSS Performance Street Clutch Kit | 4-Cylinder (1989-95 Pickup)

ACT HDSS Heavy Duty Performance Street Clutch Kit

For 1989–1995 Toyota Pickup 4-Cylinder Manual Transmission Models

Overview

The ACT HDSS Heavy Duty Performance Street Clutch Kit is a performance clutch upgrade for 1989–1995 3rd Gen Toyota Pickup models equipped with the 2.4L 22R or 22RE 4-cylinder engine and a manual transmission.

The HDSS combines a Heavy Duty pressure plate with a sprung organic Performance Street clutch disc to provide increased holding capacity while retaining smooth, progressive engagement and manageable pedal effort. Depending on the application, the clutch provides 275 or 285 lb-ft of engine torque capacity.

Three vehicle applications are available to make selecting the correct clutch straightforward. The 1989–1992 trucks share one configuration across 2WD and 4WD, while the 1993–1995 applications are separated between 2WD and 4WD.

Key Features

• Heavy Duty diaphragm-style pressure plate

• Sprung Performance Street organic clutch disc

• 275 or 285 lb-ft engine torque capacity, depending on application

• 224 mm or 236 mm clutch disc, depending on year and drivetrain

• 1-1/8-inch, 21-spline transmission input configuration

• Light-to-moderate pedal effort

• Smooth, positive street-oriented engagement

• Steel-backed organic friction material

• Increased holding capacity over an OE-style clutch

• Dynamically computer-balanced clutch assembly

HDSS Performance Street Design

The HDSS is designed for Toyota Pickup owners who need greater clutch holding capacity without moving to the more abrupt engagement characteristics of a puck-style race clutch.

The Heavy Duty pressure plate increases clamp load, while the sprung organic disc maintains progressive engagement and helps absorb drivetrain shock. This makes the HDSS well suited to daily-driven trucks, restorations, off-road builds, and mildly modified 22R and 22RE engines.

Vehicle Fitment

Toyota Pickup – 3rd Gen

• 1989–1992 Toyota Pickup – 3rd Gen – 2.4L 22R / 22RE – 2WD & 4WD – Manual Transmission

• 1993–1995 Toyota Pickup – 3rd Gen – 2.4L 22R / 22RE – 2WD – Manual Transmission

• 1993–1995 Toyota Pickup – 3rd Gen – 2.4L 22RE – 4WD – Manual Transmission

Fitment Notes

• Manual transmission models only

• 4-cylinder applications only

• Does not fit 3.0L 3VZ-E V6 models

• 1989–1992 2WD and 4WD applications use the 224 mm clutch configuration.

• 1993–1995 2WD applications use the 224 mm clutch configuration.

• 1993–1995 22RE 4WD models use the larger 236 mm clutch configuration.

• Select the configuration that matches the truck's year and drivetrain.

• Organic Performance Street clutch discs require approximately 300–500 miles of mild engagement break-in before racing, spirited driving, or repeated high-load operation.

Product Specifications

Brand: ACT – Advanced Clutch Technology
Series: HDSS
Product Type: Heavy Duty Performance Street Clutch Kit
Pressure Plate: Heavy Duty Diaphragm
Clutch Disc: Sprung Performance Street Disc
Disc Material: Organic Friction Material
Disc Diameter: 224 mm or 236 mm depending on application
Torque Capacity: 275 or 285 lb-ft at the engine depending on application
Input Shaft Diameter: 1-1/8 in.
Input Spline Count: 21
Pedal Feel: Light to Moderate
Engagement: Smooth, Positive
Warranty: 12 Months

Available Configurations

1989–1992 – 22R / 22RE – 2WD & 4WD

• 224 mm clutch configuration

• 275 lb-ft engine torque capacity

1993–1995 – 22R / 22RE – 2WD

• 224 mm clutch configuration

• 275 lb-ft engine torque capacity

1993–1995 – 22RE – 4WD

• 236 mm clutch configuration

• 285 lb-ft engine torque capacity

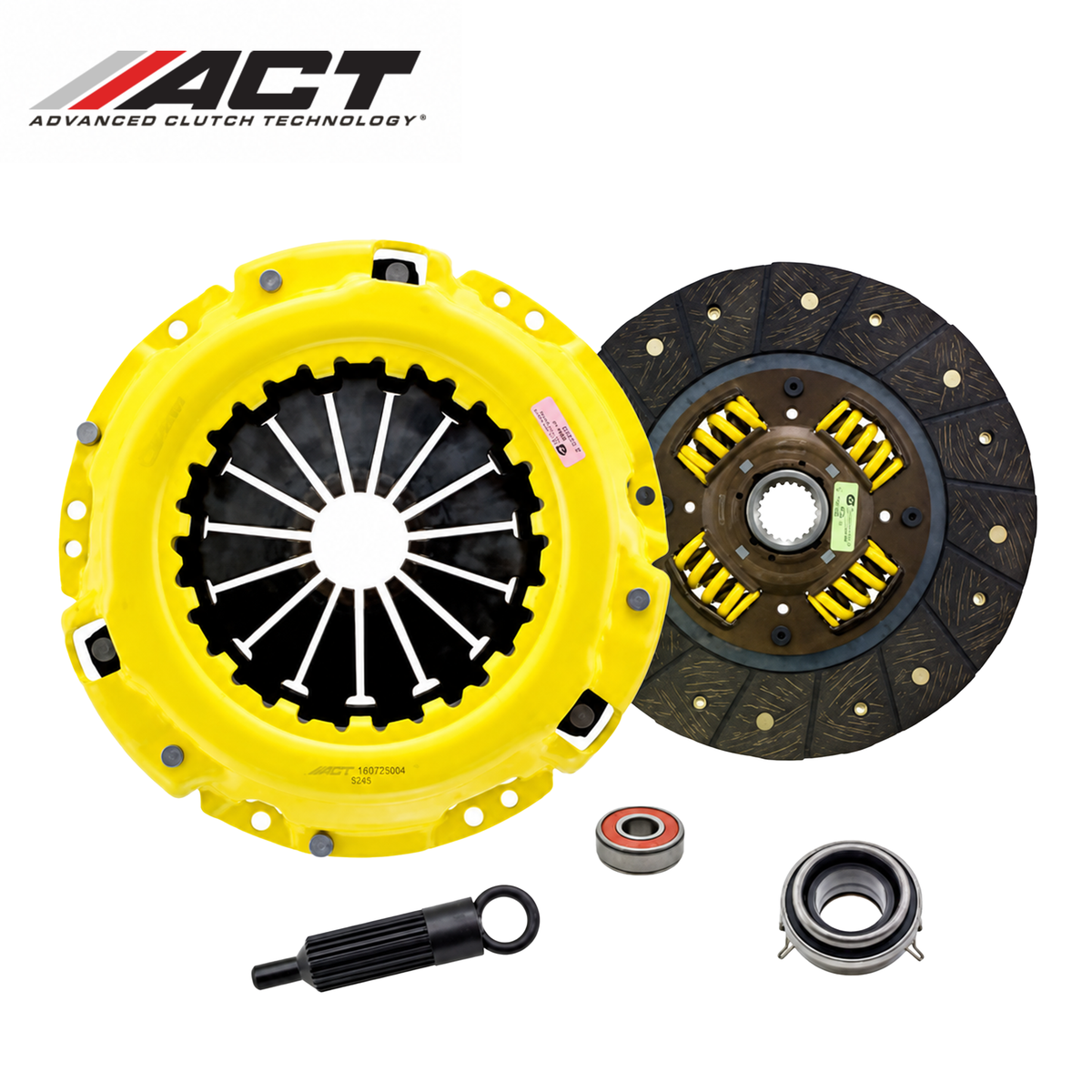

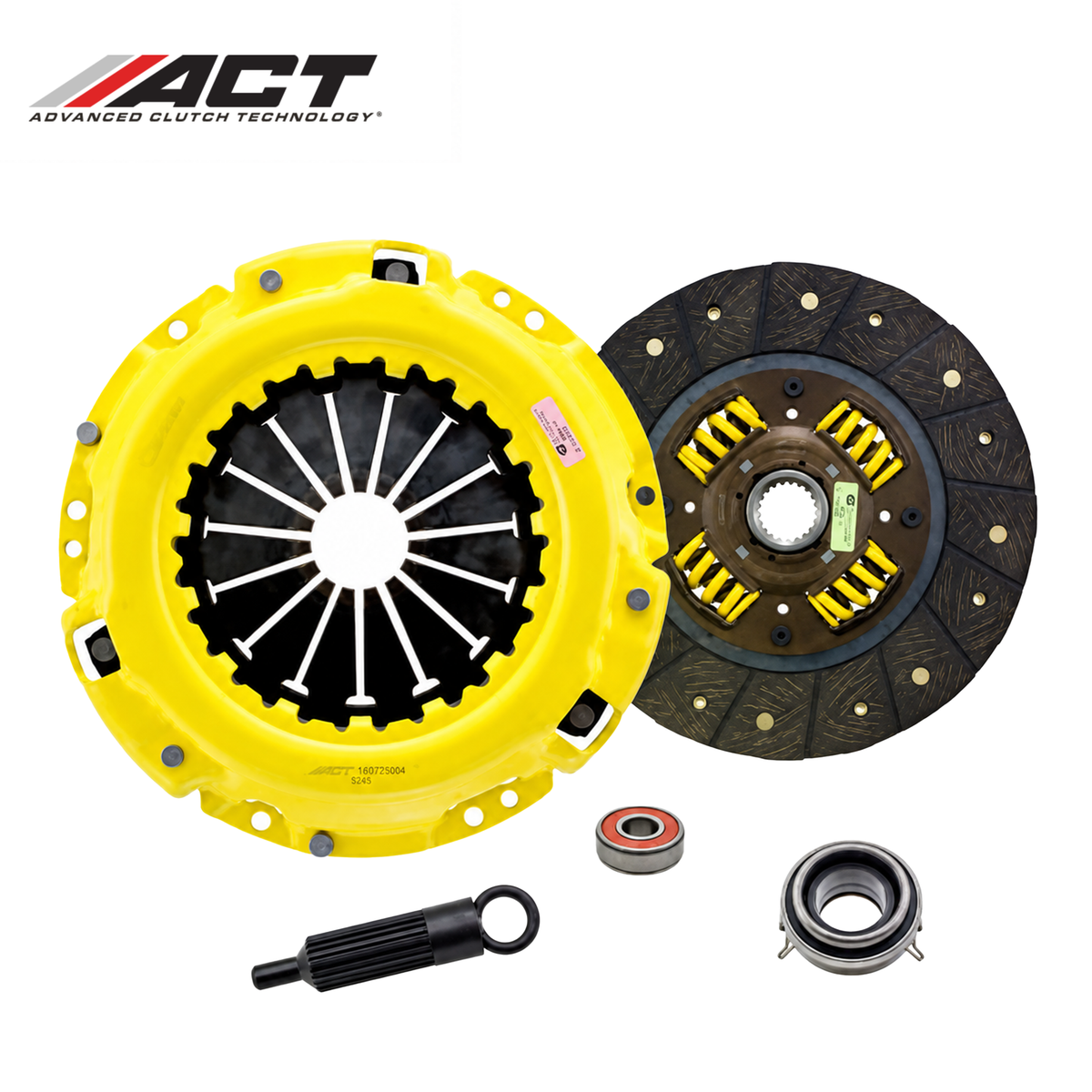

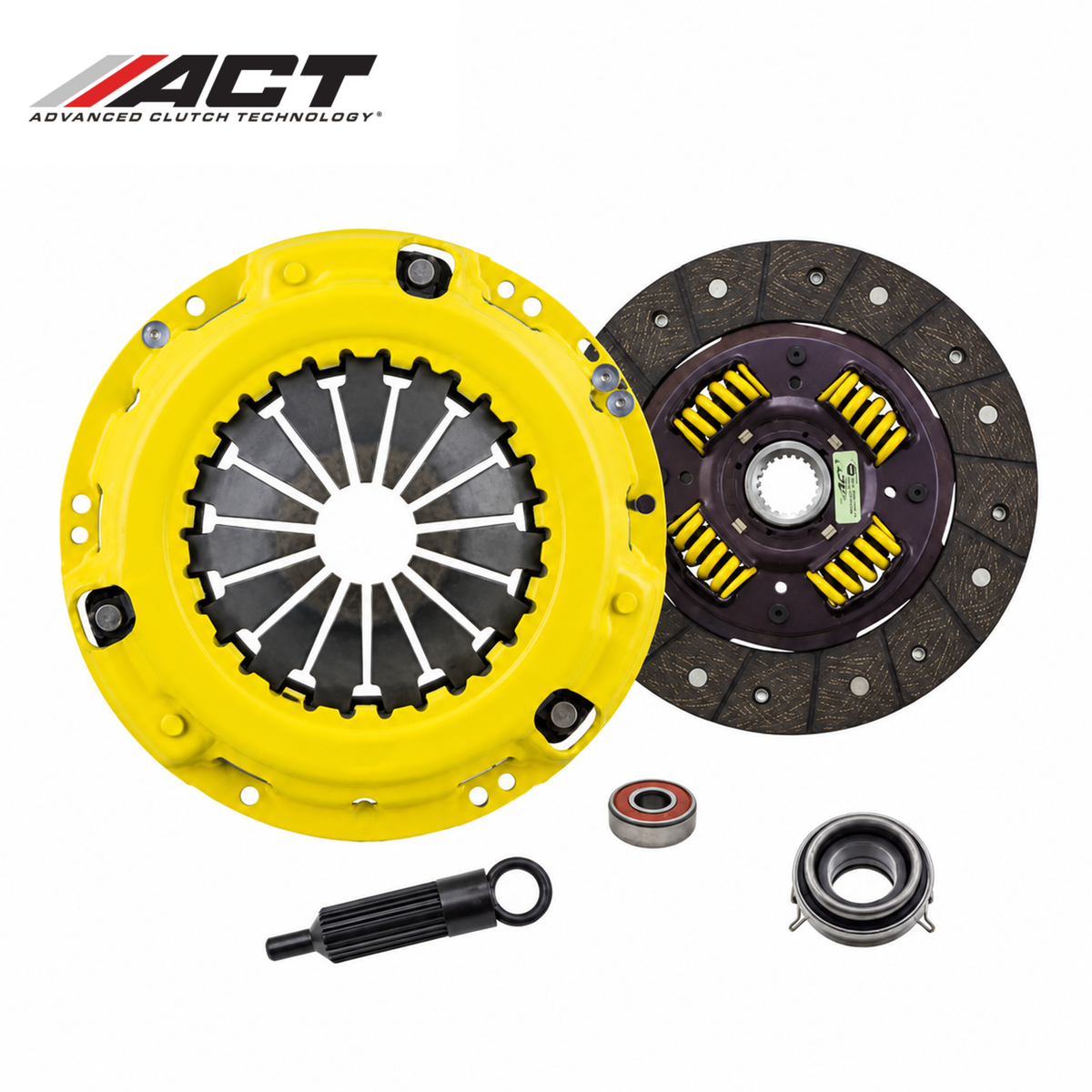

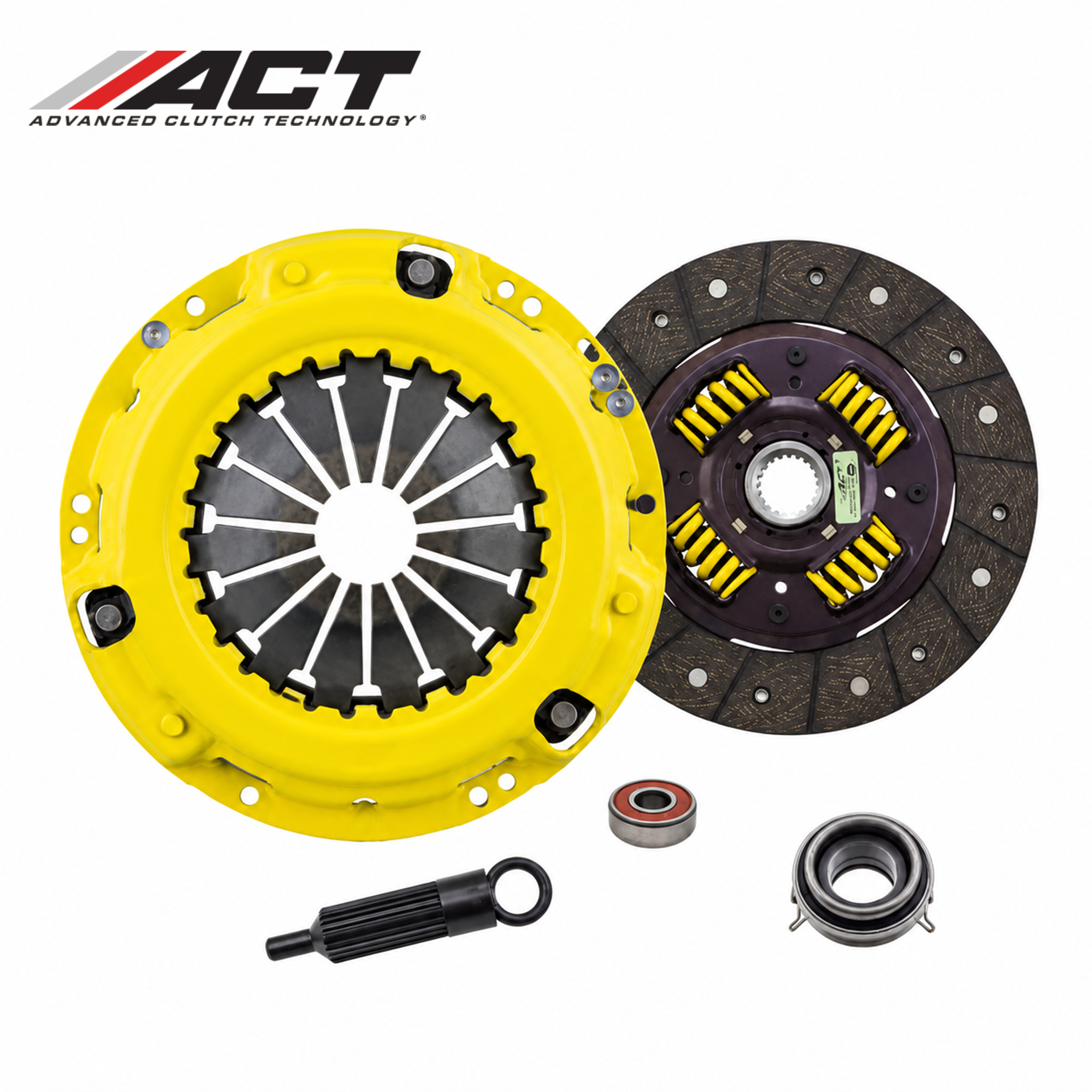

Each configuration includes:

• (1) ACT Heavy Duty Pressure Plate

• (1) ACT Performance Street Sprung Organic Clutch Disc

• (1) Release Bearing

• (1) Pilot Bearing

• (1) Clutch Alignment Tool

Flywheel is not included.
