Trail-Gear Super Metal Knuckle Stud Kit | Solid Axle (1984-95 4Runner / 1979-95 Pickup)

Trail-Gear Super Metal Knuckle Stud Kit | Solid Axle

For 1984–1995 Toyota 4Runner and 1979–1995 Toyota Pickup 4WD using 1979–1985 Toyota-style solid front axle knuckles

Overview

The Trail-Gear Super Metal Knuckle Stud Kit replaces the steering-knuckle studs and related hardware used on Toyota-style solid front axle knuckles and Trail-Gear Six Shooter knuckles. It fits factory solid-axle applications as well as later 4Runner and Pickup solid-axle conversions that use the same 1979–1985 Toyota-style front knuckle.

The Super Metal studs are 1/4 inch longer than stock Toyota knuckle studs to provide additional thread engagement with aftermarket steering arms. They use Trail-Gear's proprietary metal construction, exceed Class 12.9 strength standards, feature a zinc-plated finish, and include an integrated 8 mm hex for easier installation and removal.

Key Features

• Fits 1979–1985 Toyota-style solid front axle knuckles
• Supports factory-style knuckles and Trail-Gear Six Shooter / 6-stud knuckles
• 1/4 inch longer than stock to accommodate aftermarket steering arms
• Proprietary metal stud construction
• Strength exceeds Class 12.9 standards
• Zinc-plated finish
• Integrated 8 mm hex head for easier removal
• Includes studs, nuts, wave washers, and cone washers

Vehicle Fitment

Toyota 4Runner

• 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Factory Solid Front Axle
• 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Toyota-Style Solid Axle Conversion using 1979–1985-style knuckles
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion using 1979–1985-style knuckles

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Factory Solid Front Axle
• 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Factory Solid Front Axle
• 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion using 1979–1985-style knuckles
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Toyota-Style Solid Axle Conversion using 1979–1985-style knuckles

Fitment Notes

• Fits 1979–1985 Toyota-style front solid axle knuckles.
• Later 4Runner and Pickup model years require a solid axle conversion using the applicable Toyota-style knuckle.
• Does not fit factory IFS front knuckles.
• Six Shooter / 6-stud knuckles are supported but are not required.
• Apply threadlocker to the lower stud threads during installation.
• Tighten the knuckle studs to 40 ft-lb.
• Tighten the stud nuts to 75–80 ft-lb.

Product Specifications

Brand: Trail-Gear
Product Type: Steering Knuckle Stud Hardware Kit
Position: Front
Axle Type: Toyota-Style Solid Front Axle
Knuckle Type: 1979–1985 Toyota-Style Solid-Axle Knuckle / Trail-Gear Six Shooter Knuckle
Stud Length: 1/4 in Longer Than Stock
Stud Head: Integrated 8 mm Hex
Material: Proprietary Metal
Finish: Zinc-Plated
Strength: Exceeds Class 12.9 Standards
Warranty: 12-Month Limited Warranty

Related Solid-Axle Steering Parts

• Trail-Gear Fully Loaded Six Shooter Knuckle Kit – matching 6-stud knuckle option for Toyota-style solid front axle builds.
• Trail-Gear 4-Stud High Steer Kit – high-steer system for factory-style four-stud Toyota steering knuckles.
• Trail-Gear 6-Stud High Steer Kit – high-steer system for Trail-Gear Six Shooter / 6-stud knuckles.

Available Configurations

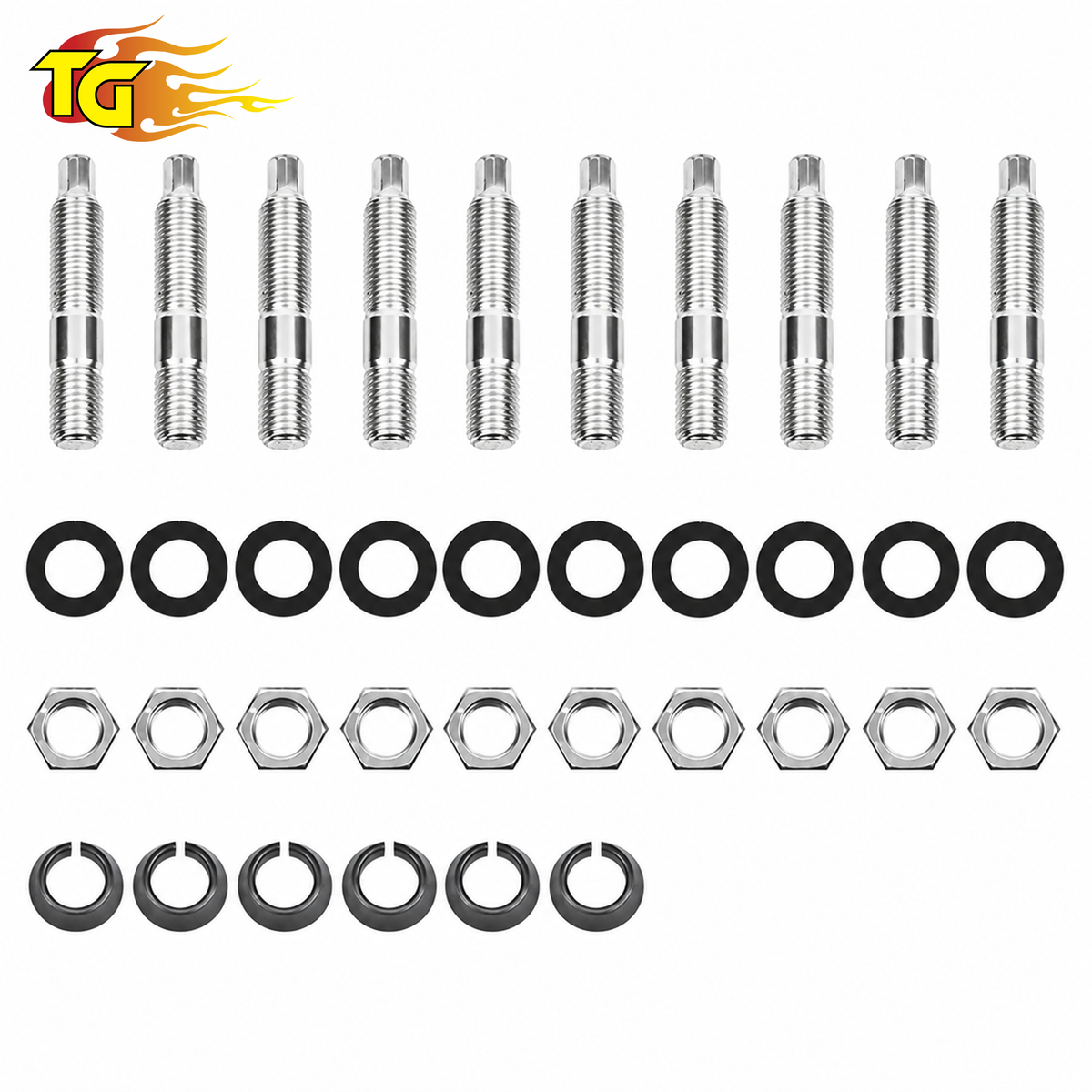

Single Knuckle Kit

• (10) Super Metal knuckle studs
• (10) Knuckle nuts
• (10) Knuckle wave washers
• (6) Knuckle cone washers
• Services one front steering knuckle

Pair – Both Front Knuckles

• (2) Complete Single Knuckle Kits
• Services both front steering knuckles
