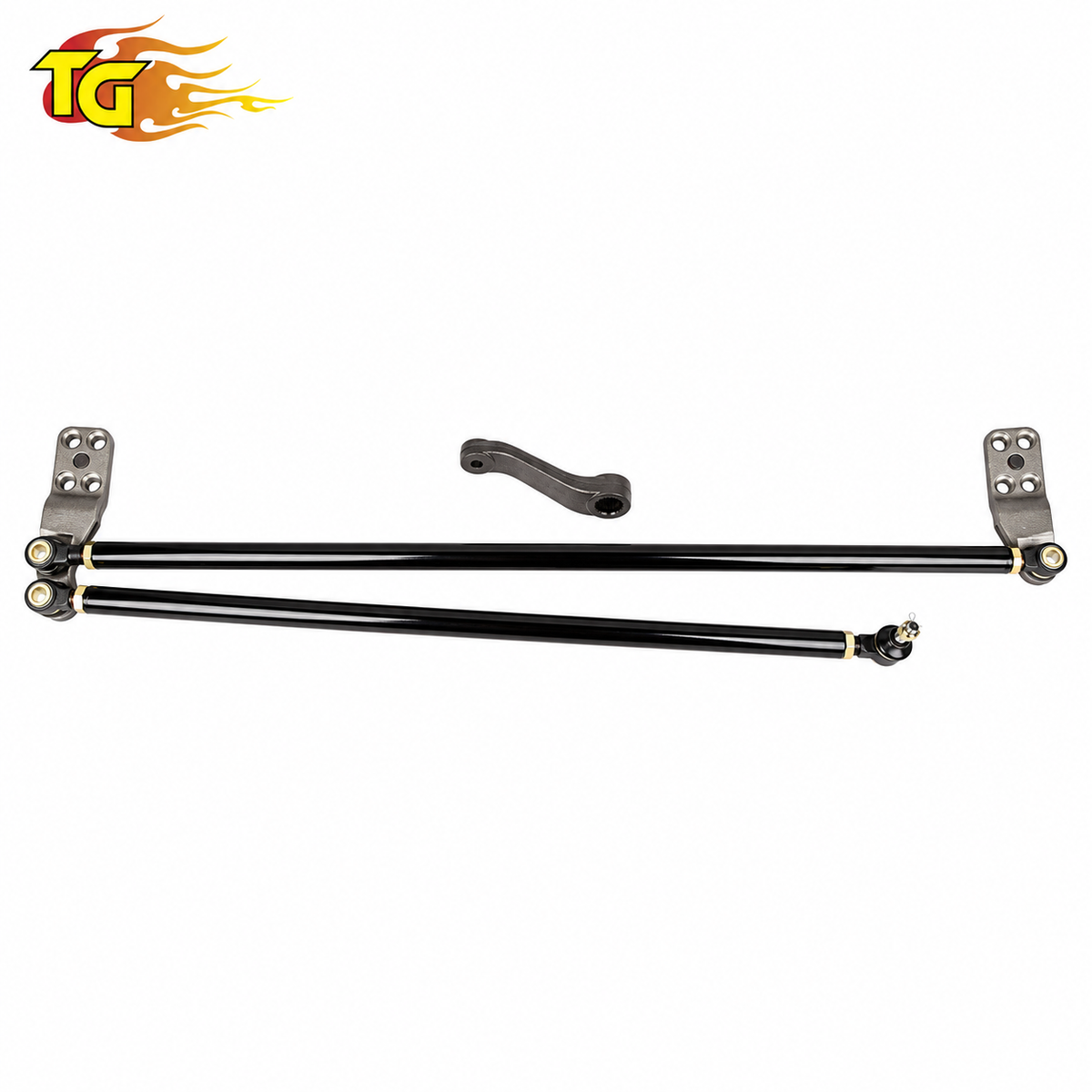

Trail-Gear 6-Stud High Steer Crossover Kit
For 1979–1995 Toyota Pickup & 1985–1995 Toyota 4Runner with Toyota-Style Solid Front Axle and 6-Stud Knuckles
Overview
The Trail-Gear 6-Stud High Steer Crossover Kit provides a heavy-duty crossover steering system for Toyota solid-front-axle builds equipped with Six Shooter-style 6-stud knuckles.
The system uses forged 8620 tool-steel steering arms, heavy-duty .250-inch-wall steering rods, FJ80-style tie rod ends, and a heavy-duty pitman arm. The six-stud mounting pattern adds two steering-arm mounting points per knuckle compared with the factory-style four-stud arrangement.
Configurations are available for Toyota OEM-width, Rock Assault IFS-width (+3"), and Rock Assault Tacoma-width (+5") axle housings, along with left- or right-hand-drive steering and drop or flat pitman arm setups.
Key Features
- 6-stud steering-arm configuration
- Designed for Six Shooter-style 6-stud knuckles
- Forged 8620 tool-steel steering arms
- Heavy-duty .250-inch-wall steering rods
- FJ80-style tie rod ends
- Drop and flat pitman arm configurations
- Left-hand-drive and right-hand-drive configurations
- OEM-width, Rock Assault +3-inch, and Rock Assault +5-inch axle options
- Minimum 3 inches of lift required
- Heavy-duty crossover steering layout for off-road use
Six-Stud Steering Arm Design
The six-stud configuration is designed to work with matching six-stud steering knuckles. The Six Shooter-style knuckle design adds two steering-arm mounting studs per side compared with the factory four-stud layout.
Six-stud knuckles are required and are not included with the high-steer kit.
Axle & Steering Configuration
- Toyota OEM Width – For standard Toyota solid-front-axle width.
- Rock Assault IFS Width (+3") – Uses steering linkage sized for the wider Rock Assault IFS-width housing.
- Rock Assault Tacoma Width (+5") – For Pickup or 4Runner builds using the wider Tacoma-width Rock Assault front housing. “Tacoma Width” refers to axle housing width, not the vehicle model.
Select Left-Hand Drive or Right-Hand Drive according to steering-wheel position. Flat pitman arm configurations require additional steering-box clearance and mounting work compared with drop pitman arm setups.
Vehicle Fitment
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – 4WD – Factory Solid Front Axle
- 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Factory Solid Front Axle
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Toyota-Style Solid Axle Conversion
Toyota 4Runner
- 1985 Toyota 4Runner – 1st Gen – 4WD – Factory Solid Front Axle
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Toyota-Style Solid Axle Conversion
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion
Fitment Notes
- Requires matching 6-stud / Six Shooter-style steering knuckles
- Six-stud knuckles are sold separately
- Toyota-style solid front axle only
- Does not fit factory IFS front suspension
- 1986–1995 Pickup and 1986–1995 4Runner applications require an appropriate solid axle conversion
- Minimum 3 inches of lift required
- Requires a Toyota IFS steering box
- Select the axle width that matches the installed front axle housing
- Select LHD or RHD according to steering-wheel position
- Flat pitman arm configurations require additional steering-box clearance and custom mounting provisions
- Intended for off-road use
Product Specifications
Brand: Trail-Gear
Product Type: High Steer Crossover Kit
Position: Front
Steering Arm Configuration: 6-Stud
Knuckle Requirement: Six Shooter-Style / 6-Stud Knuckles
Steering Arm Material: Forged 8620 Tool Steel
Steering Rod Construction: .250-Inch-Wall Steel
Tie Rod Ends: FJ80 Style
Steering Position: Left-Hand Drive / Right-Hand Drive
Pitman Arm Options: Drop / Flat
Axle Width Options: OEM / +3" / +5"
Minimum Lift: 3 Inches
Required Steering Box: Toyota IFS Steering Box
Application: Toyota-Style Solid Front Axle
6-Stud vs. 4-Stud High Steer
The 6-Stud High Steer Kit is designed for Six Shooter-style 6-stud knuckles and provides the corresponding six-point steering-arm mounting pattern.
The 4-Stud High Steer Kit is the correct configuration for factory-style Toyota four-stud knuckles. The two steering-arm patterns are not interchangeable.
Available Configurations
Axle Housing
- Toyota OEM Width
- Rock Assault IFS Width (+3")
- Rock Assault Tacoma Width (+5")
Steering Position
- Left-Hand Drive
- Right-Hand Drive
Pitman Arm Style
- Drop Pitman Arm
- Flat Pitman Arm
