Trail-Gear Fully Loaded Six Shooter Knuckle Kit
For 1979–1995 Toyota Pickup & 1984–1995 Toyota 4Runner with Toyota-Style Solid Front Axle
Overview
The Trail-Gear Fully Loaded Six Shooter Knuckle Kit is a heavy-duty front steering knuckle and steering arm upgrade for Toyota-style solid front axle applications. Its six-stud steering arm design adds two mounting studs per arm compared with the factory-style four-stud arrangement, providing additional retention at the knuckle and steering arm connection.

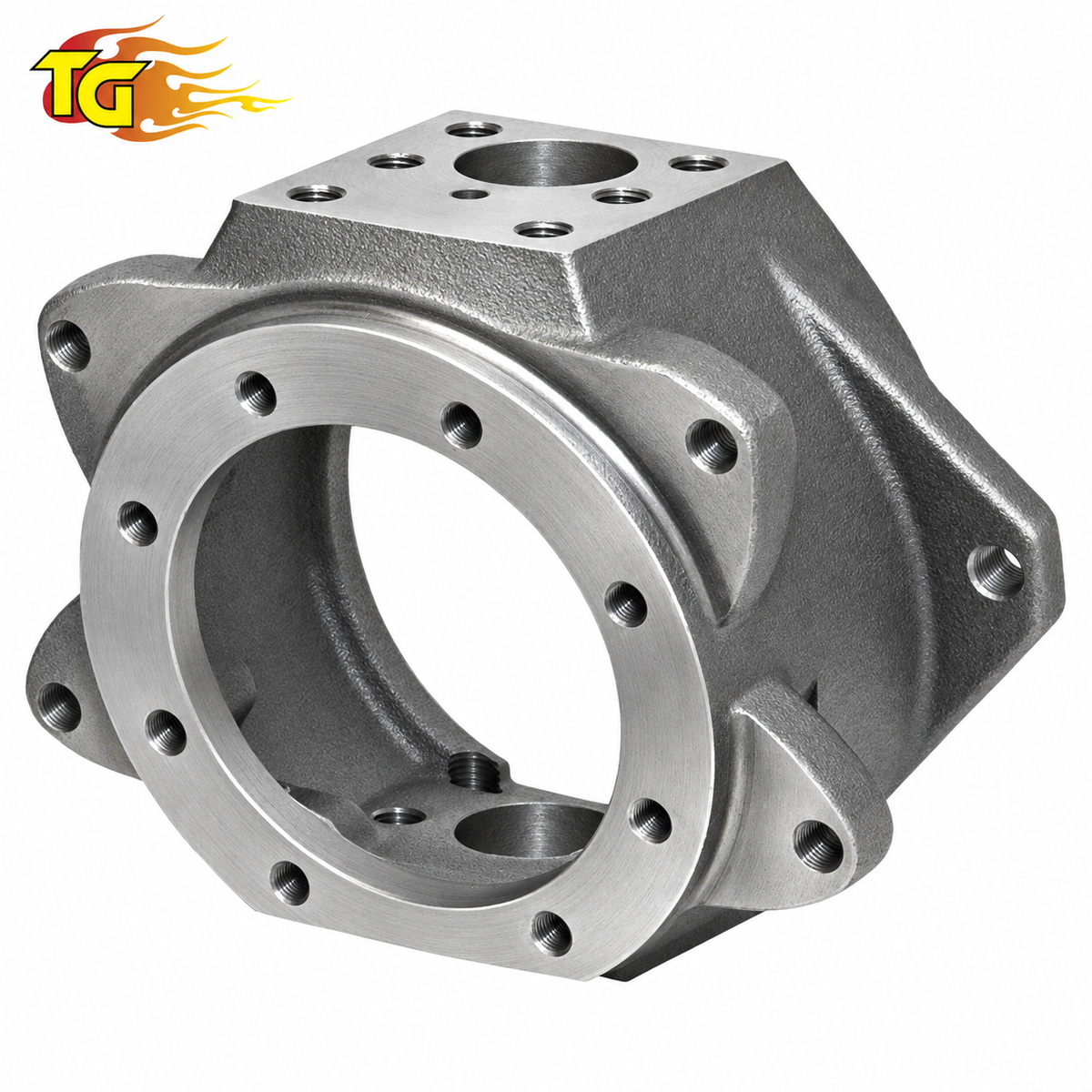

The knuckle housings use thicker-than-stock material with enlarged external gussets for added strength under demanding off-road steering loads. The knuckles and steering arms are precision CNC machined, and both left-hand-drive and right-hand-drive configurations are available.
The kit fits factory solid-axle Toyota trucks through 1985 and Toyota Pickup and 4Runner builds through 1995 that have been converted to the appropriate Toyota-style solid front axle.
Key Features
- Heavy-duty Six Shooter steering knuckles
- Six-stud steering arm design adds two mounting studs per side over the factory four-stud arrangement
- Thicker-than-stock knuckle housing construction
- Enlarged external knuckle gussets for increased strength
- Precision CNC-machined knuckles and steering arms
- Includes left and right knuckles and steering arms
- Includes six-hole steering arm shim pack
- Left-hand-drive and right-hand-drive configurations available
- Designed for Toyota-style solid front axle applications

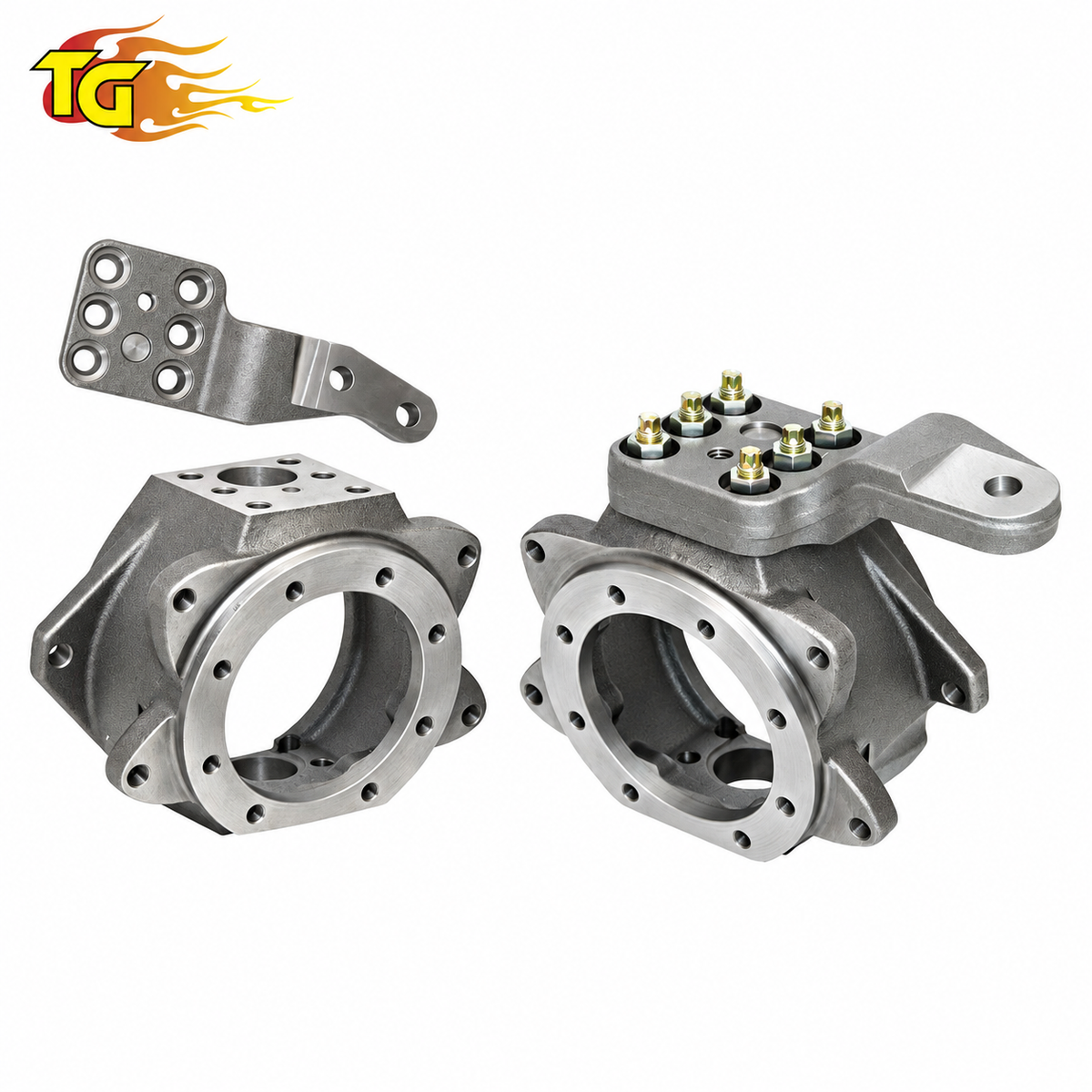

Six-Stud Steering Arm Design
The Six Shooter design increases the steering arm mounting pattern from four studs to six studs per side. The additional attachment points help keep the steering arms securely clamped to the knuckles under high steering loads and reduce the likelihood of the steering arm loosening or shearing mounting studs.
A six-hole shim system is used between each knuckle and steering arm. The supplied 1/2-inch coarse-thread service bolt can also be used to help lift the steering arm from the knuckle during future servicing.
Vehicle Fitment
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – 4WD – Factory Solid Front Axle
- 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Factory Solid Front Axle
- 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion
- 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Toyota-Style Solid Axle Conversion
Toyota 4Runner
- 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Factory Solid Front Axle
- 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Toyota-Style Solid Axle Conversion
- 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Toyota-Style Solid Axle Conversion
Fitment Notes
- Toyota-style solid front axle applications only
- 1979–1985 Toyota Pickup and 1984–1985 Toyota 4Runner use the factory solid front axle
- 1986–1995 applications require a properly configured Toyota-style solid axle conversion
- Does not fit the factory IFS front suspension
- Select Left-Hand Drive or Right-Hand Drive to match the vehicle's steering configuration
- Knuckle studs and installation hardware are sold separately
- Factory lower bearing plates and applicable lower shims are reused during assembly
- The supplied shim pack is used between the upper knuckle surface and steering arms
Product Specifications
Brand: Trail-Gear
Product Type: Steering Knuckle & Steering Arm Kit
Position: Front
Axle Type: Toyota-Style Solid Front Axle
Steering Arm Design: 6-Stud
Knuckle Construction: Heavy-Duty, Precision CNC Machined
Steering Position: Left-Hand Drive or Right-Hand Drive
Quantity: Pair of Knuckles & Steering Arms

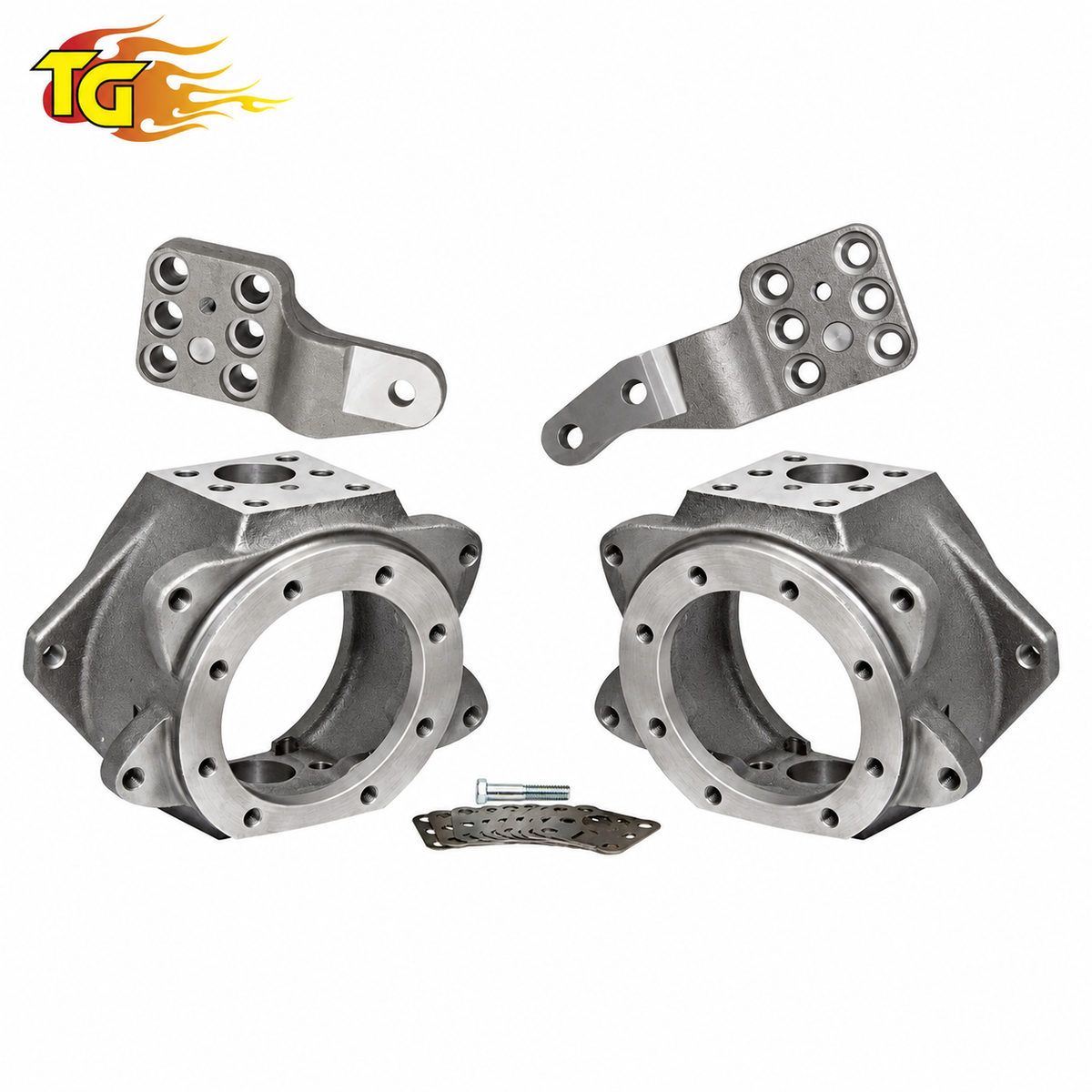

What's Included
- (2) Six Shooter steering knuckles
- (2) Six-stud steering arms
- Six-hole steering arm shim pack
- (1) 1/2-inch coarse-thread steering arm removal bolt
Knuckle studs and installation hardware are not included and must be purchased separately.
