AE86 CUSCO N1 Link Rear Upper Control Arm Set (1983-87 Corolla)

SKU: 1176
$243.00
Fitment support available
Estimate shipping before checkout

AE86 CUSCO N1 Link Rear Upper Control Arm Set

For 1983–1987 Toyota Corolla AE86.

Overview

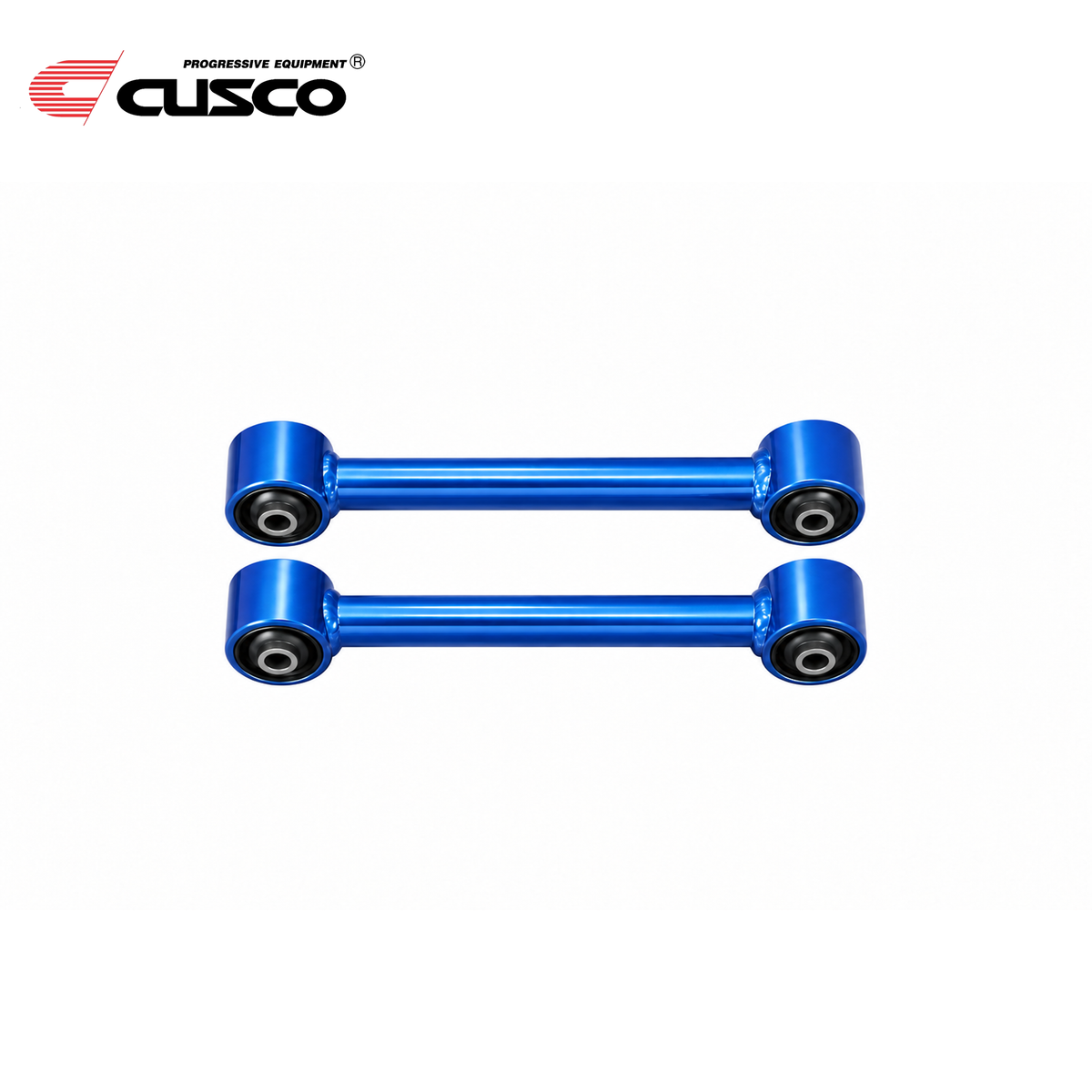

The CUSCO N1 Link Rear Upper Control Arm Set is a fixed-length replacement for the rear upper links on 1983–1987 Toyota Corolla AE86 applications. Each steel arm uses hard-rubber bushings at both ends, making this set a straightforward choice for owners who want rubber-bushed links rather than adjustable pillowball arms.

The pair replaces both upper links in the factory solid-rear-axle four-link suspension. Choose N1 when fixed link length suits your build; choose an adjustable series when your suspension setup requires link-length adjustment.

Key Features

  • Fixed-length rear upper control arm pair
  • Hard-rubber bushings at both ends of each arm
  • Steel construction
  • Replaces both factory rear upper suspension links
  • Uses the factory chassis and rear-axle upper-link mounting locations
  • Designed for the AE86 solid-rear-axle four-link suspension
  • No suspension-link length adjustment required

Vehicle Fitment

Toyota Corolla — AE86

  • 1983–1987: Trueno (JDM)
  • 1983–1987: Levin (JDM)
  • 1985–1987: GT-S (U.S.-Market)
  • 1984–1987: SR5 (U.S.-Market)

Fitment Notes

  • Rear upper control arm application only.
  • For the factory rear upper-link mounting locations and solid-rear-axle four-link suspension.
  • Fixed-length arms do not provide link-length adjustment.

Product Specifications

Brand: CUSCO
Series: N1 Link
Product Type: Rear Upper Control Arm Set
Position: Rear Upper
Suspension Type: Rear Four-Link
Construction: Steel
Joint Type: Hard-Rubber Bushings at Both Ends
Link Length: Fixed
Fit Type: Vehicle-Specific Bolt-On
Quantity: 2 Control Arms

Which CUSCO Rear Control Arms Should You Choose?

These three CUSCO steel rear-link series offer different combinations of length adjustment and joint design. Upper and lower sets are sold separately; check each product's applications before choosing parts for your car.

Formula Link — Best for builds needing the widest adjustment range of these three series

Choose Formula Link when your suspension setup needs more link-length adjustment and you want pillowball joints at both ends. Its +20 mm to -10 mm range offers more adjustment than Formula Link Jr., with no rubber-bushed connection in either arm.

Formula Link Jr. — Best for fine-tuning link length within a smaller adjustment range

Choose Formula Link Jr. when your suspension setup needs a smaller link-length correction within its +7 mm to -5 mm range. Each arm combines one pillowball joint with one hard-rubber bushing rather than using pillowball joints at both ends.

N1 Link — Best for replacing fixed-length rear links without adding length adjustment

Choose N1 when you do not need link-length adjustment and prefer hard-rubber bushings at both mounting points. The fixed-length design avoids choosing an adjustment setting; it is not an alternative to an adjustable arm when geometry changes require one.

Feature Formula Link Formula Link Jr. N1 Link
Rear Upper Available Yes Yes Yes
Rear Lower Available Yes Yes Yes
Length Design Adjustable Adjustable Fixed
Adjustment Range +20 mm to -10 mm +7 mm to -5 mm Fixed length
Joint Design Pillowball rod ends at both ends Pillowball rod end at one end / hard-rubber bushing at the other Hard-rubber bushings at both ends
Rubber-Bushed Connections None One per arm Both ends
Suspension Compliance No rubber-bushed joints One rubber-bushed joint per arm Two rubber-bushed joints per arm
Adjustment Capability Widest range Moderate fine adjustment None
Suspension Response Pillowball joints at both ends; actual response depends on the complete suspension setup Mixed pillowball and hard-rubber joints; actual response depends on the complete suspension setup Hard-rubber joints at both ends; actual response depends on the complete suspension setup
Road / Drivetrain Vibration Transfer No rubber bushings in these links; vibration depends on the vehicle and setup One rubber-bushed connection per arm; vibration depends on the vehicle and setup Two rubber-bushed connections per arm; vibration depends on the vehicle and setup
Primary Purpose Widest adjustment range of these three series Adjustable performance setup with some retained bushing compliance Fixed-length replacement with hard-rubber bushings
Upper-Link Function Adjustable upper-link length for geometry setup Adjustable upper-link length for geometry setup Fixed upper-link length
Lower-Link Function Adjustable lower-link length for geometry setup Adjustable lower-link length for geometry setup Fixed lower-link length
Construction Steel Steel Steel
Quantity per Set Pair Pair Pair
Fitment AE86; check the linked product for its specific applications AE86; check the linked product for its specific applications Rear upper set: JDM Trueno / Levin, U.S. GT-S and SR5; see Vehicle Fitment

Our Recommendation: Choose N1 for a fixed-length replacement with hard-rubber bushings at both ends. Choose Formula Link Jr. when its smaller adjustment range and mixed joints meet your setup needs, or Formula Link when you need the wider adjustment range and pillowball joints at both ends. Ride comfort and vibration also depend on the rest of your suspension setup.

Related N1 Control Arms

Looking for the lower links? View the CUSCO N1 Link Rear Lower Control Arm Set. It is a separate product for the lower-link position, sold separately; check its specific vehicle fitment before ordering.

What's Included

  • (2) CUSCO N1 Link rear upper control arms with pre-installed hard-rubber bushings
