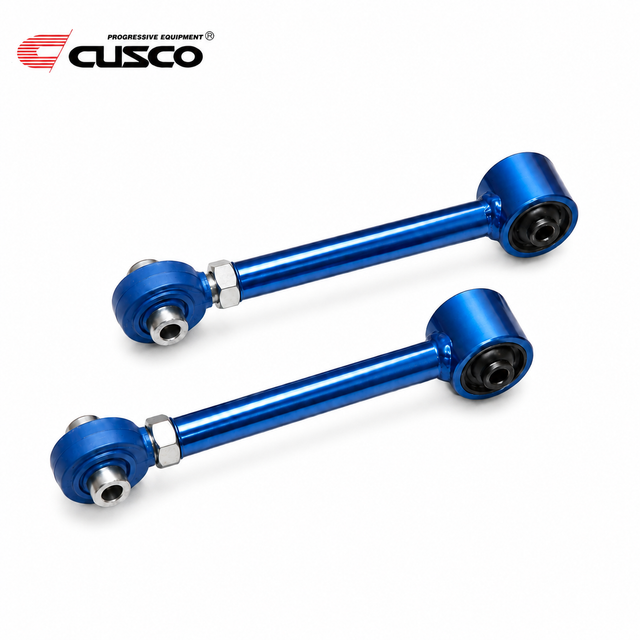

AE86 CUSCO Formula Link Jr. Adjustable Rear Upper Control Arm Set
For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)
Overview
The CUSCO Formula Link Jr. Adjustable Rear Upper Control Arm Set replaces the factory fixed-length upper links in the AE86 rear four-link suspension with an adjustable hybrid-joint design. Each arm uses a metal pillowball rod end at one mounting point and a heavy-duty rubber bushing at the opposite end, combining an adjustable upper link with one rubber-bushed connection per arm.
Each arm provides a +7 mm to -5 mm adjustment range and installs at the factory rear upper-control-arm mounting locations used by the listed JDM AE86, U.S.-market GT-S, and U.S.-market SR5 applications.
Key Features
- Adjustable rear upper control arm pair
- +7 mm to -5 mm length adjustment range
- Metal pillowball rod end at one end of each arm
- Heavy-duty rubber bushing at the opposite end
- Steel construction
- Replaces both factory rear upper suspension links
- Uses the factory chassis and rear-axle mounting locations
- Designed for the AE86 solid-rear-axle four-link suspension
Hybrid Pillowball & Rubber-Bushing Design
Formula Link Jr. combines a pillowball rod end with a heavy-duty rubber bushing in each upper link. This retains one rubber-bushed mounting point while still providing adjustable upper-link length for suspension setup and pinion-angle correction.
Vehicle Fitment
Toyota Corolla AE86
- 1983–1987 Toyota Corolla AE86 – Trueno (JDM)
- 1983–1987 Toyota Corolla AE86 – Levin (JDM)
- 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market)
- 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market)
Fitment Notes
- Rear upper control arm application only.
- Fits the factory rear upper-link mounting locations used by both U.S.-market GT-S and SR5 models.
- The GT-S and SR5 use the same factory rear upper-control-arm application; trim-specific lower-link differences do not change this upper-link fitment.
- Fits AE86 models retaining the solid-rear-axle four-link suspension.
- Rear suspension geometry and pinion angle should be checked and set after installation.
Product Specifications
Brand: CUSCO
Series: Formula Link Jr.
Product Type: Adjustable Rear Upper Control Arm Set
Position: Rear Upper
Suspension Type: Rear Four-Link
Construction: Steel
Joint Type: Metal Pillowball Rod End / Heavy-Duty Rubber Bushing
Adjustment Range: +7 mm to -5 mm
Fit Type: Vehicle-Specific Bolt-On
Quantity: 2 Control Arms
Comparison
Both CUSCO rear upper-link options fit the AE86 applications listed above, including U.S.-market GT-S and SR5 models. The primary differences are joint design and adjustment range.
| Feature | Formula Link | Formula Link Jr. |
|---|---|---|
| Joint Design | Pillowball rod ends at both ends | Pillowball rod end at one end; heavy-duty rubber bushing at the other |
| Adjustment Range | +20 mm to -10 mm | +7 mm to -5 mm |
| Construction | Steel | Steel |
| Link Compliance | No rubber-bushed joint in the upper link | Retains one rubber-bushed mounting point per arm |
| Adjustment Scope | Wider range for more extensive geometry and pinion-angle correction | Narrower range for moderate fine-tuning |
| Position | Rear Upper | Rear Upper |
| Quantity | Pair | Pair |
Supporting Suspension Components
AE86 Suspension & Steering Parts — Browse additional suspension and steering components for 1983–1987 Toyota Corolla AE86 applications.
What's Included
- (2) CUSCO Formula Link Jr. adjustable rear upper control arms
