Center / Middle A/C Vent (1984-89 4Runner / 1984-88 Pickup)

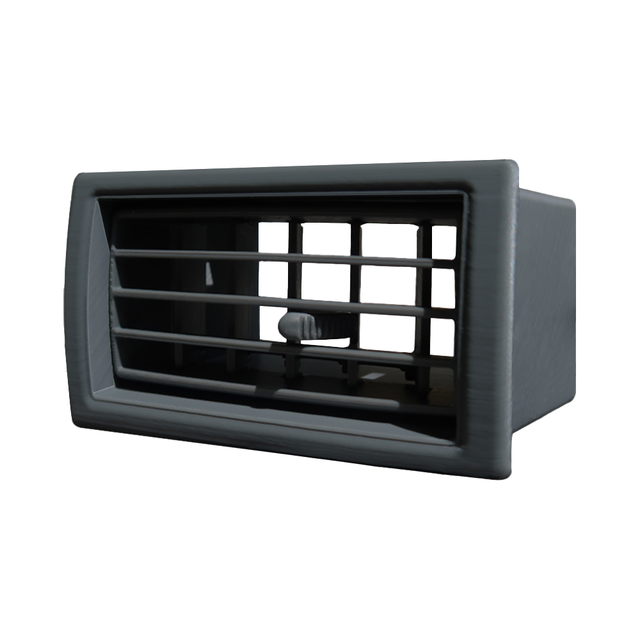

Center / Middle A/C Vent

For 1984–1989 Toyota 4Runner and 1984–1988 Toyota Pickup center dash applications

Overview

This Preserve Rad Original center / middle A/C vent is an OEM-style replacement for the factory center dash vent used in 1984–1989 1st Gen Toyota 4Runners and 1984–1988 2nd Gen Toyota Pickups. The vent is 3D-printed from durable ABS plastic and retains the factory-style directional louvers and center-dash placement.

Two dash configurations were used across these applications. The 1984–1986 option fits the early / long-pocket dash, while the 1987–1989 option fits the late / short-pocket dash. If the dashboard has ever been replaced or swapped, use the installed dash pocket style as the final fitment check.

Key Features

• Preserve Rad Original OEM-style reproduction
• 3D-printed ABS plastic construction
• Direct-fit center / middle dashboard location
• Reinforced internal construction at common original failure points
• Directional internal louvers for airflow adjustment
• Redesigned louver retention to reduce loose or drifting vent blades
• Adaptive print layering helps minimize visible layer lines on the vent face
• No trimming, drilling, or permanent dash modification required
• Available in Gray, Brown, Black, Blue, and Red

Early vs. Late Dash Styles

1984–1986 Variant – Early / Long-Pocket Dash

• Original early-style center vent configuration
• Used with the long passenger-side storage pocket layout

1987–1989 Variant – Late / Short-Pocket Dash

• Original late-style center vent configuration
• Used with the short storage pocket positioned above the center vents
• Applies through 1989 for 4Runner and through 1988 for Pickup

If the dashboard has been replaced or swapped, select the vent according to the installed pocket style rather than the vehicle model year alone.

Vehicle Fitment

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – Center / Middle Dash A/C Vent

Toyota Pickup

• 1984–1988 Toyota Pickup – 2nd Gen – Center / Middle Dash A/C Vent

Fitment Notes

• 1984–1986 variant: early / long-pocket dash style
• 1987–1989 variant: late / short-pocket dash style
• For 1987–1989 variants, Pickup fitment ends at 1988.
• Use the installed dash pocket style as the final fitment check on vehicles with a replaced or swapped dashboard.
• Aftermarket dash caps must be removed before installation.
• Factory metal retaining clips are not included and must be reused.
• No trimming, drilling, or permanent dash modification is required.

Product Specifications

Brand: Preserve Rad
Product Line: Preserve Rad Original
Product Type: Center / Middle A/C Vent
Position: Center Dashboard
Material: ABS Plastic
Construction: 3D-Printed
Design: OEM-Style Reproduction
Adjustment: Directional Internal Louvers
Fit Type: Vehicle-Specific / Direct Fit

Completing the Dashboard Vent Restoration

If the center vent is the only damaged piece, it can be replaced on its own while retaining the original corner vents. For dashboards with multiple cracked, loose, or faded vents, the Complete A/C Vent Set replaces the center and both corner vents together so the visible vent assemblies match in style and finish. The Driver Side A/C Vent and Passenger A/C Vent are also available individually when only one corner vent needs replacement. These are optional restoration choices and are not required for installation of the center vent.

Available Configurations

Year / Dash Style

• 1984-1986 – Early / Long-Pocket Dash
• 1987-1989 – Late / Short-Pocket Dash

Color

• Gray
• Brown
• Black
• Blue
• Red

Each selected configuration includes (1) center / middle A/C vent assembly in the chosen year range and color. Factory metal retaining clips are not included.
