Bando Rib Ace Fan & Alternator Belt | 3VZ-E (1988-95 4Runner / 1988-95 Pickup)

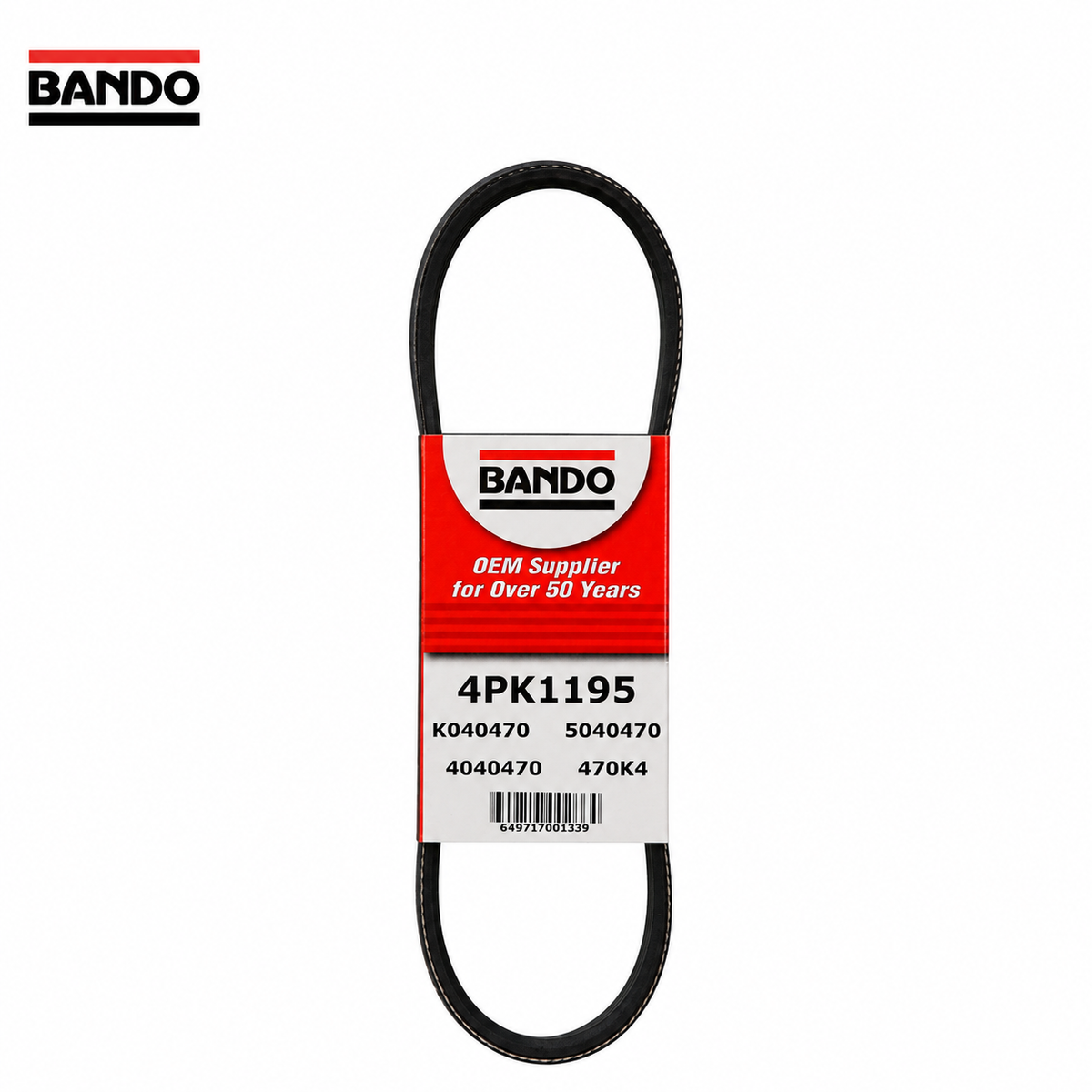

Bando Rib Ace Fan & Alternator Drive Belt

For 1988–1995 Toyota 4Runner and Toyota Pickup with 3VZ-E

Overview

This Bando Rib Ace belt drives the cooling fan and alternator through the four-rib accessory circuit on the 3VZ-E. It replaces the worn belt while retaining the engine’s accessory pulley and adjustment arrangement.

The power-steering and A/C belts are separate service parts. The engine’s water pump is driven by the timing belt.

Key Features

• Four-rib construction for the fan/alternator drive
• Precision metric sizing and machine-cut ribs
• EPDM rubber compound for the engine accessory environment
• Oil- and heat-resistant backing
• Tensile-cord reinforcement to resist stretching

Vehicle Fitment

Toyota 4Runner

• 1988–1989 Toyota 4Runner – 1st Gen – U.S.-Market – 3VZ-E – 4WD
• 1990–1995 Toyota 4Runner – 2nd Gen – U.S.-Market – 3VZ-E – 2WD / 4WD

Toyota Pickup

• 1988 Toyota Pickup – 2nd Gen – U.S.-Market – 3VZ-E – 4WD
• 1989–1995 Toyota Pickup – 3rd Gen – U.S.-Market – 3VZ-E – 2WD / 4WD

Fitment Notes

• 3VZ-E application; not for 22R, 22RE or 22R-TE accessory drives.
• Changed pulleys, accessory brackets or engine swaps require matching the installed drive arrangement rather than chassis year alone.

A worn fan-support bearing requires separate repair. The AISIN cooling-fan pulley brackets for 1988–1995 4Runner and 1988–1995 Pickup replace that bearing-support assembly; choose the bracket configuration for the installed timing-belt tensioner. A new belt does not repair a worn support bearing.

Product Specifications

Brand: Bando
Series: Rib Ace
Component: Fan & Alternator accessory drive belt
Effective length: 1195 mm
Top width: 0.56 in
Condition: New

California Proposition 65 warning: Cancer and reproductive harm. Proposition 65 information.

What's Included

• (1) Bando fan & alternator belt
