AISIN OE Cooling Fan Pulley Bracket | 3.0L 3VZ-E (1988-95 4Runner)

AISIN OE Cooling Fan Pulley Bracket

For 1988–1995 Toyota 4Runner with 3.0L 3VZ-E V6

Overview

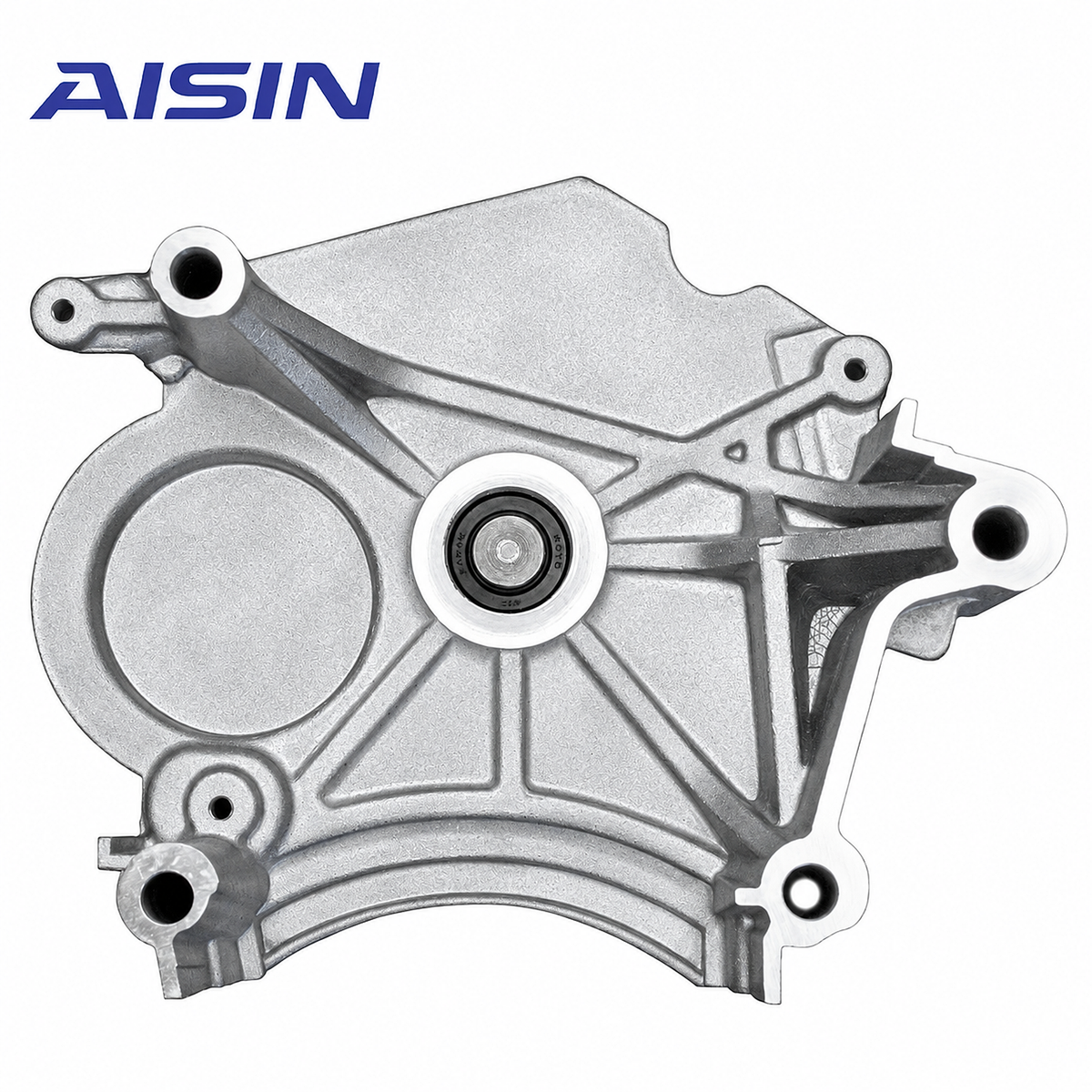

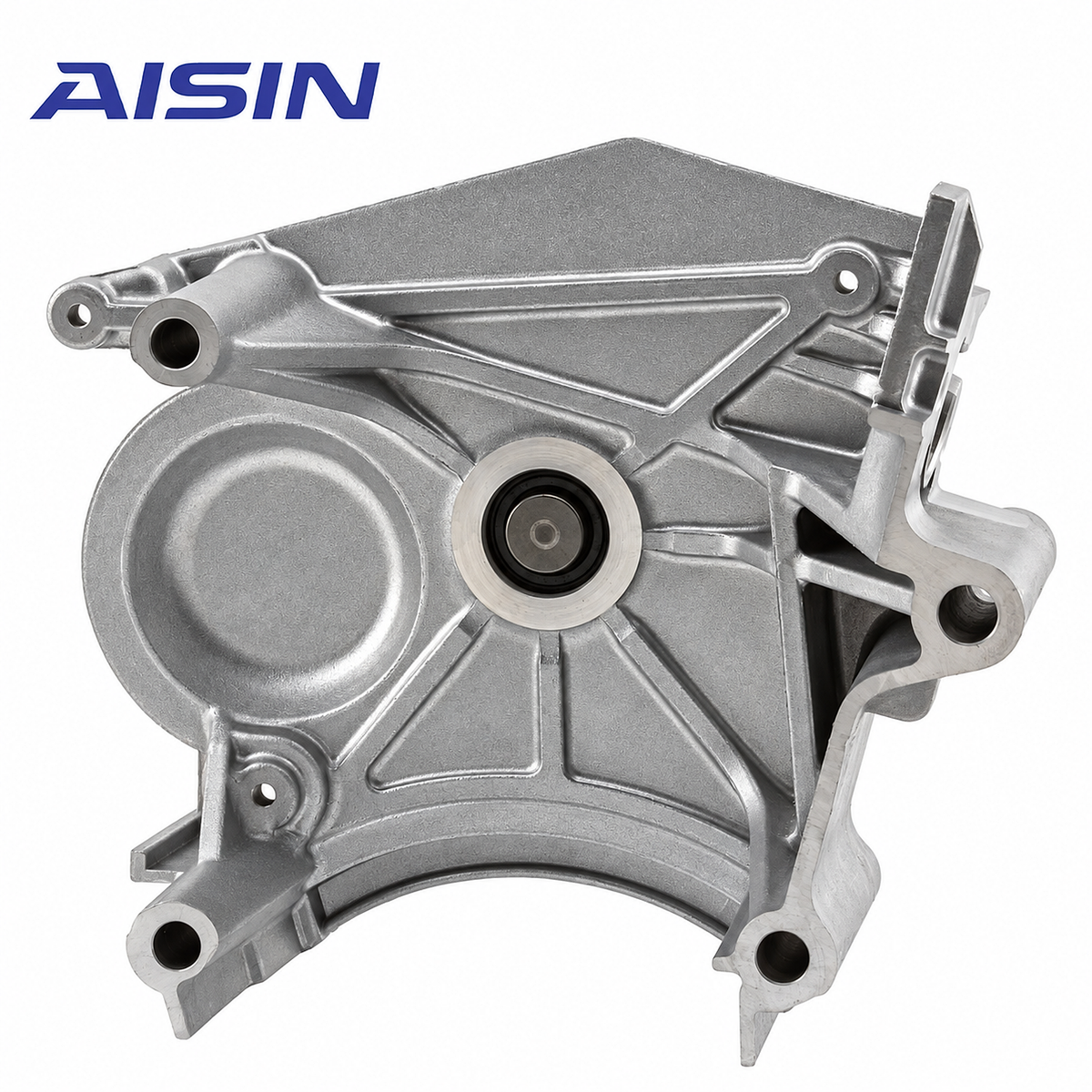

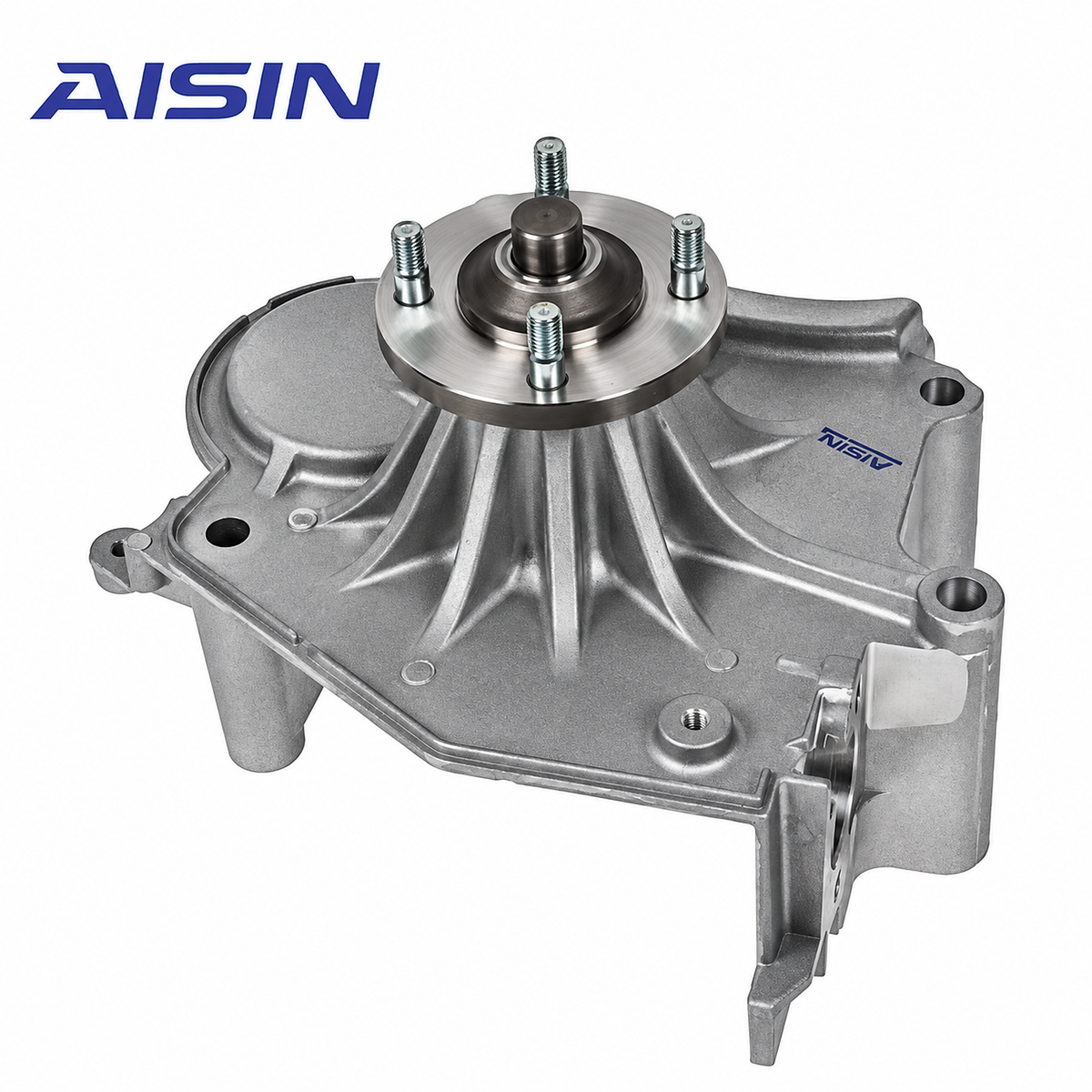

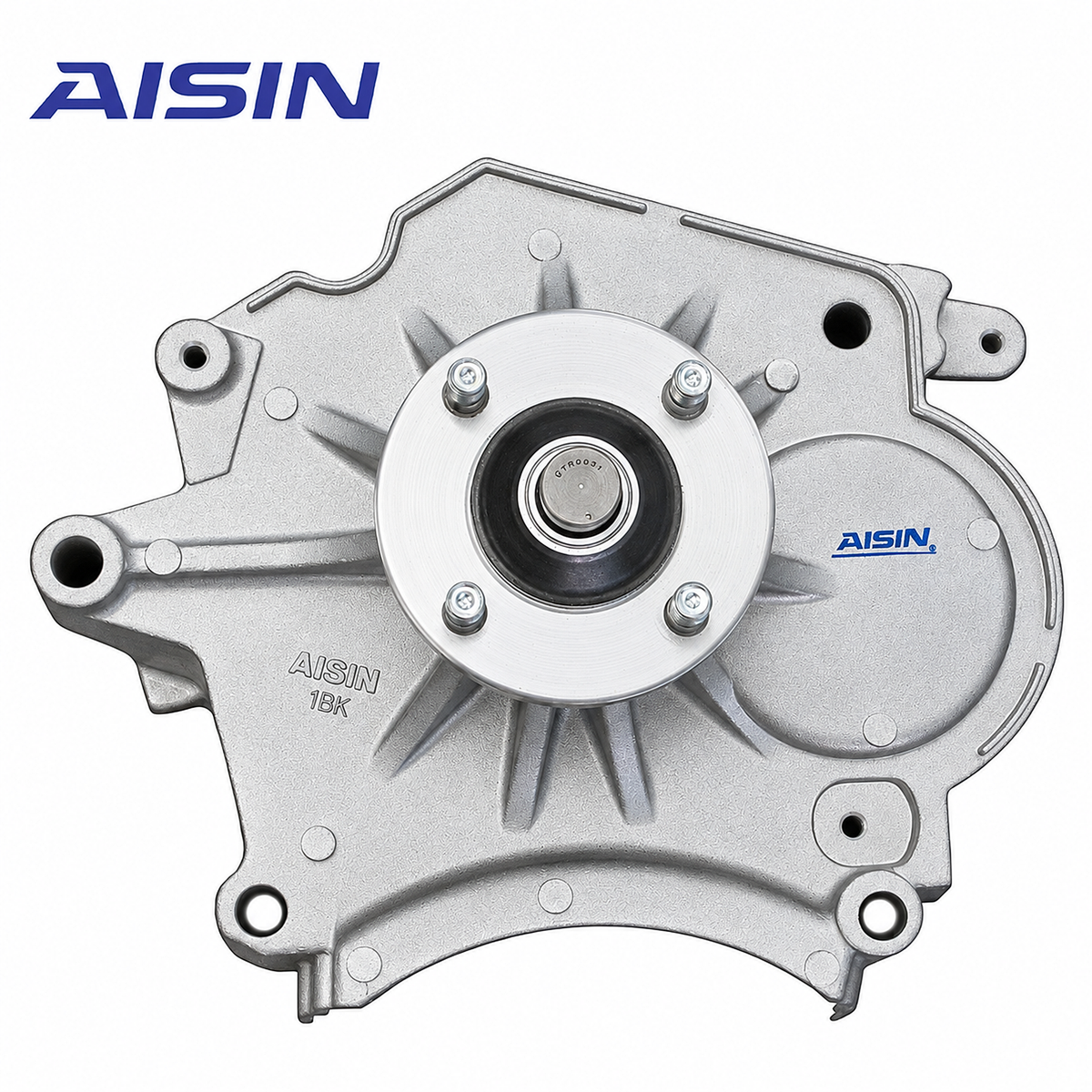

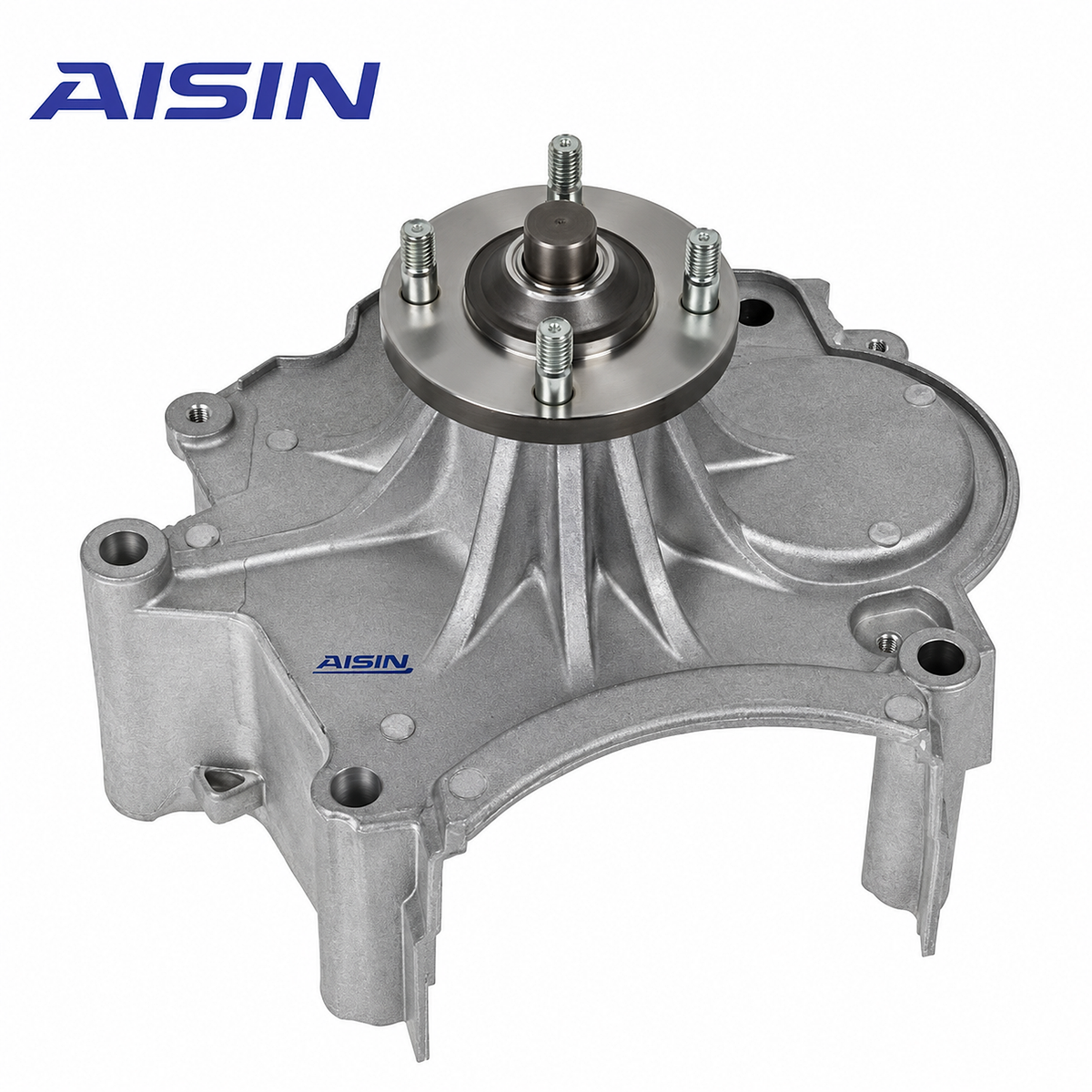

The AISIN cooling fan pulley bracket restores the fan-drive support assembly on Toyota's 3.0L 3VZ-E V6, supporting the cooling-fan pulley and fan clutch through an integrated bearing assembly.

OE Manufacturer Advantage: AISIN was an original-equipment supplier to Toyota and the original manufacturer associated with this application. This is an AISIN-branded OE-manufacturer replacement and is distinct from a Genuine Toyota boxed part.

Toyota 4Runner applications use both spring-tensioner and hydraulic-tensioner fan-bracket configurations, with a production change during the 1992 model year.

Key Features

• Original-equipment manufacturer relationship for the Toyota 3VZ-E fan pulley bracket application
• Integrated bearing support for stable fan-pulley and fan-clutch operation
• Aluminum die-cast bracket construction
• Spring- and hydraulic-tensioner configurations available
• New replacement assembly; one bracket required per vehicle

Spring vs. Hydraulic Tensioner

1988–1991 Toyota 4Runner: use the spring-tensioner configuration.

1993–1995 Toyota 4Runner: use the hydraulic-tensioner configuration.

1992 Toyota 4Runner is a production-change application. The spring- and hydraulic-tensioner fan-bracket configurations overlap during 08/1992 production. Use the spring-tensioner configuration for production through 07/1992 and the hydraulic-tensioner configuration from 09/1992 onward. For 08/1992 production, verify the installed timing-belt tensioner before ordering.

Vehicle Fitment

Toyota 4Runner

• 1988–1989 Toyota 4Runner – 1st Gen – 3.0L 3VZ-E V6 – Spring Tensioner
• 1990–1991 Toyota 4Runner – 2nd Gen – 3.0L 3VZ-E V6 – Spring Tensioner
• 1992 Toyota 4Runner – 2nd Gen – 3.0L 3VZ-E V6 – 08/1992 Production Changeover
• 1993–1995 Toyota 4Runner – 2nd Gen – 3.0L 3VZ-E V6 – Hydraulic Tensioner

Fitment Notes

• Use the Spring Tensioner configuration for 1988–1991 and 1992 production through 07/1992.
• Use the Hydraulic Tensioner configuration for 1992 production from 09/1992 and all 1993–1995 applications.
• 08/1992 production is a transition month. Verify the installed timing-belt tensioner before ordering.
• On engine-swapped or engine-replaced vehicles, verify the installed 3VZ-E configuration rather than relying on chassis year.

Product Specifications

Brand: AISIN
Product Type: Cooling
Component Type: Cooling Component
OE Relationship: Toyota OE Supplier / Original-Equipment Manufacturer
Engine: 3.0L 3VZ-E V6
Construction: Aluminum Die-Cast Bracket / Integrated Bearing Assembly
Function: Supports Cooling-Fan Pulley and Fan Clutch
Condition: New
Quantity: One Bracket Assembly per Vehicle

Pickup Application

Need the truck application? See the AISIN 3VZ-E Cooling Fan Pulley Bracket for 1988–1995 Toyota Pickup.

Available Configurations

Spring Tensioner

• (1) AISIN cooling fan pulley bracket assembly

For verified 3VZ-E 4Runner applications using the spring-type timing-belt tensioner.

Hydraulic Tensioner

• (1) AISIN cooling fan pulley bracket assembly

For verified 3VZ-E 4Runner applications using the hydraulic timing-belt tensioner.
