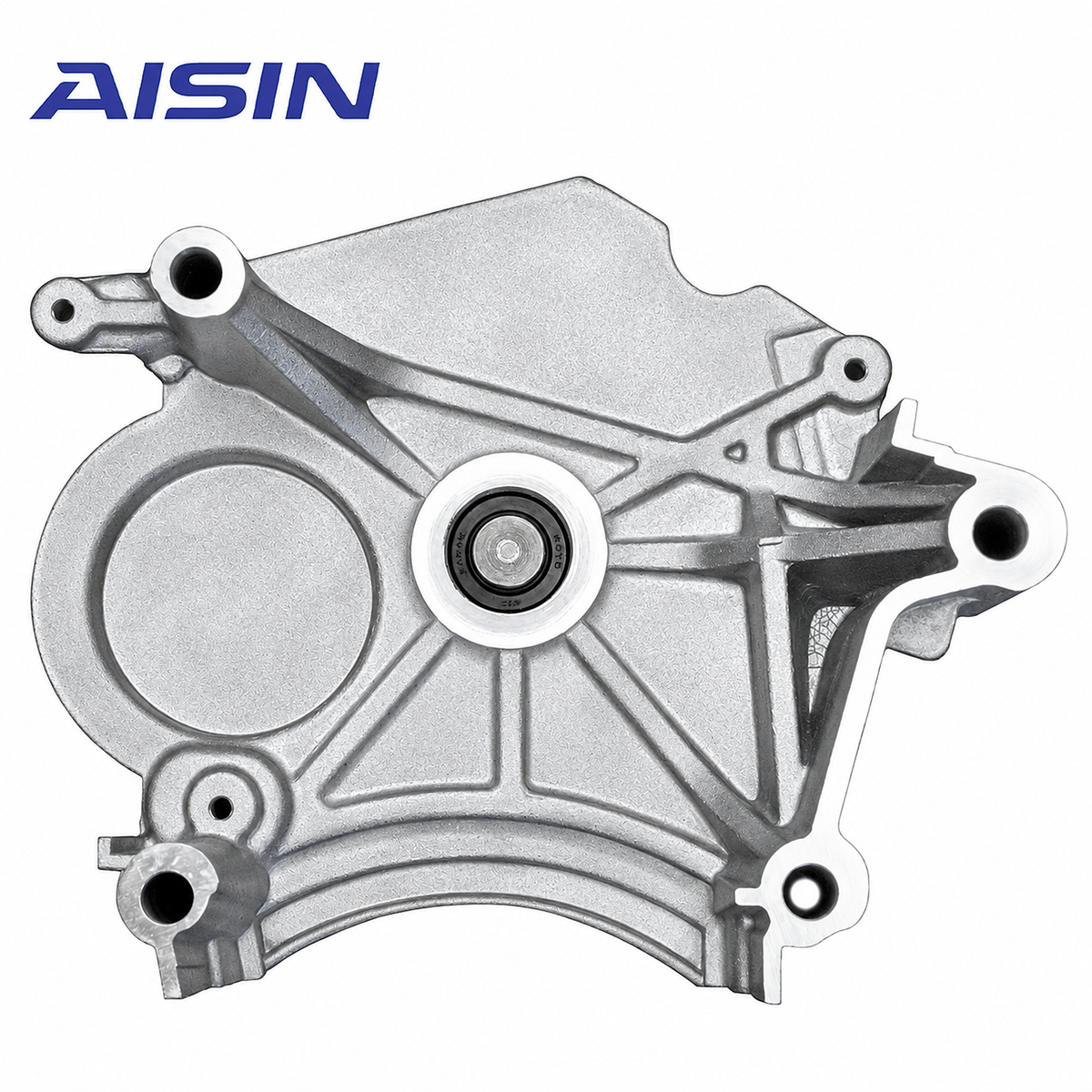

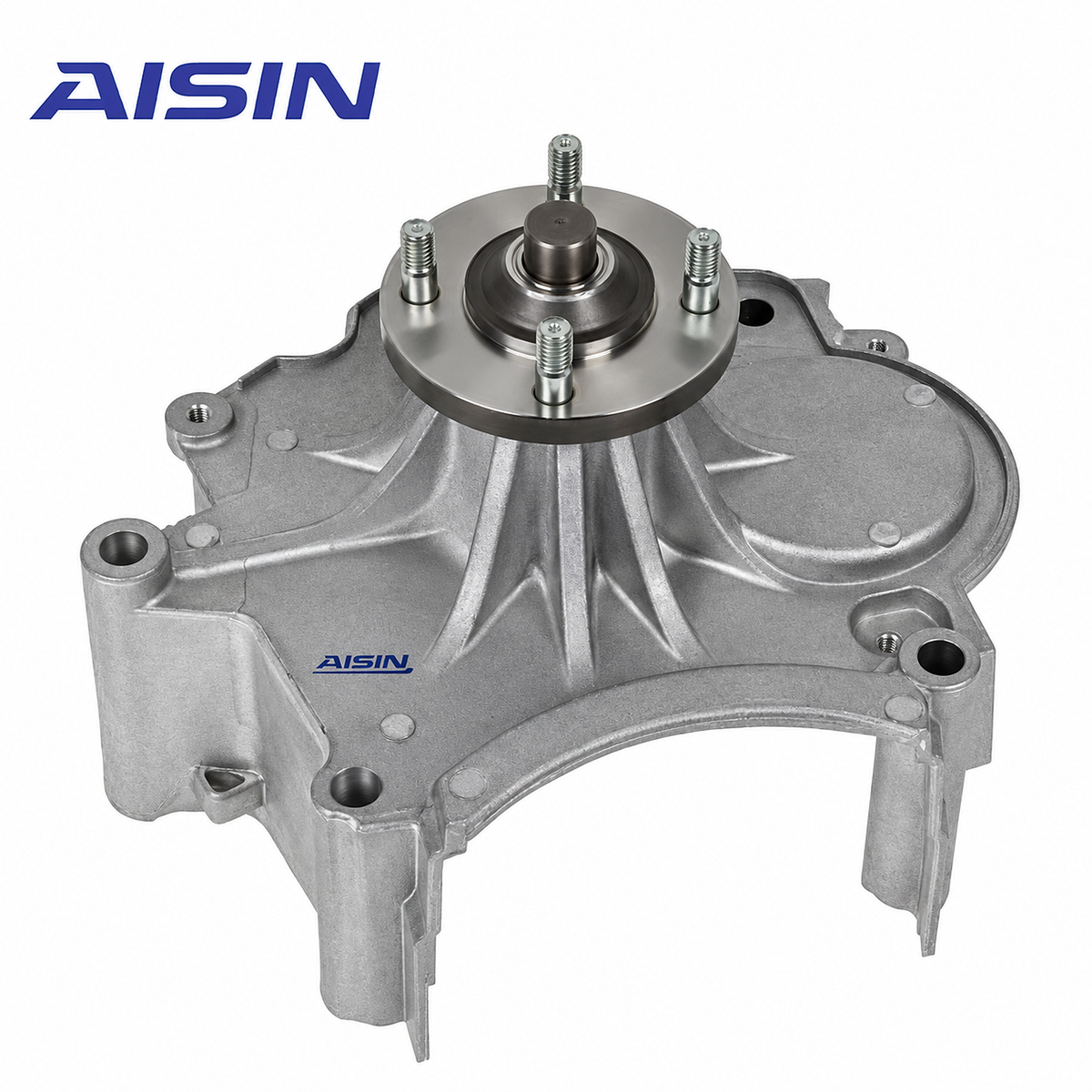

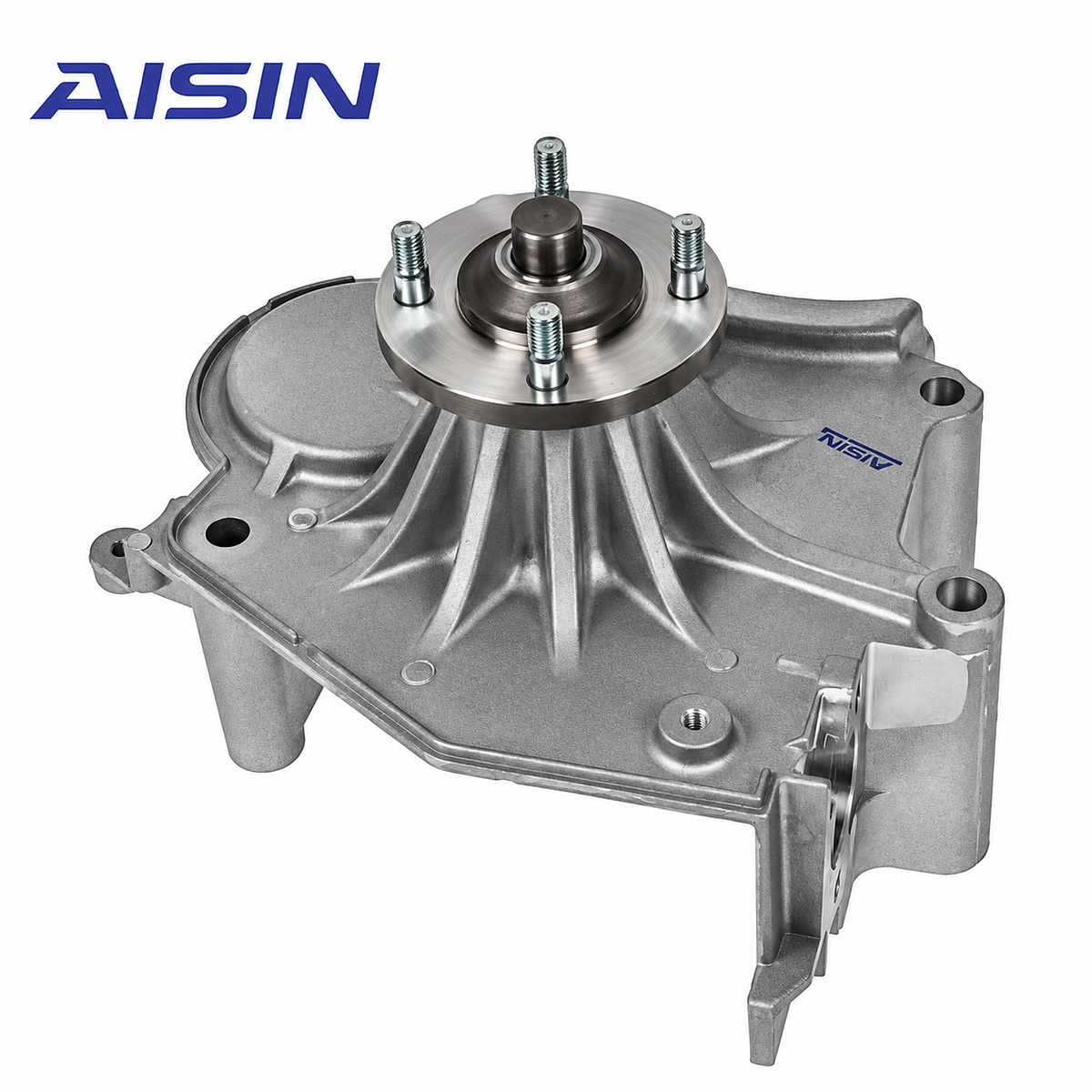

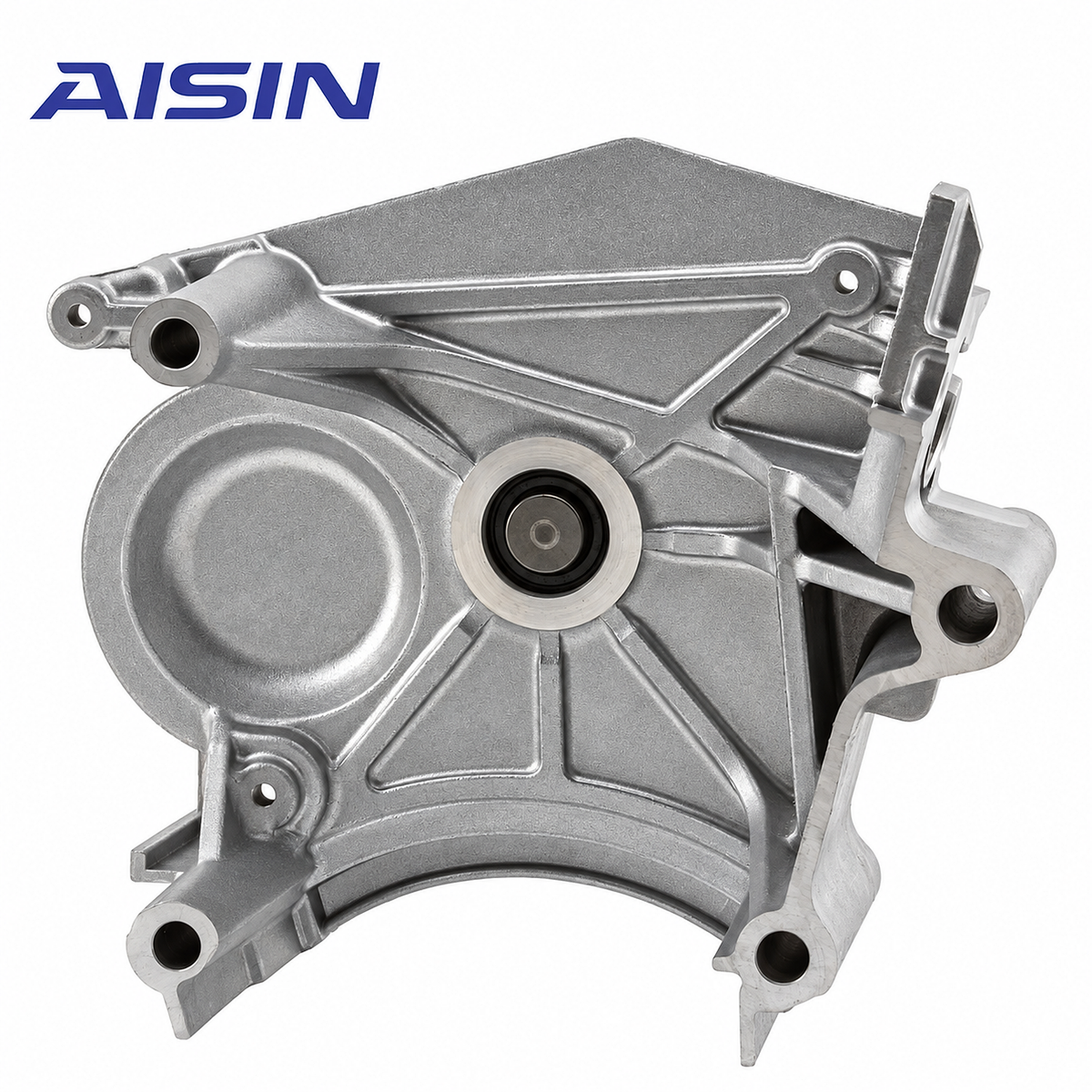

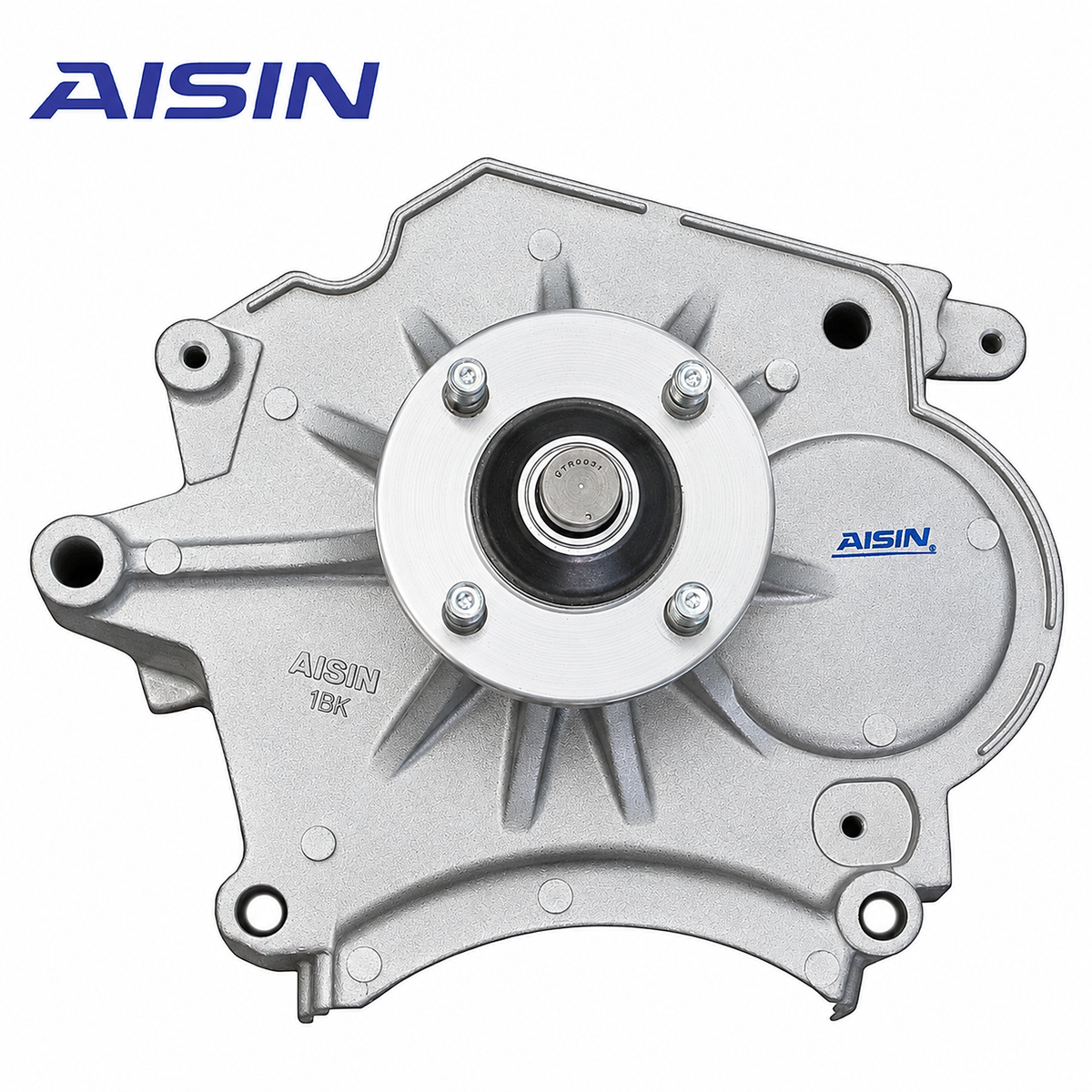

AISIN OE Cooling Fan Pulley Bracket | 3.0L 3VZ-E (1988-95 Pickup)

AISIN OE Cooling Fan Pulley Bracket

For 1988–1995 Toyota Pickup with 3.0L 3VZ-E V6

Overview

The AISIN cooling fan pulley bracket restores the fan-drive support assembly on Toyota's 3.0L 3VZ-E V6, supporting the cooling-fan pulley and fan clutch through an integrated bearing assembly.

OE Manufacturer Advantage: AISIN was an original-equipment supplier to Toyota and the original manufacturer associated with this application. This is an AISIN-branded OE-manufacturer replacement and is distinct from a Genuine Toyota boxed part.

Toyota Pickup applications use both spring-tensioner and hydraulic-tensioner fan-bracket configurations, with a production-origin change during the 1992 model year.

Key Features

• Original-equipment manufacturer relationship for the Toyota 3VZ-E fan pulley bracket application
• Integrated bearing support for stable fan-pulley and fan-clutch operation
• Aluminum die-cast bracket construction
• Spring- and hydraulic-tensioner configurations available
• New replacement assembly; one bracket required per vehicle

Spring vs. Hydraulic Tensioner

1988–1991 Toyota Pickup: use the spring-tensioner configuration.

1993–1995 Toyota Pickup: use the hydraulic-tensioner configuration.

1992 Toyota Pickup is a split-production application. North American-production trucks, identified by a VIN beginning with 1, 2, 3, 4, or 5, use a 05/1992 changeover. Japan-production trucks, identified by a VIN beginning with J, use an 08/1992 changeover. Trucks built during the applicable changeover month should be confirmed by the installed timing-belt tensioner before ordering.

Vehicle Fitment

Toyota Pickup

• 1988 Toyota Pickup – 2nd Gen – 3.0L 3VZ-E V6 – Spring Tensioner
• 1989–1991 Toyota Pickup – 3rd Gen – 3.0L 3VZ-E V6 – Spring Tensioner
• 1992 Toyota Pickup – 3rd Gen – 3.0L 3VZ-E V6 – Production-Date and VIN-Origin Split
• 1993–1995 Toyota Pickup – 3rd Gen – 3.0L 3VZ-E V6 – Hydraulic Tensioner

Fitment Notes

• North American-production 1992 trucks: 05/1992 is the spring-to-hydraulic changeover month. Verify the installed tensioner on trucks built during 05/1992.
• Japan-production 1992 trucks: 08/1992 is the spring-to-hydraulic changeover month. Verify the installed tensioner on trucks built during 08/1992.
• Use the Spring Tensioner configuration only with the spring-type timing-belt tensioner.
• Use the Hydraulic Tensioner configuration only with the hydraulic timing-belt tensioner.
• On engine-swapped or engine-replaced vehicles, verify the installed 3VZ-E configuration rather than relying on chassis year.

Product Specifications

Brand: AISIN
Product Type: Cooling
Component Type: Cooling Component
OE Relationship: Toyota OE Supplier / Original-Equipment Manufacturer
Engine: 3.0L 3VZ-E V6
Construction: Aluminum Die-Cast Bracket / Integrated Bearing Assembly
Function: Supports Cooling-Fan Pulley and Fan Clutch
Condition: New
Quantity: One Bracket Assembly per Vehicle

4Runner Application

Need the 4Runner application? See the AISIN 3VZ-E Cooling Fan Pulley Bracket for 1988–1995 Toyota 4Runner.

Available Configurations

Spring Tensioner

• (1) AISIN cooling fan pulley bracket assembly

For verified 3VZ-E Pickup applications using the spring-type timing-belt tensioner.

Hydraulic Tensioner

• (1) AISIN cooling fan pulley bracket assembly

For verified 3VZ-E Pickup applications using the hydraulic timing-belt tensioner.
