ARB | OME Leaf Spring Bushing Sleeve Reducer | 4WD (1984-89 4Runner / 1979-88 Pickup)

ARB | OME Leaf Spring Bushing Sleeve Reducer

For 1984–1989 Toyota 4Runner 4WD and 1979–1988 Toyota Pickup 4WD OME Rear Leaf Spring Installations

Overview

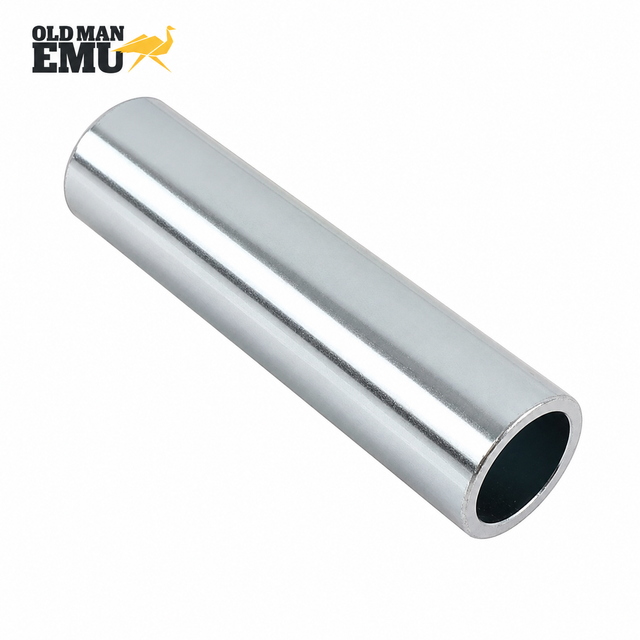

The ARB | Old Man Emu Leaf Spring Bushing Sleeve Reducer installs at the main eye of the rear leaf spring when fitting applicable OME rear leaf springs and bushing kits with the factory Toyota spring-hanger hardware.

The sleeve fits through the center of the OME spring-eye bushing so the bushing assembly can interface correctly with the stock mounting hardware. One sleeve is used per rear leaf spring, so two sleeves are required for a complete vehicle.

Key Features

• Designed for applicable Old Man Emu rear leaf spring and bushing installations
• Installs at the front / main eye of the rear leaf spring
• Allows the OME spring-eye bushing to work with factory Toyota mounting hardware
• One sleeve required per rear leaf spring
• Two sleeves required per vehicle
• Available individually or as a pair

Installation Role

The fixed front eye of the rear leaf spring mounts to the frame-side spring hanger. This reducer sleeve is installed through the OME bushing at that location before the factory spring-eye hardware is installed. It is not used at the rear shackle end of the leaf spring.

Vehicle Fitment

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD – Rear Leaf Spring Front / Main Eye

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Rear Leaf Spring Front / Main Eye
• 1984–1988 Toyota Pickup – 2nd Gen – 4WD – Rear Leaf Spring Front / Main Eye

Fitment Notes

• 4WD applications only.
• For applicable Old Man Emu rear leaf spring and bushing installations.
• Used at the front / main eye of the rear leaf spring.
• Not used at the rear shackle mounting position.
• Uses the applicable factory Toyota spring-eye mounting hardware.
• One sleeve is required for each rear leaf spring.
• Two sleeves are required for a complete vehicle.

Product Specifications

Brand: ARB / Old Man Emu
Product Type: Leaf Spring Bushing Sleeve Reducer
Position: Rear Leaf Spring – Front / Main Eye
Application: OME Leaf Spring Bushing / Spring Hanger
Drivetrain: 4WD
Mounting Hardware: Factory Toyota Spring-Eye Hardware
Quantity Required Per Vehicle: 2

Required OME Rear Spring Components

This sleeve is used with the applicable OME rear spring bushing setup. If the vehicle is being assembled from individual components rather than a complete bundle, pair the sleeve with the ARB | OME Rear Leaf Spring Bushing Kit. Preserve Rad also offers the matching ARB | OME 2-Inch Rear Leaf Spring with configuration options that include the required bushings and sleeves.

Two sleeve reducers are included in the Old Man Emu Complete 2-Inch Suspension Lift Kit for 1986–1989 4Runner / 1986–1988 Pickup 4WD for 1986–1989 Toyota 4Runner and 1986–1988 Toyota Pickup 4WD IFS builds.

Available Configurations

Single

• (1) Leaf spring bushing sleeve reducer
• Services one rear leaf spring front-eye location

Pair

• (2) Leaf spring bushing sleeve reducers
• Services both rear leaf spring front-eye locations
• Complete quantity required for one vehicle
