ARB | OME 2" Suspension Lift Rear Leaf Spring | 4WD (1984-89 4Runner / 1979-88 Pickup)

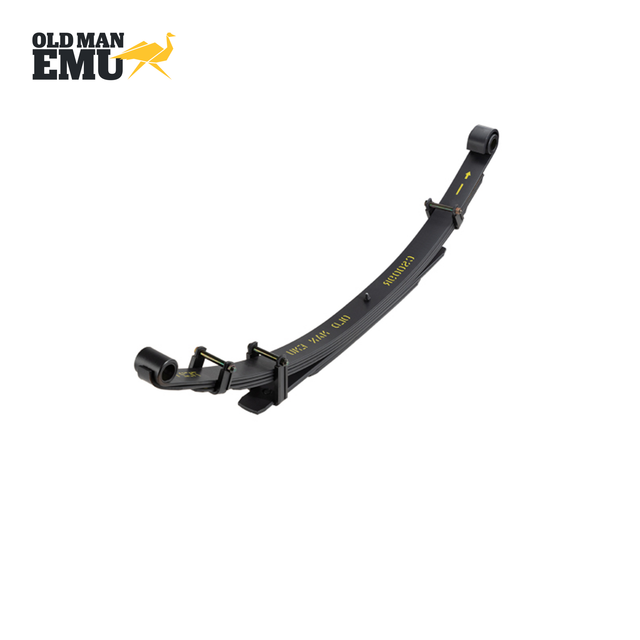

ARB | OME Dakar 2-Inch Rear Leaf Spring

For 1984–1989 Toyota 4Runner 4WD and 1979–1988 Toyota Pickup 4WD

Overview

The ARB Old Man Emu Dakar Rear Leaf Spring is a vehicle-specific rear suspension upgrade for classic Toyota 4Runner and Pickup 4WD models. It is designed to provide approximately 2 inches of rear lift while improving spring control, load support, and suspension durability compared with worn factory leaf springs.

The Dakar multi-leaf design uses application-specific spring rates and durable steel construction for daily driving, trail use, hauling, towing, and overland builds. Choose the Medium or Heavy (440 lbs Constant Load) option based on the vehicle's normal permanent rear weight. Springs are available individually or as a pair, with bare-spring and complete installation-bundle choices.

Key Features

• Approximately 2-inch rear lift for the supported 4WD fitment
• Multi-leaf steel construction with a two-stage spring-pack design
• Draw-tapered and diamond-cut leaves for controlled flex and reduced stress concentration
• Fully scragged and shot-peened spring steel for improved fatigue resistance
• Re-greasable nylon anti-friction pads to reduce inter-leaf friction at the leaf tips
• Bolted leaf clamps and military-wrap construction for durability and spring retention
• Medium and heavy constant-load spring choices
• Available as a single spring or pair, with bare-spring and installation-bundle options

Medium vs. Heavy Constant Load

Medium: Uses a 4 + 2 leaf pack with a 217 / 388 lbf/in spring rate. This option is better suited to lighter or variable-load builds where balanced ride quality and added load support are the priorities.

Heavy (440 lbs Constant Load): Uses a 5 + 2 leaf pack with a 285 / 445 lbf/in spring rate. This option is intended for vehicles carrying substantial permanent rear weight from equipment such as bumpers, tire carriers, storage systems, or overland gear. A lightly loaded vehicle will generally ride firmer with the heavy option.

Vehicle Fitment

All applications require: 4WD and rear leaf-spring suspension.

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen
• 1984–1988 Toyota Pickup – 2nd Gen

Fitment Notes

• 4WD models only
• Does not fit 2WD applications
• Rear suspension application
• Provides approximately 2 inches of rear lift
• Two springs are required for a complete rear suspension replacement
• Select spring rate according to the vehicle's normal permanent rear weight and installed equipment
• Professional installation is recommended

Product Specifications

Brand: ARB / Old Man Emu
Series: Dakar
Product Type: Rear Leaf Spring
Position: Rear
Material: Steel
Color: Black
Lift Height: Approximately 2 Inches
Medium Leaf Pack: 4 + 2 Leaves
Medium Spring Rate: 217 / 388 lbf/in
Heavy Leaf Pack: 5 + 2 Leaves
Heavy Spring Rate: 285 / 445 lbf/in
Drivetrain: 4WD
Warranty: 3 Years

Supporting Components

If you choose the Bare Leaf Springs Only package, the ARB | OME Rear Leaf Spring Bushing Kit is available separately. The ARB | OME Rear Greasable Shackle Kit is also available for the same 4WD vehicle range when refreshing the rear spring mounting system.

For 1986–1989 Toyota 4Runner and 1986–1988 Toyota Pickup 4WD IFS builds, these rear leaf springs are also included in the Old Man Emu Complete 2-Inch Suspension Lift Kit for 1986–1989 4Runner / 1986–1988 Pickup 4WD. Choose the Medium or Heavy kit configuration according to the vehicle's normal permanent rear load.

Available Configurations

Load Options

• Medium
• Heavy (440 lbs Constant Load)

Purchase Package

• Bare Leaf Springs Only (No Hardware) – Selected leaf spring quantity only
• Complete Ready-to-Install Bundle (Includes Bushings & Sleeves) – Selected leaf spring quantity with the corresponding bushing and sleeve components

Quantity

• Single – (1) rear leaf spring
• Pair – (2) rear leaf springs for a complete rear replacement
