AISIN Black FIPG Gasket Sealant | 3 oz

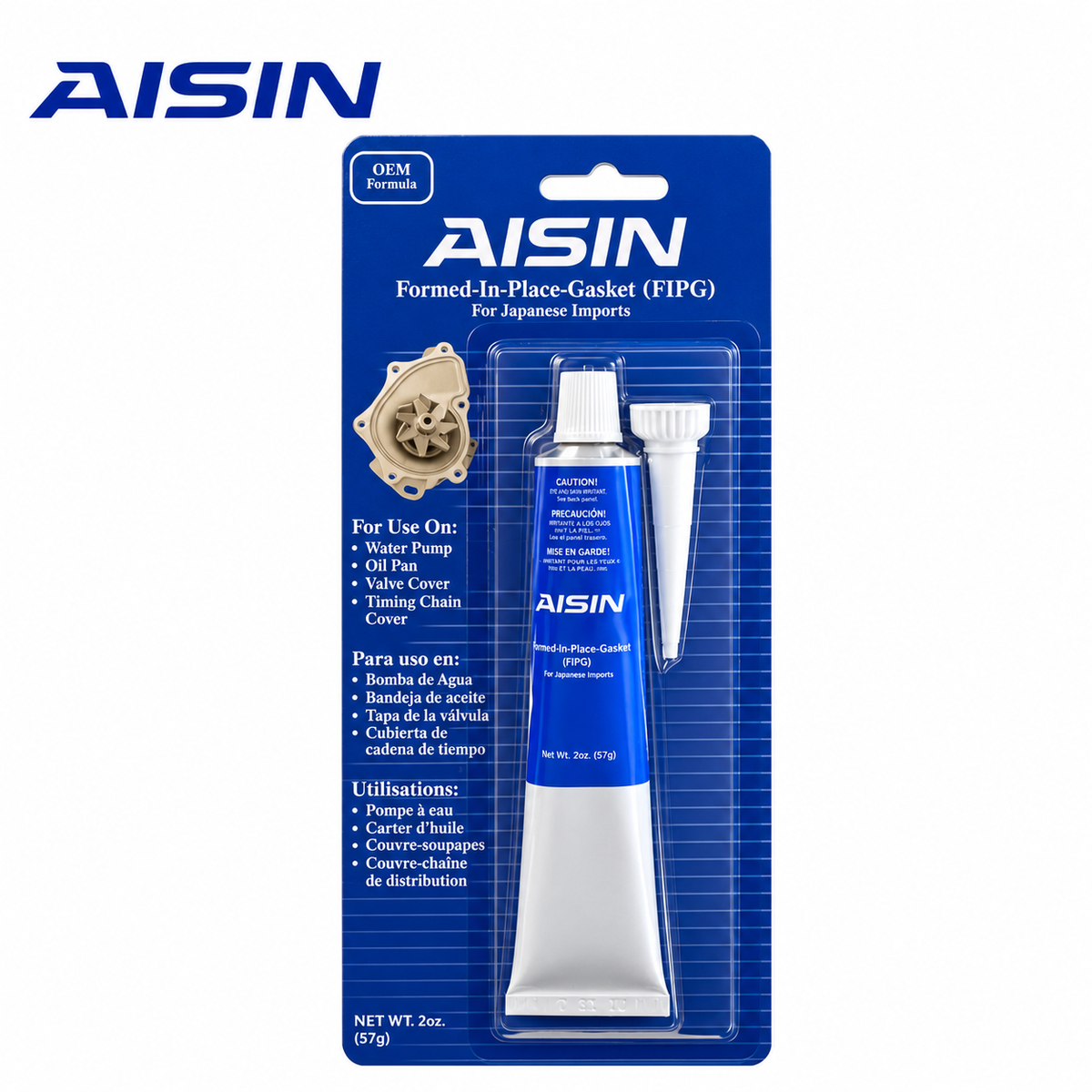

AISIN Black FIPG Gasket Sealant

For engine sealing surfaces that specify black form-in-place gasket (FIPG) sealant.

Overview

AISIN black Form-In-Place Gasket sealant is an OE-formulated liquid gasket designed to seal machined mating surfaces where a repair procedure calls for FIPG instead of, or in addition to, a pre-cut gasket. The black formula combines high viscosity and elasticity with strong pressure, temperature, and chemical resistance for demanding engine and cooling-system service.

The 3 oz (85 g) tube provides a practical size for timing-cover, oil-pan, water-pump, valve-cover, flange, and related sealing work.

Key Features

• OE-formulated FIPG — liquid gasket material for service procedures that specify form-in-place sealant
• Black formula — high-viscosity, elastic sealing compound
• Pressure resistant — designed to maintain a durable seal at engine and cooling-system interfaces
• Oil and coolant resistant — suited to common automotive sealing environments
• Temperature resistant — operating range of approximately -40°F to 302°F
• 3 oz / 85 g tube — compact service size for individual repair jobs

Common Engine Sealing Applications

• Water-pump and cooling-system flanges
• Oil-pan sealing surfaces
• Timing-chain and timing-cover sealing surfaces
• Valve-cover sealing points where FIPG is specified
• Other machined mating surfaces that call for black form-in-place gasket sealant

Application is service-procedure specific. Not every gasket surface uses FIPG, and the sealant should not automatically replace a preformed gasket.

Vehicle Fitment

This is a universal automotive service consumable rather than a chassis-specific replacement part. Use it on Toyota and other supported applications only where the applicable engine, component, or repair procedure specifies black FIPG or an equivalent form-in-place gasket formula.

Fitment Notes

• Use only where FIPG is specified. Do not substitute sealant for a preformed gasket unless the repair procedure calls for it.
• Remove old gasket material and sealant completely and prepare the mating surfaces according to the applicable service procedure before application.
• Follow the specified bead size, assembly sequence, and cure or wait time for the component being serviced.
• Store in a cool, well-ventilated location with the container properly closed between uses.

Product Specifications

• Brand: AISIN
• Product Type: Maintenance & Service
• Component Type: Sealant
• Formula: Form-In-Place Gasket (FIPG)
• Color: Black
• Net Contents: 3 oz / 85 g
• Product Form: Paste
• Country of Origin: United States
• Condition: New

Common FIPG Service Pairings

For a 22R / 22RE front-cover service, the AISIN Engine Timing Cover Assembly offers a sealant-inclusive configuration for customers completing the front-engine reseal. For AE86 4A-GE oil-pan service, the Moroso Aluminum Road Race Front-Sump Oil Pan also offers configurations that include black FIPG for the sealing job.

What's Included

• (1) AISIN black FIPG gasket sealant tube — 3 oz / 85 g
