AE86 Moroso Aluminum Road Race Front-Sump Oil Pan | 4A-GE (1983-87 Corolla)

AE86 Moroso Aluminum Road Race Front-Sump Oil Pan

For 1983–1987 Toyota Corolla AE86

Overview

The Moroso Aluminum Road Race Front-Sump Oil Pan is a fully fabricated aluminum wet-sump pan for rear-wheel-drive Toyota 4A-GE and 7A-GE 16-valve and 20-valve applications, including the Toyota Corolla AE86.

The pan provides a 5-quart capacity with a 5-3/4-inch overall depth. Internal road-race baffling uses four trap doors and a removable anti-slosh baffle to help keep oil controlled around the pickup area during acceleration, braking, and cornering.

Key Features

• RWD 4A-GE / 7A-GE 16V and 20V application
• Front-sump wet-sump configuration
• Fully fabricated aluminum construction
• 5-quart oil capacity
• 5-3/4-inch overall depth
• Four-trap-door road-race baffling
• Removable anti-slosh baffle
• 1/2-inch NPT drainback and temperature-sensor ports
• Matching oil pump pickup available in the configured pan-and-pickup option

Road Race Oil Control

The internal baffling system is designed to control oil movement during sustained acceleration, braking, and cornering. Four trap doors regulate oil movement inside the sump, while the removable anti-slosh baffle helps keep oil concentrated around the pickup area.

Vehicle Fitment

• 1983–1987 Toyota Corolla AE86 – 4A-GE – Front-Sump Wet-Sump Oil Pan

Other rear-wheel-drive chassis using 4A-GE / 7A-GE 16V or 20V engine combinations require dimensional verification for chassis, crossmember, and sump clearance.

Fitment Notes

• Rear-wheel-drive applications only.
• Supports 4A-GE / 7A-GE 16V and 20V engine configurations.
• Stock 16V windage tray must be clearanced for installation.
• Front-sump configuration.
• The matching Moroso oil pump pickup is designed specifically for this oil pan.
• Oil Pan Only does not include the matching oil pump pickup.
• Select Oil Pan + Oil Pump Pickup when the matched pickup is needed.
• Engine-swap applications require dimensional clearance verification before installation.

Product Specifications

Brand: Moroso
Product Type: Engine Oil Pan
Application: Road Race / Performance
Material: Fabricated Aluminum
Oil System: Wet Sump
Sump Location: Front
Oil Capacity: 5 Quarts
Overall Depth: 5-3/4 in
Baffling: Four Trap Doors with Removable Anti-Slosh Baffle
Ports: 1/2 in NPT Drainback / Temperature Sensor Ports
Engine Compatibility: Toyota 4A-GE / 7A-GE – 16V & 20V
Drivetrain: RWD

Supporting Oil System Components

The Moroso road-race oil pan improves oil control around the pickup during acceleration, braking, and cornering, while the AE86 GReddy 13-Row Oil Cooler Kit | 4A-GE addresses engine-oil temperature during sustained high-load driving. The oil cooler is an optional complementary upgrade for track-oriented 4A-GE builds and is not required to install the Moroso oil pan.

Available Configurations

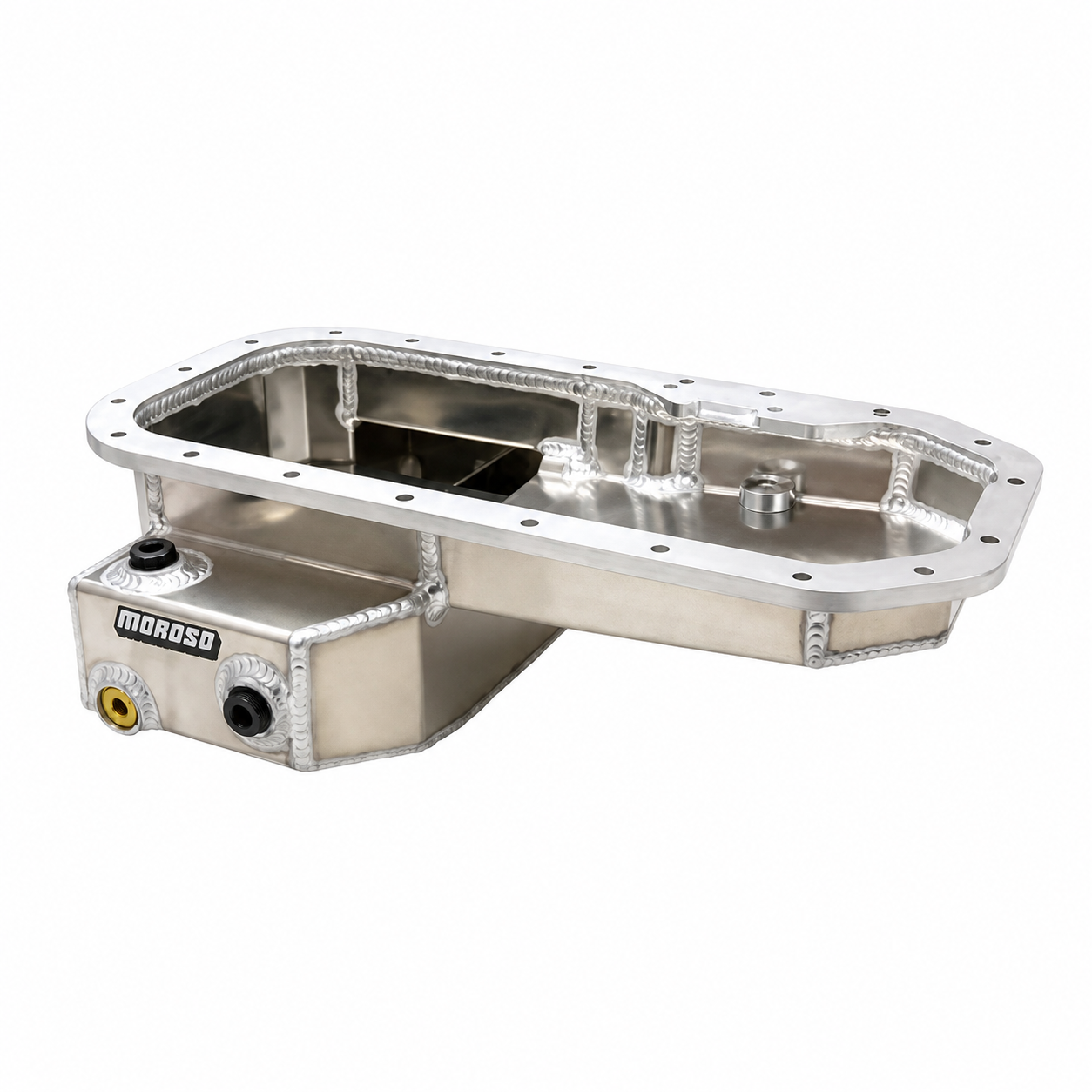

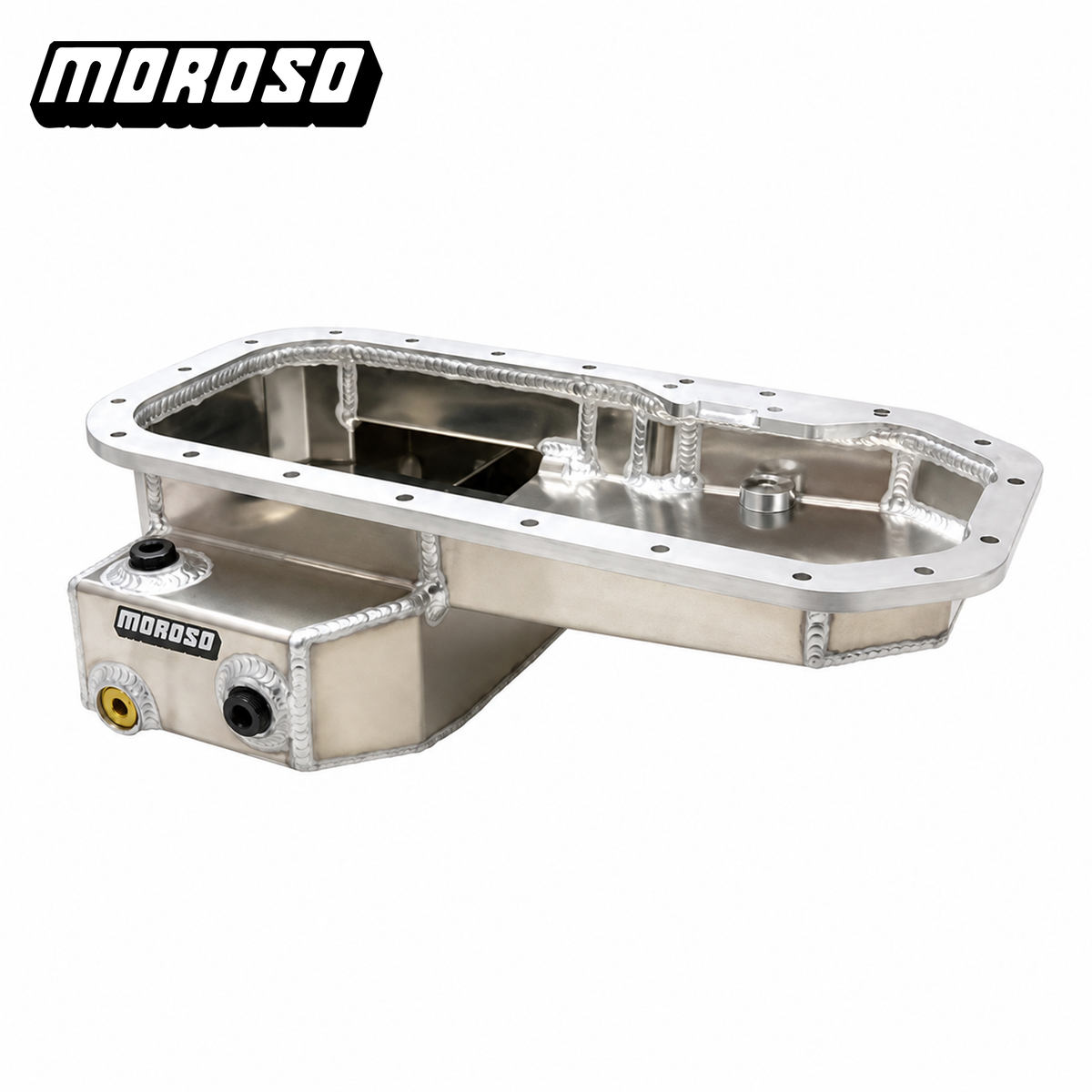

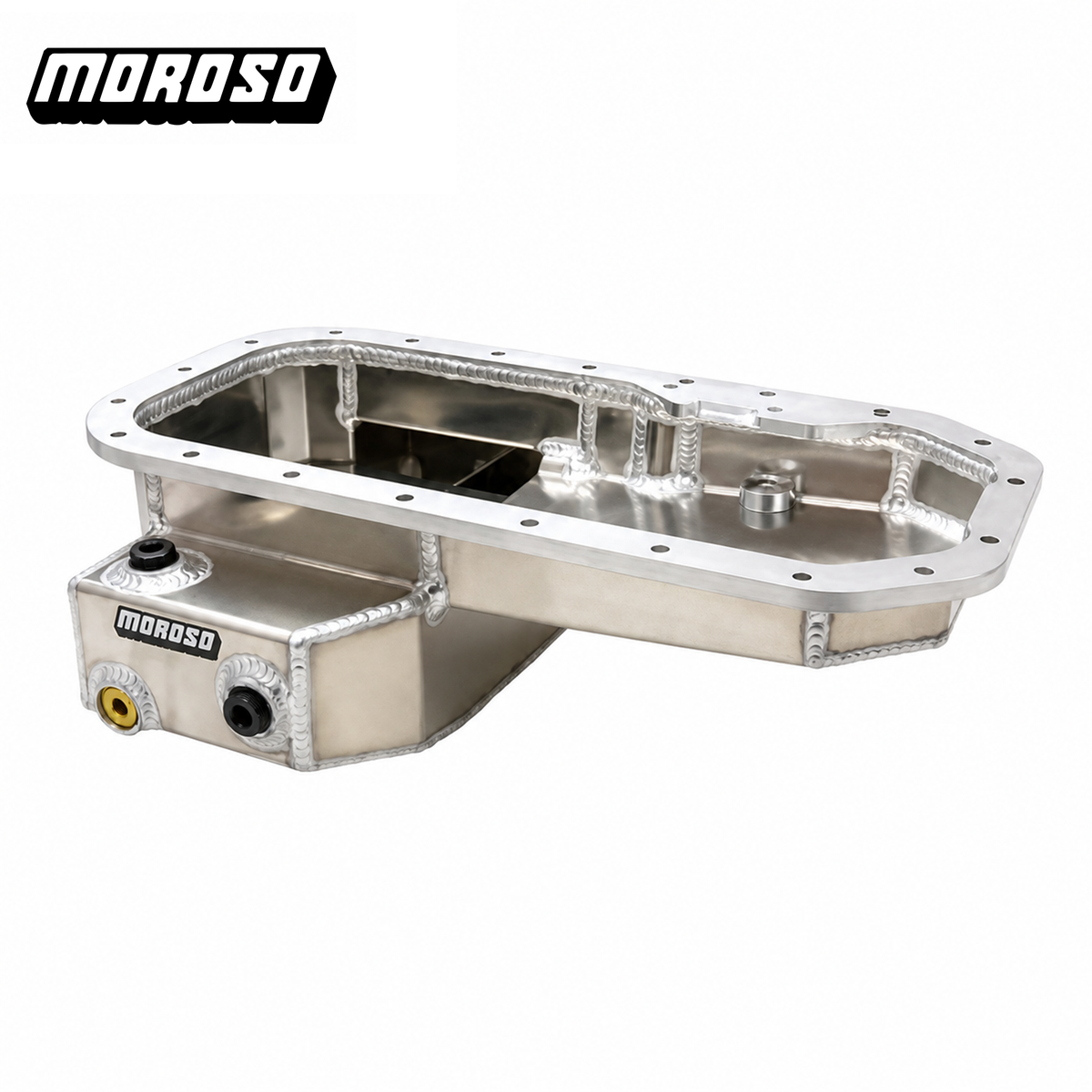

Oil Pan Only

• (1) Moroso fabricated aluminum front-sump oil pan
• Integrated four-trap-door road-race baffling
• Removable anti-slosh baffle
• Oil pump pickup is not included.

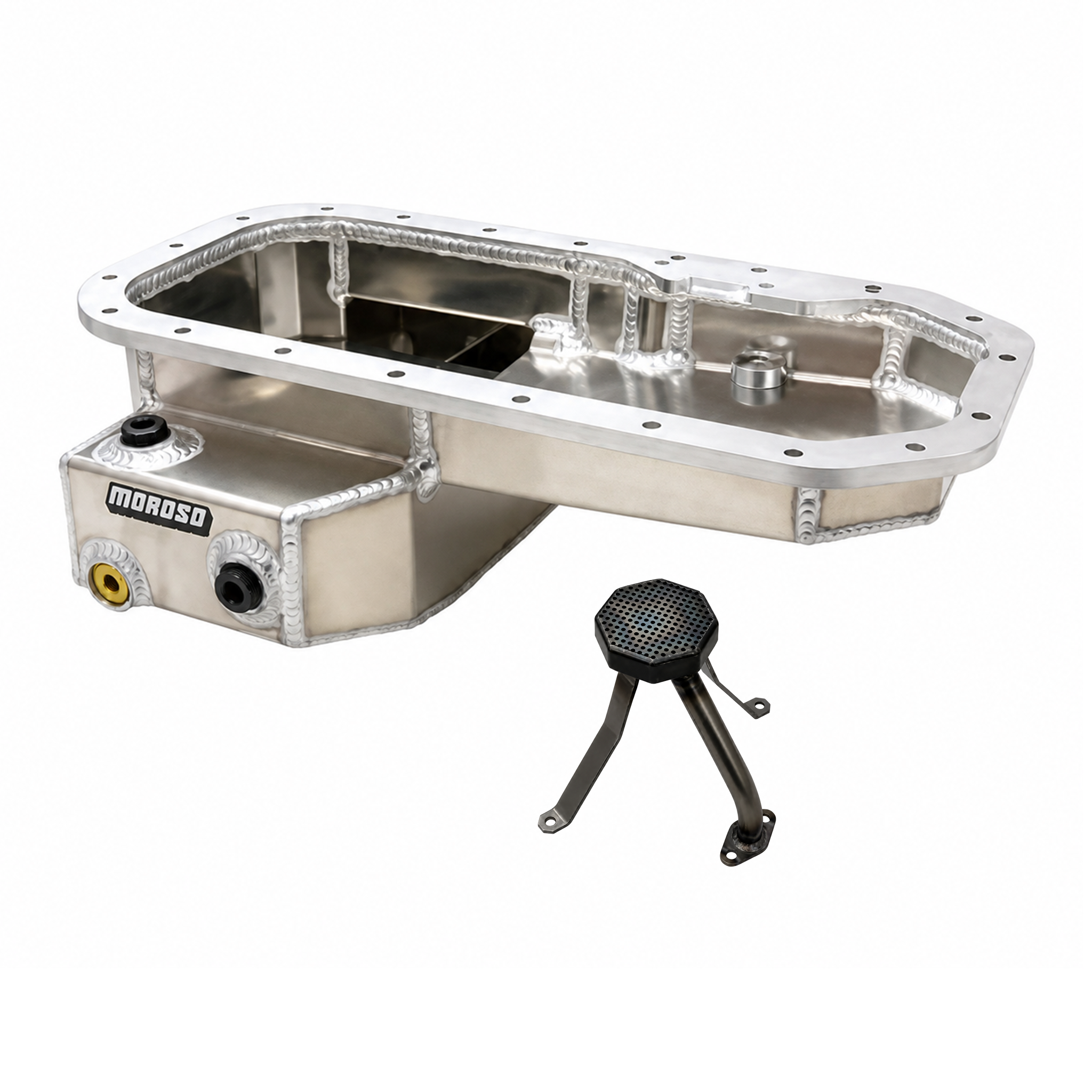

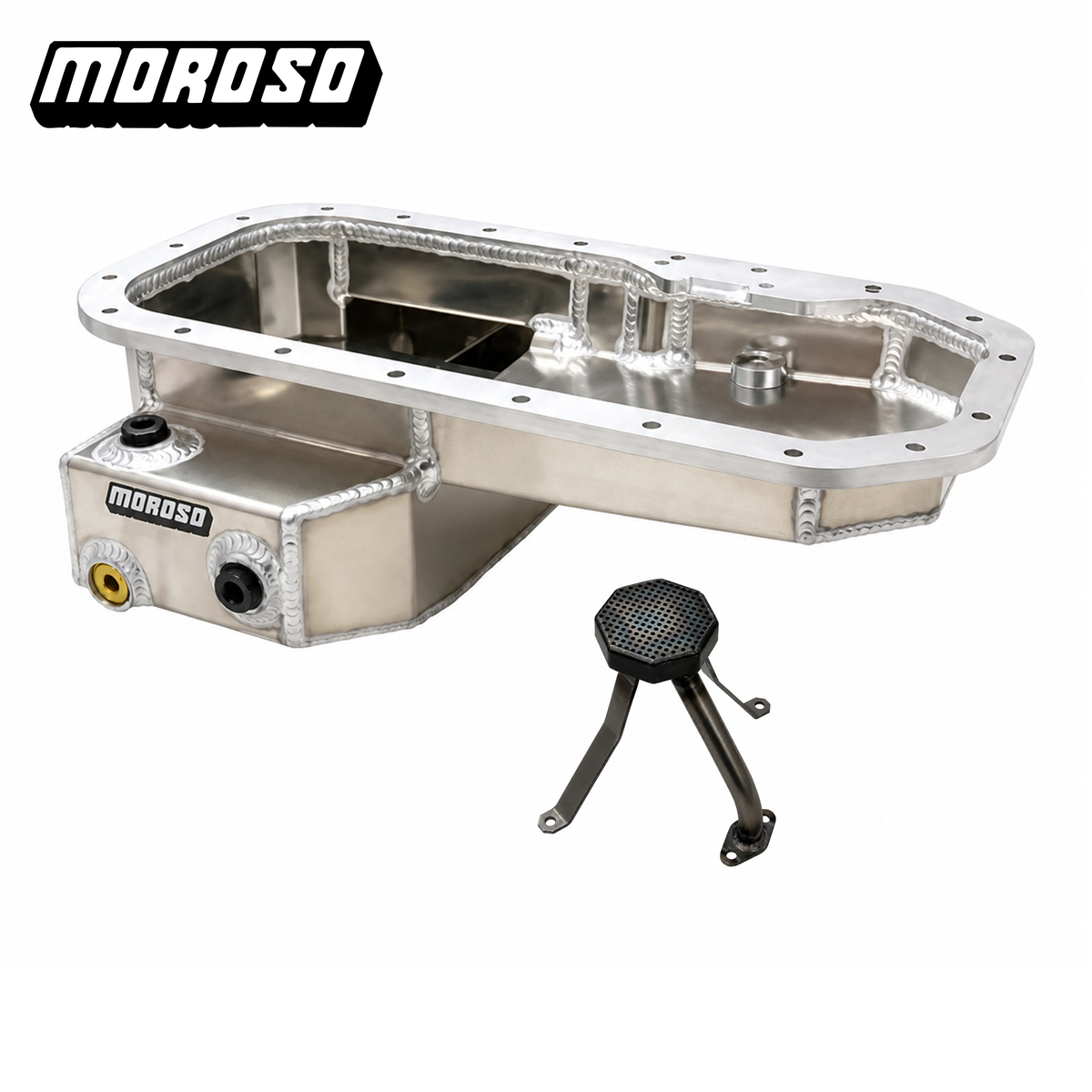

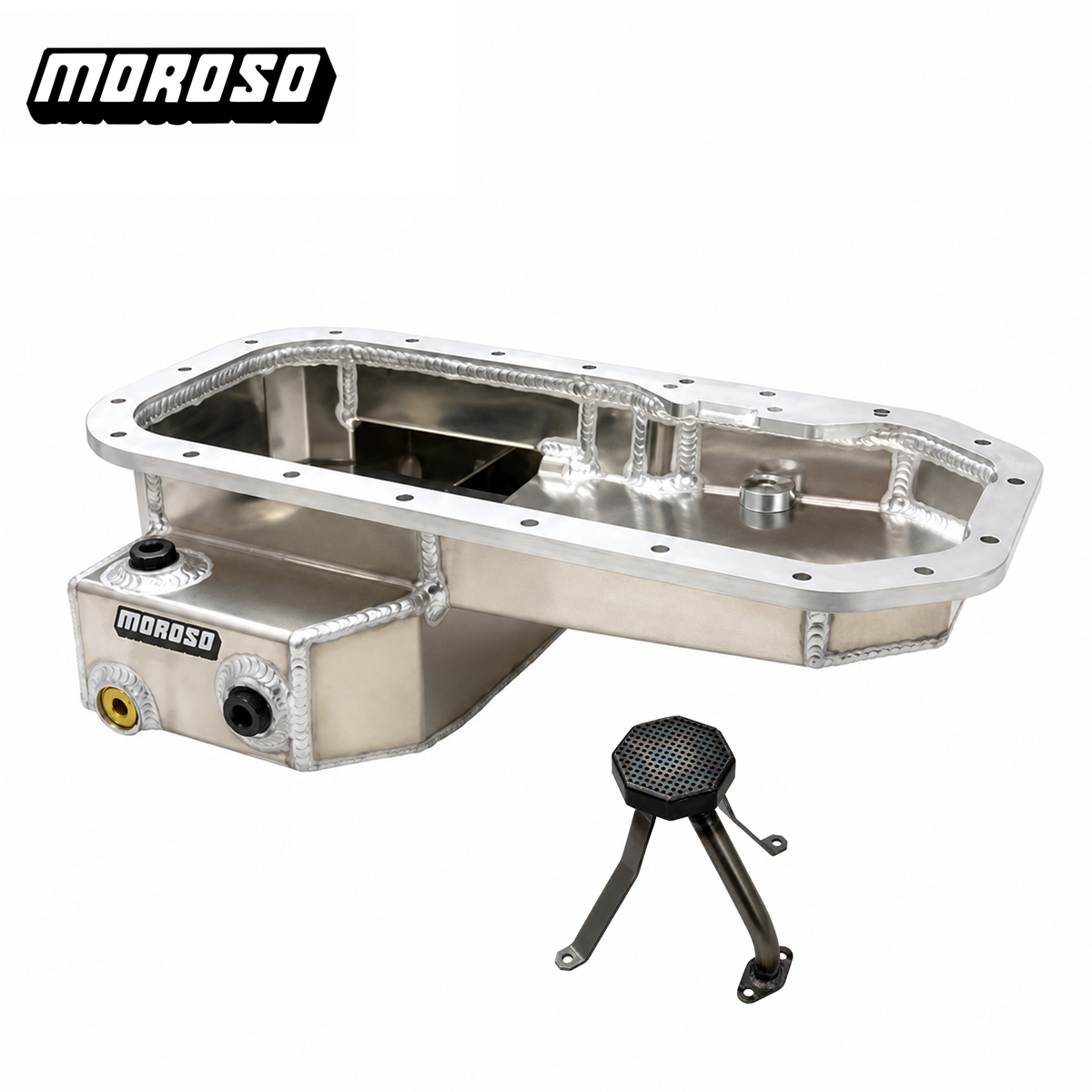

Oil Pan + Oil Pump Pickup

• (1) Moroso fabricated aluminum front-sump oil pan
• (1) Matching Moroso oil pump pickup
• Integrated four-trap-door road-race baffling
• Removable anti-slosh baffle
• Pickup features heavy-duty bracing and a perforated-steel screen
