GReddy Standard 13-Row Oil Cooler Kit
For 1983–1987 Toyota Corolla AE86 Trueno & Levin, GTS and All JDM Trims equiped with a 4A-GE
Overview
The GReddy Standard 13-Row Oil Cooler Kit is a vehicle-specific engine oil cooling system designed for 1983–1987 Toyota Corolla AE86 models equipped with the 4A-GE engine. The kit uses a 13-row aluminum oil cooler core mounted in front of the radiator and a thermostatic GREX sandwich plate installed at the factory oil filter location. The integrated thermostat regulates oil flow through the external cooler according to engine oil temperature.
Steel-braided oil lines, fittings, gaskets, mounting brackets, and installation hardware are included for the vehicle-specific installation.
Key Features
- Vehicle-specific oil cooler system for 1983–1987 Toyota Corolla AE86 4A-GE
- 13-row aluminum GReddy / TRUST oil cooler core
- Thermostatic GREX oil filter sandwich plate
- Built-in thermostat for temperature-controlled oil circulation
- Steel-braided GReddy oil lines
- Cooler mounts in front of the radiator
- 3/4-16UNF fittings and center-bolt configuration
- External temperature-sensor compatibility at the sandwich plate
- Application-specific mounting brackets and installation hardware included
13-Row Thermostatic Oil Cooler System
The 13-row aluminum cooler provides additional heat-transfer capacity by routing engine oil through an external heat exchanger. The thermostatic sandwich plate controls oil circulation through the cooler while maintaining the factory oil filter location.
The included steel-braided oil lines connect the sandwich plate to the front-mounted cooler core, while the supplied fittings, brackets, gaskets, and hardware provide the components required for the specified AE86 installation.
Vehicle Fitment
Toyota Corolla
- 1983–1987 Toyota Corolla AE86 – 4A-GE – Engine Oil Cooler
Fitment Notes
- 4A-GE engine only
- Oil cooler core mounts in front of the radiator
- Uses a thermostatic sandwich plate at the factory oil filter location
- Uses 3/4-16UNF fittings / center-bolt configuration
- Sandwich plate supports an external temperature sensor
- The standard configuration requires adequate clearance around the factory oil-filter location
- The OEM exhaust manifold is not compatible with the standard configuration when the required clearance is not available; a high-clearance exhaust manifold is required for the standard configuration as specified
- Verify the engine and installation configuration before ordering
Product Specifications
Brand: GReddy / TRUST
Product Type: Engine Oil Cooler Kit
Design: Standard 13-Row
Core Type: NS1310G
Core Rows: 13
Core Material: Aluminum
Thermostat: Built Into Oil Block
Oil Block Design: GREX Thermostatic Sandwich Plate
Oil Lines: Steel Braided
Core Location: In Front of Radiator
Fitting / Center Bolt Size: 3/4-16UNF
Temperature Sensor Compatibility: External Sensor Compatible
Engine: 4A-GE
Fit Type: Vehicle-Specific
Standard 13-Row vs. Filter Relocation 13-Row
Both AE86 oil cooler configurations use a 13-row thermostatically controlled oil cooler mounted in front of the radiator. The primary difference is the location of the engine oil filter.
Choose the Standard 13-Row Oil Cooler Kit if:
- You have sufficient clearance around the factory oil-filter location.
- You want to retain the oil filter in its original position.
- You prefer the standard installation configuration.
- Your exhaust manifold provides the required clearance.
Choose the Filter Relocation 13-Row Oil Cooler Kit if:
- Clearance around the factory oil-filter location is limited.
- Other components interfere with the original filter position.
- You want the oil filter relocated beside the left strut area.
- Easier access to the oil filter is important for routine maintenance.
The filter-relocation configuration is the better choice when clearance at the original oil-filter location is the primary concern.
If you would like to use the standard configuration instead, see the Filter Relocation 13-Row Oil Cooler Kit

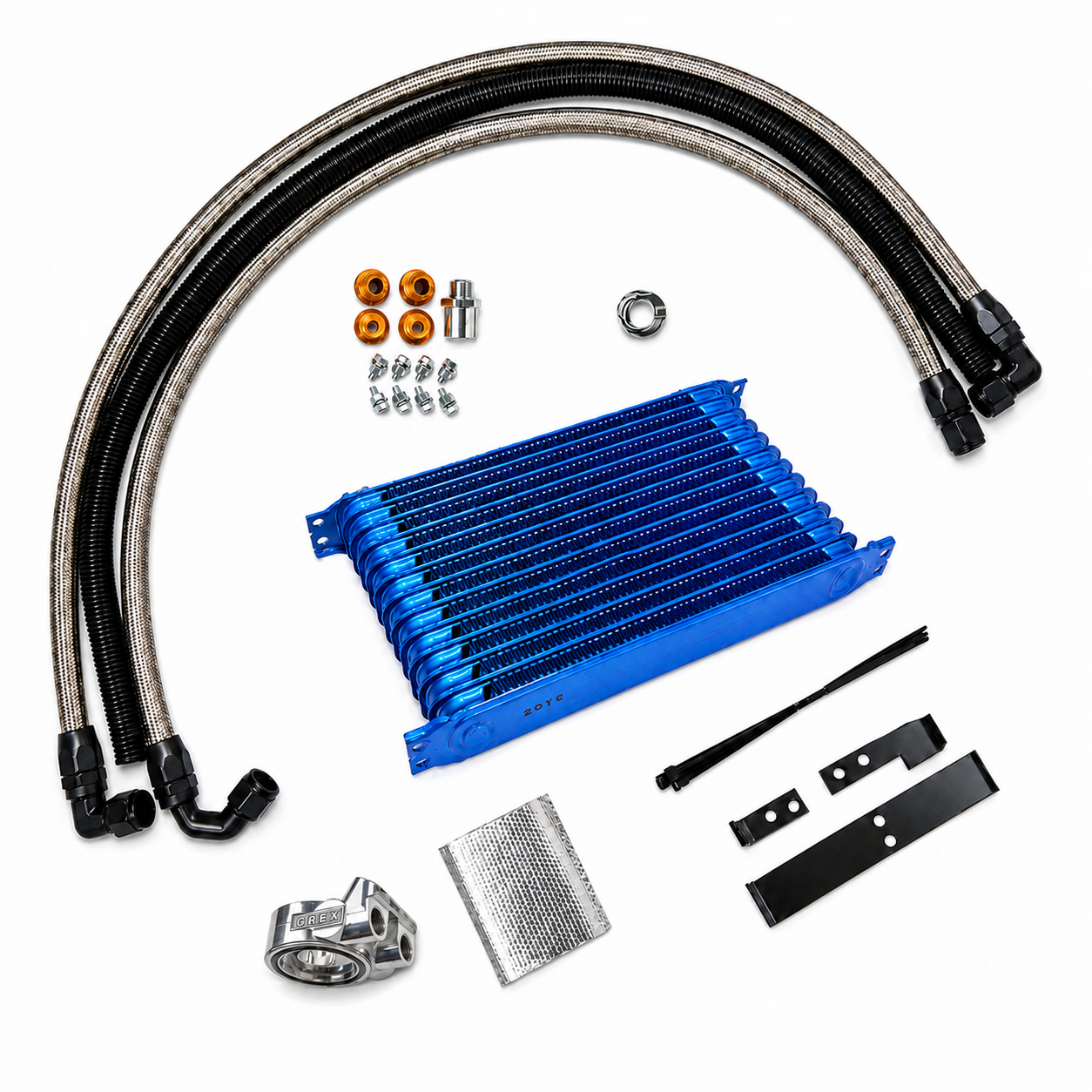

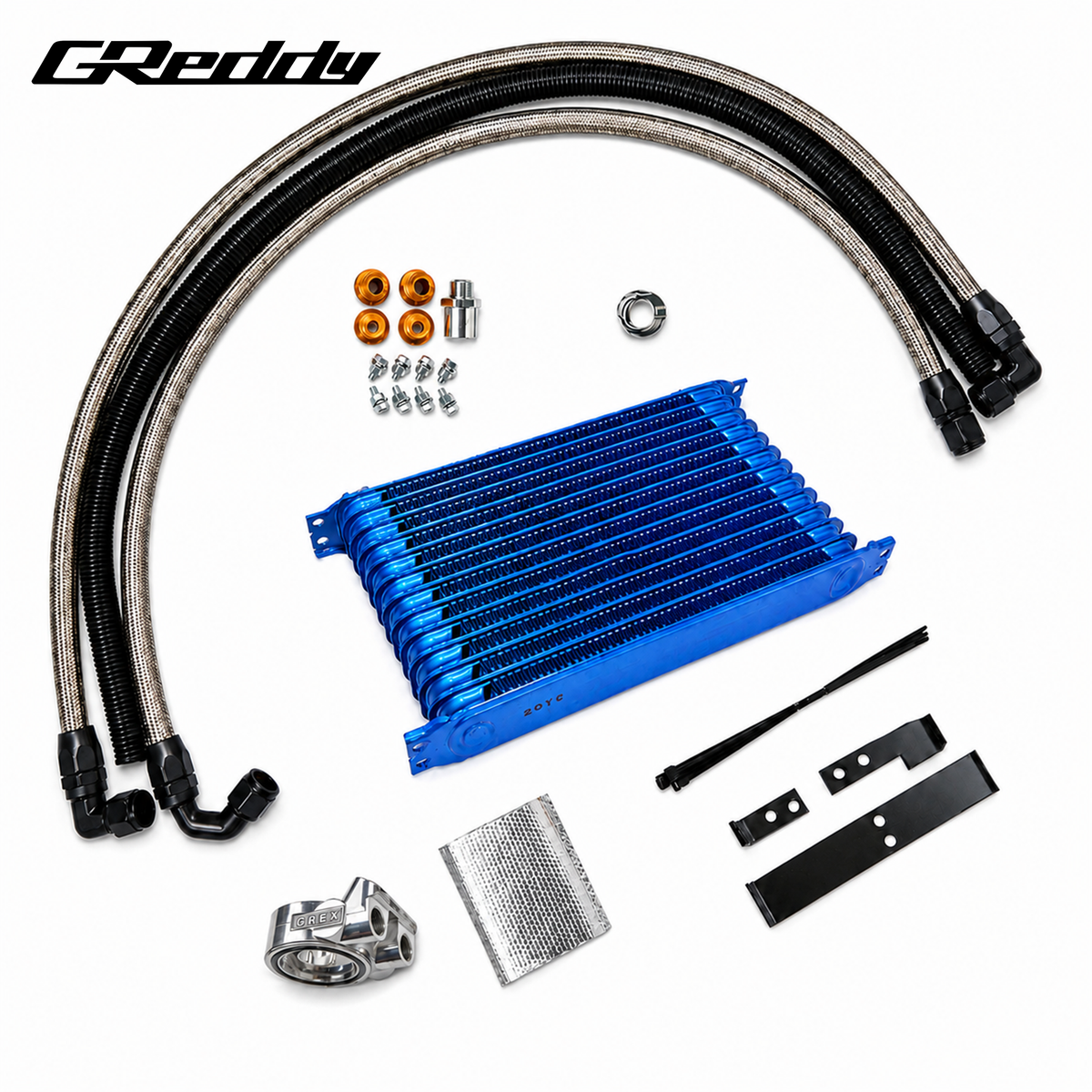

What's Included
- (1) GReddy / TRUST 13-row aluminum oil cooler core
- GREX thermostatic oil filter sandwich plate
- Sandwich plate gaskets
- Steel-braided GReddy oil lines
- GReddy fittings
- Protective line sleeving
- Application-specific mounting brackets
- Installation hardware and components
