AE86 APEXi Hybrid Megaphone Evolution Exhaust System (1983-87 Corolla)

APEXi Hybrid Megaphone Evolution Exhaust System

For 1983–1987 Toyota Corolla AE86 Trueno / Levin, 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), and 1984–1987 U.S.-Market Corolla Sport AE86 (SR5)

Overview

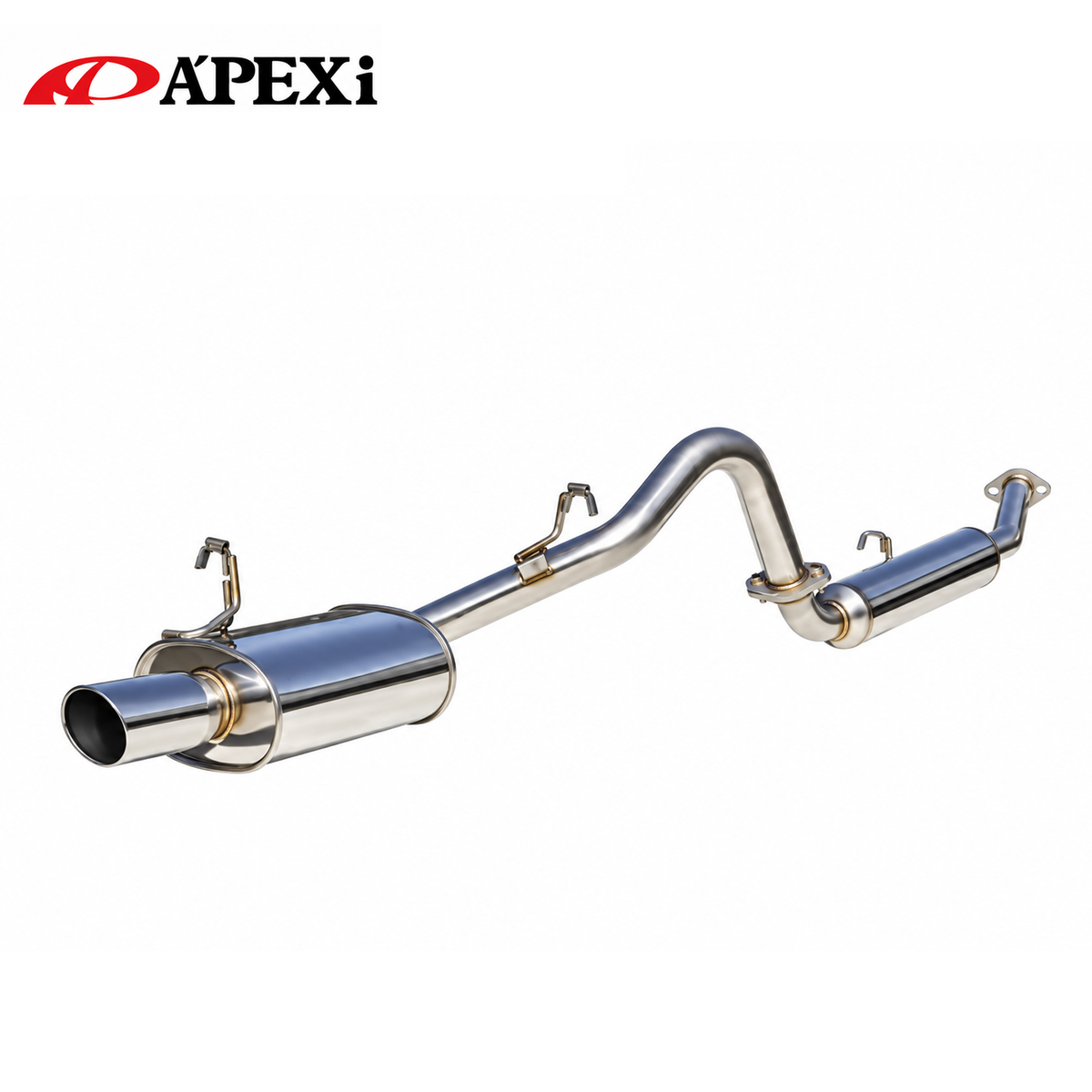

The APEXi Hybrid Megaphone Evolution is a SUS304 stainless-steel performance cat-back exhaust system for Toyota AE86 applications. It combines progressively expanding 54 mm to 60 mm piping with APEXi's hybrid silencer design and a 105 mm oval exhaust tip. For the verified U.S.-market GT-S and JDM E-AE86 4A-GE applications, the system is a two-piece cat-back assembly that connects downstream of the factory catalytic converter. SR5 4A-C fitment requires a GT-S-style catalytic converter or GT-S-length test pipe.

The system uses TIG-welded stainless construction throughout the piping, muffler, and tip, with a vehicle-specific bolt-on layout for the verified AE86 applications below.

Key Features

• SUS304 stainless-steel construction for the piping, muffler, and exhaust tip
• TIG-welded assembly
• 54 mm → 60 mm progressive main-pipe diameter
• 105 mm oval dual-wall rolled angle-cut exhaust tip
• APEXi megaphone tube structure with a progressively expanding flow path
• Hybrid silencer design for a street-oriented exhaust layout
• Single-exit configuration
• Vehicle-specific AE86 rear exhaust layout; SR5 4A-C fitment requires the GT-S-length upstream section

Hybrid Megaphone Design

The megaphone pipe layout expands from 54 mm to 60 mm rather than maintaining one constant diameter through the system. The hybrid silencer combines internal sound-control elements with the stainless performance piping, while the 105 mm oval outlet gives the system a distinct street-performance appearance.

Vehicle Fitment

Toyota Corolla AE86

• 1983–1987 Trueno (JDM) — 4A-GEU
• 1983–1987 Levin (JDM) — 4A-GEU
• 1985–1987 GT-S (U.S.-Market) — 4A-GE, 2-door coupe, manual transmission
• 1984–1987 SR5 (U.S.-Market) — 4A-C; requires a GT-S-style catalytic converter or GT-S-length test pipe

Fitment Notes

• SR5 4A-C fitment requires a GT-S-style catalytic converter or GT-S-length test pipe.
• The factory SR5 catalytic converter and SR5-length test-pipe section are shorter than the GT-S-style section, so the stock-length SR5 upstream section does not reach the exhaust inlet correctly.
• The required GT-S-style catalytic converter or test pipe is not included with the exhaust.
• For the verified U.S.-market GT-S and JDM E-AE86 4A-GE applications, the exhaust is a two-piece cat-back assembly that connects downstream of the factory catalytic converter.

Product Specifications

Brand: APEXi
Series: Hybrid Megaphone Evolution
Product Type: Cat-Back Exhaust System
Engine Applications: 4A-GE / 4A-GEU / 4A-C
Construction: SUS304 Stainless Steel
Welding: TIG Welded
Main Pipe Diameter: 54 mm → 60 mm
Tip Diameter: 105 mm
Tip Style: Oval, Dual-Wall Rolled, Angle Cut
Outlet Configuration: Single Exit
JDM Reference Close-Proximity Exhaust Level: 94 dB(A)
JDM Reference Minimum Ground Clearance: 125 mm

Alternative AE86 Exhaust Options

The APEXi system combines SUS304 stainless construction with a 105 mm oval single-exit tip. For a lighter full-titanium 4A-GE alternative with two routing choices, compare the TOMEI EXPREME Ti Full Titanium Exhaust. For another stainless performance option with a round outlet, compare the HKS Hi-Power Stainless Steel Cat-Back Exhaust System.

What's Included

• (1) APEXi Hybrid Megaphone Evolution exhaust system
• Stainless-steel piping, muffler, internal silencers / resonators, hangers, and brackets supplied with the exhaust assembly
