AE86 HKS Hi-Power Stainless Steel Cat-Back Exhaust System (1983-87 Corolla)

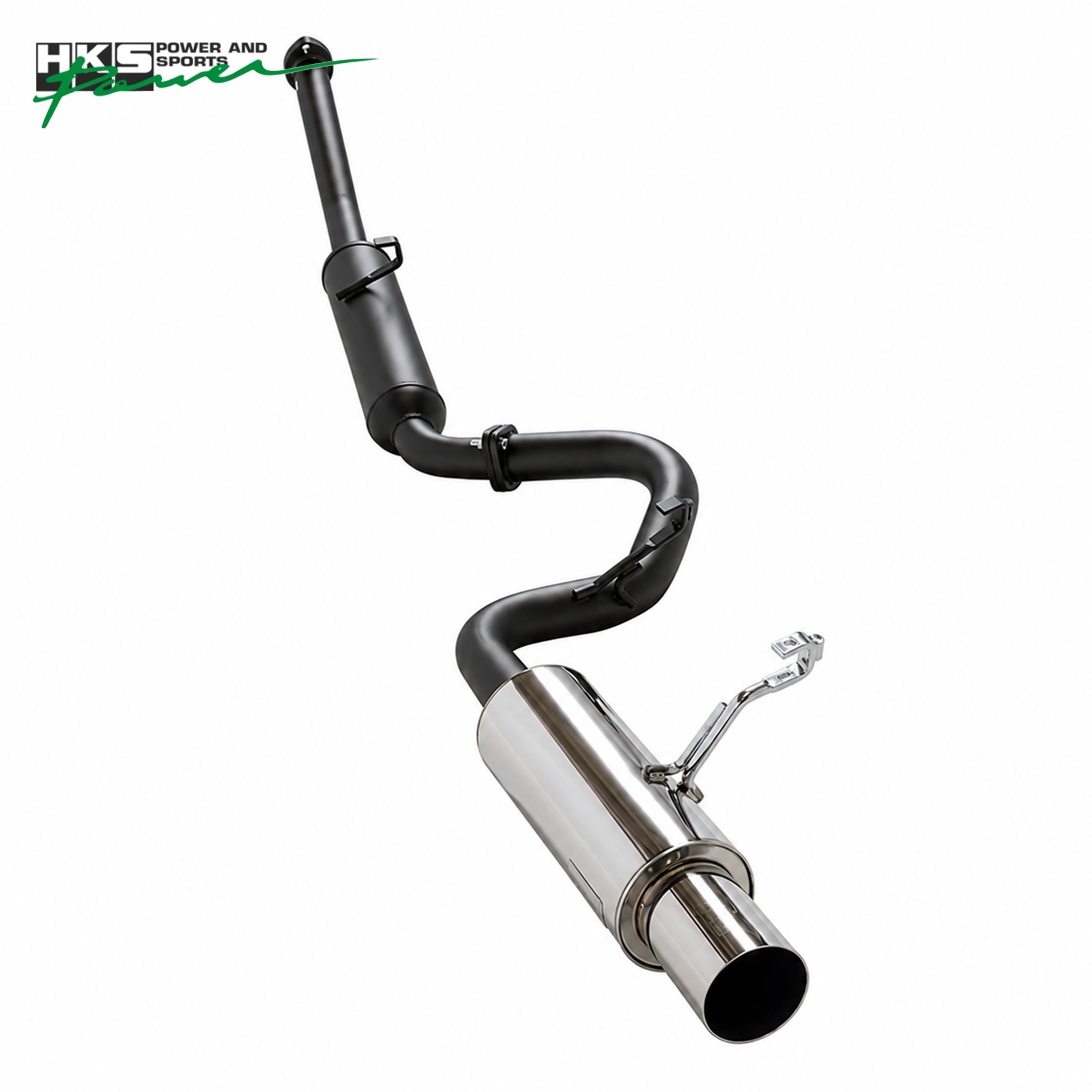

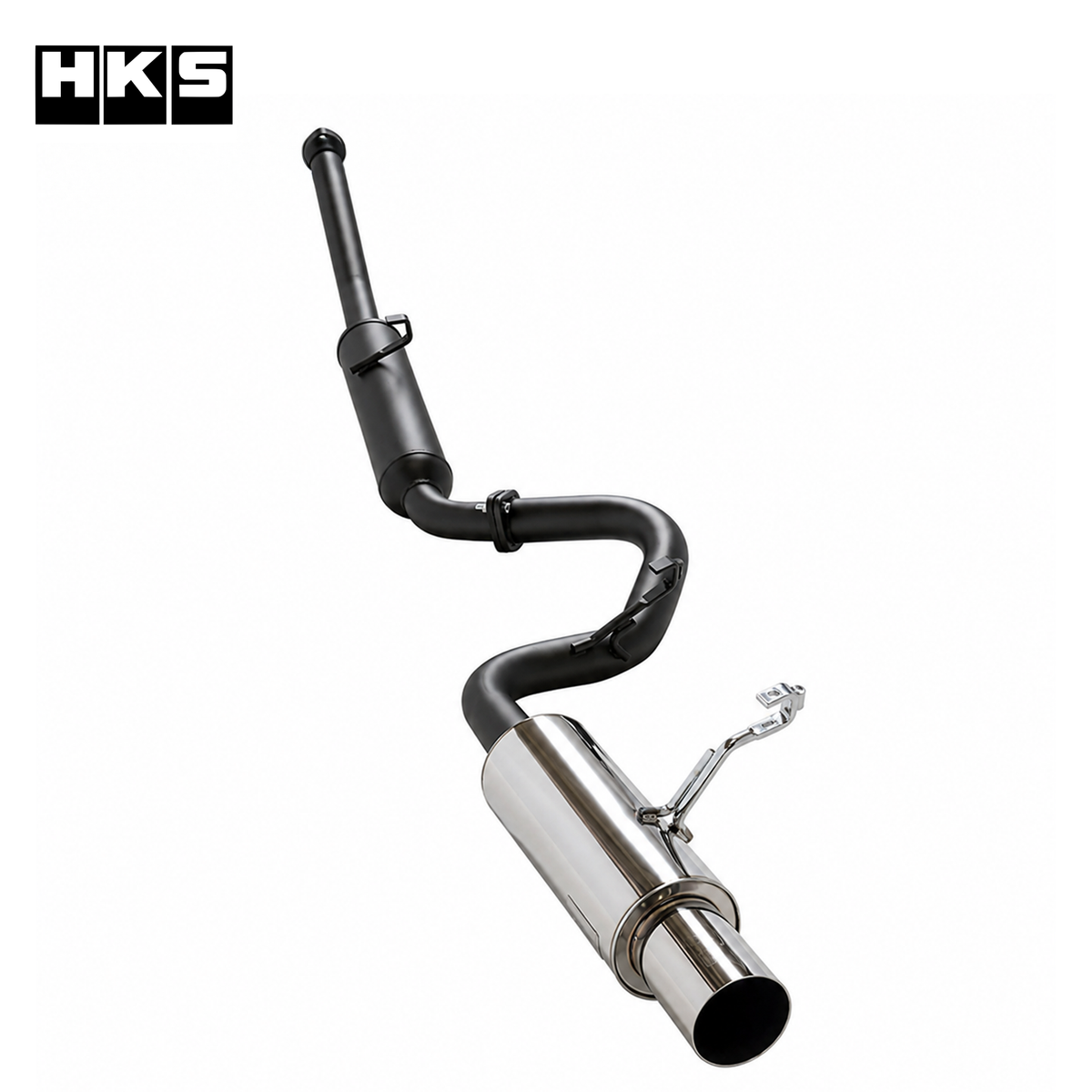

HKS Hi-Power 409 Stainless Steel Cat-Back Exhaust System

For 1983–1987 Toyota Corolla AE86 Trueno / Levin and 1984–1987 U.S.-Market Corolla Sport AE86

Overview

The HKS Hi-Power 409 Cat-Back Exhaust System is a performance exhaust for Toyota AE86 applications using the factory-style rear exhaust route. The system combines a straight-through muffler design with 60mm center piping and an over-differential layout.

The exhaust piping is constructed from SUH409 stainless steel, while the visible rear silencer and exhaust tip use SUS304 stainless steel. Advantex continuous-fiber glass wool is used inside the silencer to control exhaust sound while retaining a straight-through performance-oriented design.

Key Features

• HKS Hi-Power 409 performance cat-back exhaust system
• Fits Sprinter Trueno, Corolla Levin, Corolla GT-S, and Corolla SR5 AE86 applications
• Fits 4A-GE and 4A-C applications listed below
• 60mm center pipe diameter
• 94mm exhaust tip
• Straight-through performance muffler construction
• SUH409 stainless steel exhaust piping
• SUS304 stainless steel main silencer and exhaust tip
• Over-differential exhaust routing
• Two-piece exhaust construction
• Advantex continuous-fiber glass wool silencer material
• 97 dB close-proximity exhaust level
• 73 dB idle exhaust level

Exhaust Design & Sound

The Hi-Power 409 uses an over-differential layout designed around the AE86 rear exhaust routing. The 60mm center pipe feeds a straight-through round silencer and exits through a 94mm tip for a more aggressive appearance and exhaust note.

• Close-Proximity Exhaust Level: 97 dB
• Idle Exhaust Level: 73 dB
• Factory Close-Proximity Reference: 85 dB

Minimum exhaust-system ground clearance is approximately 150mm on the reference vehicle with stock suspension. Actual clearance depends on suspension height, tire size, and vehicle configuration.

Vehicle Fitment

Toyota Sprinter Trueno

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – 4A-GE

Toyota Corolla Levin

• 1983–1987 Toyota Corolla AE86 – Levin (JDM) – 4A-GE

Toyota Corolla GT-S

• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 4A-GE

Toyota Corolla SR5

• 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market) – 4A-C

Fitment Notes

• Fits both 4A-GE and 4A-C AE86 applications shown above.
• Cat-back routing is not steering-position dependent for these AE86 applications.
• Over-differential exhaust routing.
• Uses the factory-style AE86 rear exhaust path.
• Exhaust clearance should be checked on lowered vehicles.
• Professional installation is recommended.

Product Specifications

Brand: HKS
Series: Hi-Power 409
Product Type: Cat-Back Exhaust System
Vehicle Chassis: AE86
Engine: 4A-GE / 4A-C
Drivetrain: RWD
Center Pipe Diameter: 60mm
Exhaust Tip Diameter: 94mm
Exhaust Piping Material: SUH409 Stainless Steel
Main Silencer Material: SUS304 Stainless Steel
Exhaust Tip Material: SUS304 Stainless Steel
Layout: Over Differential
Construction: 2-Piece
Close-Proximity Exhaust Level: 97 dB
Idle Exhaust Level: 73 dB

HKS Sport Muffler vs. HKS Hi-Power 409

Both systems use 60mm piping and an over-differential AE86 layout, but they differ primarily in sound level and exhaust-tip size.

Choose the HKS Sport Muffler for a quieter, more understated street-oriented setup. Choose the HKS Hi-Power 409 for a larger exhaust tip, louder exhaust note, and more aggressive performance-exhaust appearance.

What's Included

• (1) HKS Hi-Power 409 AE86 exhaust system
• Exhaust piping and rear silencer assembly
• Required system-specific installation hardware and gaskets
