WIX Engine Air Filter | 22RE / 22R-TE (1985-89 4Runner / 1984-88 Pickup)

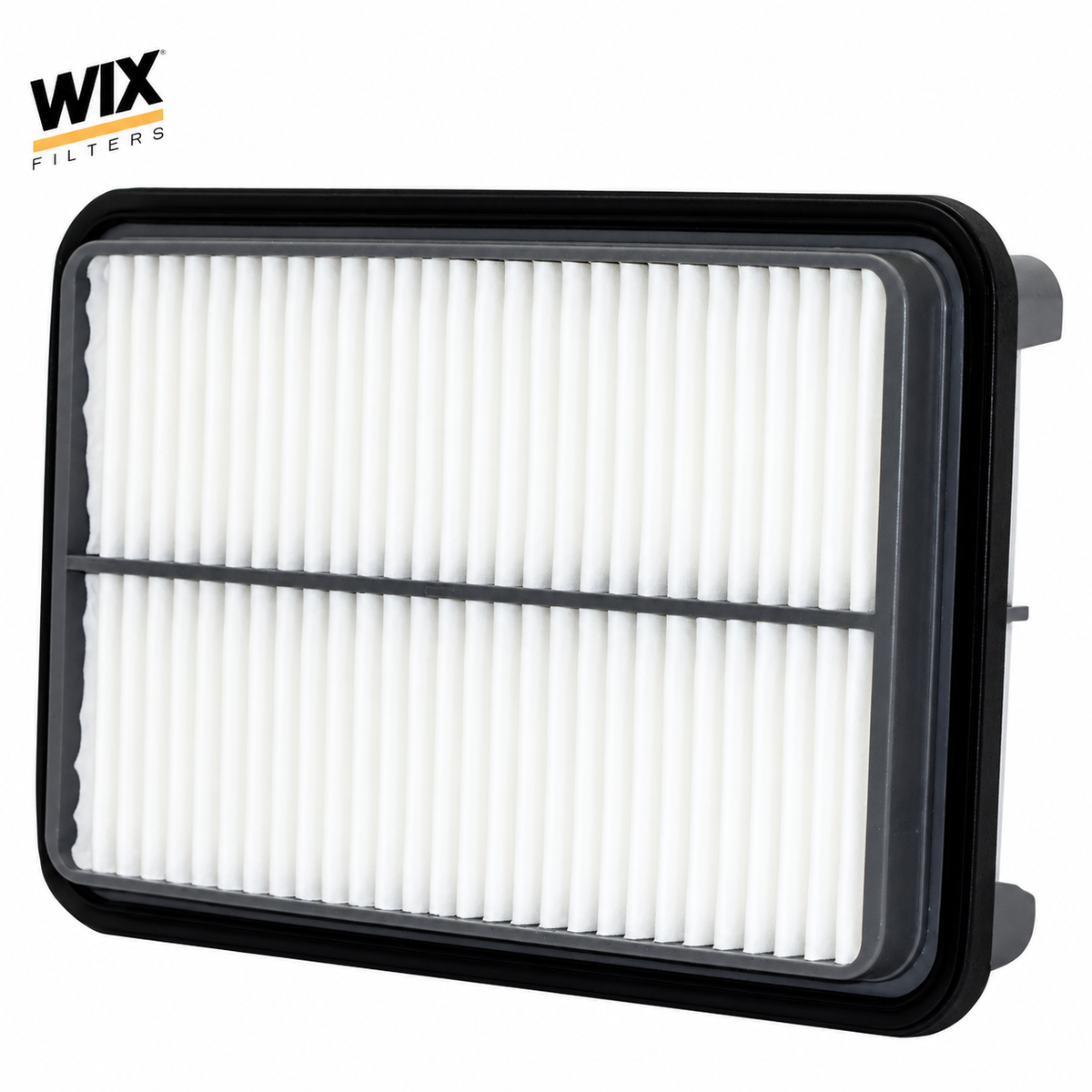

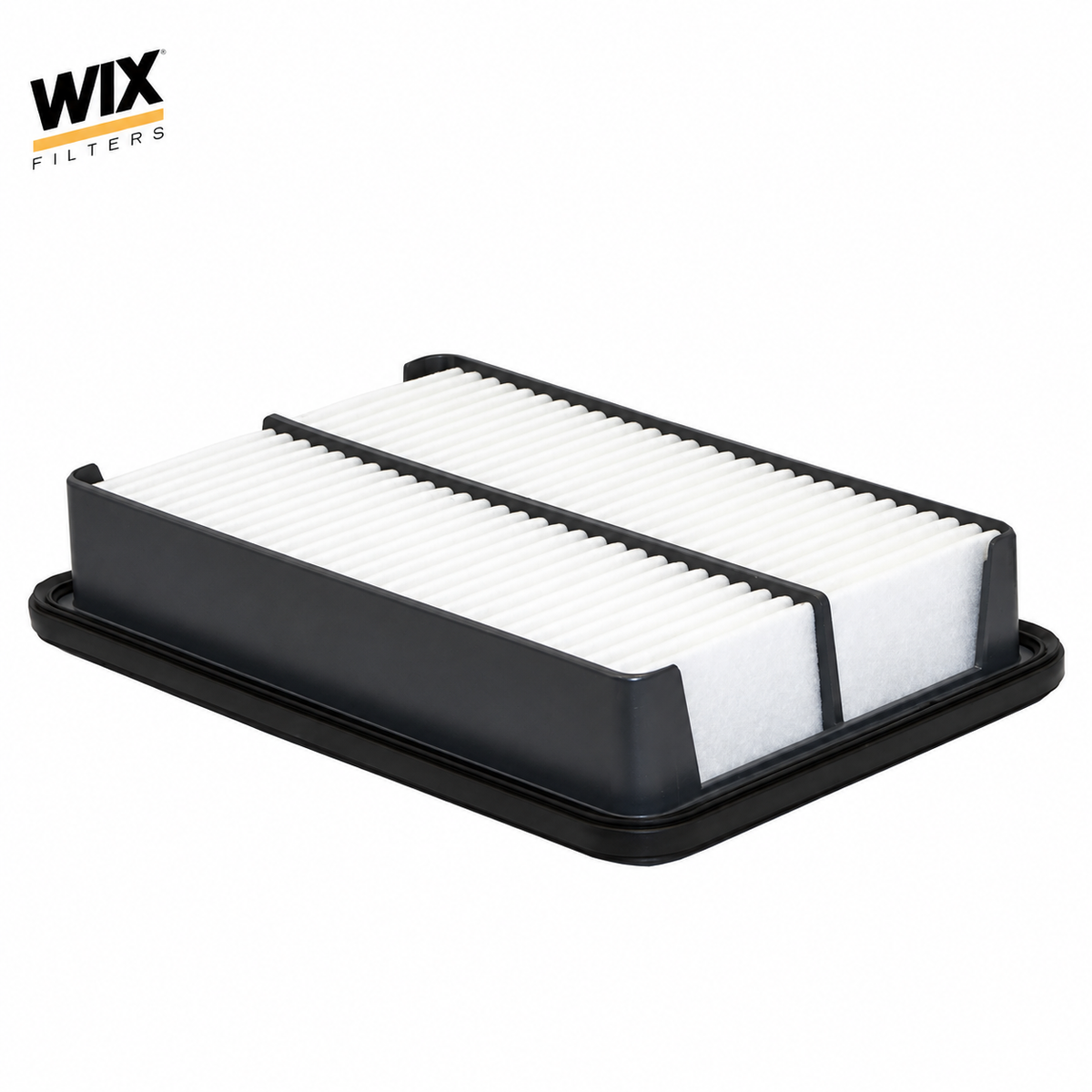

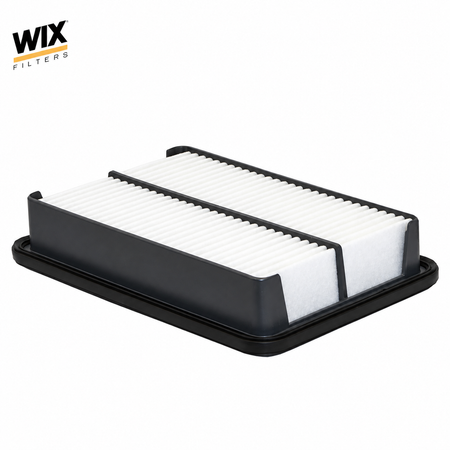

WIX Replacement Engine Air Filter

For 1985–1989 Toyota 4Runner and 1984–1988 Toyota Pickup with 22RE / 22R-TE

Overview

The WIX Replacement Engine Air Filter is a panel-style service replacement that captures airborne dust before it enters the engine. It fits inside the original closed air cleaner, retaining the factory intake layout.

The element is supplied individually with its perimeter frame and seal. The existing airbox, lid and retainers are reused.

Key Features

• Synthetic filter media in a pleated panel construction
• Rectangular drop-in design for the original EFI air cleaner
• Molded perimeter seal around the upper edge
• Center reinforcement supporting the filter element

Vehicle Fitment

Toyota 4Runner

• 1985–1989 Toyota 4Runner – 1st Gen – 22RE – 4WD
• 1986–1987 Toyota 4Runner – 1st Gen – 22R-TE – 4WD – Automatic

Toyota Pickup

• 1984–1988 Toyota Pickup – 2nd Gen – 22RE – 2WD
• 1985–1988 Toyota Pickup – 2nd Gen – 22RE – 4WD
• 1985–1988 Toyota Pickup – 2nd Gen – 22R-TE – 2WD
• 1986–1987 Toyota Pickup – 2nd Gen – 22R-TE – 4WD

Fitment Notes

• U.S.-market applications with the original air cleaner.
• Does not fit carbureted 22R or 3VZ-E V6 air cleaners.
• Does not fit the factory airboxes in 1990–1995 Toyota 4Runner or 1989–1995 Toyota Pickup.
• Does not fit aftermarket cone-filter intakes.
• For engine swaps or airbox conversions, the installed air-cleaner housing determines filter fitment.

Product Specifications

Brand: WIX
Product Type: Engine air-filter element
Style: Rectangular panel
Filter Media: Synthetic
Length: 10.182 in
Width: 6.582 in
Height: 2.17 in
Airflow Rating: 210 CFM

Washable Filter Alternative

For owners who prefer a filter that can be cleaned and reused, the K&N Washable High-Flow Air Filter uses oiled cotton-gauze media. That alternative requires cleaning and re-oiling as part of its service routine.

What's Included

• (1) WIX engine air-filter element with integral perimeter frame and seal
