K&N Washable High-Flow Air Filter | Fuel-Injected 2.4L (1985-89 4Runner / 1984-88 Pickup)

K&N Washable High-Flow Air Filter | Fuel-Injected 2.4L

For 1985–1989 Toyota 4Runner and 1984–1988 Toyota Pickup with fuel-injected 2.4L 4-cylinder engines and the factory panel air box

Overview

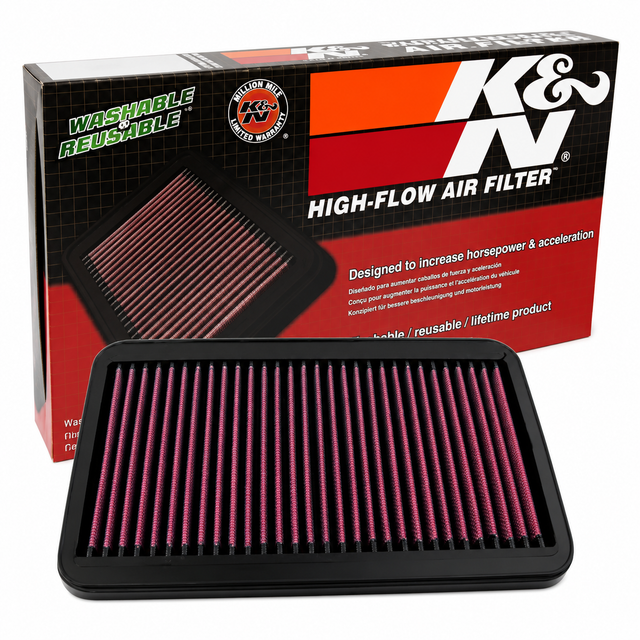

The K&N Washable High-Flow Air Filter is a reusable drop-in replacement for the factory rectangular panel filter used in fuel-injected 2.4L Toyota 4Runner and Pickup applications. Its layered, oiled cotton-gauze media is designed to increase airflow while trapping airborne contaminants before they reach the engine.

The filter installs directly in the original air cleaner housing without replacing the factory intake system. It is pre-oiled and ready to install, then can be cleaned, re-oiled, and reused throughout its service life.

Key Features

• Washable and reusable high-flow panel air filter
• Layered oiled cotton-gauze filtration media
• Up to 99% overall filter efficiency
• Direct drop-in replacement for the factory air box
• Pre-oiled and ready for installation
• Designed to improve airflow compared with a conventional restrictive filter element
• Cleaning interval up to 75,000 miles under normal highway driving conditions
• No-Hassle Lifetime Limited Warranty

Vehicle Fitment

Toyota 4Runner

• 1985–1989 Toyota 4Runner – 1st Gen – 2.4L Fuel-Injected 4-Cylinder – 22RE / 22R-TE as equipped – Factory Panel Air Box

Toyota Pickup

• 1984–1988 Toyota Pickup – 2nd Gen – 2.4L Fuel-Injected 4-Cylinder – 22RE / 22R-TE as equipped – Factory Panel Air Box

Fitment Notes

• Fuel-injected 2.4L applications only.
• Designed for the factory rectangular panel-filter air cleaner housing.
• Does not fit carbureted 22R applications.
• Does not fit 3.0L 3VZ-E V6 applications.
• Does not fit vehicles converted to an aftermarket cone-filter intake system.
• No ECU tuning is required for installation.

Cleaning & Maintenance

• Inspect the filter more frequently when the vehicle is operated in dusty, sandy, muddy, or off-road conditions.
• Clean with an appropriate K&N filter-cleaning system and allow the filter to air dry completely.
• Re-oil the cotton gauze evenly before reinstalling the filter.
• Recommended re-oiling amount: approximately 1.26 oz / 37 ml.
• Do not use compressed air, solvents, gasoline, engine oil, or external heat to clean or dry the filter.

Product Specifications

Brand: K&N
Product Type: Engine Air Filter
Filter Style: Panel
Shape: Rectangular
Filter Material: Oiled Cotton Gauze
Outside Length: 10.188 in / 259 mm
Outside Width: 6.625 in / 168 mm
Height: 1.25 in / 32 mm
Re-Oiling Amount: 1.26 oz / 37 ml
Overall Filter Efficiency: Up to 99%
Installation: Factory Drop-In
Washable: Yes
Reusable: Yes
Warranty: No-Hassle Lifetime Limited

3VZ-E Air Filter Option

For 3.0L 3VZ-E V6 applications, see the K&N Washable High-Flow Air Filter | 3VZ-E for 1988–1995 Toyota 4Runner and 1988–1995 Toyota Pickup models.

What's Included

• (1) K&N washable high-flow panel air filter
