Trail-Gear 54mm Spindle Nut Socket (1984-95 4Runner / 1979-95 Pickup)

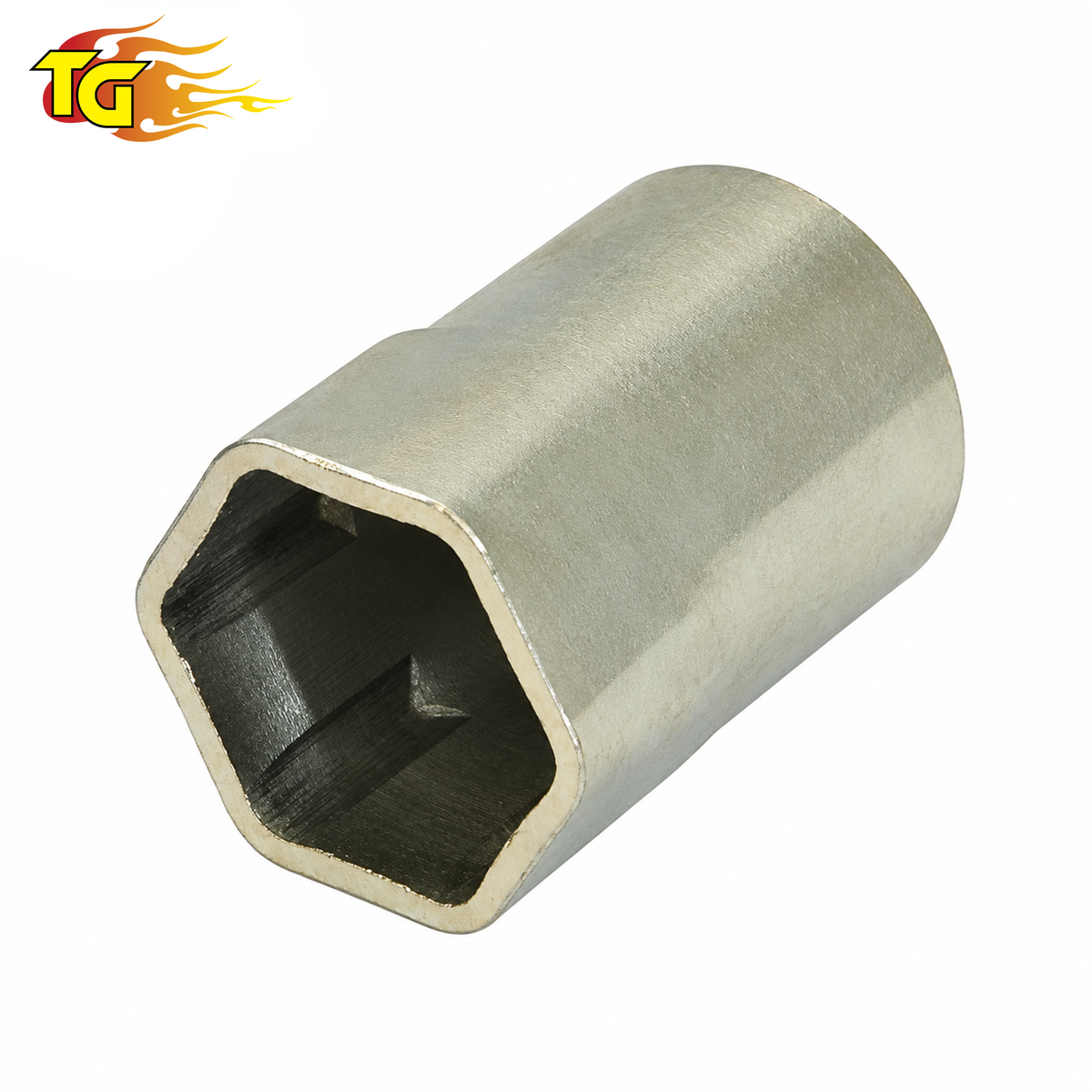

Trail-Gear 54mm Spindle Nut Socket

For 1984–1995 Toyota 4Runner (4WD, plus 1990–1995 2WD) and 1979–1995 Toyota Pickup 4WD

Overview

The Trail-Gear 54mm spindle nut socket fits a 3/8-inch square drive for front wheel-bearing spindle-nut service. It works on the front bearing adjusting and lock nuts of 1984–1995 Toyota 4Runner 4WD, 1990–1995 Toyota 4Runner 2WD, and 1979–1995 Toyota Pickup 4WD models.

Key Features

• 54mm socket for front spindle adjusting and lock nuts
• 3/8-inch square drive connects directly to a matching ratchet
• One reusable socket services both front hubs

Vehicle Fitment

Toyota 4Runner — 1st Gen — 4WD

• 1984–1985: Factory solid front axle
• 1986–1989: Factory independent front suspension

Toyota 4Runner — 2nd Gen — 2WD & 4WD

• 1990–1995: Factory front wheel-bearing spindle adjusting and lock nuts

Toyota Pickup — 1st Gen — 4WD

• 1979–1983: Factory solid front axle

Toyota Pickup — 2nd Gen — 4WD

• 1984–1985: Factory solid front axle
• 1986–1988: Factory independent front suspension

Toyota Pickup — 3rd Gen — 4WD

• 1989–1995: Factory independent front suspension

Fitment Notes

• Does not fit factory 2WD Toyota Pickup front spindle nuts.
• Not for factory 1996–2002 Toyota 4Runner front hub service.
• Axle or hub conversions must be matched to the installed spindle-nut assembly, not the vehicle's model year alone.
• Not a rear axle, differential, or general CV axle-nut socket.

For a knuckle rebuild on a factory solid-axle 1984–1985 4Runner 4WD or 1979–1985 Pickup 4WD, the Trail-Gear Knuckle Rebuild Kit supplies separate rebuild components. It is optional and is not included with this socket.

Product Specifications

Brand: Trail-Gear
Product Type: Spindle nut socket
Socket Size: 54mm
Drive Size: 3/8-inch square drive
Service Position: Front
Quantity: One socket

What's Included

• One 54mm spindle nut socket

Ratchet and wheel-bearing service parts are not included.
