Total Chaos Weld-On Front Leaf Spring Hangers | 2.5-Inch Rear Springs (1986-95 4Runner / Pickup)

Total Chaos Weld-On Front Leaf Spring Hangers | 2.5-Inch Rear Springs

For 1986–1995 Toyota 4Runner and 1986–1995 Toyota Pickup 4WD rear leaf-spring conversion applications

Overview

The Total Chaos Weld-On Front Leaf Spring Hangers provide the forward mounting point for aftermarket 2.5-inch-wide rear leaf springs on supported Toyota 4Runner and Pickup 4WD applications. In this product name, “front” refers to the front hanger position of the rear leaf spring.

The laser-cut brackets weld directly to the frame and are intended for custom rear leaf-spring conversions where the factory spring mounting location is being changed. Grinding, frame preparation, accurate positioning, and welding are required.

Key Features

• Front hanger pair for rear leaf-spring conversions
• Designed for 2.5-inch-wide aftermarket leaf springs
• Relocates the forward rear-leaf spring mounting point
• Laser-cut bracket construction
• Weld-on frame installation
• Grade 8 mounting hardware included
• Grinding and welding required
• Sold as a pair

Vehicle Fitment

Toyota 4Runner

• 1986–1989 Toyota 4Runner – 1st Gen – 4WD – Rear Leaf-Spring Conversion – 2.5-Inch Springs
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Rear Leaf-Spring Conversion – 2.5-Inch Springs

Toyota Pickup

• 1986–1988 Toyota Pickup – 2nd Gen – 4WD – Rear Leaf-Spring Conversion – 2.5-Inch Springs
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Rear Leaf-Spring Conversion – 2.5-Inch Springs

Fitment Notes

• Rear suspension application.
• 4WD applications only.
• Designed for 2.5-inch-wide aftermarket rear leaf springs.
• The “front hanger” is the forward mounting point of the rear leaf spring.
• Final hanger location must be established as part of the complete rear suspension geometry.
• Grinding and frame preparation are required before welding.
• Welding is required.
• Professional suspension fabrication and welding are recommended.

Product Specifications

Brand: Total Chaos Fabrication
Product Type: Front Leaf Spring Hanger Pair
Suspension Position: Rear
Leaf Spring Mount Position: Front / Forward
Leaf Spring Width: 2.5 in
Construction: Laser-Cut Brackets
Installation: Weld-On
Drivetrain: 4WD
Quantity: Pair
Hardware: Grade 8 Hardware Included

Supporting Suspension Components

These related components service the same suspension or steering system and may be useful when completing a broader chassis refresh. Total Chaos 9-Inch Chromoly Rear Leaf Spring Shackles — rear shackle option for 2.5-inch leaf-spring applications. Total Chaos 12-Inch Chromoly Rear Leaf Spring Shackles — longer rear shackle option for custom 2.5-inch leaf-spring setups. Total Chaos Rear U-Bolt Relocation Plates | 2.5-Inch Springs — matching rear leaf-spring mounting hardware for supported applications.

What's Included

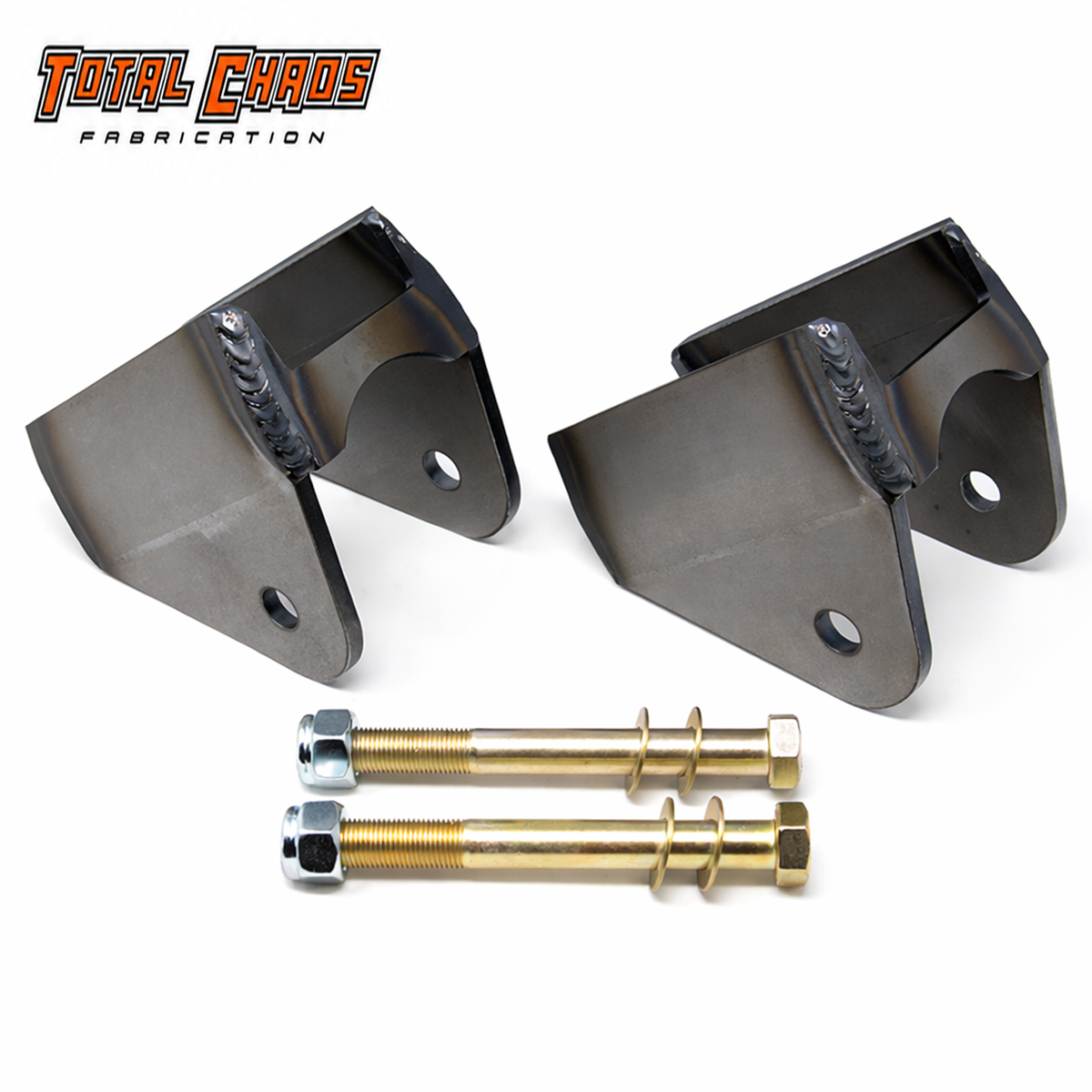

• (2) Weld-on front leaf spring hanger brackets
• Grade 8 mounting hardware
