Total Chaos 12-Inch Chromoly Rear Leaf Spring Shackles | 2.5-Inch Springs (1986-95 4Runner / 1986-95 Pickup)

Total Chaos 12-Inch Chromoly Rear Leaf Spring Shackles

For 1986–1995 Toyota 4Runner and Toyota Pickup with 2.5-Inch-Wide Rear Leaf Springs

Overview

The Total Chaos 12-inch chromoly rear leaf spring shackles are heavy-duty fabrication components for Toyota Pickup and 4Runner rear leaf-spring applications using 2.5-inch-wide springs.

The shackles are built from 4130 chromoly tubing and include urethane bushings, sleeves, and Grade 8 hardware. Installation requires custom fabrication so shackle angle, suspension geometry, and mounting position can be set correctly for the vehicle.

Key Features

• 12-inch rear leaf spring shackles
• 4130 chromoly steel construction
• Designed for 2.5-inch-wide rear leaf springs
• Includes urethane bushings and sleeves
• Grade 8 mounting hardware included
• Sold as a pair
• Custom fabrication required for installation

Vehicle Fitment

Toyota 4Runner

• 1986–1989 Toyota 4Runner – 1st Gen – Rear – 2.5-Inch-Wide Leaf Spring Application
• 1990–1995 Toyota 4Runner – 2nd Gen – Rear – Custom 2.5-Inch-Wide Leaf Spring Conversion Only

Toyota Pickup

• 1986–1988 Toyota Pickup – 2nd Gen – Rear – 2.5-Inch-Wide Leaf Spring Application
• 1989–1995 Toyota Pickup – 3rd Gen – Rear – 2.5-Inch-Wide Leaf Spring Application

Fitment Notes

• Custom fabrication is required.
• Designed around 2.5-inch-wide rear leaf spring applications.
• 1990–1995 2nd Gen 4Runner requires a rear leaf-spring conversion.
• Proper shackle angle, suspension geometry, and mounting location must be established during installation.
• Not a bolt-on replacement for a stock-length factory shackle.

Product Specifications

Brand: Total Chaos
Product Type: Rear Leaf Spring Shackle
Position: Rear
Material: 4130 Chromoly Steel
Length: 12 Inches
Leaf Spring Width: 2.5 Inches
Bushing Material: Urethane
Hardware: Grade 8
Quantity: Pair
Installation: Custom Fabrication Required

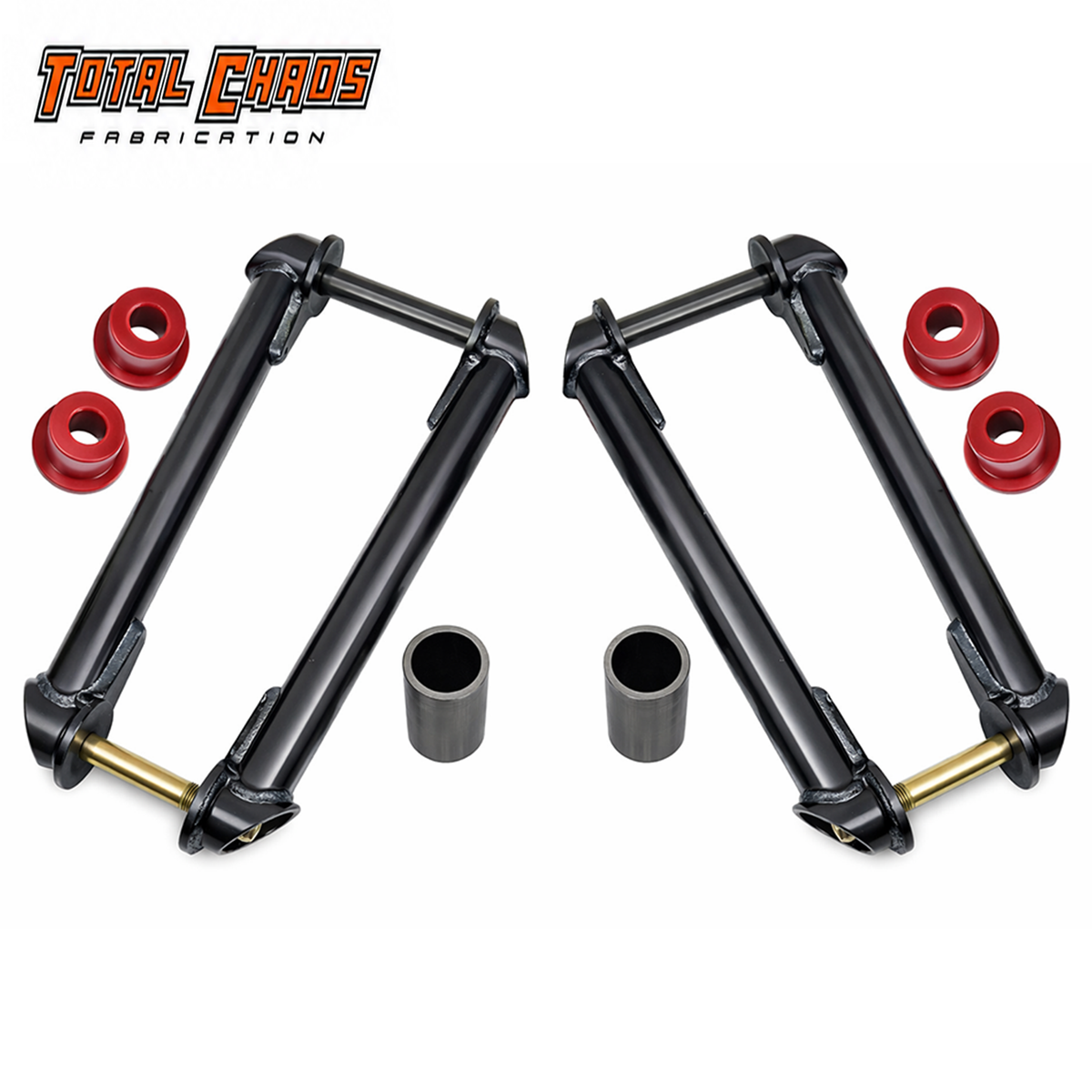

What's Included

• (2) 12-inch chromoly rear leaf spring shackles
• (2) Inner sleeves
• (2) Outer sleeves
• (4) Urethane bushings
• Grade 8 mounting hardware
