RCV Ultimate 30-Spline Front CV Axle Set | Solid Axle (1979-85 Pickup / 1984-85 4Runner)

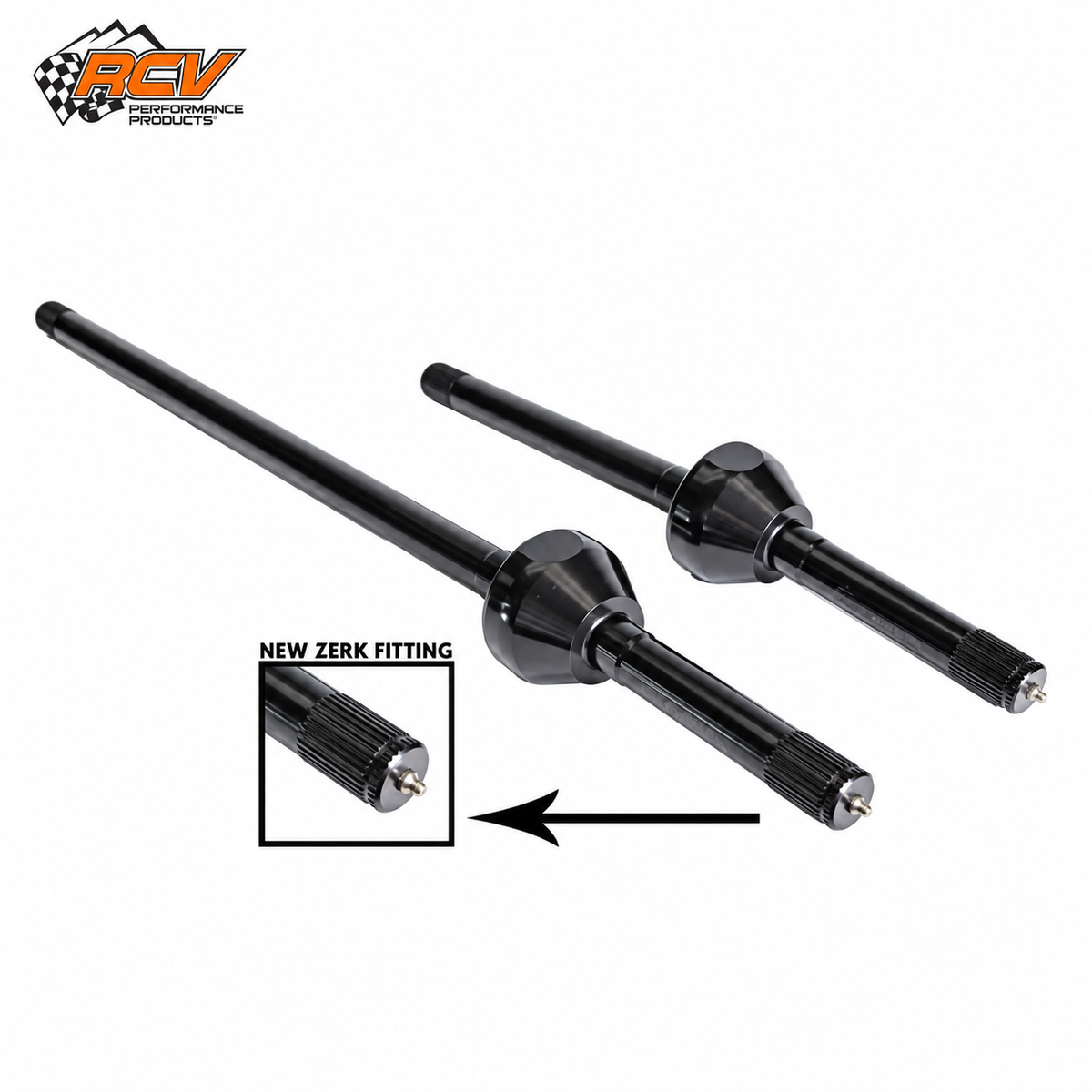

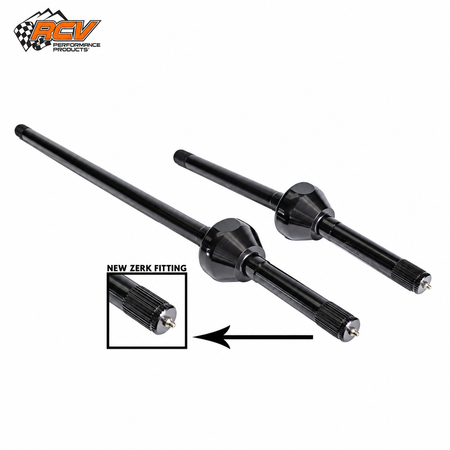

RCV Ultimate 30-Spline Front CV Axle Set

For 1979–1985 Toyota Pickup and 1984–1985 Toyota 4Runner 4WD with a Toyota solid front axle.

Overview

The RCV Ultimate 30-Spline Front CV Axle Set is a heavy-duty front axle upgrade for early Toyota 4WD solid-axle applications. The factory Toyota design uses 30 splines at the differential but reduces to 27 splines at the CV joint. RCV replaces that reduced section with a 30-spline CV interface and 300M CV race, eliminating the factory-style neck-down at a common high-load area.

Choose the Standard configuration for a stock-width Toyota housing, the +3" Aftermarket Housing configuration for housings that extend the short-side axle by 3 inches, or 300M Inner Shafts for stock-width fitment with upgraded 300M inner shafts.

Key Features

• 30-spline interface at the differential and through the CV joint
• 300M 30-spline CV race replaces the factory 27-spline CV neck-down
• Pre-greased RCV CV joints with RCV bootless technology
• Matched left- and right-side inner axle shafts
• High-strength chromoly inner shafts on Standard and +3 configurations
• 300M inner axle shafts on the 300M configuration
• Black oxide finish
• Manufactured in the USA
• Limited lifetime warranty, subject to RCV warranty terms

Vehicle Fitment

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Factory Solid Front Axle – Front
• 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Factory Solid Front Axle – Front
• 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Factory Solid Front Axle – Front

Fitment Notes

• 4WD solid-front-axle applications only.
• Standard: stock-width factory Toyota solid front axle housing.
• +3" Aftermarket Housing: only for housings that extend the short-side axle by 3 inches, including properly configured Diamond and Trail-Gear Rock Assault housings.
• 300M Inner Shafts: stock-width fitment with upgraded 300M inner axle shafts.
• Verify front axle housing dimensions before ordering if the vehicle has an axle swap, custom housing, or other axle modifications.
• If converting from locking hubs to drive flanges, use a drive-flange setup matched to the RCV axle system.

Product Specifications

Brand: RCV Performance Products
Product Type: Drivetrain
Component Type: Birfield & Axle Kit
Position: Front
Drivetrain: 4WD
Axle Type: Toyota Solid Front Axle
Differential Spline Count: 30 Spline
RCV CV Inner Spline Count: 30 Spline
Factory CV Inner Spline Count: 27 Spline
CV Race Material: 300M Alloy Steel
Standard / +3 Inner Shaft Material: High-Strength Chromoly
300M Configuration Inner Shaft Material: 300M Alloy Steel
Right Inner Axle Length: 15.13 in. Standard / 300M; 18.13 in. +3
Left Inner Axle Length: 31.31 in.
CV Joint Preparation: Pre-Greased
Standard Finish: Black Oxide
Manufacturing: USA
Warranty: RCV Limited Lifetime Warranty, subject to manufacturer terms

Available Configurations

Standard

• Stock-width Toyota solid front axle configuration
• (1) Left high-strength chromoly inner axle shaft
• (1) Right high-strength chromoly inner axle shaft
• (2) Pre-greased 30-spline RCV CV joints

+3" Aftermarket Housing

• For aftermarket housings that extend the short-side axle by 3 inches
• (1) Left high-strength chromoly inner axle shaft
• (1) +3-inch short-side high-strength chromoly inner axle shaft
• (2) Pre-greased 30-spline RCV CV joints

300M Inner Shafts

• Stock-width configuration with upgraded 300M inner axle shafts
• (1) Left 300M inner axle shaft
• (1) Right 300M inner axle shaft
• (2) Pre-greased 30-spline RCV CV joints
