AW11 Prothane Total Polyurethane Bushing Kit (1984-89 MR2)

Prothane Total Polyurethane Suspension Bushing Kit

For 1984–1989 JDM Toyota MR2 AW11 and 1985–1989 U.S.-Market Toyota MR2 AW11

Overview

The Prothane Total Bushing Kit brings together replacement bushings for the AW11's front and rear control arms, strut rods, steering rack mounts, and front sway bar. It suits a multi-location suspension refresh when you want firmer response and less bushing flex than original-style rubber.

Polyurethane can transmit more road noise and vibration, and lubrication maintenance may be needed to control squeaks. The included front sway-bar bushings fit an 18 mm bar only. This is a selected suspension-and-steering bushing package, not every rubber mount or joint on the car.

Key Features

• Front and rear control-arm and strut-rod coverage in one manufacturer-supplied kit
• Steering rack mount bushings included for the factory rack mounting arrangement
• 18 mm front sway-bar bushings for a matching bar diameter
• Polyurethane construction for owners who prefer a firmer suspension feel
• Black or Red with the same application and component coverage

Vehicle Fitment

Toyota MR2 — AW11 / MK1

• 1984–1989: JDM
• 1985–1989: U.S.-Market

Important: The supplied front sway-bar bushings require an installed bar diameter of 18 mm.

Fitment Notes

• Measure the front sway bar at its chassis mounting bushings before ordering. Model year alone does not establish bar diameter; larger replacement bars need their own correctly sized bushings.
• Fits the factory AW11 control-arm, strut-rod, and steering-rack mounting interfaces. Aftermarket arms or altered mounting arrangements require a separate interface check.
• Engine mounts, rear toe-control rods, ball joints, and sway-bar end links are not included. The supplied sway-bar bushings are for the front bar, not a rear-bar conversion.

Product Specifications

Brand: Prothane
Product Type: Suspension and steering bushing kit
Bushing Material: Polyurethane
Coverage: Front/rear control arms, front/rear strut rods, steering rack mounts, and front sway bar
Front Sway-Bar Diameter: 18 mm
Colors: Black / Red

Which Bushing Kit Should You Buy?

Prothane Total Kit — Best for a broad refresh with firmer response

Choose this kit when several of its covered bushing locations need attention and you prefer a firmer feel. It brings those locations together without implying that engine mounts or every suspension joint are included.

Individual Prothane Kits — Best for a targeted repair

Choose the AW11 control-arm bushing kit or AW11 rear strut-rod bushing kit when only those locations need replacement, rather than buying components for areas already in good condition.

Our Recommendation: Choose the Total Kit for a multi-location refresh after checking the front bar diameter, or individual kits for a focused repair. If preserving the original quiet, isolated ride matters most, original-style rubber is the more appropriate material choice.

Available Configurations

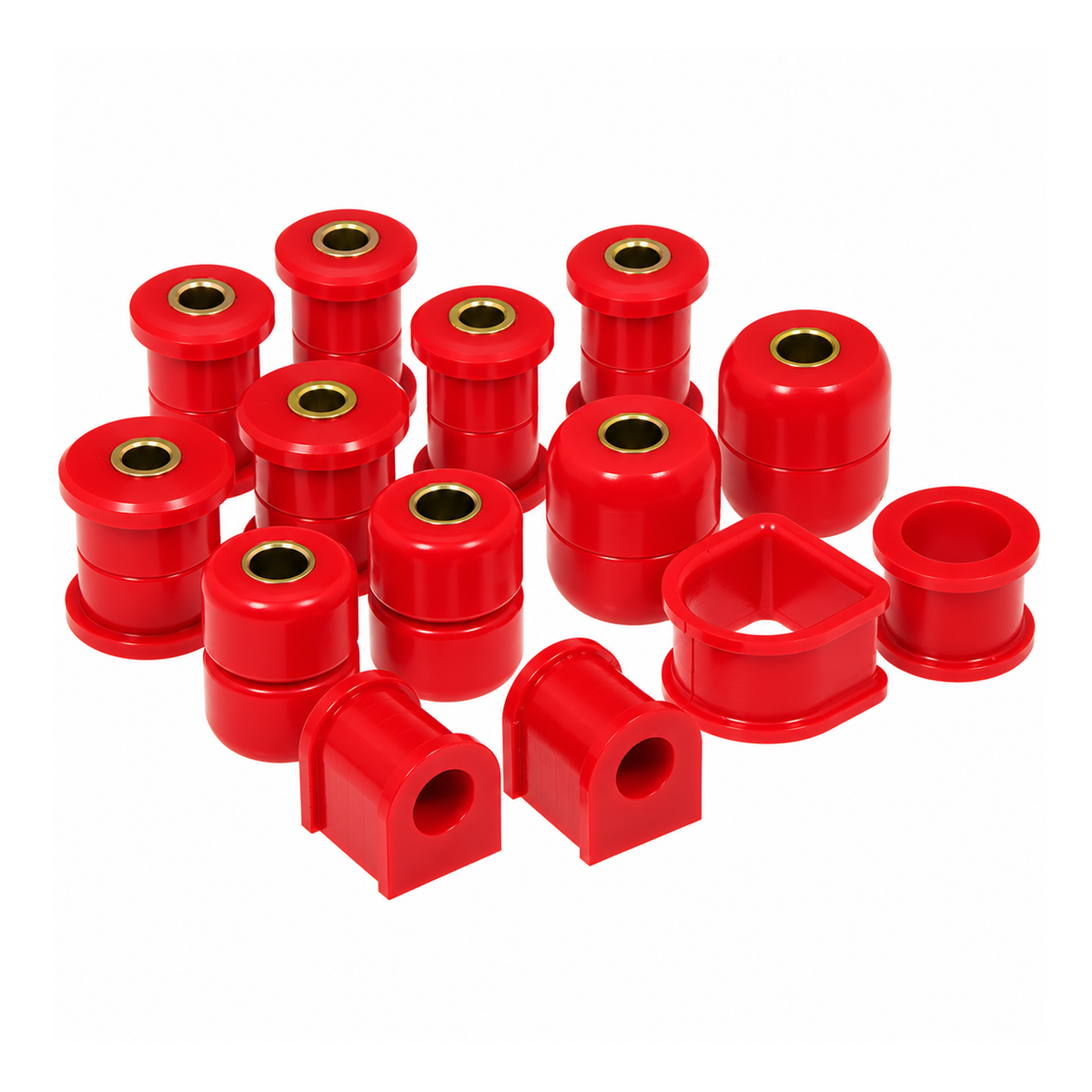

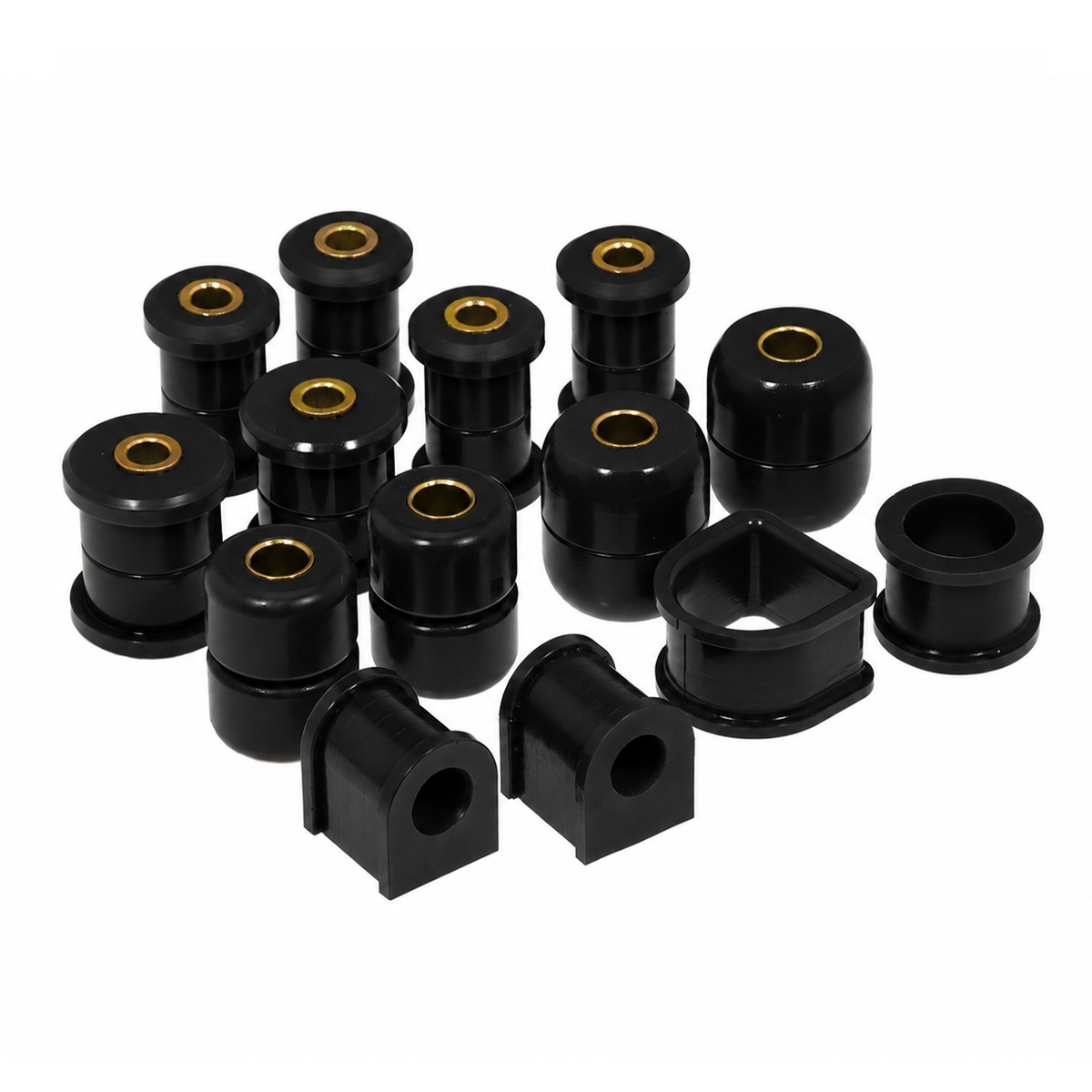

Choose a color; both have the same firmness, so the choice is appearance only. Each option includes (1) Prothane Total Bushing Kit with front and rear control-arm bushings, front and rear strut-rod bushings, steering-rack mount bushings, 18 mm front sway-bar bushings, the supplied metal sleeves, and bushing lubricant.

Available Colors

• Black
• Red
