AW11 Prothane Polyurethane Rear Strut Rod Bushing Kit (1984-89 MR2)

Prothane Polyurethane Rear Strut Rod Bushing Kit

For 1984–1989 Toyota MR2 AW11 (JDM) and 1985–1989 Toyota MR2 AW11 (U.S.-Market)

Overview

The Prothane rear strut rod bushing kit renews the bushings at both ends of the original rear strut rods on 1984–1989 JDM and 1985–1989 U.S.-Market Toyota MR2 AW11 cars. One kit services both rear rods, including their chassis eyes and rod-to-control-arm connections.

This is a dedicated polyurethane rod-bushing set, not the separate control-arm inner-pivot kit. Both colors cover the same service positions and have the same included components.

Key Features

• Both rear rods: one package covers the left and right sides.
• Two end designs: four chassis-eye bushing halves and four control-arm-end bushes.
• Matched sleeve pairs: separate inner sleeves for the chassis-eye and arm-end connections.
• Grease supplied: two packets of Super Grease are included with the service set.

Vehicle Fitment

Toyota MR2 — AW11 / MK1

• 1984–1989: JDM / 4A-GE / Manual or Automatic
• 1985: U.S.-Market / 4A-GE / Manual
• 1986–1989: U.S.-Market / 4A-GE / Manual or Automatic
• 1986–1989: JDM Supercharged / 4A-GZE / Manual or Automatic
• 1988–1989: U.S.-Market Supercharged / 4A-GZE / Manual or Automatic

Fitment Notes

• Rear strut rods only. Front strut rods, control-arm inner pivots and rear No. 2 toe-link joints are separate service positions.
• The same kit covers the original rear-rod arrangements across the listed years, including naturally aspirated and factory supercharged cars; no early/late option is required.
• Original correct rear rods, arms, washers and nuts are required. Aftermarket spherical rods, changed eye bores and mounting conversions are outside this application.

Product Specifications

Brand: Prothane
Product Type: Rear strut rod bushing kit
Position: Rear, left and right
Material: Polyurethane bushings with metal inner sleeves
Chassis-Eye Sleeve Dimensions: 0.750 in OD × 0.482 in ID × 2.14 in length
Arm-End Sleeve Dimensions: 0.750 in OD × 0.634 in ID × 2.15 in length
Color: Black or Red

Available Configurations

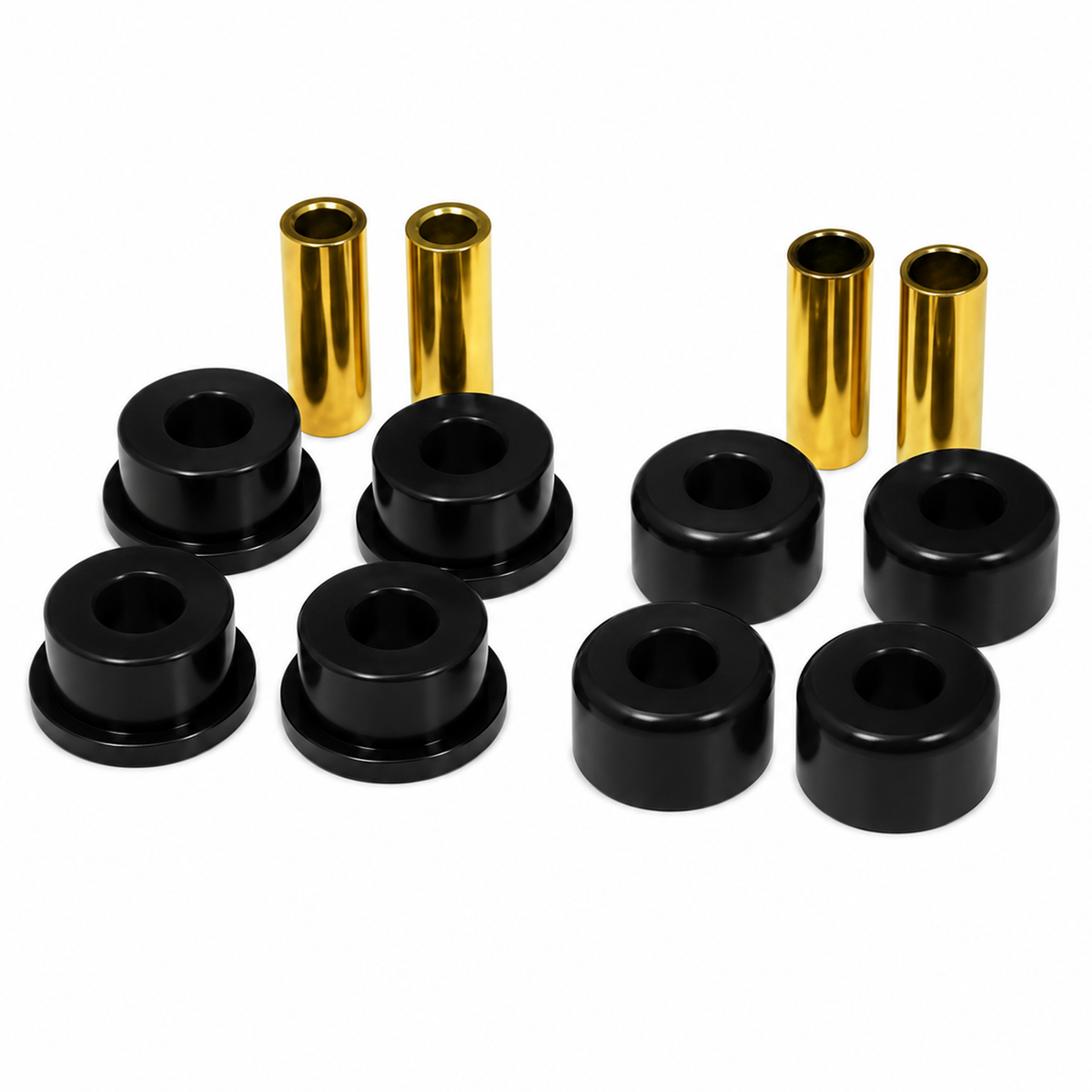

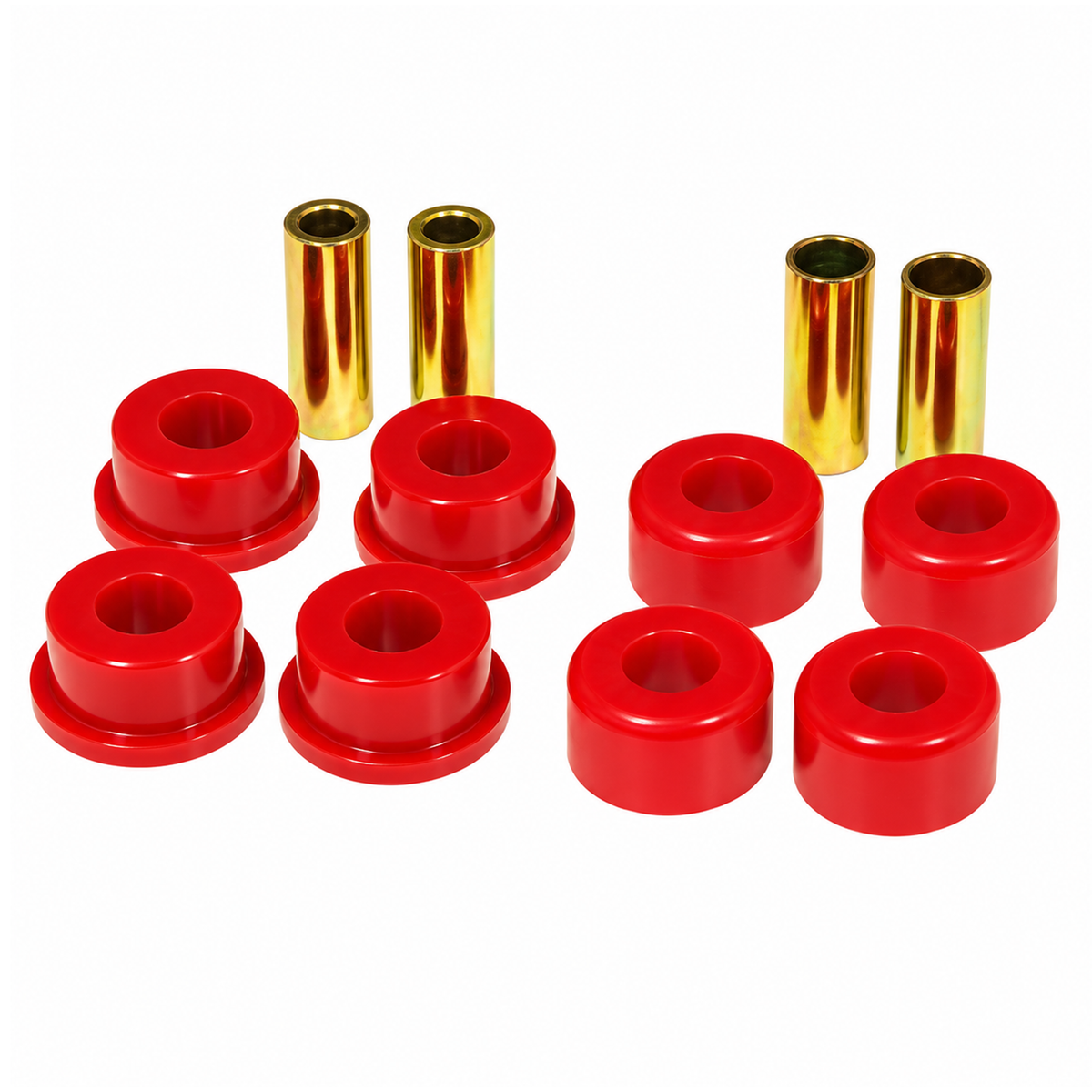

Each color includes (4) chassis-eye bushing halves, (4) control-arm-end bushes, (2) chassis-eye inner sleeves, (2) arm-end inner sleeves and (2) packets of Super Grease.

Color

• Black
• Red

Important: Strut rods, control arms, mounting bolts, washers, nuts, control-arm inner-pivot bushes and toe-link joints are not included.
