Prothane Polyurethane Rear Spring & Shackle Bushings Kit 2WD (1989-95 Pickup)

Prothane Polyurethane Rear Leaf Spring Eye & Shackle Bushing Kit

For 1989–1995 Toyota Pickup 2WD

Overview

The Prothane Polyurethane Rear Leaf Spring Eye & Shackle Bushing Kit replaces worn factory rubber rear leaf spring and shackle bushings on 1989–1995 3rd Gen Toyota Pickup 2WD models.

The kit services both rear leaf springs and replaces the bushings at the spring-eye and shackle mounting points. Firmer polyurethane helps reduce excessive bushing deflection while maintaining more consistent rear spring positioning and suspension movement. It also offers greater resistance to deterioration from age, road grime, moisture, and automotive fluids than conventional rubber bushings.

This kit is intended for trucks using the factory-style rear leaf spring configuration and does not fit Toyota 1-ton applications.

Key Features

• Rear leaf spring eye and shackle bushing kit
• Fits 1989–1995 Toyota Pickup 2WD
• Polyurethane replacement for factory rubber bushings
• Services both driver and passenger sides
• Replaces bushings at rear spring-eye and shackle mounting points
• Helps reduce excessive leaf spring and shackle deflection
• Includes replacement metal sleeves
• Polyurethane installation grease included
• Available in black or red
• Black and red versions use the same durometer

Vehicle Fitment

Toyota Pickup

• 1989–1995 Toyota Pickup – 3rd Gen – 2WD – Rear Leaf Spring & Shackle

Fitment Notes

• 2WD Toyota Pickup application
• Does not fit Toyota 1-ton models
• Rear suspension application
• Designed for factory-style rear leaf springs
• One kit services both driver and passenger sides
• Fitment is not guaranteed with aftermarket or replacement leaf springs that differ from the factory dimensions
• Thoroughly lubricate the polyurethane bushings with the supplied grease during installation
• Inspect the leaf springs, shackles, mounting points, and existing hardware for wear or damage before reassembly

Product Specifications

Brand: Prothane
Product Type: Rear Leaf Spring Eye & Shackle Bushing Kit
Position: Rear
Material: Polyurethane / Steel
Drivetrain: 2WD
Color Options: Black / Red
Polyurethane Bushing Pieces: 12
Metal Sleeves: 2
Side Coverage: Driver & Passenger
Installation Grease: Included
Fitment Type: Vehicle Specific

Available Configurations

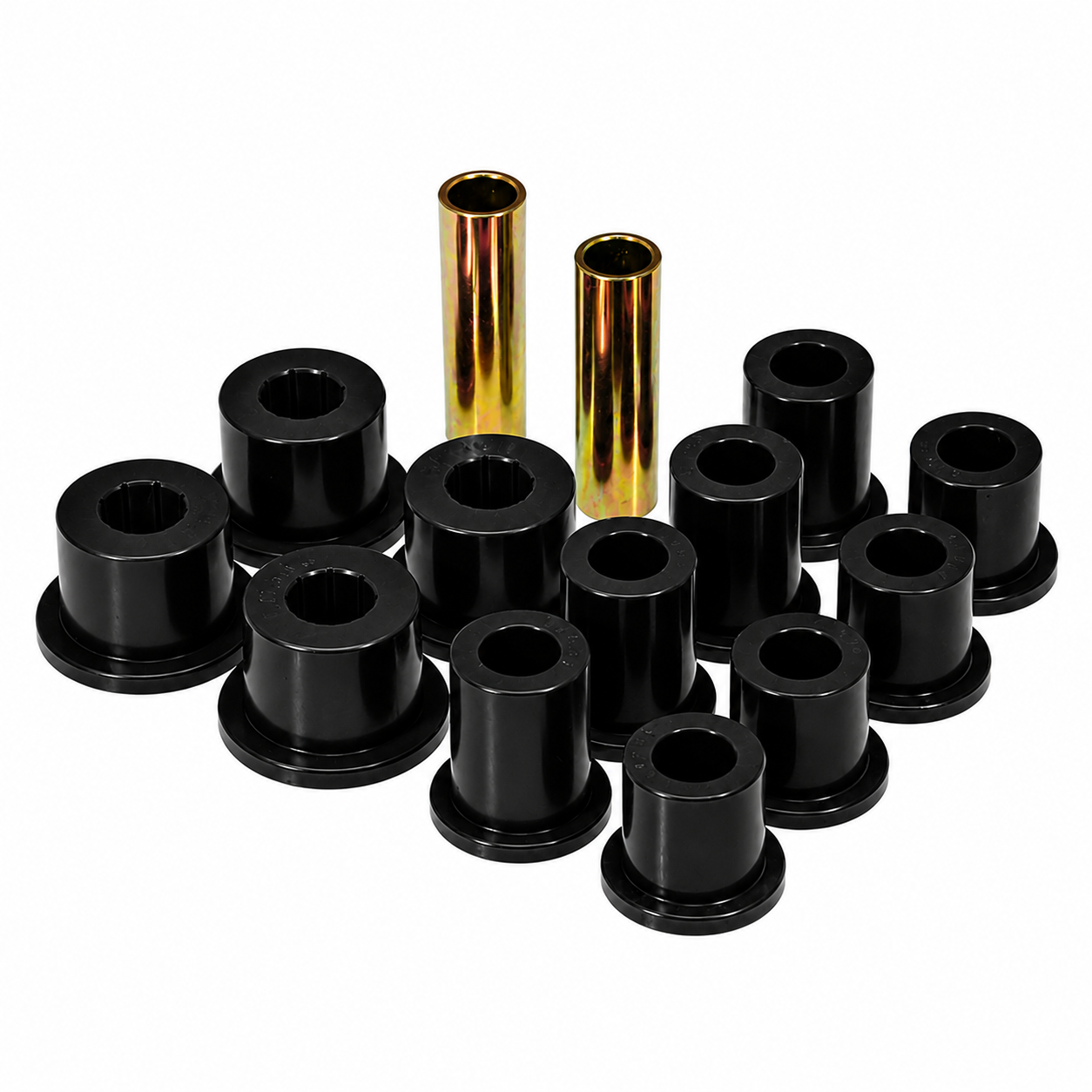

Black Polyurethane

• (4) Hat-style polyurethane bushings
• (4) Small rear spring bushings
• (4) Large rear spring bushings
• (2) Metal sleeves
• (1) Polyurethane installation grease packet

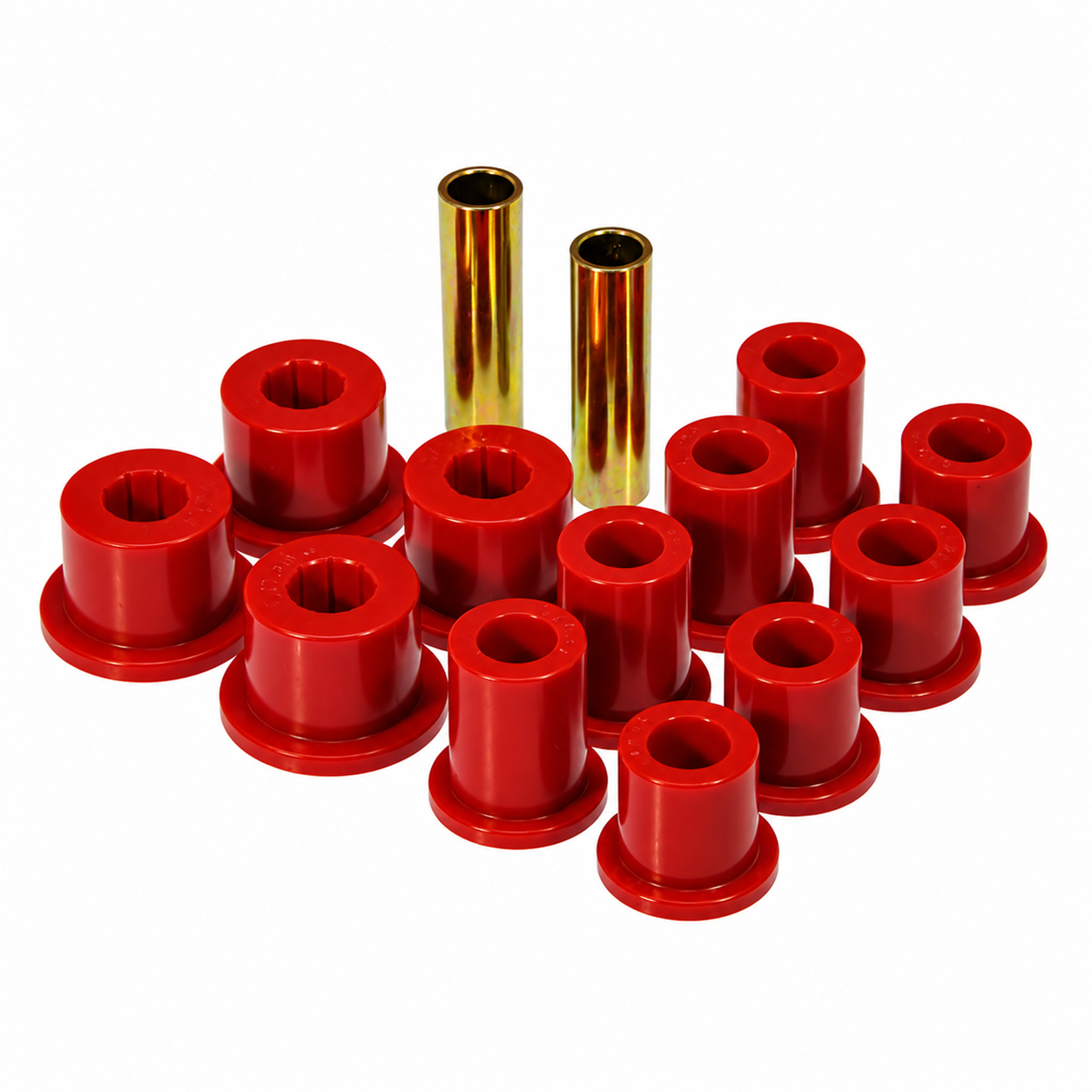

Red Polyurethane

• (4) Hat-style polyurethane bushings
• (4) Small rear spring bushings
• (4) Large rear spring bushings
• (2) Metal sleeves
• (1) Polyurethane installation grease packet
