Prothane Front Sway Bar & End Link Bushing Kit | 19mm / 23mm (1984-89 4Runner)

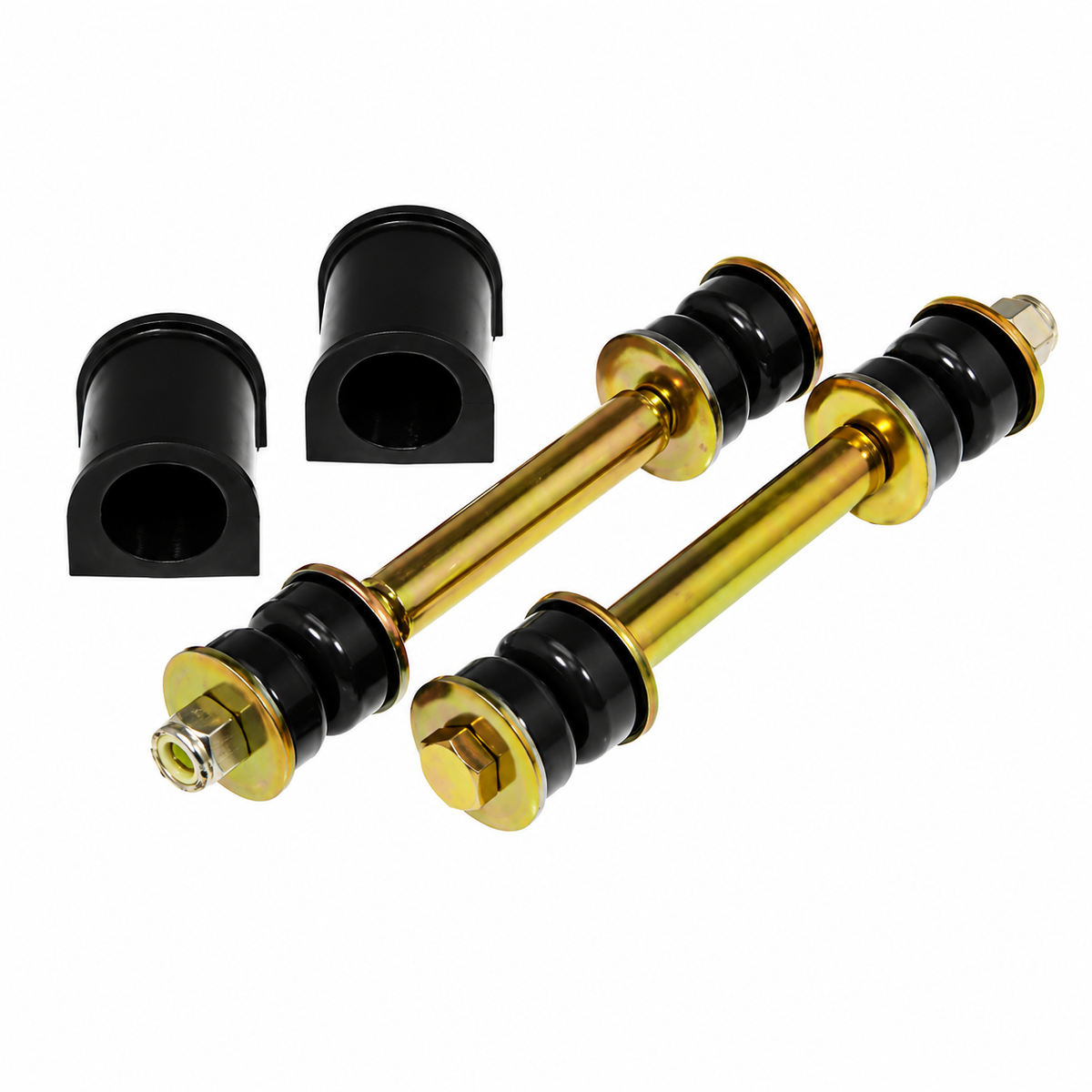

Prothane Front Sway Bar & End Link Bushing Kit

For 1984–1989 Toyota 4Runner 4WD with a 19mm or 23mm front sway bar

Overview

The Prothane Front Sway Bar & End Link Bushing Kit replaces worn factory rubber front stabilizer-bar mounting and end-link bushings on 1984–1989 1st Gen Toyota 4Runner 4WD models. Two diameter-specific configurations are available for trucks equipped with either a 19mm or 23mm factory-style front sway bar.

Polyurethane provides a firmer, more durable connection than aged rubber and helps reduce unwanted bushing deflection at the sway bar mounts and end links. The correct diameter must match the installed sway bar.

Key Features

• Front sway bar frame bushings and end-link bushing components
• Available for 19mm or 23mm front sway bars
• Polyurethane construction
• Services both driver and passenger sides
• Includes application-specific mounting hardware and installation grease
• Available in Black or Red

Choosing the Correct Sway Bar Diameter

Measure the installed front sway bar before ordering. The 19mm and 23mm frame bushings are diameter-specific and are not interchangeable.

• 19mm: approximately 0.75 in
• 23mm: approximately 0.91 in

Measure a clean, straight section of the sway bar with calipers for the most reliable result.

Vehicle Fitment

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD – 19mm Front Sway Bar
• 1984–1989 Toyota 4Runner – 1st Gen – 4WD – 23mm Front Sway Bar

Fitment Notes

• Front application only.
• Measure the sway bar diameter before ordering.
• 19mm and 23mm configurations are not interchangeable.
• Apply the supplied polyurethane grease to the sway-bar bushing contact surfaces during installation.
• Inspect the sway bar, end links, brackets, and mounting points before reassembly.

Product Specifications

Brand: Prothane
Product Type: Front Sway Bar & End Link Bushing Kit
Position: Front
Material: Polyurethane / Steel Hardware
Sway Bar Diameter Options: 19mm / 23mm
Color Options: Black / Red
Drivetrain: 4WD
Fit Type: Vehicle-Specific / Direct Fit
Installation Grease: Included

Supporting Suspension Components

For a broader suspension and chassis refresh, the Prothane Complete Polyurethane Suspension Bushing Kit replaces multiple factory rubber suspension bushings throughout the 1984–1989 Toyota 4Runner.

This removes the generic “these related components” language and the unnecessary “may be useful” hedge, while making the relationship between the two products explicit.

Available Configurations

19mm / Black or Red

• For 1984–1989 Toyota 4Runner 4WD with a 19mm front sway bar.

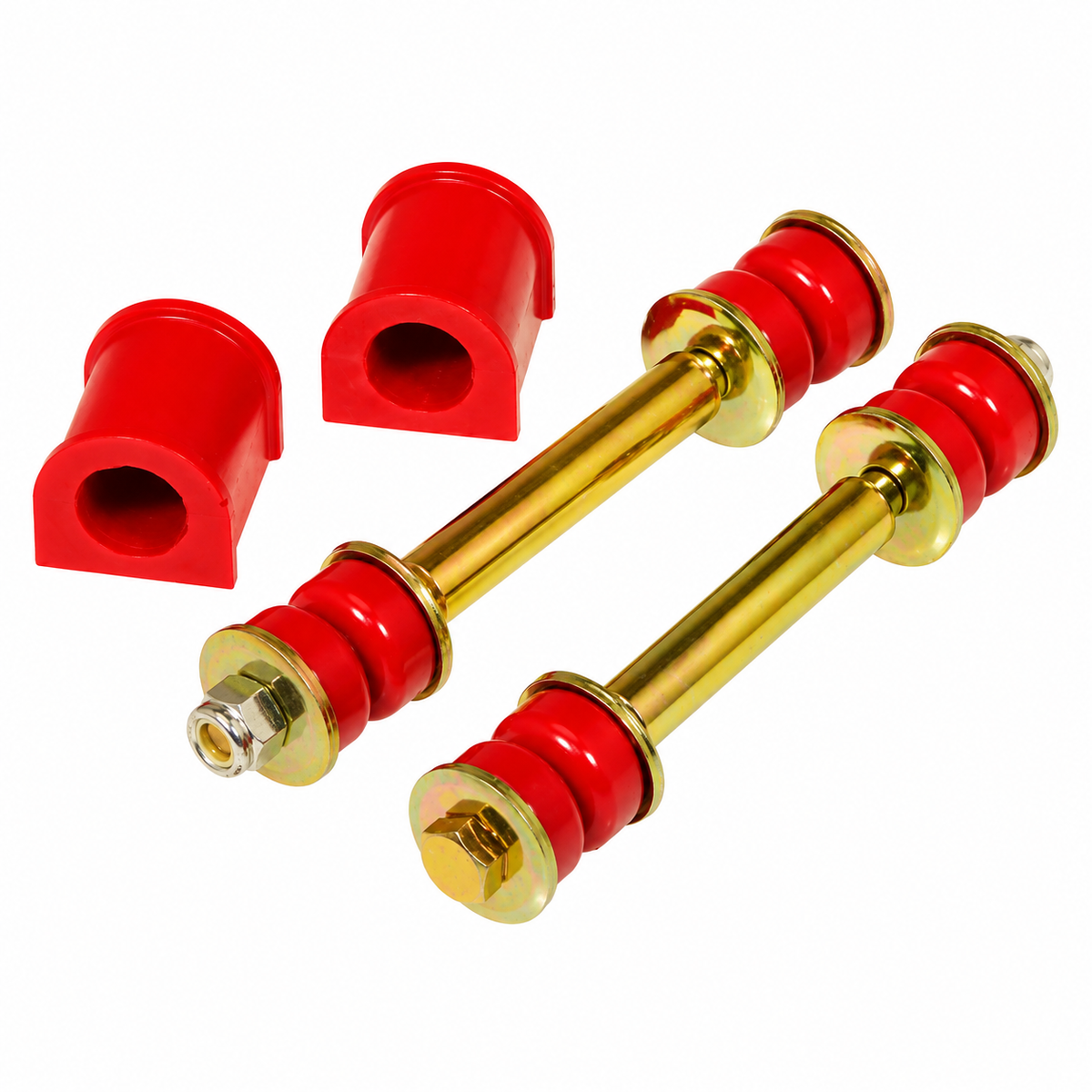

23mm / Black or Red

• For 1984–1989 Toyota 4Runner 4WD with a 23mm front sway bar.
