Prothane Complete Polyurethane Suspension Bushing Kit | 4WD (1979-95 Pickup)

Prothane Complete Polyurethane Suspension Bushing Kit

For 1979–1995 Toyota Pickup 4WD — select the configuration matching the truck's suspension generation

Overview

The Prothane Complete Polyurethane Suspension Bushing Kit provides a broad chassis and suspension refresh for Toyota Pickup 4WD models. Each year-range configuration replaces multiple aging factory rubber bushings with polyurethane components designed to reduce unwanted suspension movement while maintaining a direct-fit, serviceable layout.

Toyota changed the front suspension design during this production span, so the three kit configurations are not interchangeable. The 1979–1985 kit is built around the solid-front-axle / leaf-spring chassis, while the 1986–1988 and 1989–1994 kits are designed for independent front suspension (IFS).

Key Features

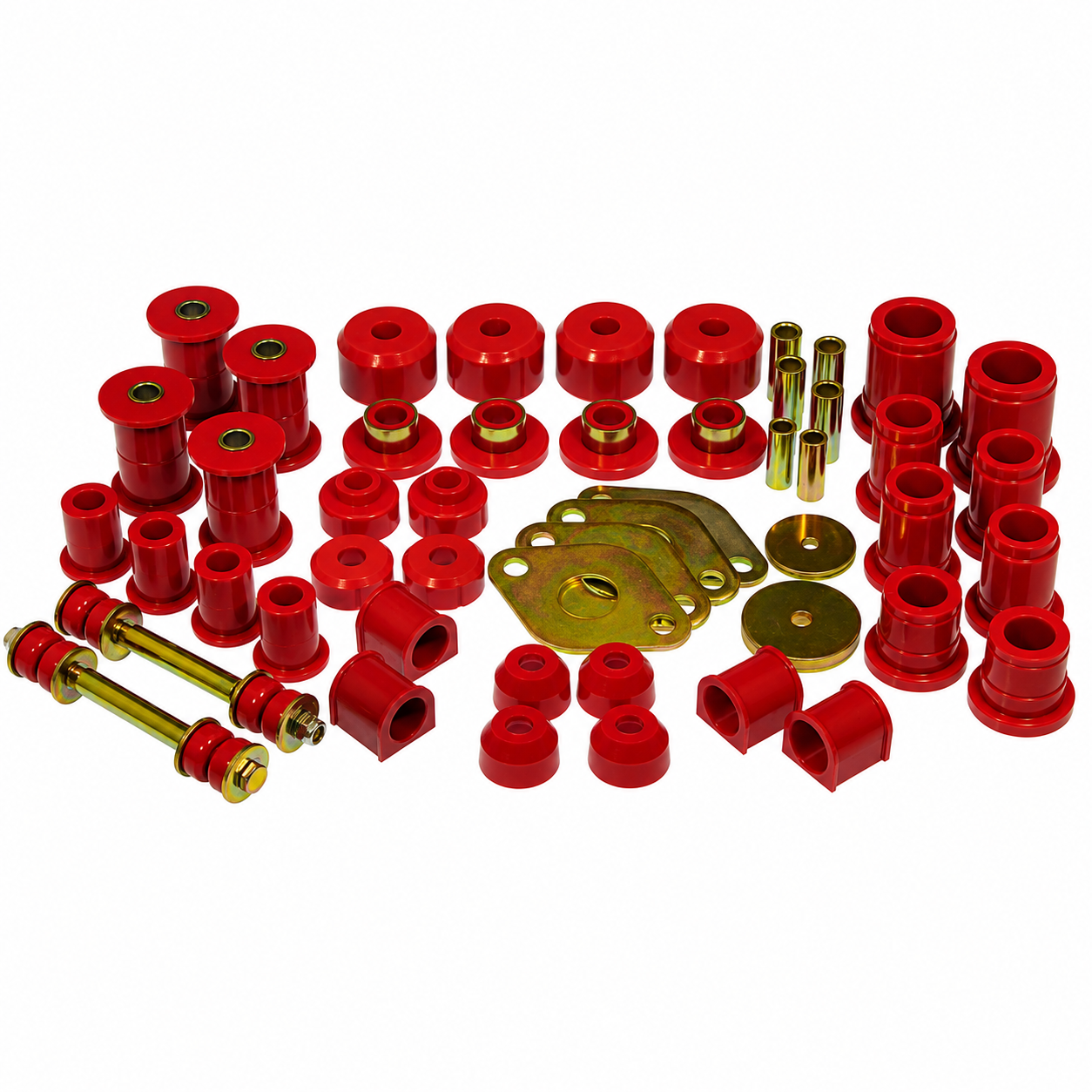

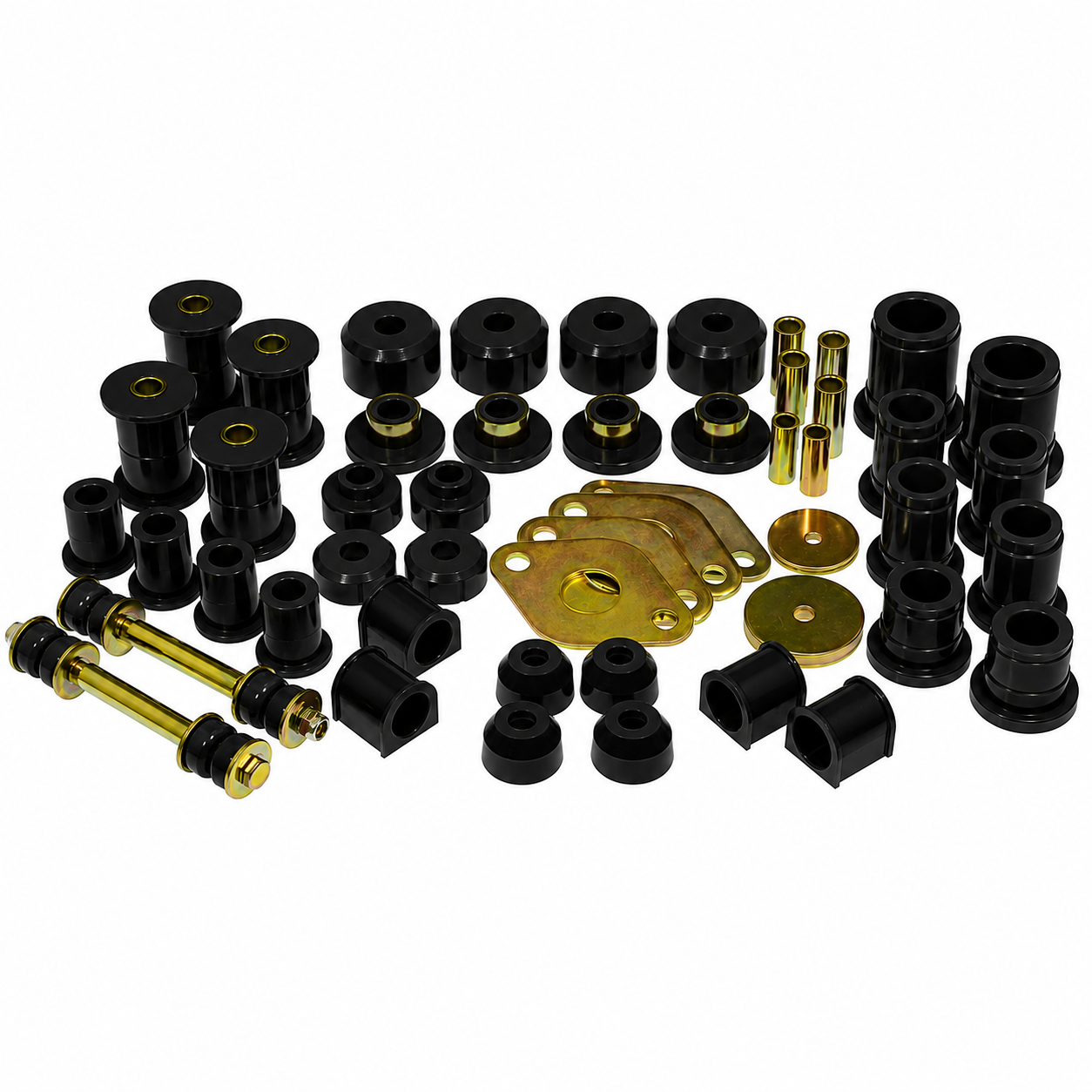

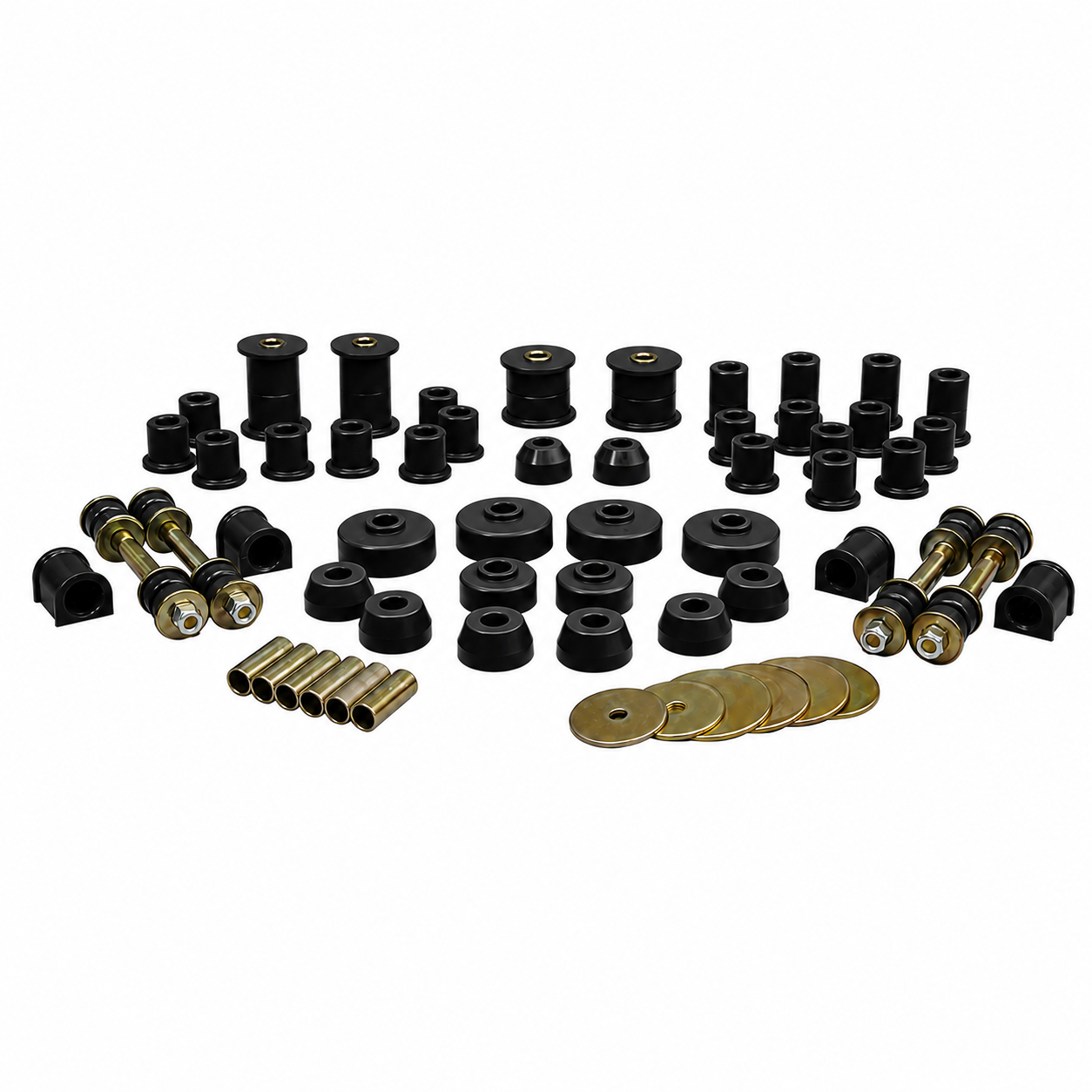

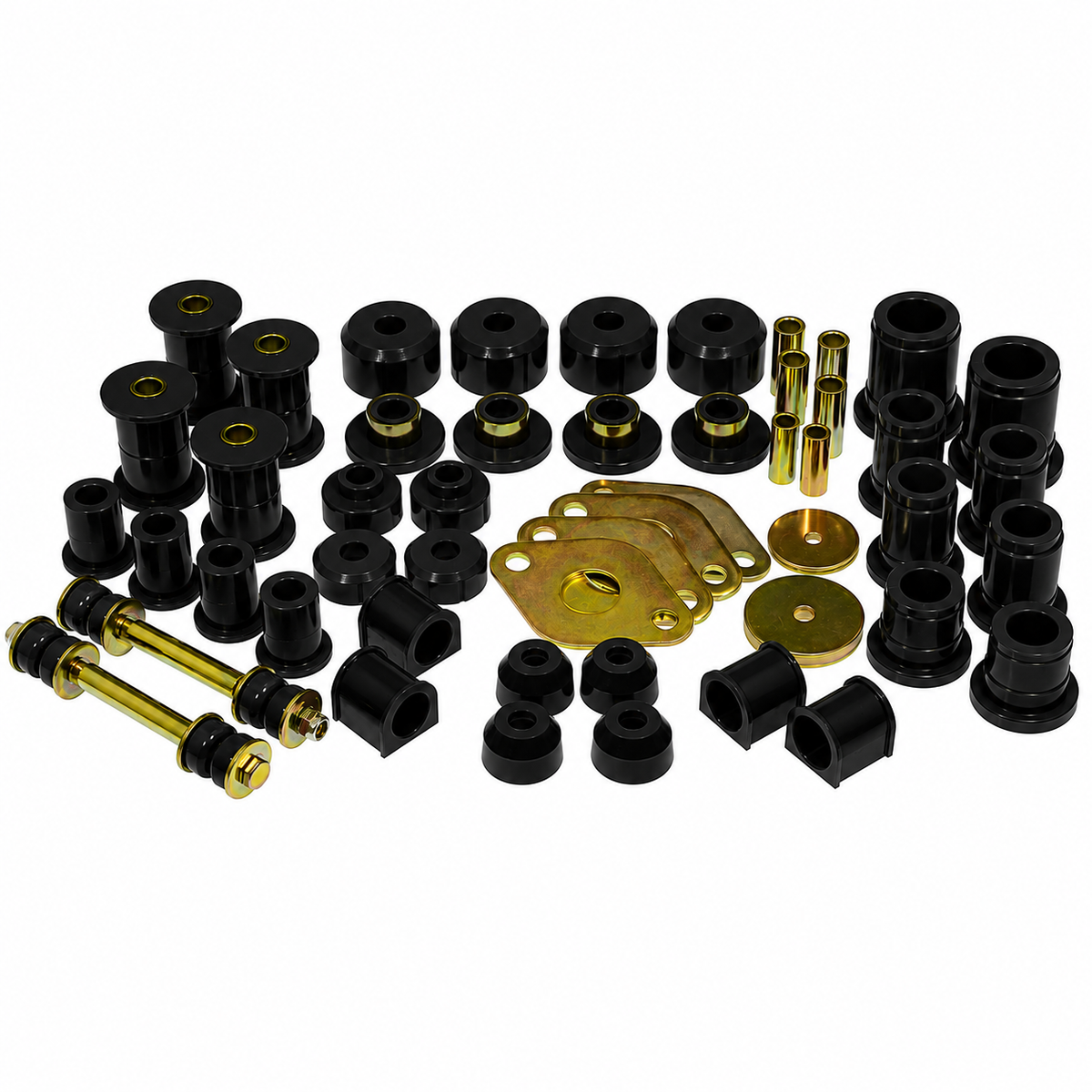

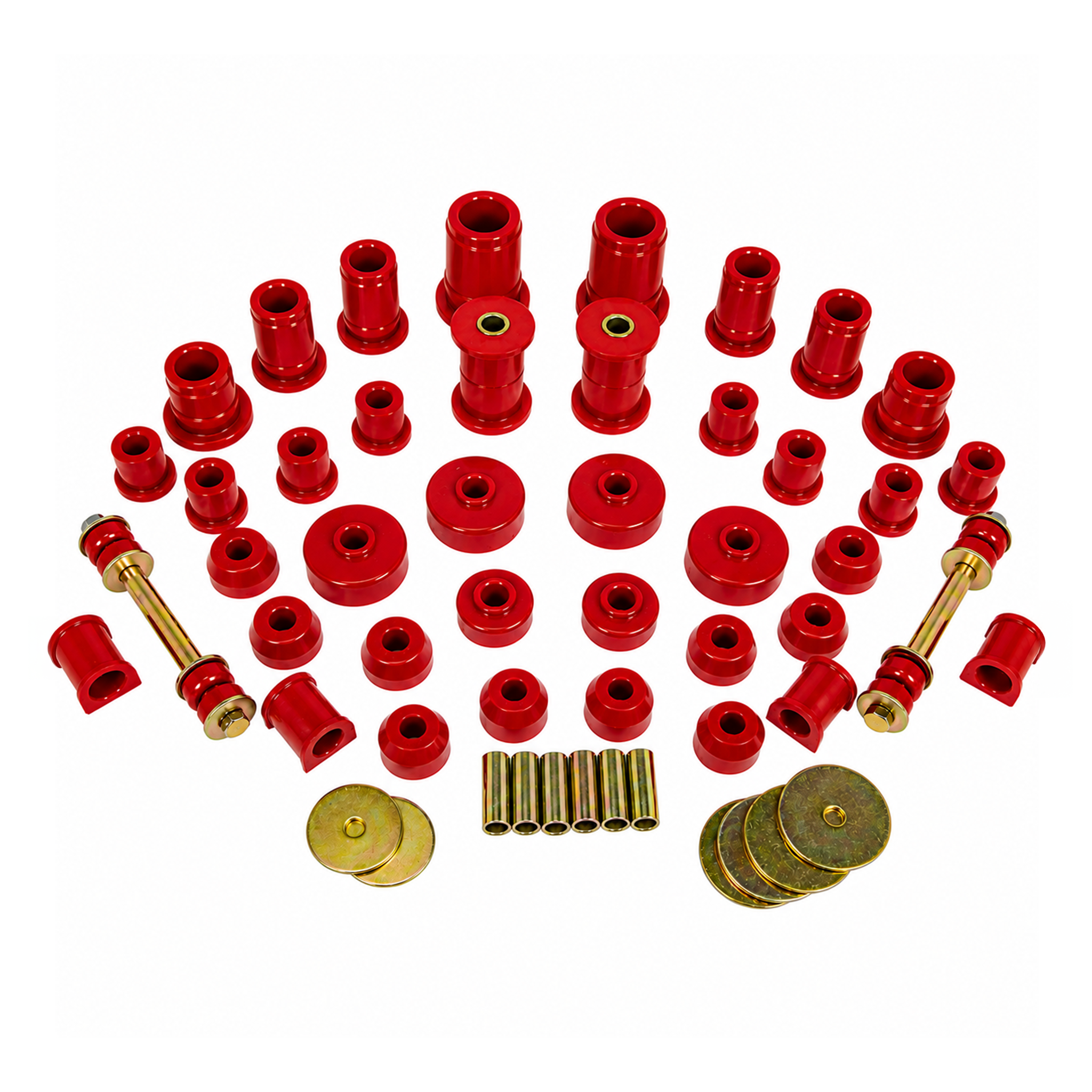

• Complete polyurethane suspension and chassis bushing package
• Designed for Toyota Pickup 4WD
• Application-specific solid-axle and IFS configurations
• Includes front and rear suspension bushings appropriate to each year range
• Includes body-mount bushings
• Includes front sway-bar bushings and related end-link hardware as applicable
• Includes tie-rod dust boots
• Includes installation grease for applicable polyurethane suspension bushings
• Available in Black or Red polyurethane

Configuration Differences

1979–1985 | Solid Front Axle

• Front leaf-spring eye and shackle bushings
• Rear leaf-spring eye and shackle bushings
• Body-mount bushings
• Front sway-bar bushings for the supported factory bar configurations
• Front axle torque-arm bushings
• Tie-rod dust boots

1986–1988 | Independent Front Suspension

• Front control-arm bushings
• Rear leaf-spring eye and shackle bushings
• Body-mount bushings
• Front sway-bar bushings and end-link components
• Tie-rod dust boots

1989–1995 | Independent Front Suspension

• Front control-arm bushings
• Rear leaf-spring eye and shackle bushings
• Body-mount bushings
• Front sway-bar bushings and end-link components for supported 24 mm / 27 mm bar configurations
• Tie-rod dust boots

Vehicle Fitment

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Solid Front Axle – 1979–1985 kit configuration
• 1984–1985 Toyota Pickup – 2nd Gen – 4WD – Solid Front Axle – 1979–1985 kit configuration
• 1986–1988 Toyota Pickup – 2nd Gen – 4WD – IFS – 1986–1988 kit configuration
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – IFS – late kit configuration

Fitment Notes

• 4WD Toyota Pickup only.
• Select the kit that matches the vehicle's model year and factory front-suspension design.
• 1979–1985 solid-axle and 1986-later IFS kits are not interchangeable.
• The late total kit is confirmed for 1989–1995 Toyota Pickup 4WD applications.
• Polyurethane is firmer than factory rubber and may transmit more noise, vibration, or harshness than original rubber bushings.
• Apply the supplied polyurethane grease to applicable moving bushing surfaces during installation.
• Inspect factory hardware, spring eyes, control arms, sway-bar mounts, and chassis mounting points before reassembly.
• A front-end alignment is recommended after service involving front control-arm bushings.

Product Specifications

Brand: Prothane
Product Type: Complete Suspension Bushing Kit
Material: Polyurethane
Color Options: Black / Red
Drivetrain: 4WD
Vehicle: Toyota Pickup
Front Suspension: Solid Front Axle or IFS Depending on Year
Rear Suspension: Leaf Spring
Fit Type: Vehicle-Specific / Direct Fit
Installation Grease: Included for Applicable Bushings

Other Complete Bushing Kit Applications

Prothane complete bushing kits are application-specific, so 2WD Pickup and 1st Gen 4Runner setups use separate kits rather than this 4WD Pickup package. Prothane Complete Polyurethane Suspension Bushing Kit | 2WD — the corresponding total-kit listing for 2WD Toyota Pickup applications. Prothane Complete Polyurethane Suspension Bushing Kit | 4Runner — separate total-kit application for supported 1st Gen 4Runner models.

Available Configurations

1979-1985 / Black or Red

• For 1979–1985 Toyota Pickup 4WD with the factory solid front axle.

1986-1988 / Black or Red

• For 1986–1988 Toyota Pickup 4WD with factory IFS.

1989-1995 / Black or Red

• Confirmed fitment is 1989–1994. 1995 fitment has not been confirmed.
