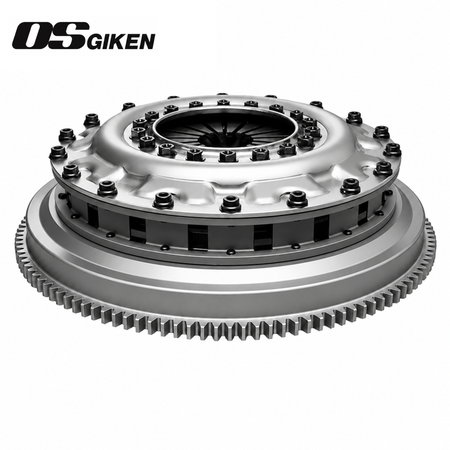

OS Giken TS2A Twin Plate Clutch Kit with Flywheel

For 1983–1987 Toyota Corolla AE86 Trueno / Levin and 1985–1987 U.S.-Market Corolla Sport AE86 GT-S with 1.6L 4A-GE

Overview

The OS Giken TS2A Twin Plate Clutch Kit is a performance clutch and flywheel system for 4A-GE-powered Toyota AE86 applications, including the JDM Corolla Levin and Sprinter Trueno as well as the U.S.-market Corolla Sport GT-S.

The TS2A uses two compact 184 mm heat-treated alloy clutch discs with a stamped-steel clutch cover to provide approximately 350 lb-ft of torque capacity while maintaining manageable engagement and pedal effort. Its smaller-diameter twin-disc design is particularly well suited to modified naturally aspirated and supercharged 4A-GE builds where responsive engine operation is a priority.

A matched flywheel is included with the clutch assembly. Installation requires the dedicated OS Giken AE86 TS2A/S release sleeve assembly, which can be purchased with the clutch through the available bundle configuration.

Key Features

• TS2A twin-plate performance clutch system

• Approximately 350 lb-ft torque capacity

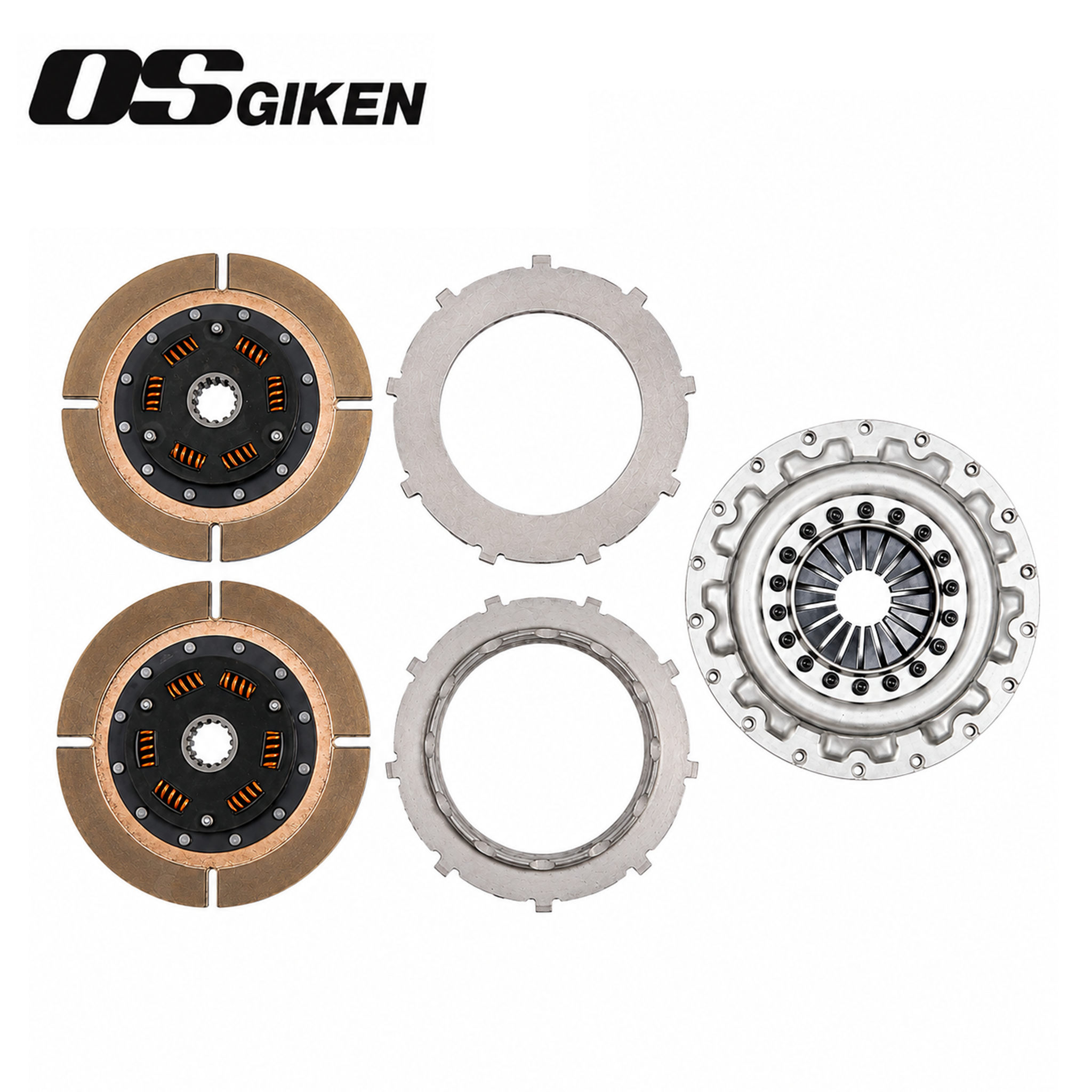

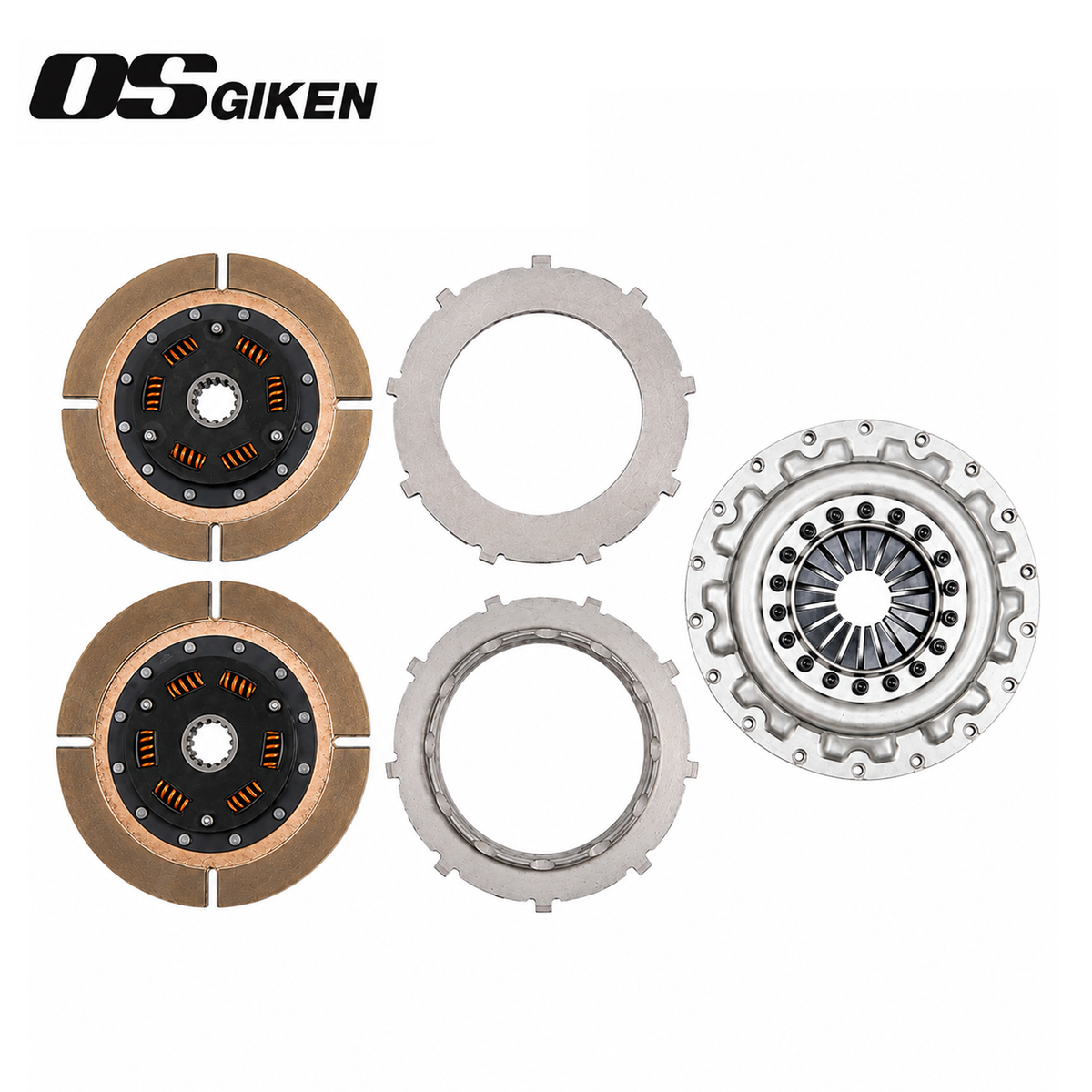

• Two 184 mm clutch discs

• Heat-treated alloy clutch-disc construction

• Stamped-steel clutch cover

• Compact disc diameter helps reduce rotating inertia

• Moderate pedal effort relative to its holding capacity

• Designed with naturally aspirated and supercharged 4A-GE builds in mind

• Suitable for performance street, track, and competition use

• Matched flywheel included

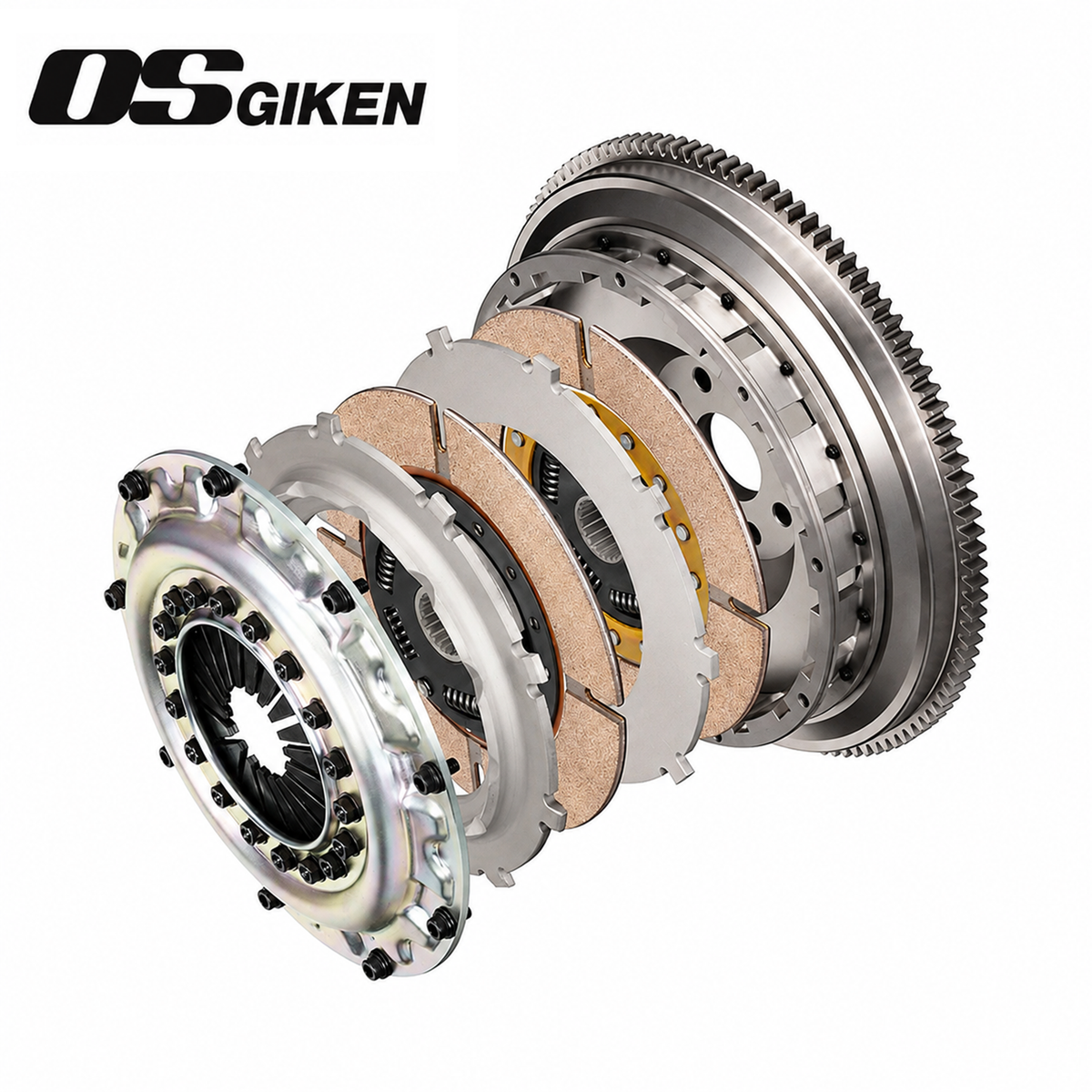

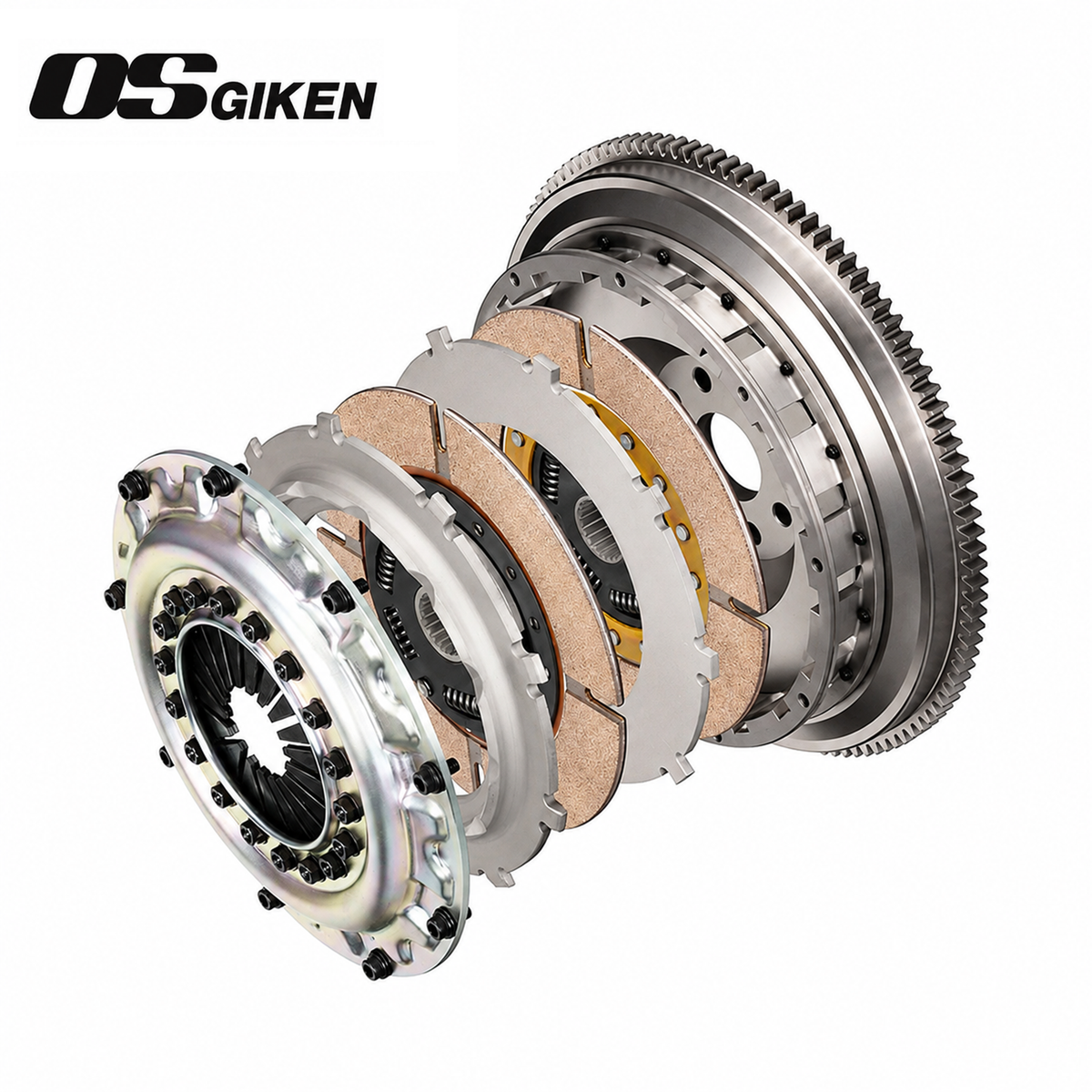

TS2A Twin-Plate Design

The TS2A uses two smaller-diameter clutch discs rather than a conventional single-disc arrangement. The additional friction surface increases torque capacity, while the compact 184 mm disc diameter helps reduce rotating inertia for quicker engine response.

This makes the TS2A particularly well suited to high-revving naturally aspirated 4A-GE builds and supercharged applications that require substantially greater capacity than an OE-style or performance single-disc clutch.

For turbocharged or substantially higher-output builds approaching or exceeding the TS2A's approximate 350 lb-ft capacity, the OS Giken TS2B Twin Plate Clutch Kit provides greater torque capacity with larger 204 mm twin discs.

Vehicle Fitment

Toyota Sprinter Trueno

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – 1.6L 4A-GE – Manual Transmission

Toyota Corolla Levin

• 1983–1987 Toyota Corolla AE86 – Levin (JDM) – 1.6L 4A-GE – Manual Transmission

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 1.6L 4A-GE – Manual Transmission

Fitment Notes

• 4A-GE-powered AE86 applications

• Rear-wheel drive manual transmission applications only

• Fits JDM Sprinter Trueno and Corolla Levin AE86 4A-GE applications

• Fits U.S.-market 1985–1987 Corolla Sport GT-S

• Requires the dedicated OS Giken AE86 TS2A/S release sleeve assembly

• The release sleeve is not included with the Clutch Kit Only configuration

• Select Clutch Kit + Release Sleeve Assembly unless the vehicle already has the correct OS Giken release sleeve

• Requires an OEM-style pilot bearing or pilot bushing

• Matched flywheel is included

• Does not directly apply to factory 4A-C SR5 / DLX or AE85 3A-U clutch configurations

• Vehicles with engine, transmission, bellhousing, or drivetrain conversions should be verified by their installed configuration

• Professional installation is recommended

Product Specifications

Brand: OS Giken
Series: TS Series
Product Type: Performance Clutch & Flywheel Kit
Clutch Type: TS2A Twin Plate
Disc Quantity: 2
Disc Diameter: 184 mm
Disc Construction: Heat-Treated Alloy
Cover Design: Stamped Steel
Torque Capacity: Approximately 350 lb-ft
Engine: 1.6L 4A-GE
Transmission: Manual
Drivetrain: RWD
Flywheel: Included
Release System: Dedicated OS Giken AE86 TS2A/S Release Sleeve Required
Pilot Bearing / Bushing: OEM-Style Component Required
Recommended Use: Performance Street / Naturally Aspirated / Supercharged / Track

Available Configurations

Clutch Kit Only

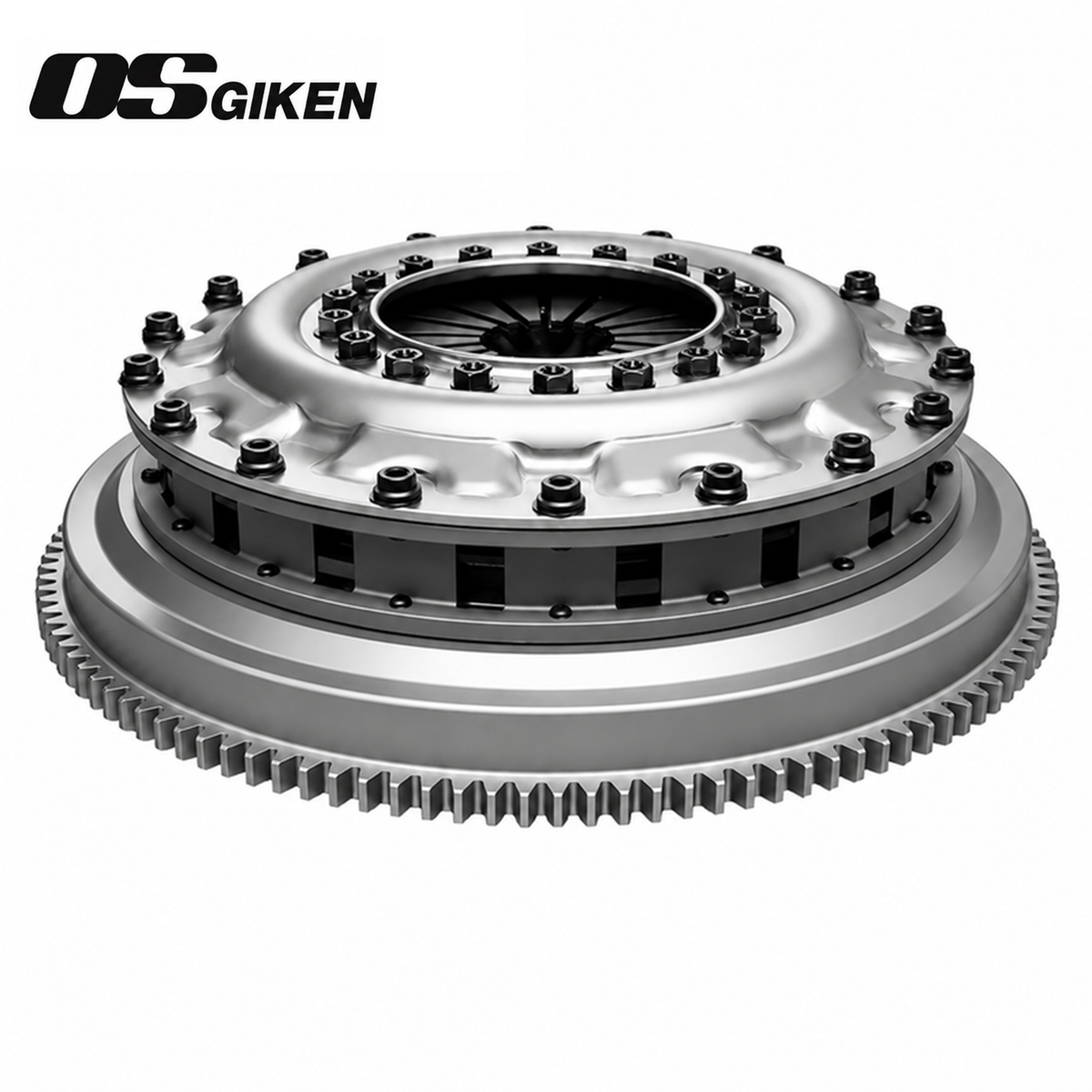

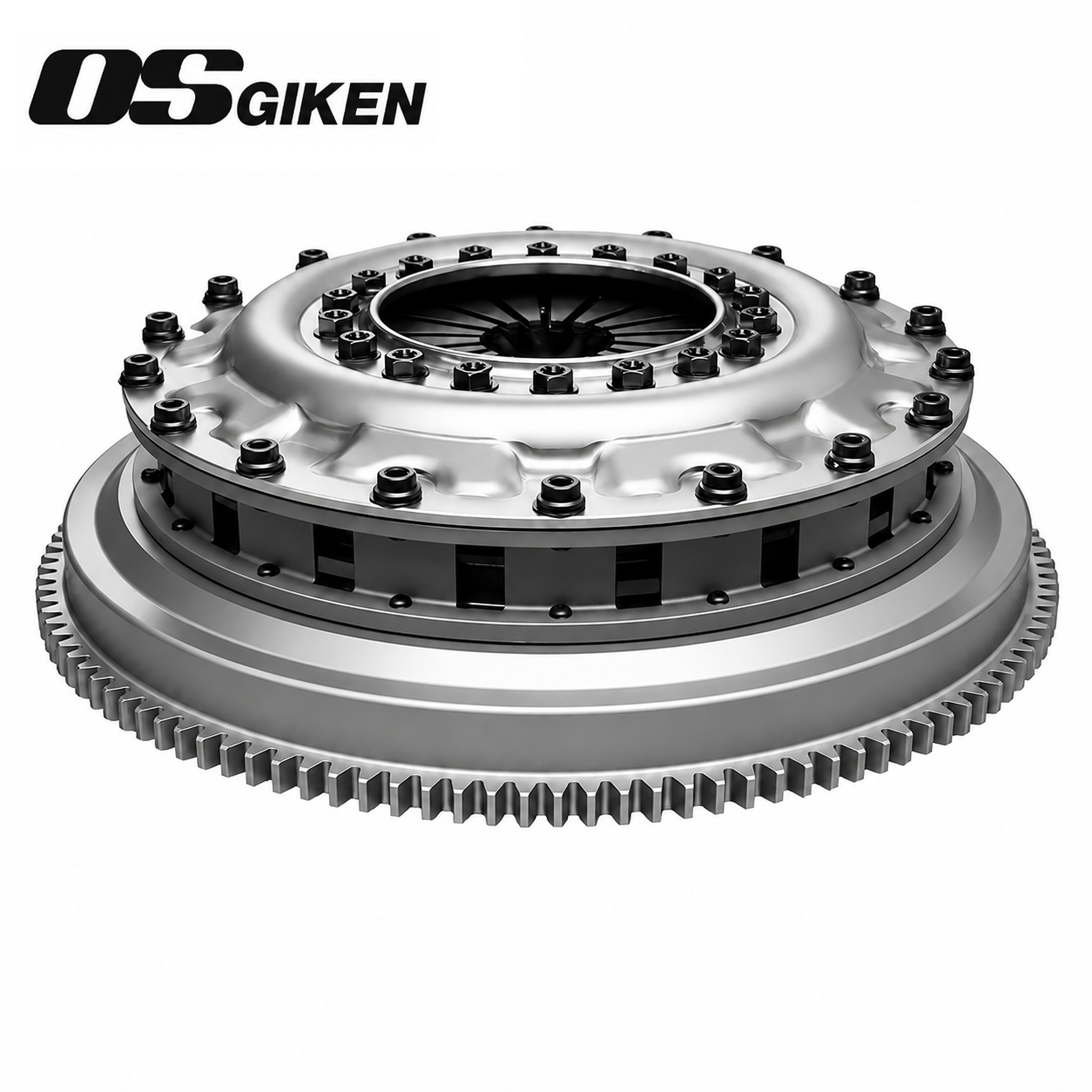

• (1) TS2A Twin-Plate Clutch Assembly

• (1) Matched Flywheel

• Required release sleeve assembly not included

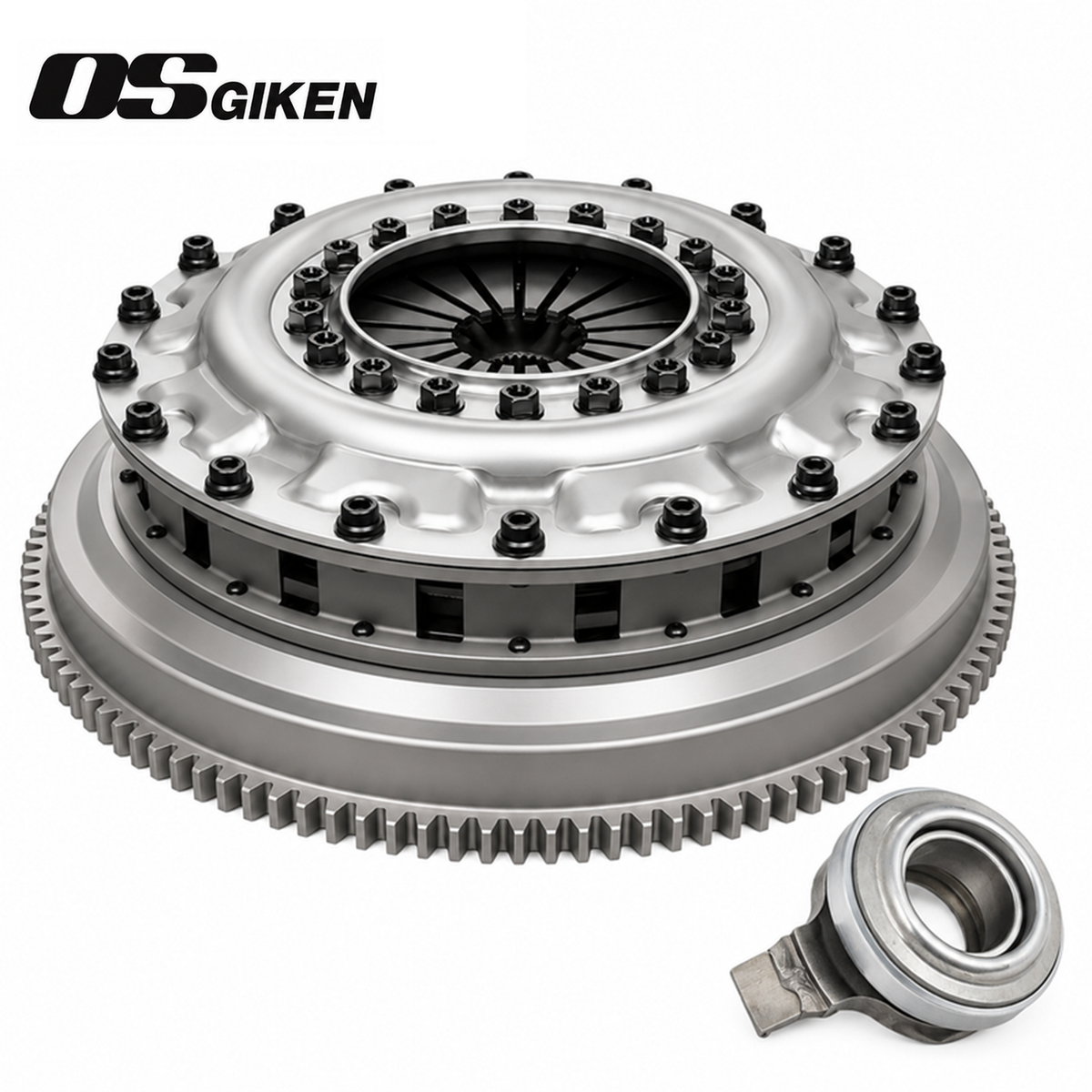

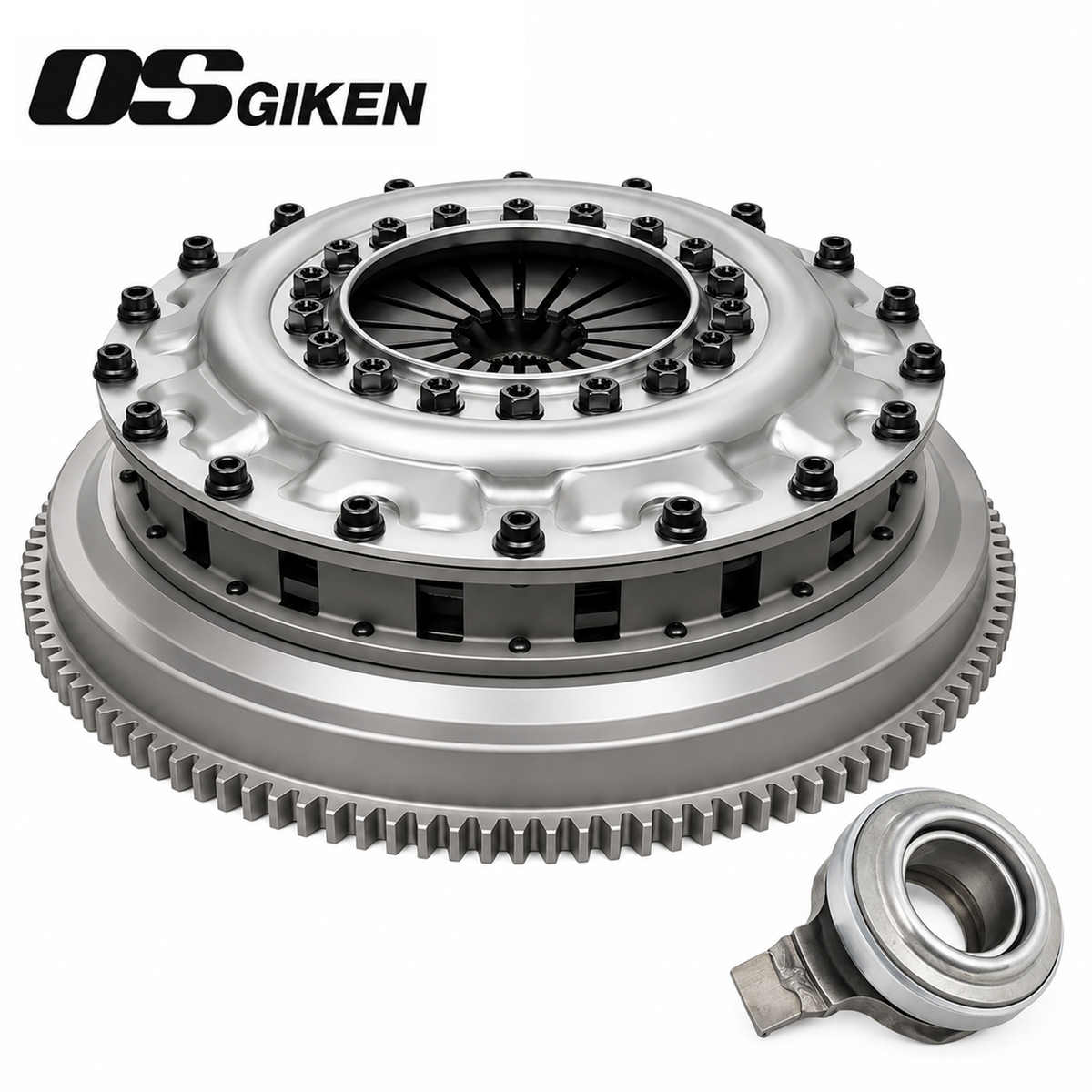

Clutch Kit + Release Sleeve Assembly

• (1) TS2A Twin-Plate Clutch Assembly

• (1) Matched Flywheel

• (1) Required OS Giken AE86 TS2A/S Release Sleeve Assembly
