AE86 OS Giken TS2B Twin Plate Clutch Kit with Flywheel | 4A-GE (1983-87 Corolla)

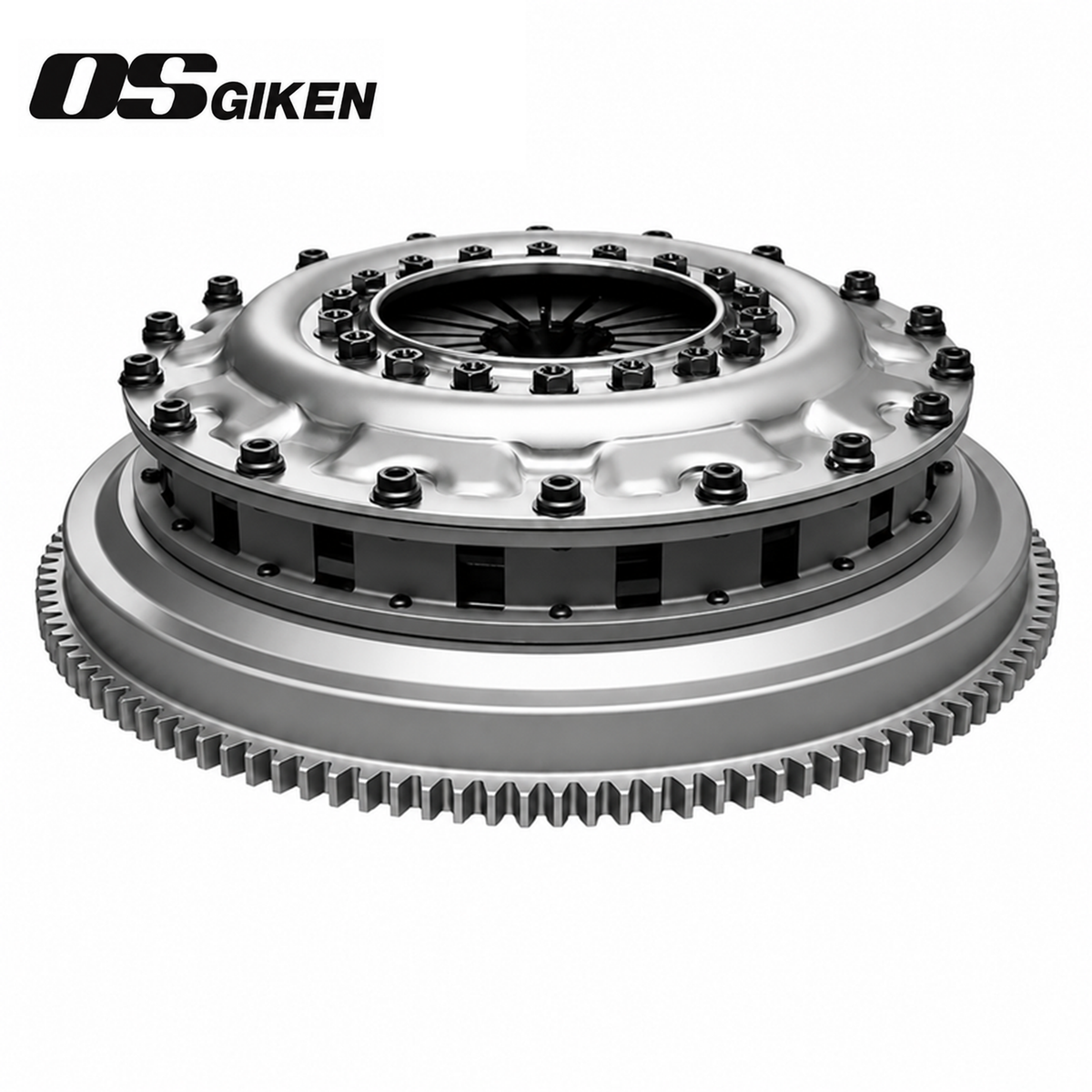

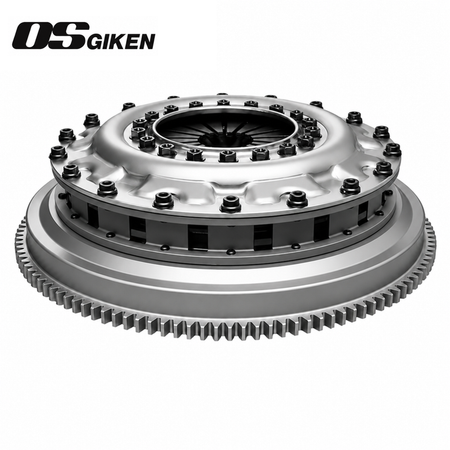

OS Giken TS2B Twin Plate Clutch Kit with Flywheel

For 1983–1987 Toyota Corolla AE86 Trueno / Levin and 1985–1987 U.S.-Market Corolla Sport AE86 GT-S with 1.6L 4A-GE

Overview

The OS Giken TS2B Twin Plate Clutch Kit is a high-capacity performance clutch and flywheel system for 4A-GE-powered Toyota AE86 applications, including the JDM Corolla Levin and Sprinter Trueno as well as the U.S.-market Corolla Sport GT-S.

Its twin-disc design uses two 204 mm heat-treated alloy clutch discs and is rated for approximately 500 lb-ft of torque. The stamped-steel clutch cover balances substantial holding capacity with manageable pedal effort, making the TS2B particularly well suited to turbocharged, supercharged, competition, and other high-output 4A-GE builds.

A matched flywheel is included as part of the system, creating a coordinated clutch and flywheel assembly rather than requiring the factory flywheel to be reused.

Key Features

• TS2B twin-plate performance clutch system

• Approximately 500 lb-ft torque capacity

• Two 204 mm clutch discs

• Heat-treated alloy clutch-disc construction

• Stamped-steel clutch cover

• Increased friction surface area from the twin-disc design

• Moderate pedal effort relative to its holding capacity

• Designed with turbocharged and supercharged applications in mind

• Suitable for demanding street, track, drift, and competition use

• Matched flywheel included

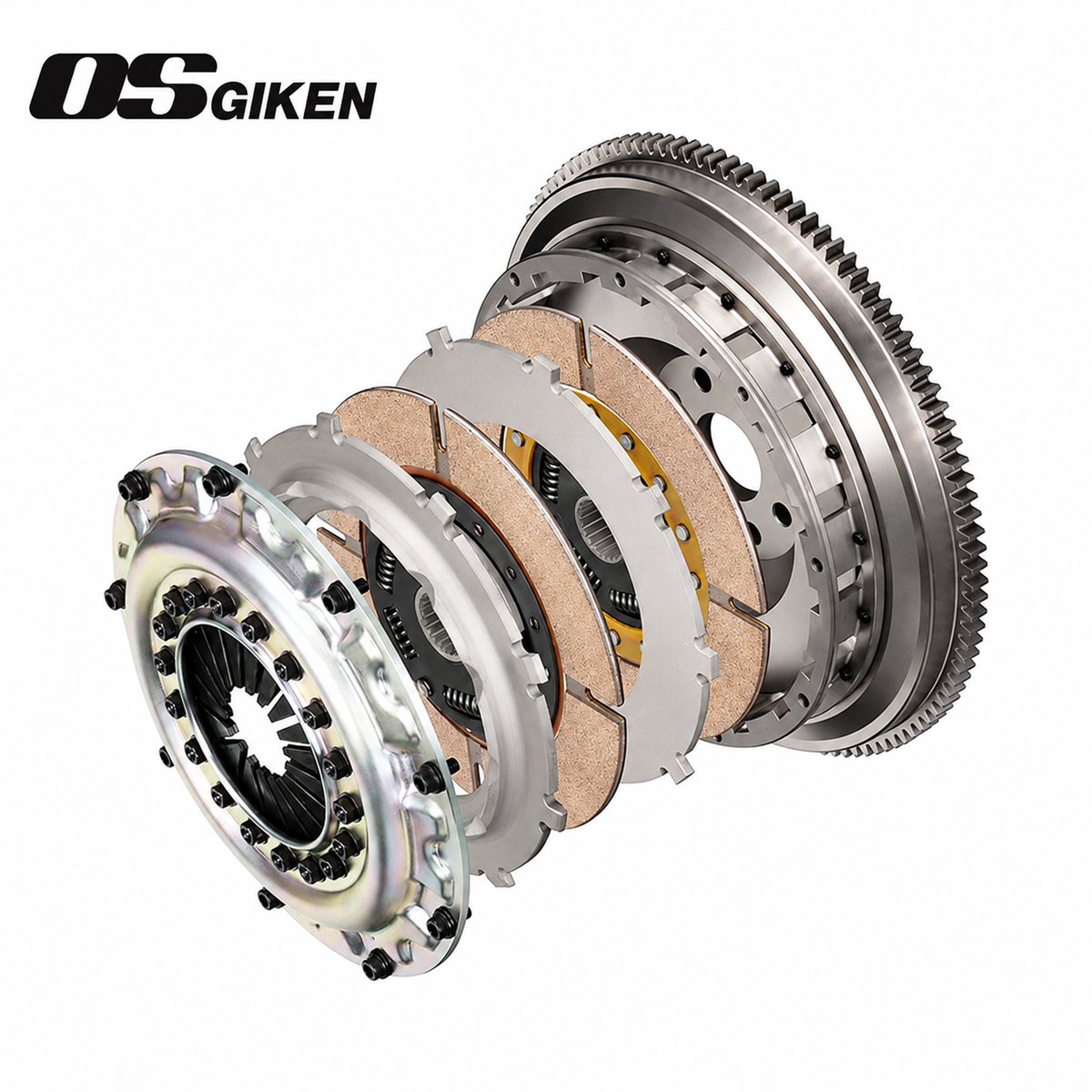

TS2B Twin-Plate Design

Using two clutch discs increases the available friction surface area while keeping the clutch assembly compact. This allows the TS2B to handle substantially greater torque than a conventional single-disc street clutch while maintaining responsive engine operation.

The TS2B is the logical choice for AE86 builds that have moved beyond the capacity of an OE-style or upgraded single-disc clutch. For stock and lightly modified naturally aspirated cars, a single-disc clutch may provide better value and more factory-like operation. The TS2B is intended for builds where increased torque capacity, durability, and performance use justify a twin-disc system.

Vehicle Fitment

Toyota Sprinter Trueno

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – 1.6L 4A-GE – Manual Transmission

Toyota Corolla Levin

• 1983–1987 Toyota Corolla AE86 – Levin (JDM) – 1.6L 4A-GE – Manual Transmission

Toyota Corolla Sport GT-S

• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 1.6L 4A-GE – Manual Transmission

Fitment Notes

• 4A-GE-powered AE86 manual-transmission applications

• Fits JDM Sprinter Trueno and Corolla Levin AE86 4A-GE applications

• Fits U.S.-market 1985–1987 Corolla Sport GT-S

• Rear-wheel drive manual transmission applications only

• Requires an OEM-style AE86 release bearing with a 3 mm spacer/shim

• The TS2B does not use the dedicated OS Giken release-sleeve configuration required by the AE86 TS2A

• Requires an OEM-style pilot bearing or bushing

• Matched flywheel is included

• Vehicles with engine, transmission, bellhousing, or drivetrain conversions should be verified by their installed configuration

• Correct clutch-release geometry should be confirmed during installation

• Professional installation is recommended

Product Specifications

Brand: OS Giken
Series: TS Series
Product Type: Performance Clutch & Flywheel Kit
Clutch Type: TS2B Twin Plate
Disc Quantity: 2
Disc Diameter: 204 mm
Disc Construction: Heat-Treated Alloy
Cover Design: Stamped Steel
Torque Capacity: Approximately 500 lb-ft
Engine: 1.6L 4A-GE
Transmission: Manual
Drivetrain: RWD
Release Bearing Configuration: OEM-Style AE86 Release Bearing + 3 mm Spacer/Shim
Recommended Use: High-Performance Street / Turbo / Supercharged / Track / Competition
Fit: Vehicle-Specific Performance Application

What's Included

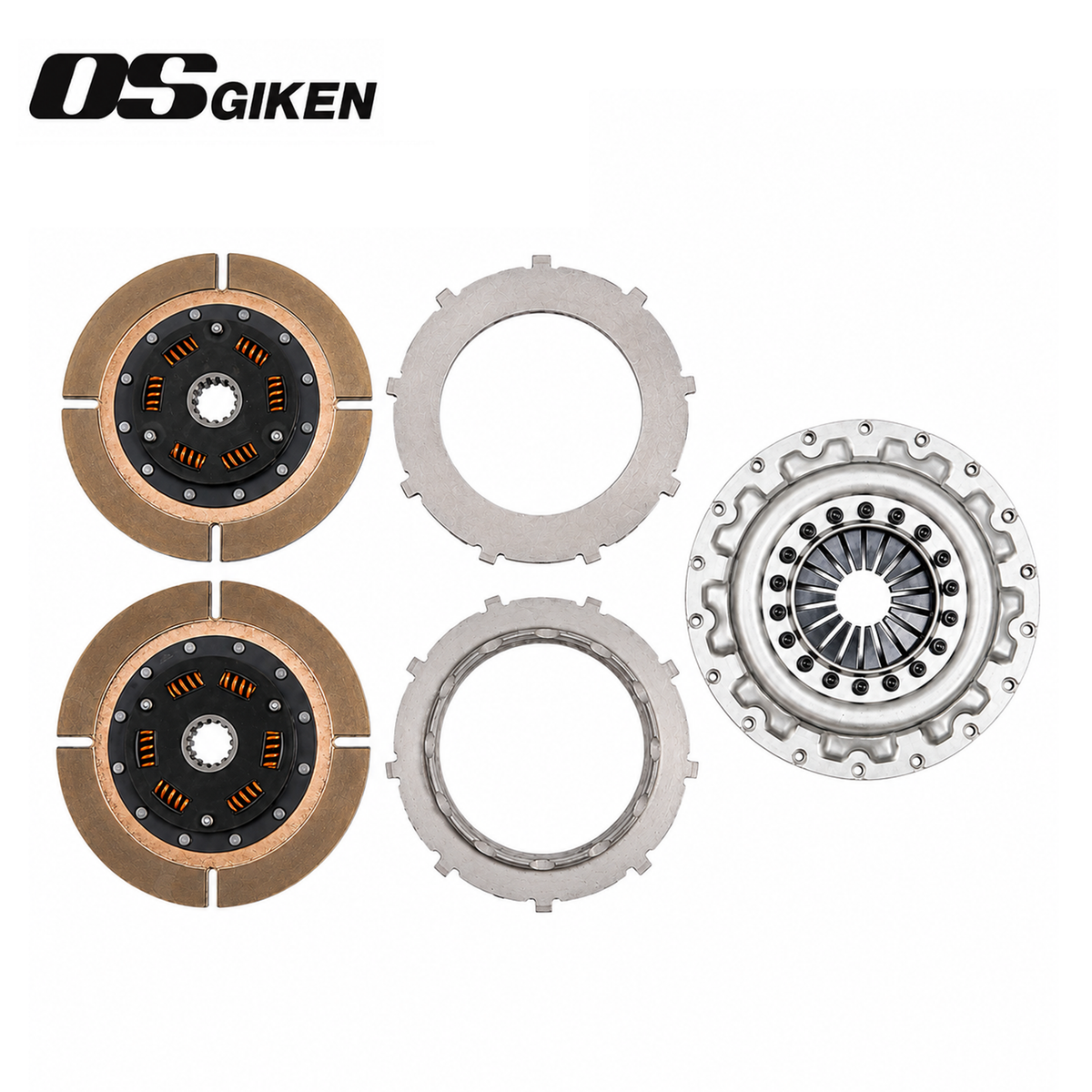

• (1) TS2B Twin-Plate Clutch Assembly

• (1) Matched Flywheel

Release bearing, 3 mm spacer/shim, and pilot bearing or bushing are required for installation and are not listed as included components.
