AE86 Mishimoto Performance Aluminum Radiator (1983-87 Corolla)

SKU: 774
$349.95
Cooling Package
Fitment support available
Estimate shipping before checkout

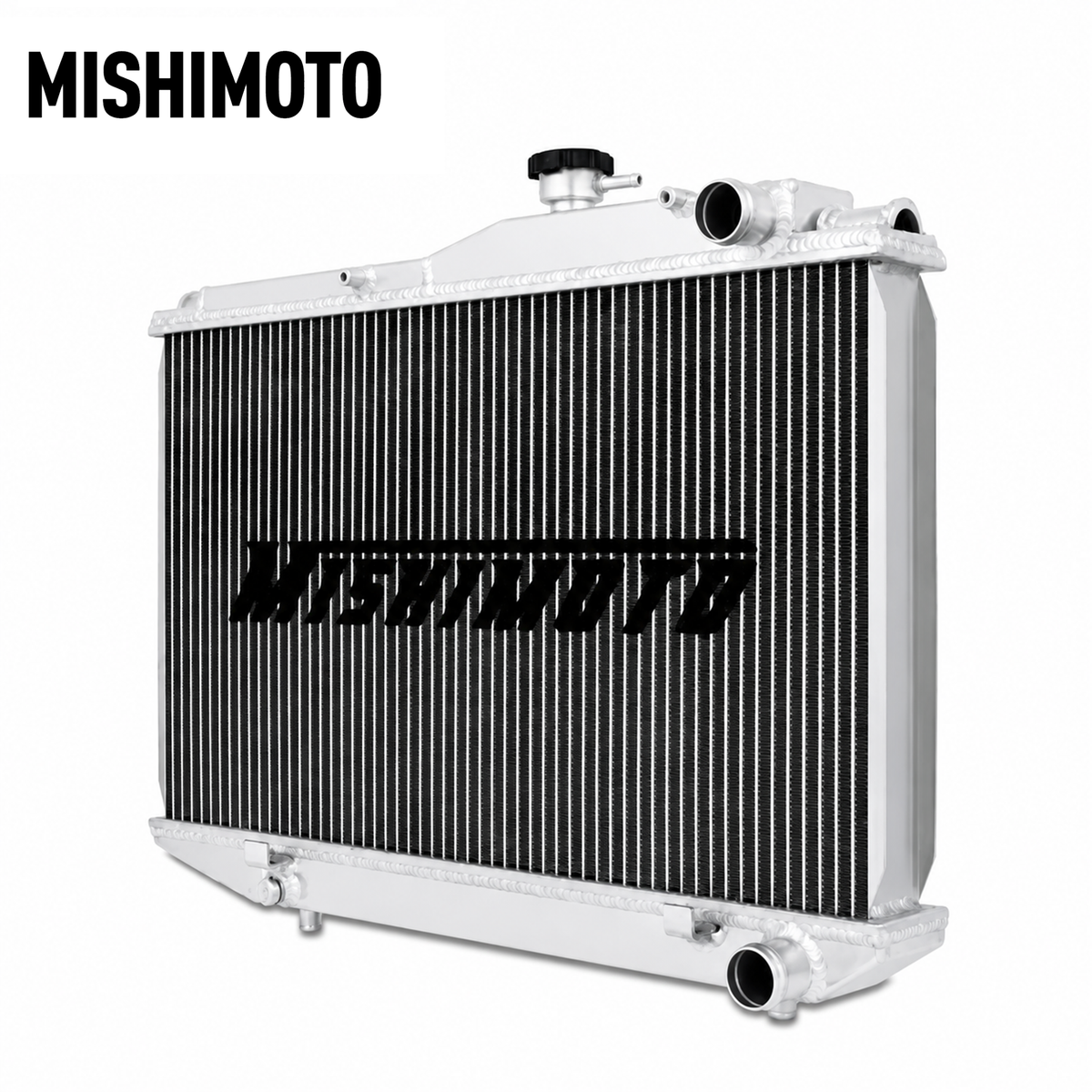

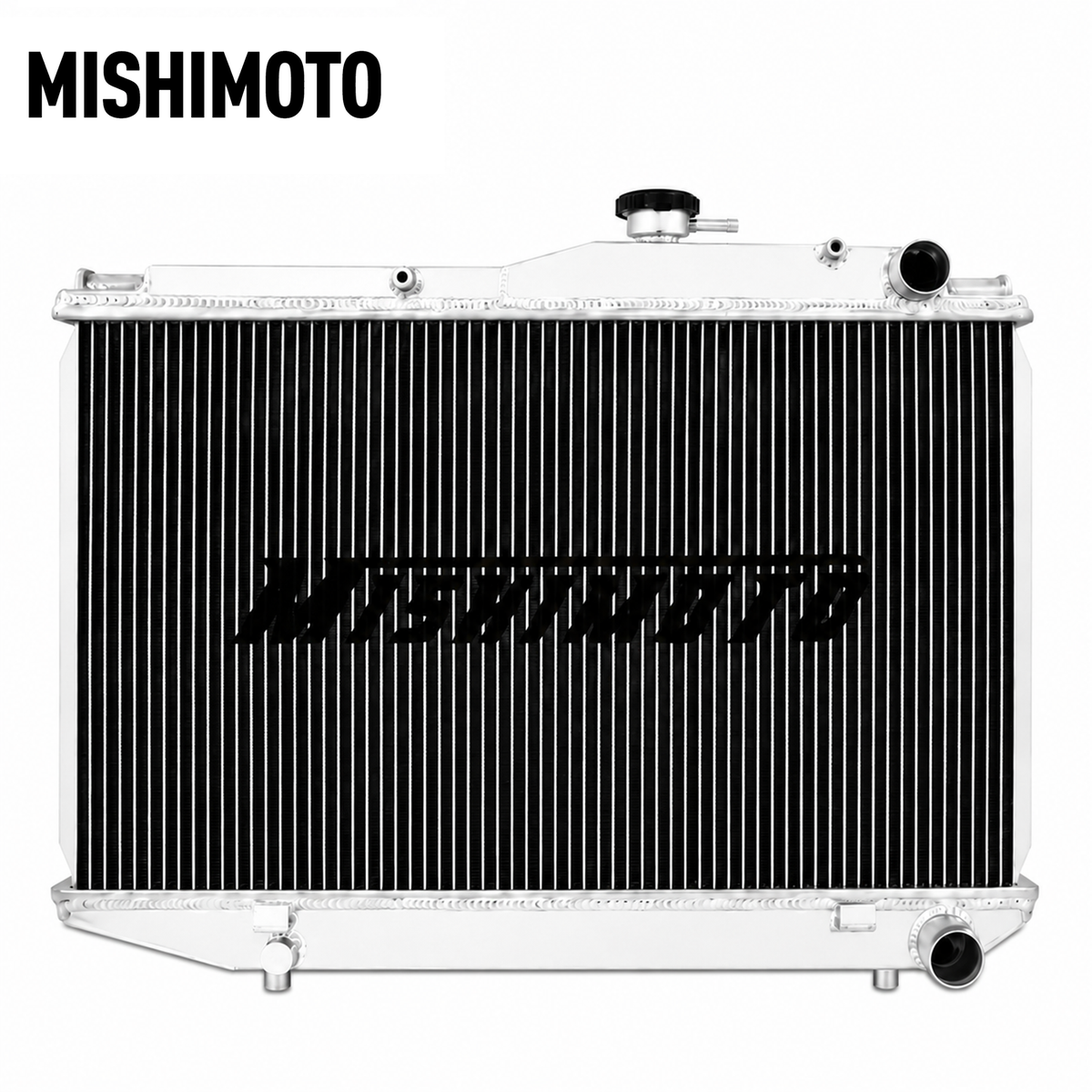

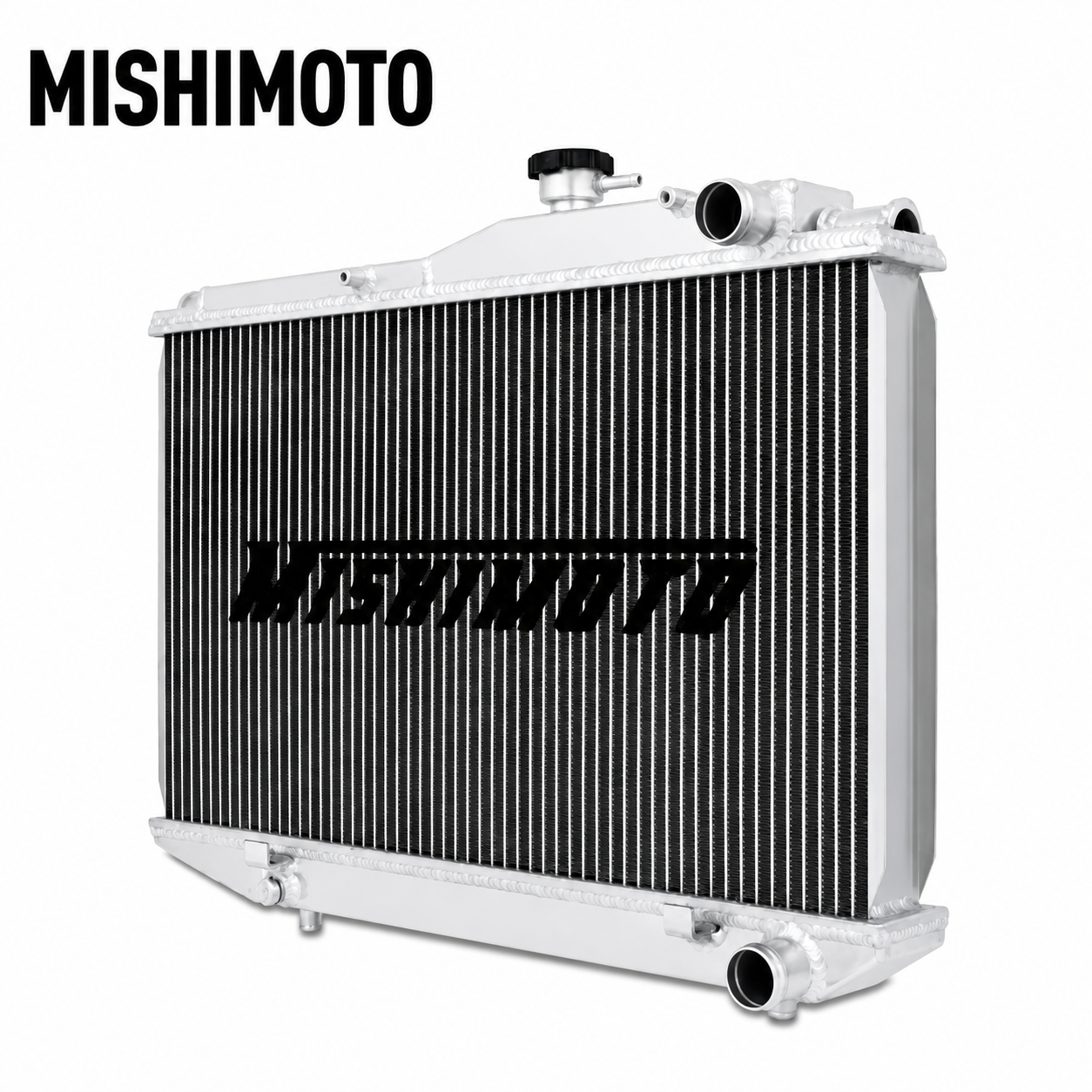

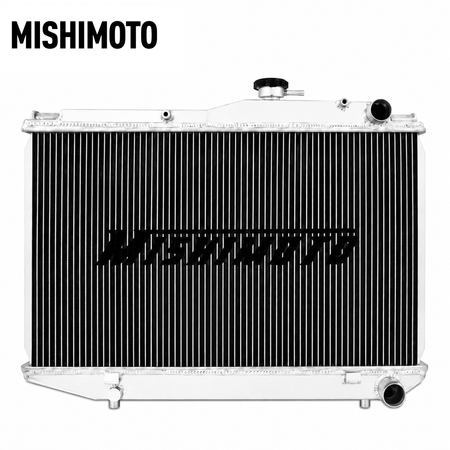

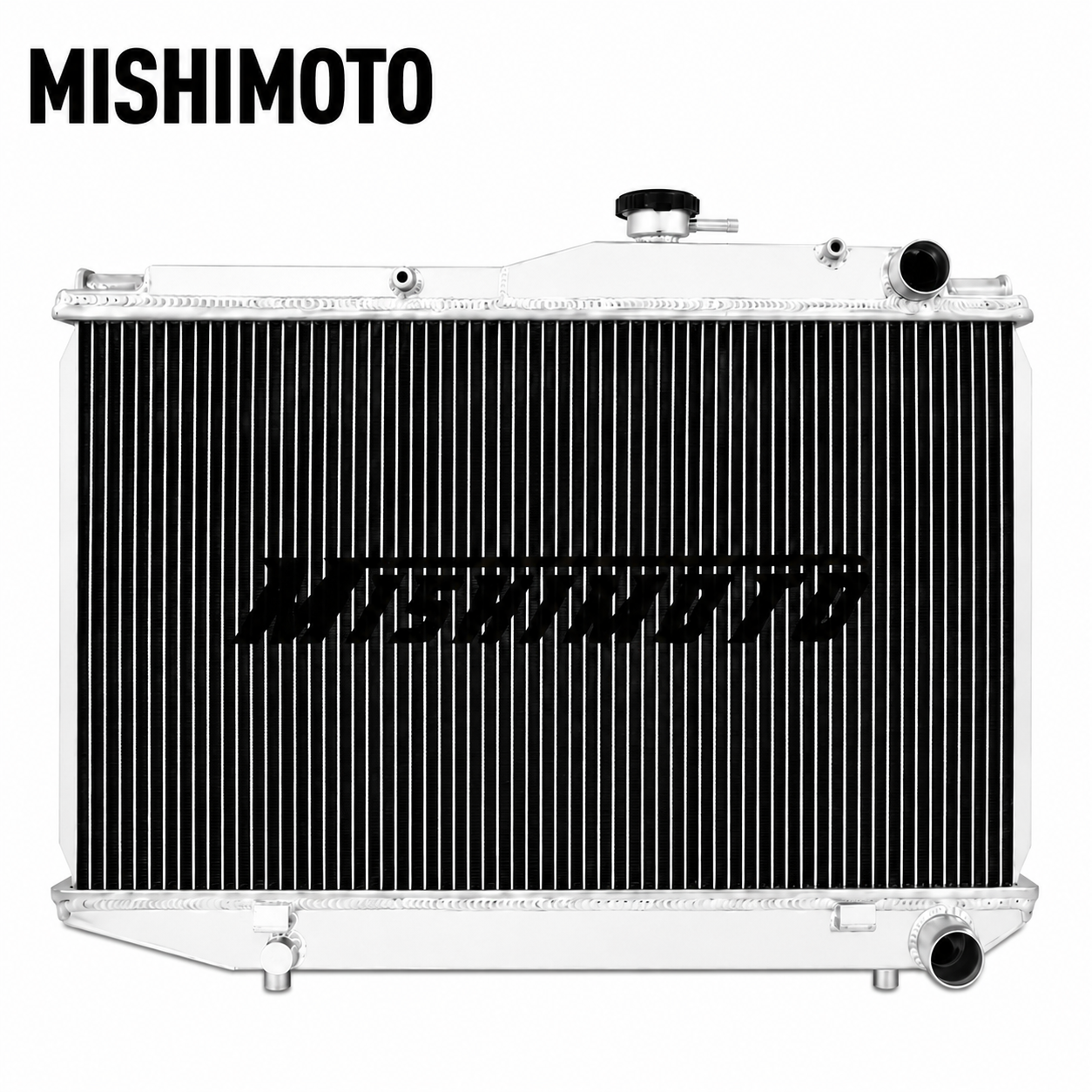

Mishimoto Performance Aluminum Radiator

For 1983–1987 Toyota Corolla AE86 Trueno / Levin and 1984–1987 U.S.-Market Corolla Sport AE86 with Manual Transmission

Overview

The Mishimoto Performance Aluminum Radiator is a direct-fit cooling upgrade for the Toyota AE86, designed to replace the factory radiator with a lightweight, all-aluminum two-row cooling system.

Its 2.05-inch-thick brazed aluminum core and TIG-welded construction provide increased cooling capacity for street-driven, restored, modified, and motorsport-oriented AE86 builds.

Choose the Radiator Only configuration or upgrade to the Radiator + Dual Fan Shroud Kit, which adds a vehicle-specific aluminum shroud and two 12-inch electric fans for increased airflow through the radiator core.

Key Features

  • Direct-fit aluminum radiator for Toyota AE86 applications
  • Two-row brazed aluminum core
  • 2.05-inch core thickness
  • TIG-welded aluminum construction
  • 1.3-bar high-pressure radiator cap included
  • Magnetic drain plug helps capture metallic cooling-system debris
  • Optional aluminum fan shroud with dual 12-inch electric fans
  • Each electric fan provides approximately 1,150 CFM
  • Fan shroud is designed to direct airflow through the radiator core
  • Mishimoto Lifetime Warranty

Cooling System Design

The aluminum radiator provides a larger, more performance-oriented cooling core than a conventional stock-style radiator while retaining vehicle-specific mounting for the AE86.

The optional fan shroud surrounds the radiator core and uses two slim electric fans to actively draw air through the radiator. This configuration is especially useful for vehicles that see extended idling, stop-and-go driving, drifting, autocross, track use, or other situations where natural airflow through the radiator is reduced.

Vehicle Fitment

Toyota Sprinter Trueno

  • 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – Family – 1.6L 4A-GEU

Toyota Corolla Levin

  • 1983–1987 Toyota Corolla AE86 – Levin (JDM) – 1.6L 4A-GEU

Toyota Corolla Sport GT-S

  • 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 1.6L 4A-GEC

Toyota Corolla Sport SR5

  • 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market) – 1.6L 4A-C

Fitment Notes

  • Radiator is designed for manual-transmission vehicles
  • Automatic-transmission applications require a separate transmission cooler
  • Radiator installs as a direct-fit replacement without cutting or major vehicle modification
  • Optional fan shroud is designed for use with the Mishimoto radiator and is also compatible with the factory radiator
  • Electric fans may require additional wiring
  • Verify available engine-bay clearance when using additional aftermarket accessories

Product Specifications

Brand: Mishimoto
Product Type: Performance Aluminum Radiator / Cooling Package
Fitment: Vehicle Specific / Direct Fit
Radiator Construction: Aluminum
Radiator Core: 2-Row Brazed Aluminum
Core Thickness: 2.05 in
Coolant Capacity: 1.67 gal
Radiator Inlet: 1.25 in
Radiator Outlet: 1.25 in
Radiator Cap: 1.3 Bar
Drain Plug: Magnetic
Fan Shroud Material: Aluminum
Fan Quantity: 2
Fan Diameter: 12 in Each
Fan Airflow: 1,150 CFM Each
Fan Shroud Size: 22.83 x 15.55 x 3.5 in
Transmission: Manual
Chassis: AE86

Koyorad vs. Mishimoto — Which Radiator Is Right for You?

Both are all-aluminum performance radiators suitable for street and track use, but they have different strengths.

Koyorad HH Series Mishimoto Performance Radiator
Best For 4A-GE AE86 builds prioritizing OE-style integration Customers prioritizing value, included accessories, and broader 1.6L fitment
Core 48mm high-density Hyper Core 2-row, approximately 52mm core
Engine Fitment 4A-GE 4A-GE & 4A-C
OEM Fan-Shroud Mounts Yes —
Sensor Port 1/8-inch NPT —
Radiator Cap Not included 1.3-bar cap included
Warranty — Mishimoto Lifetime Warranty

Choose Koyorad if you have a 4A-GE AE86 and prioritize application-specific fitment, OEM fan-shroud mounting, and an integrated temperature-sensor port.

Choose Mishimoto if you want the best overall value, an included radiator cap, lifetime warranty, or fitment for a supported 4A-C application.

Our Recommendation: For a 4A-GE AE86, Koyorad is the more application-focused choice. For value and included features, Mishimoto is the stronger option.

Available Configurations

Radiator Only

  • Mishimoto Performance Aluminum Radiator
  • 1.3-Bar Radiator Cap
  • Magnetic Drain Plug
  • Mishimoto Lifetime Warranty

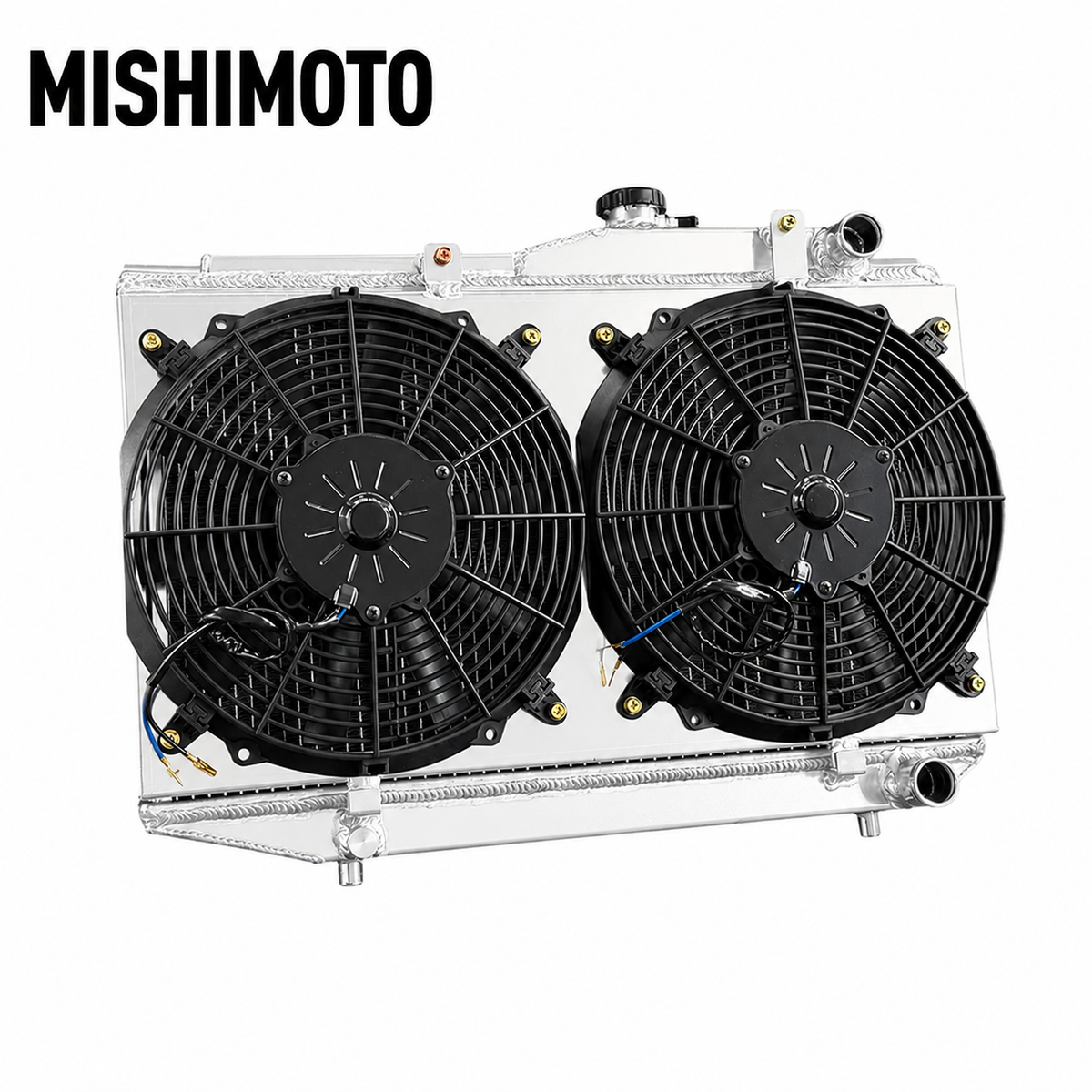

Radiator + Dual Fan Shroud Kit

  • Mishimoto Performance Aluminum Radiator
  • 1.3-Bar Radiator Cap
  • Magnetic Drain Plug
  • Aluminum Fan Shroud
  • (2) 12-Inch Slim Electric Fans
  • Mishimoto Lifetime Warranty
