KYB Stock Height Rear Shock (1984-95 4Runner)

KYB Stock Height Rear Shock Absorber

For 1984–1995 Toyota 4Runner

Overview

The KYB Gas-a-Just is a high-pressure, gas-charged monotube rear shock absorber for factory-height Toyota 4Runner suspensions. Two distinct rear-mount configurations cover the first- and second-generation 4Runner, with single-shock and rear-pair purchase choices.

Its floating piston separates the nitrogen gas from hydraulic fluid to resist aeration and promote consistent damping. Each rear shock is designed for installation on either the left or right side of its specified application.

Key Features

• High-pressure monotube construction for responsive suspension damping
• Gas and hydraulic chambers separated by a floating piston to help control aeration
• Application-specific rear mounting designs for first- and second-generation 4Runner models
• Stock-height replacement for factory-style rear suspension geometry
• Single or pair availability to suit one-side replacement or both rear wheels

Vehicle Fitment

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD — select a 1984–1989 configuration.
• 1990–1995 Toyota 4Runner – 2nd Gen – 2WD / 4WD — select a 1990–1995 configuration.

Fitment Notes

• Choose the configuration for your 4Runner model years. The two rear shocks differ in mounting design and are not interchangeable.
• 1984–1989: eyelet upper and lower mounts.
• 1990–1995: threaded-stem upper mount and eyelet lower mount.
• For U.S.-market factory-height rear suspensions. Not specified for lifted, lowered, or suspension-converted applications.
• The Gas-a-Just name does not indicate externally adjustable damping.
• Front shocks and Toyota Pickup rear shocks are not included in this listing.

Product Specifications

• Brand / Series: KYB Gas-a-Just
• Location: Rear, left or right
• Construction: Gas-charged monotube
• 1984–1989 mount type: Eyelet upper / eyelet lower
• 1984–1989 extended / compressed length: 20.98 / 13.62 inches
• 1990–1995 mount type: Threaded-stem upper / eyelet lower
• 1990–1995 extended / compressed length: 20.91 / 13.35 inches
• Finish: Gray

KYB Gas-a-Just vs. Bilstein B6 4600

The Bilstein B6 4600 Rear Shock is a higher-priced alternative with velocity-sensitive digressive valving. KYB Gas-a-Just offers high-pressure monotube construction at a lower purchase price. Both product families have distinct first- and second-generation rear shock applications.

Available Configurations

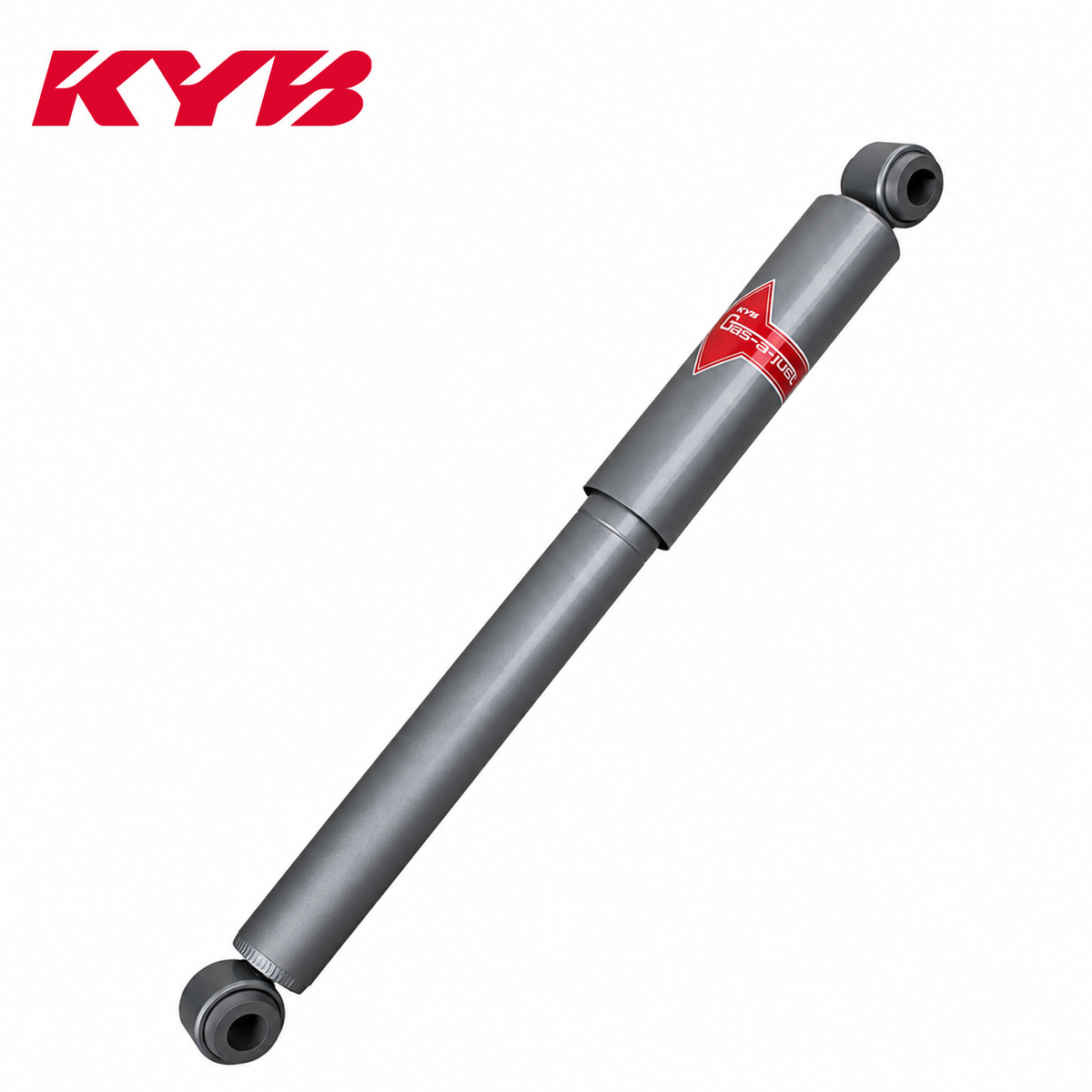

1984-1989 / Single

Includes: (1) KYB Gas-a-Just rear shock absorber for first-generation 4Runner with eyelet mounting at both ends.

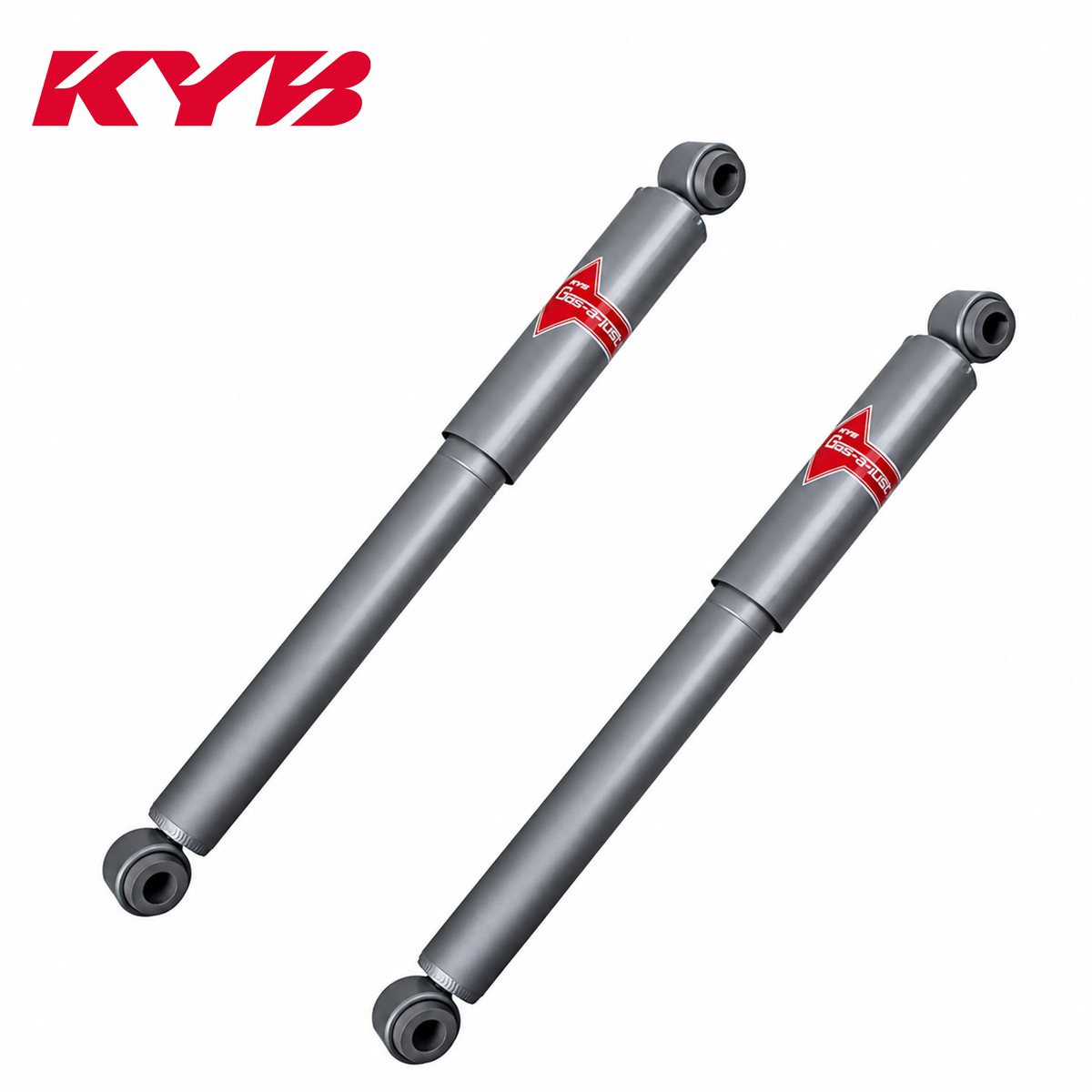

1984-1989 / Pair

Includes: (2) identical KYB Gas-a-Just rear shock absorbers for first-generation 4Runner with eyelet mounting at both ends.

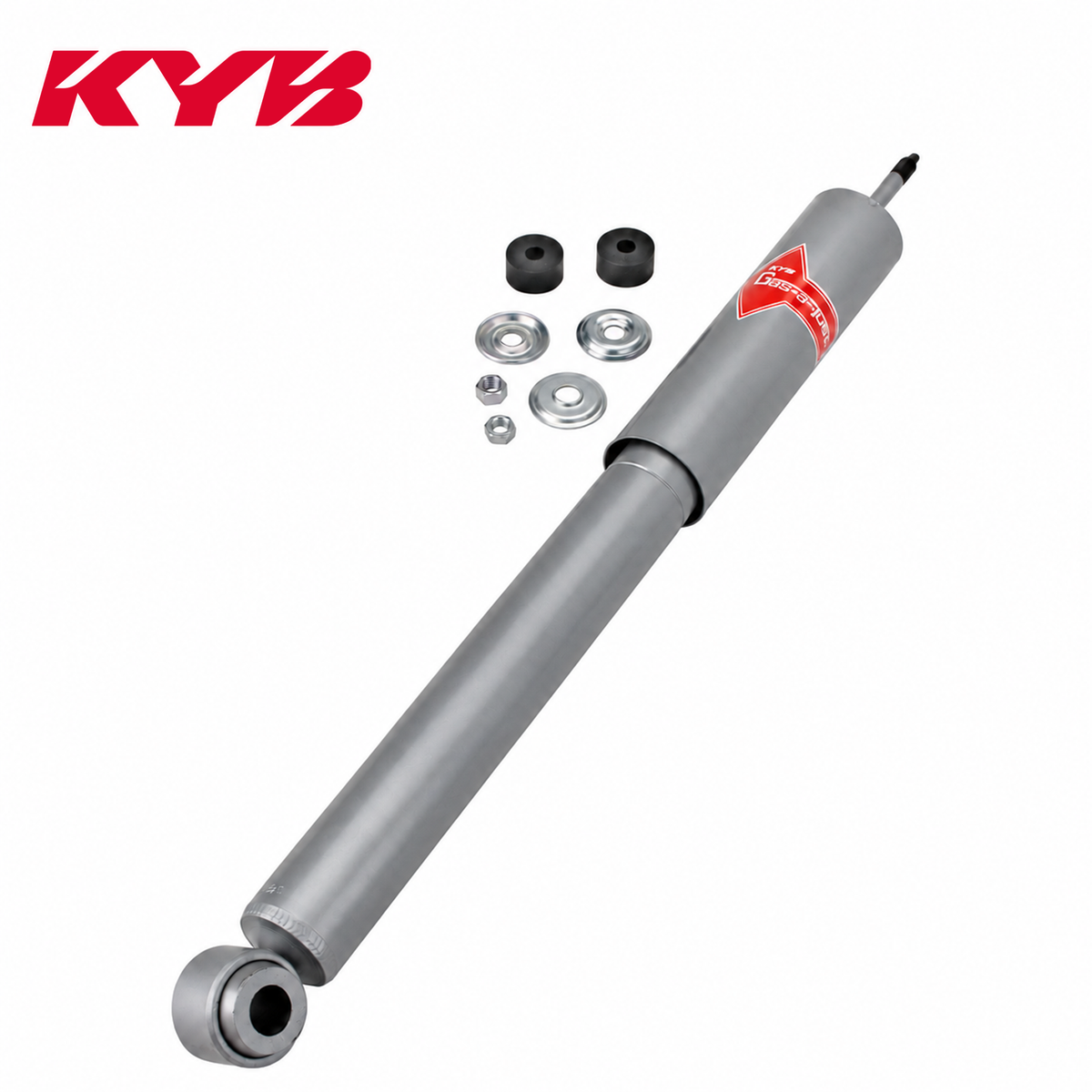

1990-1995 / Single

Includes: (1) KYB Gas-a-Just rear shock absorber with dust cover and fitted lower rubber bushing, (2) upper rubber cushions, (3) upper metal retainers / dished washers, and (2) upper mounting nuts.

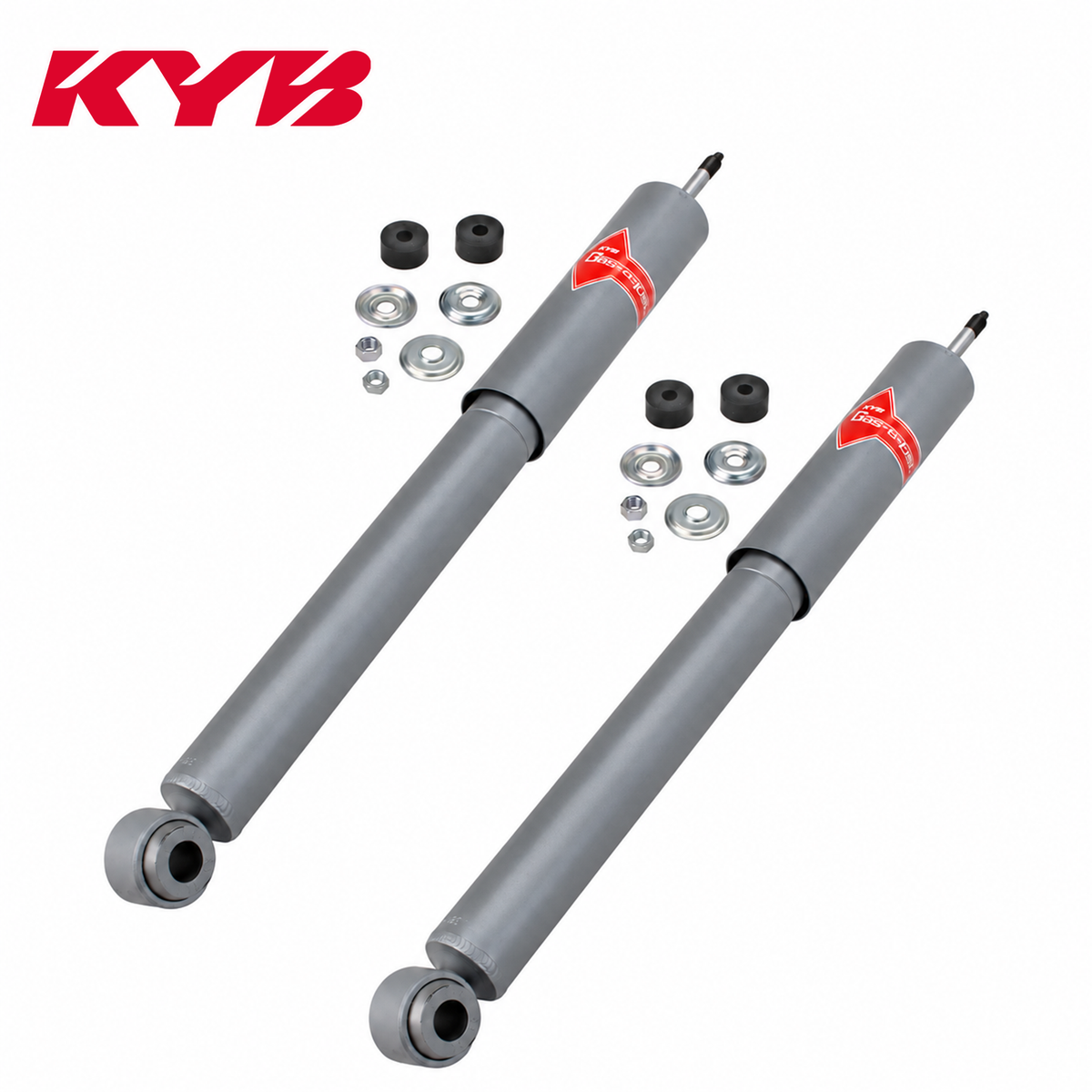

1990-1995 / Pair

Includes: (2) KYB Gas-a-Just rear shock absorbers with dust covers and fitted lower rubber bushings, (4) upper rubber cushions, (6) upper metal retainers / dished washers, and (4) upper mounting nuts.

Important: Lower attachment bolts and plate washers are not included with the 1990–1995 configurations. First-generation mounting hardware must be confirmed against the purchased shock and existing vehicle hardware.
