Bilstein Stock Ride Height B6 4600 Rear Shock (1984-95 4Runner)

Bilstein Stock Ride Height B6 4600 Rear Shock

For 1984–1995 Toyota 4Runner models with stock-height rear suspension.

Overview

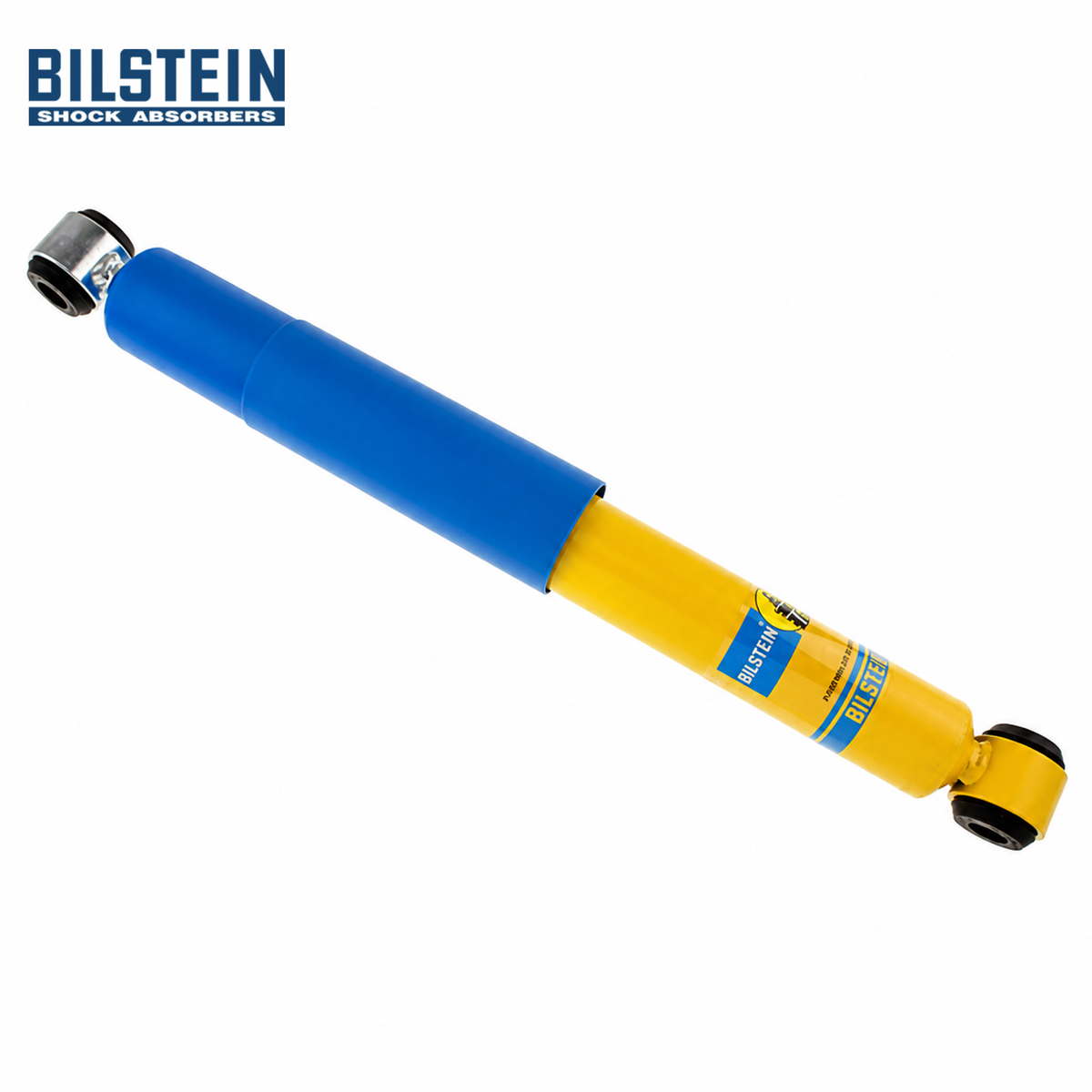

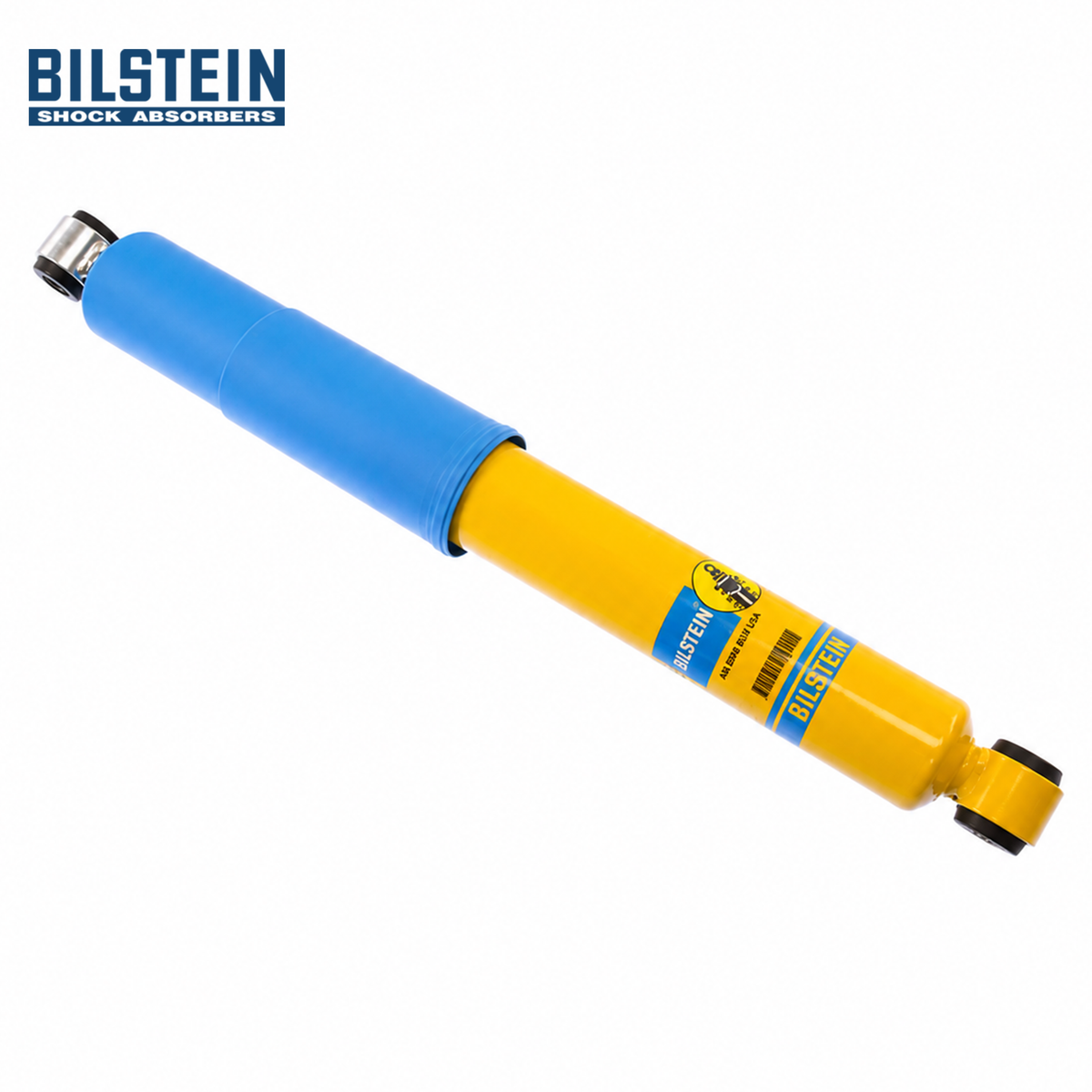

The Bilstein B6 4600 Rear Shock is a direct-fit monotube shock absorber for stock-height Toyota 4Runner applications. Its high-pressure gas design and velocity-sensitive digressive valving provide consistent damping control for daily driving, highway use, towing, gravel roads, and light off-road use without changing spring height.

Two different rear shock applications are used across the 1984–1995 4Runner range. The 1984–1989 1st Gen application uses an eye-to-eye mounting arrangement, while the 1990–1995 2nd Gen application uses a stem upper mount and eye lower mount. The two applications are not interchangeable.

Key Features

• Bilstein B6 4600 stock-height rear shock
• High-pressure gas monotube design
• Velocity-sensitive digressive valving
• Vehicle-specific damping calibration
• Non-adjustable damping
• Yellow painted shock body with blue protective boot
• No external reservoir
• Two rear shocks required per vehicle
• Bilstein Limited Lifetime Warranty

Shock Dimensions

1984–1989 4Runner
Collapsed Length: 13.62 in
Extended Length: 20.87 in
Travel: 7.25 in
Upper Mount: 19 mm Eye
Lower Mount: 19 mm Eye
Body Diameter: 2.0 in

1990–1995 4Runner
Collapsed Length: 13.17 in
Extended Length: 21.02 in
Travel: 7.85 in
Upper Mount: Stem
Lower Mount: 16 mm Eye
Body Diameter: 2.0 in

Vehicle Fitment

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD – Rear – Stock Height
• 1990–1995 Toyota 4Runner – 2nd Gen – 2WD / 4WD – Rear – Stock Height

Fitment Notes

• Factory / stock ride height only.
• 1984–1989 and 1990–1995 use different dimensions and mounting configurations and are not interchangeable.
• 1984–1989 application is for 4WD models.
• 1990–1995 application covers 2WD and 4WD models.
• Two rear shocks are required to replace both sides.
• Not intended as a dedicated suspension-lift shock.
• Vehicles with long-travel suspension, relocated shock mounts, modified bump stops, or altered suspension geometry should be matched to the installed suspension dimensions rather than model year alone.

Product Specifications

Brand: Bilstein
Series: B6 4600
Product Type: Rear Shock Absorber
Position: Rear
Internal Design: Monotube
Charge Type: High-Pressure Gas
Valving: Velocity-Sensitive Digressive
Adjustable Damping: No
Ride Height: Factory / Stock
Drivetrain: 2WD / 4WD by application
Finish: Yellow Paint
Boot: Blue
External Reservoir: No
Quantity Required Per Vehicle: 2
Warranty: Bilstein Limited Lifetime Warranty

Which Rear Shock Should You Buy?

KYB Excel-G — Best for Factory-Style Comfort & Value

Choose KYB Excel-G for an affordable, factory-style replacement that prioritizes comfortable everyday driving and original-style ride quality at stock height. Its gas-charged twin-tube design emphasizes smooth, predictable damping.

KYB Gas-a-Just — Best for Firmer Stock-Height Control

Choose KYB Gas-a-Just for firmer, more responsive monotube damping without stepping up to Bilstein. It offers a more controlled ride feel without changing suspension height or vehicle load capacity.

Bilstein B6 4600 — Best for Overall Stock-Height Performance

Choose Bilstein B6 4600 for premium monotube damping with controlled, responsive handling during daily driving, highway travel, and light off-road use.

ARB / Old Man Emu Nitrocharger Plus — Best for OME Suspension Builds & Added Weight

Choose OME Nitrocharger Plus for 1984–1989 4Runner 4WD models with matched OME suspension setups, frequent rough-road use, or additional permanent equipment weight. Medium and Heavy valving options support stock height through approximately 2 inches of rear lift.

Our Recommendation: For most stock-height Toyota 4Runner owners, Bilstein B6 4600 is our preferred all-around choice. Choose KYB Excel-G for factory-style comfort and value, KYB Gas-a-Just for firmer budget-friendly control, or Old Man Emu Nitrocharger Plus for 1984–1989 4WD suspension builds and more demanding use.

Available Configurations

Choose your preferred configuration using the available vehicle-year and quantity options.

1. Vehicle Year

• 1984-1989: First-generation Toyota 4Runner 4WD with factory eyelet-style upper and lower rear shock mounts.

• 1990-1995: Second-generation Toyota 4Runner 2WD / 4WD with factory threaded-stem upper and eyelet lower rear shock mounts.

2. Quantity

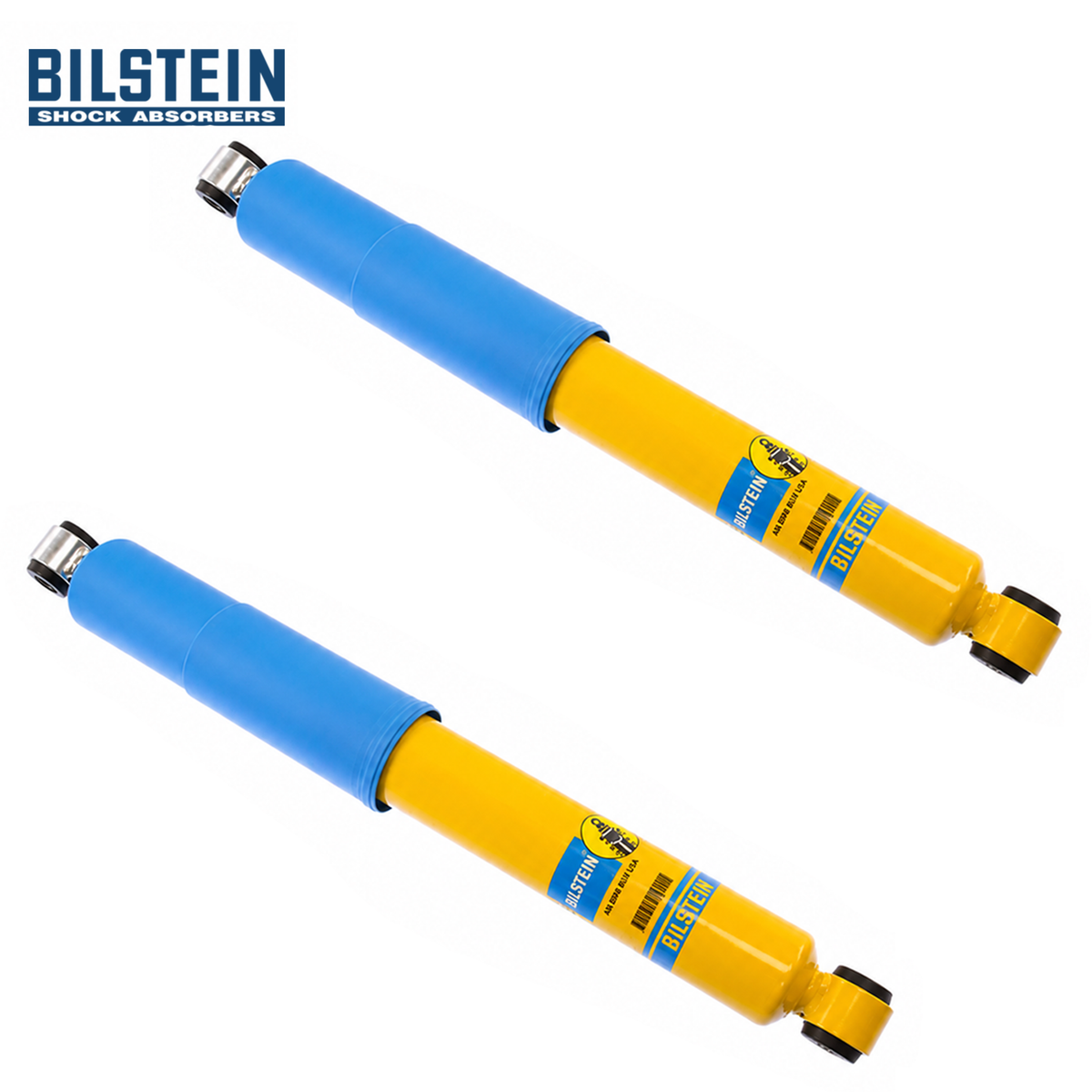

• Single: Includes (1) Bilstein B6 4600 rear shock absorber for the selected year range.

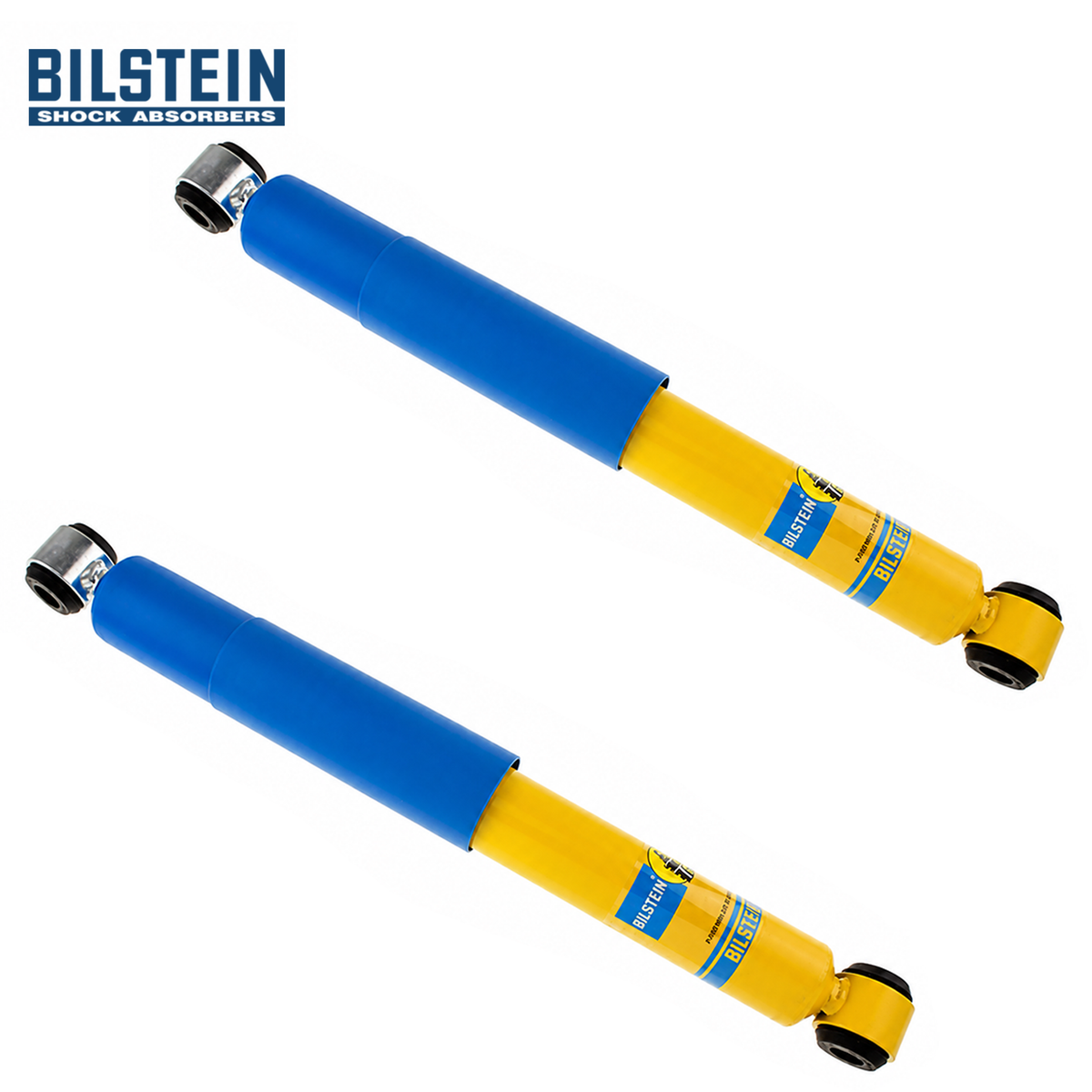

• Pair: Includes (2) matching Bilstein B6 4600 rear shock absorbers for the selected year range.
