AE86 Headlight Retractor Relay | Pop-Up Headlights (1983-87 Corolla)

AE86 Headlight Retractor Relay

For 1983–1987 Toyota Corolla AE86 Trueno and 1984–1987 U.S.-Market Corolla Sport AE86 with factory pop-up headlights

Overview

The AE86 Headlight Retractor Relay is a modern electronic replacement for the aging factory relay circuitry that controls the pop-up headlights on Toyota AE86 models equipped with the retractable headlight system. This includes North American Corolla Sport SR5 and GT-S models as well as Japanese-market Sprinter Trueno applications.

A failing original relay can cause intermittent operation, headlights that fail to raise or retract, or inconsistent headlight motor control. This replacement circuit board restores the factory-style retractor control logic using all-new electronic components while retaining the original vehicle wiring and headlight-system operation.

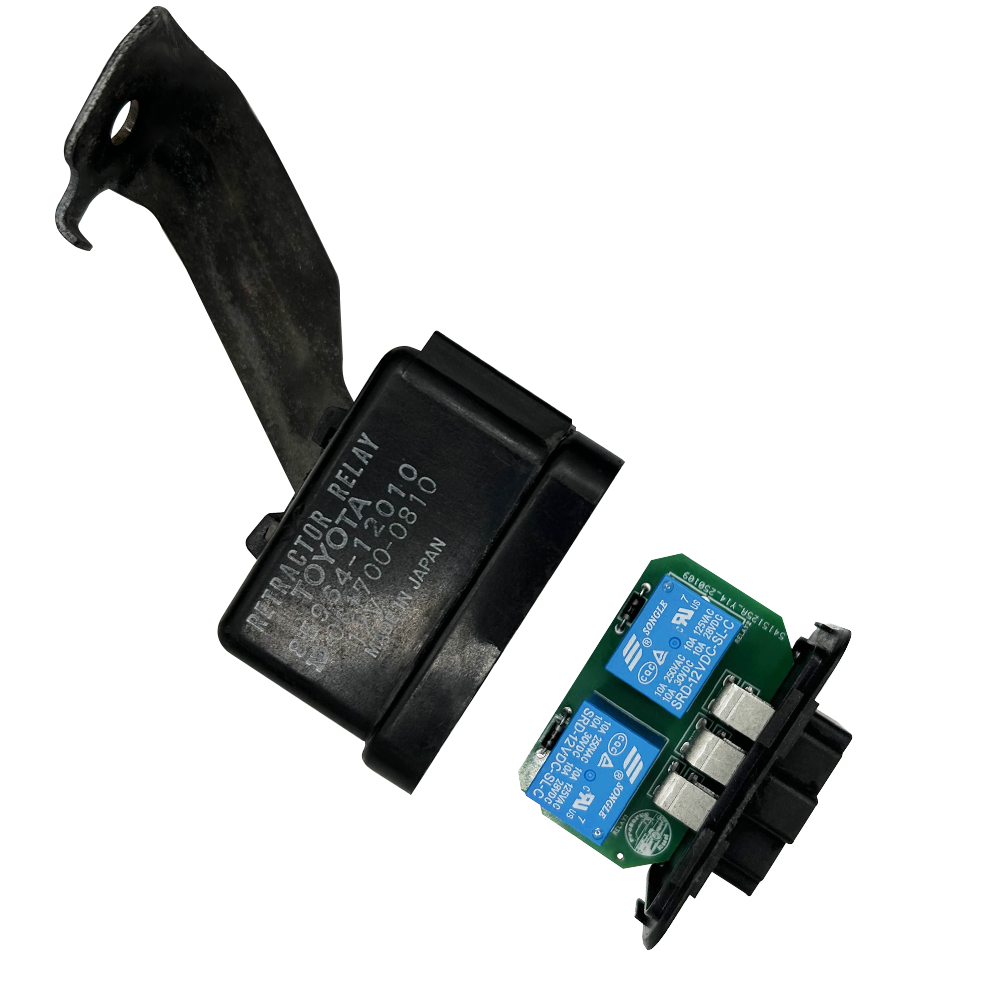

Installation is plug-and-play and requires no cutting, soldering, or wiring modification. The replacement circuit board installs inside the original Toyota relay housing, allowing the factory case, mounting bracket, and connectors to remain in use.

Key Features

• Modern replacement for the factory AE86 headlight retractor relay circuitry
• For factory pop-up headlight applications
• Fits North American Corolla Sport GT-S and SR5 pop-up headlight systems
• Fits Japanese-market Sprinter Trueno pop-up headlight systems
• Controls synchronized raising and retracting of the headlights
• All-new modern electronic components
• Maintains factory-style headlight control logic
• Plug-and-play installation using the existing factory electrical connectors
• No cutting, soldering, or wiring modification required
• Installs inside the original relay housing
• Built and assembled in the USA

Electrical Design

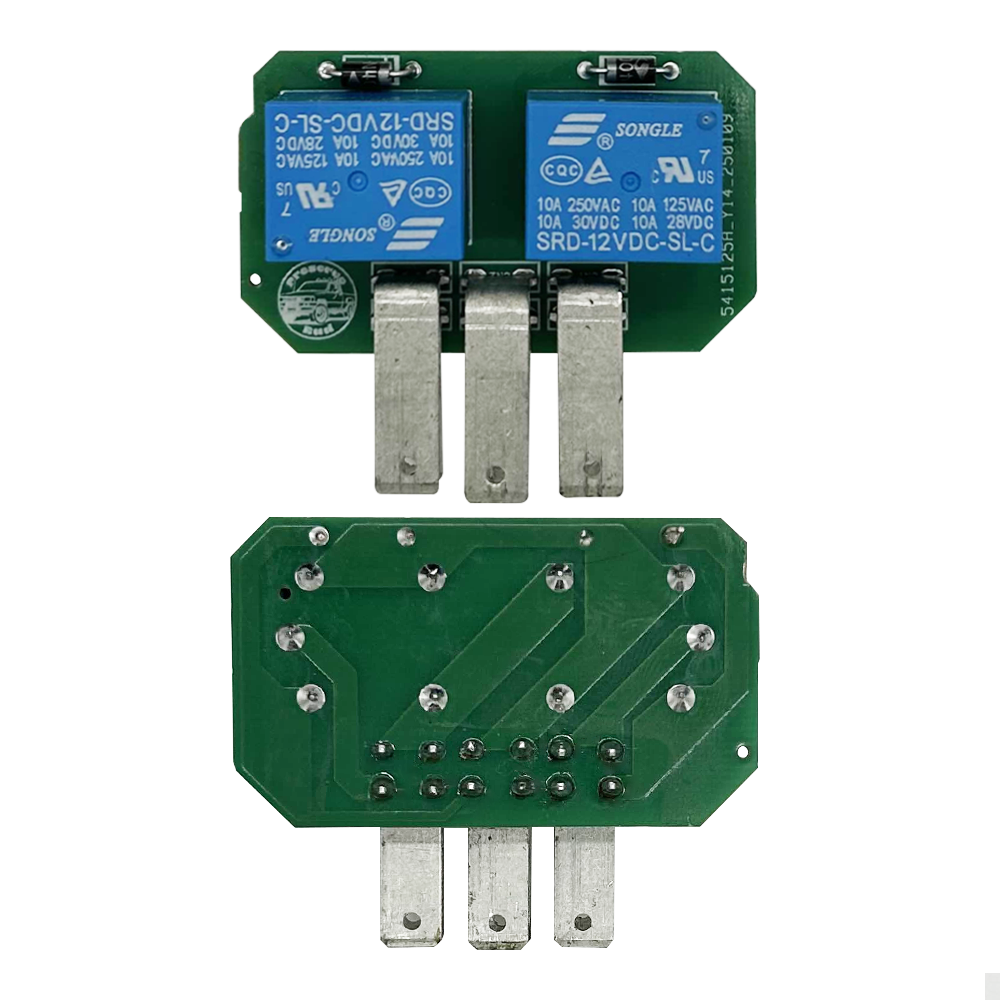

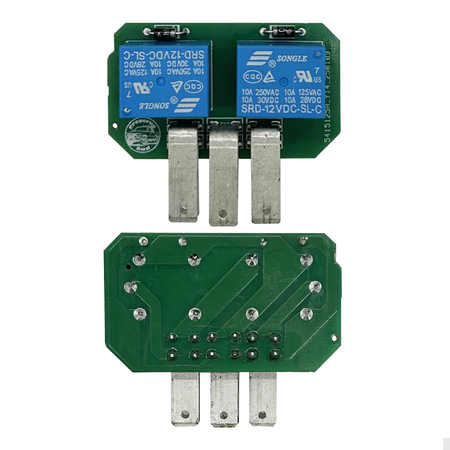

The replacement circuit board performs the control functions required to operate the factory pop-up headlight motors while preserving the original system behavior.

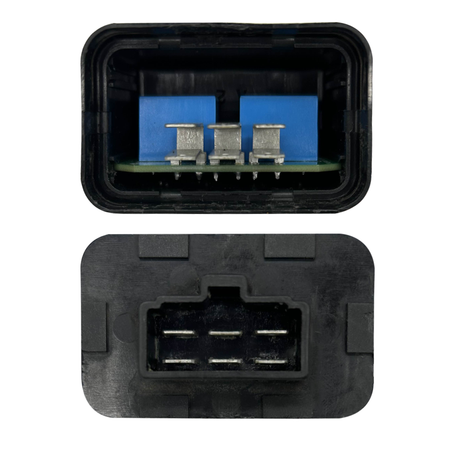

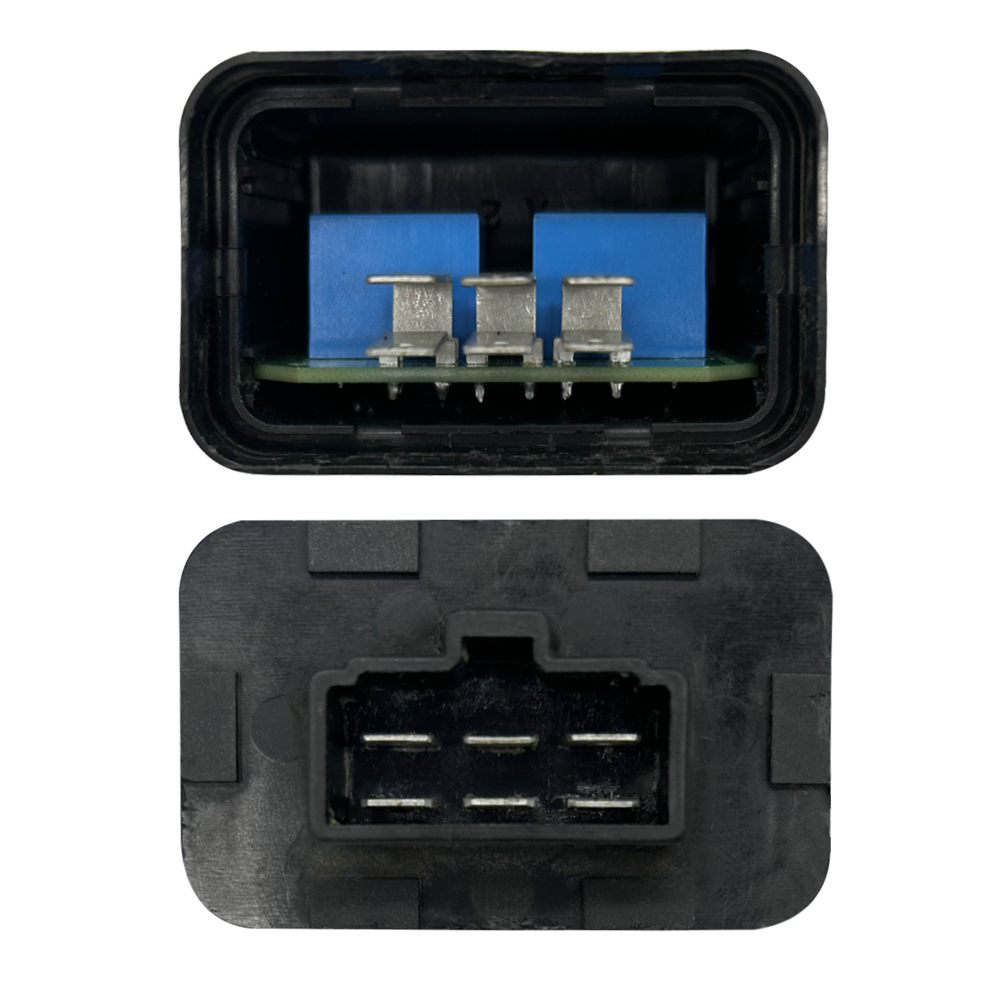

Rather than replacing the complete factory enclosure, the new electronics install inside the existing relay case. This keeps the original mounting arrangement and vehicle wiring intact while replacing the aging internal circuitry.

Vehicle Fitment

Toyota Sprinter Trueno AE86 — Japan

• 1983–1987 Toyota Corolla AE86 – Trueno (JDM) – Factory Pop-Up Headlights

Toyota Corolla AE86 — North America

• 1985–1987 Toyota Corolla Sport AE86 – GT-S (U.S.-Market) – 4A-GE – Factory Pop-Up Headlights
• 1984–1987 Toyota Corolla Sport AE86 – SR5 (U.S.-Market) – 4A-C – Factory Pop-Up Headlights

Fitment Notes

• Requires the factory pop-up headlight system.
• Not intended for Corolla Levin or other fixed-headlight AE86 applications.
• North American SR5 and GT-S models use the retractable Trueno-style front-end headlight system.
• Circuit board installs inside the original relay housing.
• Original relay housing and mounting bracket are reused.
• Housing and mounting bracket are not included.
• Uses existing factory electrical connections.
• No wiring modification, cutting, or soldering required.
• Headlight motors, switches, and vehicle wiring should be properly diagnosed before replacing the relay.

Product Specifications

Product Type: Headlight Retractor Relay Circuit Board
Application: Pop-Up Headlight Motor Control
Supported Engines: 4A-C / 4A-GE
Design: OEM-Style Electronic Replacement
Installation: Plug-and-Play
Wiring Modification Required: None
Housing: Reuses Original Factory Housing
Mounting Bracket: Reuses Original Factory Bracket
Manufacturing Location: USA

What's Included

• (1) Headlight retractor relay circuit board

Original relay housing and mounting bracket are not included and must be reused.
