Fidanza Lightweight Aluminum Flywheel | 4A-GE, 200 mm (1983-87 Corolla)

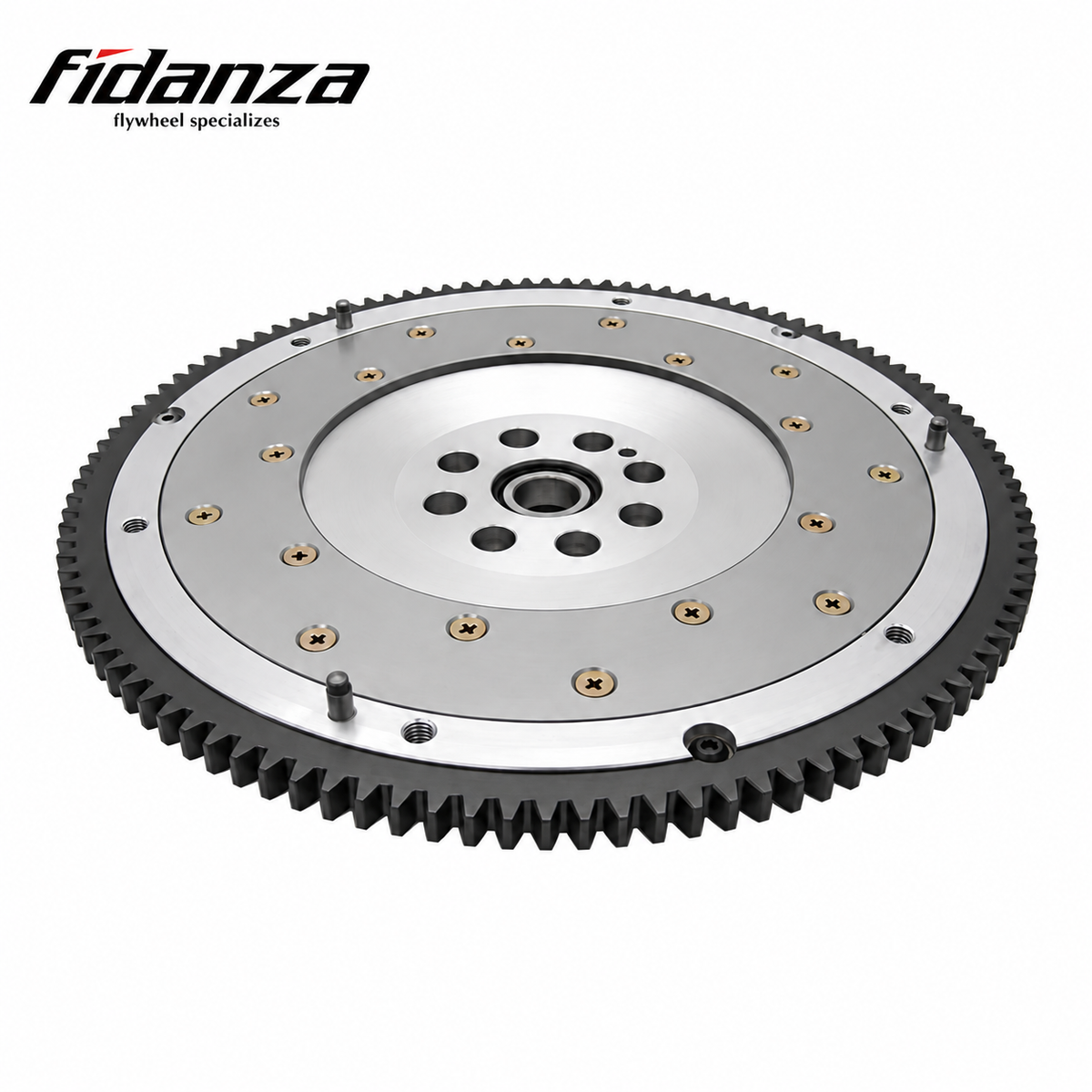

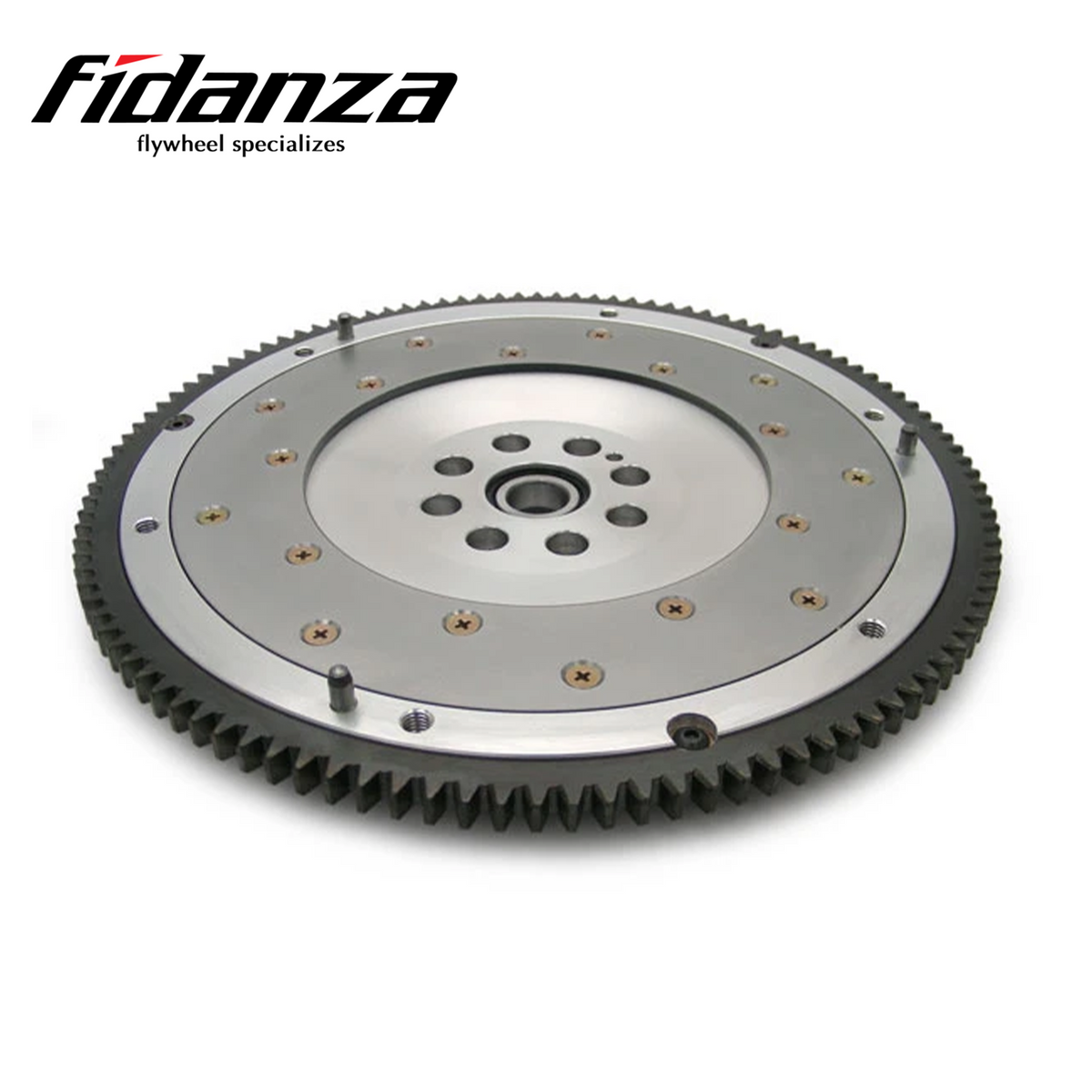

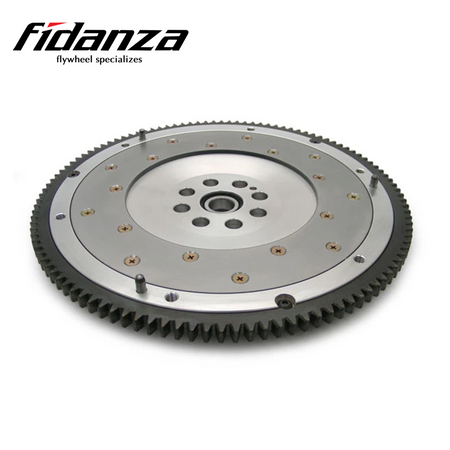

Fidanza Lightweight Aluminum Flywheel

For 1983–1987 Toyota Corolla AE86 equipped with naturally aspirated 4A-GE engines, manual transmissions and the original 200 mm clutch system.

Overview

For 1983–1987 JDM Toyota Corolla AE86 and 1985–1987 U.S.-Market Corolla Sport AE86 (GT-S), the Fidanza Lightweight Aluminum Flywheel is a performance-oriented replacement for the factory steel flywheel used with the 200 mm 4A-GE clutch system. At approximately 8.15 lb, its reduced rotating mass allows the engine to gain and shed RPM more quickly, improving throttle response and making rev changes feel more immediate.

The CNC-machined aluminum construction uses a replaceable heat-treated steel friction surface and hardened steel ring gear. Unlike a conventional one-piece flywheel that may require machining or replacement as the friction surface wears, the Fidanza design allows the friction plate to be replaced separately.

This flywheel is designed specifically around the 4A-GE / 4A-GEU 200 mm clutch configuration and is a strong match for street-performance, autocross, drift, and track-oriented AE86 builds.

Key Features

• Lightweight 8.15 lb flywheel design
• Designed for the 200 mm 4A-GE clutch system
• CNC-machined billet aluminum construction
• Reduced rotational inertia for quicker engine and throttle response
• Bolt-on, replaceable heat-treated steel friction surface
• Hardened 1050 steel ring gear
• Suitable for organic, Kevlar, ceramic, metallic, and sintered-iron clutch materials
• Serviceable friction surface eliminates the need to replace the complete flywheel when the wear surface is due for replacement
• Manufactured in the USA

200 mm Clutch Compatibility

This flywheel uses the 200 mm clutch configuration for 4A-GE manual-transmission drivetrains retaining the original 200 mm clutch system.

It can be paired with performance clutch systems that retain the correct 200 mm pressure-plate and disc configuration, including the EXEDY Stage 1 Organic and EXEDY Stage 2 Cerametallic clutch options for the 1985–1987 Corolla Sport GT-S 4A-GE.

A 200 mm flywheel must be used with a matching 200 mm clutch and pressure plate. Do not mix this flywheel with a 212 mm clutch assembly.

Vehicle Fitment

Toyota Corolla — AE86

• 1983–1987: Trueno (JDM) / 4A-GEU / Manual / 200 mm clutch
• 1983–1987: Levin (JDM) / 4A-GEU / Manual / 200 mm clutch
• 1985–1987: GT-S (U.S.-Market) / 4A-GE / 4A-GEC / Manual / 200 mm clutch

Fitment Notes

• For 4A-GE / 4A-GEU manual-transmission applications only
• Does not fit Toyota Corolla Sport SR5 AE86 models equipped with the 4A-C engine
• Requires a 200 mm clutch and pressure-plate configuration
• Do not combine with a 212 mm clutch assembly
• Works with the 200 mm EXEDY Stage 1 Organic and Stage 2 Cerametallic clutch systems
• New flywheel and clutch mounting bolts are required; use the correct hardware for the flywheel and clutch.
• Not for factory supercharged 4A-GZE or automatic-transmission configurations.

Product Specifications

Brand: Fidanza
Product Type: Lightweight Aluminum Flywheel
Engine Application: 4A-GE / 4A-GEU
Clutch Size: 200 mm
Flywheel Weight: 8.15 lb
Body Material: Billet Aluminum
Friction Surface: Replaceable Heat-Treated Steel
Ring Gear: Hardened 1050 Steel
Design: Lightweight / Replaceable Friction Surface
Transmission: Manual
Manufacturing: CNC Machined
Country of Manufacture: USA

What's Included

• (1) Complete Fidanza lightweight aluminum flywheel assembly with installed replaceable steel friction surface and hardened steel ring gear

Clutch kit is sold separately.
