Rear Brake Drums | 4WD (1984-85 4Runner)

Rear Brake Drums | 4WD

For 1984–1985 Toyota 4Runner 4WD rear drum brake applications

Overview

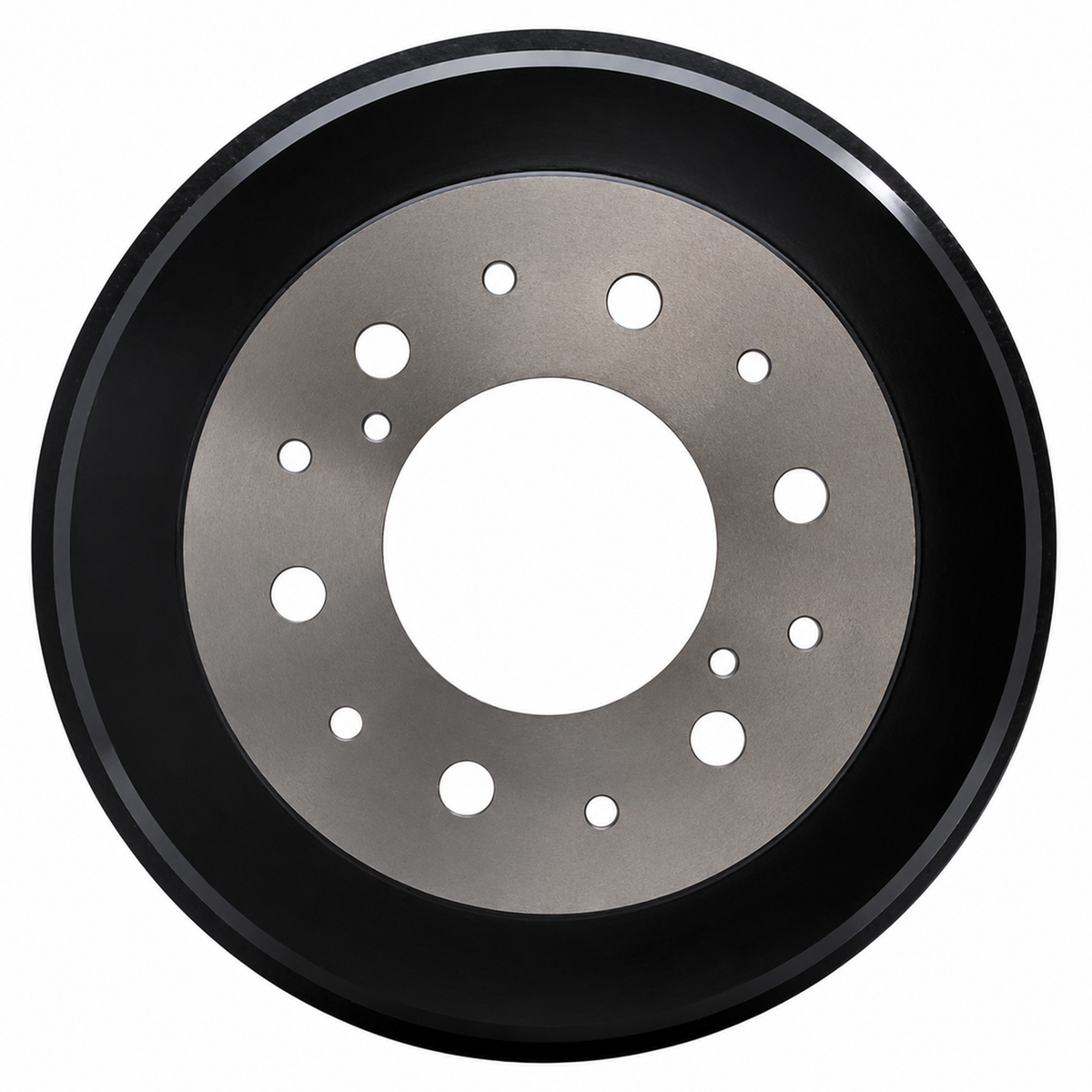

The DFC OE Replacement Rear Brake Drum is a True Balanced direct-fit replacement for the factory rear drum brake system used on 1984–1985 1st Gen Toyota 4Runner 4WD models. It uses a 254.2 mm nominal braking diameter, a 6-hole 139.7 mm bolt circle, and application-specific Toyota 4WD dimensions.

The drum is precision machined and mill balanced to support smooth braking and reduce vibration or pedal pulsation. A black high-temperature coating protects exposed surfaces from corrosion.

Key Features

• True Balanced OE-style rear brake drum
• 254.2 mm nominal drum diameter
• 256 mm maximum / discard drum diameter
• 6-hole 139.7 mm bolt circle
• 91 mm center hole diameter
• 300 mm outside diameter
• 77.5 mm overall height
• Precision-machined and mill-balanced construction
• Black high-temperature corrosion-protection coating
• Direct-fit floating drum design
• Available individually or as a pair

Vehicle Fitment

Toyota 4Runner

• 1984–1985 Toyota 4Runner – 1st Gen – 4WD – Rear

Fitment Notes

• Rear drum brake application only.
• 4WD models only.
• Uses the 6-hole Toyota 4WD rear brake drum configuration.
• One drum services one rear wheel; a pair services both rear wheels.
• Inspect the rear brake shoes, wheel cylinders, springs, adjusters, and hub mounting surfaces during installation.

Product Specifications

Brand: DFC
Series: True Balanced
Product Type: Rear Brake Drum
Position: Rear Axle
Brake System: Drum
Mount Type: Floating
Bolt Hole Quantity: 6
Bolt Hole Diameter: 14.5 mm
Bolt Circle Diameter: 139.7 mm
Center Hole Diameter: 91 mm
Nominal Drum Diameter: 254.2 mm
Maximum Drum Diameter: 256 mm
Outside Diameter: 300 mm
Overall Height: 77.5 mm
Finish: Black High-Temperature Coating
Drivetrain: 4WD
Fit Type: Vehicle-Specific / Direct Fit

Supporting Brake Service Components

Brake service often involves more than one wear or hydraulic component, so these related parts help complete the same brake-system repair where applicable. DFC Premium Carbon Steel Rear Brake Shoes | 4WD — matching rear brake shoes for supported 4Runner applications. Rear Brake Hardware Kit | 4WD — rear drum brake springs and service hardware. DFC Rear Brake Wheel Cylinder | 4WD — matching hydraulic wheel-cylinder options.

Available Configurations

Single

• (1) DFC True Balanced rear brake drum

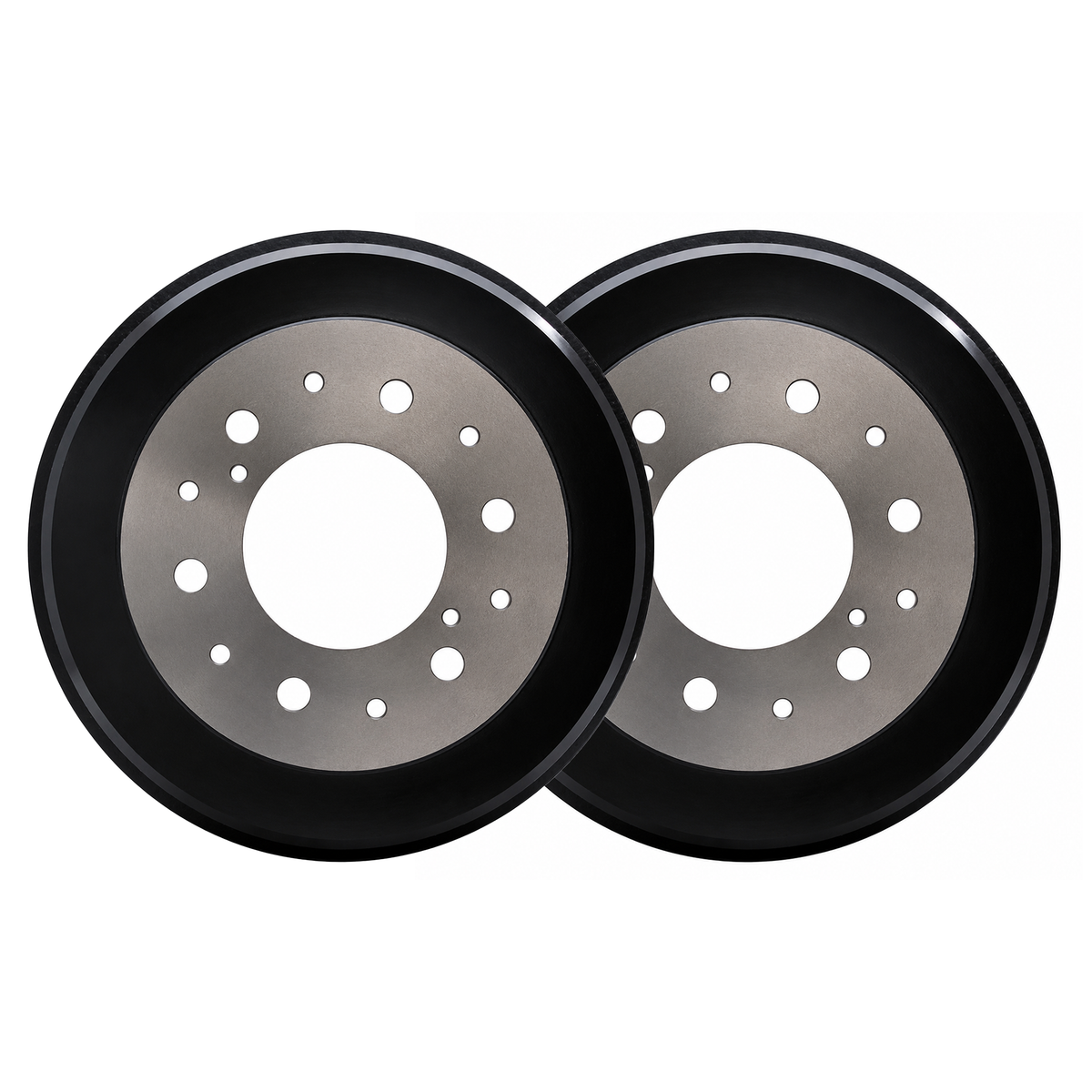

Pair

• (2) Matching DFC True Balanced rear brake drums
