Front Brake Rotors | 2WD 1/2-Ton & 3/4-Ton (1989-95 Pickup)

Front Brake Rotors

For 1989–1995 Toyota Pickup 2WD 1/2-Ton & 3/4-Ton front brake applications

Overview

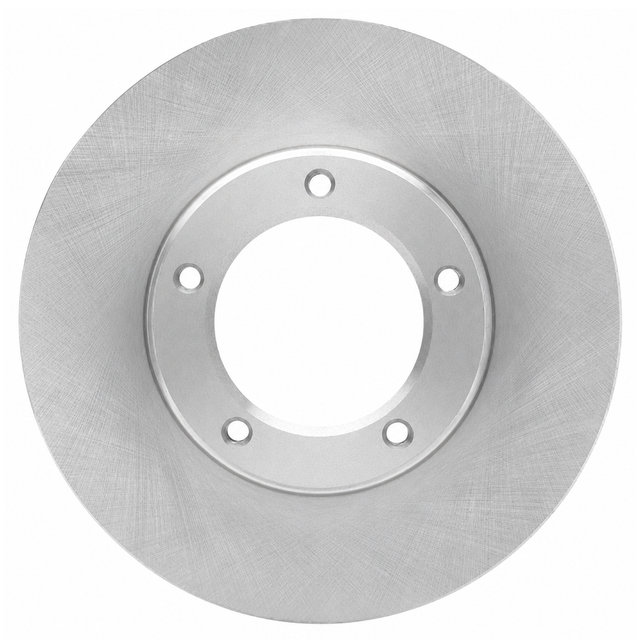

The DFC OE Replacement Front Brake Rotor is a direct-fit replacement for 1989–1995 Toyota Pickup 2WD / RWD front brakes. Two different rotor sizes were used during the same model years, so the correct rotor must be selected by the installed front caliper casting rather than model year or trim alone.

Trucks with a 17S front caliper use the 248 mm rotor, while trucks with an F18Q / F-18Q front caliper use the 253 mm rotor. Both are vented front rotors with a 22 mm nominal thickness.

Key Features

• OE-style direct-fit front brake rotor
• Designed for Toyota Pickup 2WD / RWD front brake service
• Two caliper-specific rotor configurations
• Vented construction for front brake heat management
• Machined braking surfaces with a non-directional finish
• Available individually or as a matching front pair

How to Select the Correct Rotor

17S Caliper — 248 mm Rotor

• Look for 17S cast into the installed front caliper.
• Outside Diameter: 248 mm
• Nominal Thickness: 22 mm
• Discard Thickness: 21 mm
• Overall Height: 46 mm
• Center / Inside Diameter: 84.1 mm

F18Q / F-18Q Caliper — 253 mm Rotor

• Look for F18Q cast into the installed front caliper.
• Outside Diameter: 253 mm
• Nominal Thickness: 22 mm
• Discard Thickness: 20 mm
• Overall Height: 46 mm
• Center / Inside Diameter: 84 mm

Vehicle Fitment

All applications require: 2WD / RWD and the standard-duty front disc brake configuration.

Toyota Pickup

• 1989–1995 Toyota Pickup – 3rd Gen – 1/2-Ton / 3/4-Ton – 17S Front Caliper – 248 mm Rotor
• 1989–1995 Toyota Pickup – 3rd Gen – 1/2-Ton / 3/4-Ton – F18Q / F-18Q Front Caliper – 253 mm Rotor

Fitment Notes

• Front application only.
• 2WD / RWD models only.
• Does not fit 4WD Toyota Pickup models.
• Do not select by model year, engine, or trim alone.
• Verify the installed front caliper casting before ordering.
• Rotor diameter can be used as a secondary check when the caliper marking is difficult to read.
• Does not replace the separate 1-Ton front rotor application.
• Select a pair when replacing both front rotors.

Product Specifications

Brand: Dynamic Friction Company (DFC)
Series: OE Replacement
Product Type: Disc Brake Rotor
Position: Front
Brake System: Disc
Rotor Type: Vented
Drivetrain: 2WD / RWD
Fit Type: Vehicle-Specific / Direct Fit
Bolt Hole Quantity: 5

Supporting Brake Service Components

Brake service often involves more than one wear or hydraulic component, so these related parts help complete the same brake-system repair where applicable. DFC Front Brake Hardware Kit | 2WD — related front disc brake service hardware with matching later 17S and F-18Q selections.

Available Configurations

17S / FS17 Caliper – 248 mm Rotor / Single

• (1) 248 mm vented front brake rotor for the 17S brake system.

17S / FS17 Caliper – 248 mm Rotor / Pair

• (2) Matching 248 mm vented front brake rotors for the 17S brake system.

F-18Q / F18 Caliper – 253 mm Rotor / Single

• (1) 253 mm vented front brake rotor for the F18Q / F-18Q brake system.

F-18Q / F18 Caliper – 253 mm Rotor / Pair

• (2) Matching 253 mm vented front brake rotors for the F18Q / F-18Q brake system.
