Front Brake Rotors | 2WD 1/2-Ton & 3/4-Ton (1979-88 Pickup)

Front Brake Rotors

For 1979–1988 Toyota Pickup 2WD standard-duty front brake applications listed below

Overview

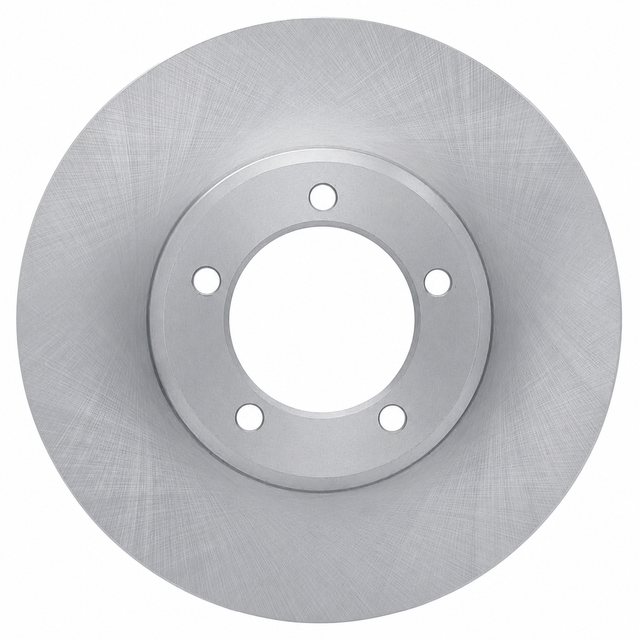

The DFC OE Replacement Front Brake Rotor is a direct-fit replacement for standard-duty Toyota Pickup 2WD / RWD front brakes. Two different rotor designs are available: a solid rotor for the 1979–1983 application and a larger vented rotor for the 1984–1988 application.

Truck-class coverage changes within the 1984–1988 option. The 1984 application supports both 1/2-Ton and 3/4-Ton trucks, while the verified 1985–1988 application is 1/2-Ton only.

Key Features

• OE-style direct-fit front brake rotor
• Designed for Toyota Pickup 2WD / RWD front brake service
• Application-specific rotor dimensions by year range
• Machined braking surfaces with a non-directional finish
• Available individually or as a matching front pair
• No vehicle modification required for installation

Rotor Specifications

1979–1983
Rotor Type: Solid
Outside Diameter: 266 mm
Nominal Thickness: 12.5 mm
Discard Thickness: 11.5 mm
Overall Height: 42 mm
Center / Inside Diameter: 79 mm
Bolt Hole Quantity: 5

1984–1988
Rotor Type: Vented
Outside Diameter: 248 mm
Nominal Thickness: 22 mm
Discard Thickness: 21 mm
Overall Height: 46 mm
Center / Inside Diameter: 84.1 mm
Bolt Hole Quantity: 5

Vehicle Fitment

All applications require: 2WD / RWD and the standard-duty front disc brake configuration.

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 1/2-Ton / 3/4-Ton – Front
• 1984 Toyota Pickup – 2nd Gen – 1/2-Ton / 3/4-Ton – Front
• 1985–1988 Toyota Pickup – 2nd Gen – 1/2-Ton – Front

Fitment Notes

• Front application only.
• 2WD / RWD models only.
• Does not fit 4WD Toyota Pickup models.
• 1985–1988 3/4-Ton applications are not included.
• Does not replace the separate heavy-duty 1-Ton front rotor application.
• The protected 1984-1988 Shopify option covers 1984 1/2-Ton / 3/4-Ton and 1985–1988 1/2-Ton fitment.
• Select a pair when replacing both front rotors.

Product Specifications

Brand: Dynamic Friction Company (DFC)
Series: OE Replacement
Product Type: Disc Brake Rotor
Position: Front
Brake System: Disc
Drivetrain: 2WD / RWD
Fit Type: Vehicle-Specific / Direct Fit

Supporting Brake Service Components

Brake service often involves more than one wear or hydraulic component, so these related parts help complete the same brake-system repair where applicable. DFC Front Brake Hardware Kit | 2WD — related front disc brake service hardware; select the application that matches the truck's brake configuration.

Available Configurations

1979-1983 / Single

• (1) 266 mm solid front brake rotor.

1979-1983 / Pair

• (2) Matching 266 mm solid front brake rotors.

1984-1988 / Single

• (1) 248 mm vented front brake rotor. 1985–1988 fitment is 1/2-Ton only.

1984-1988 / Pair

• (2) Matching 248 mm vented front brake rotors. 1985–1988 fitment is 1/2-Ton only.
