DENSO OE A/C Compressor With Clutch | 3VZ-E (1989-01/1994 Pickup)

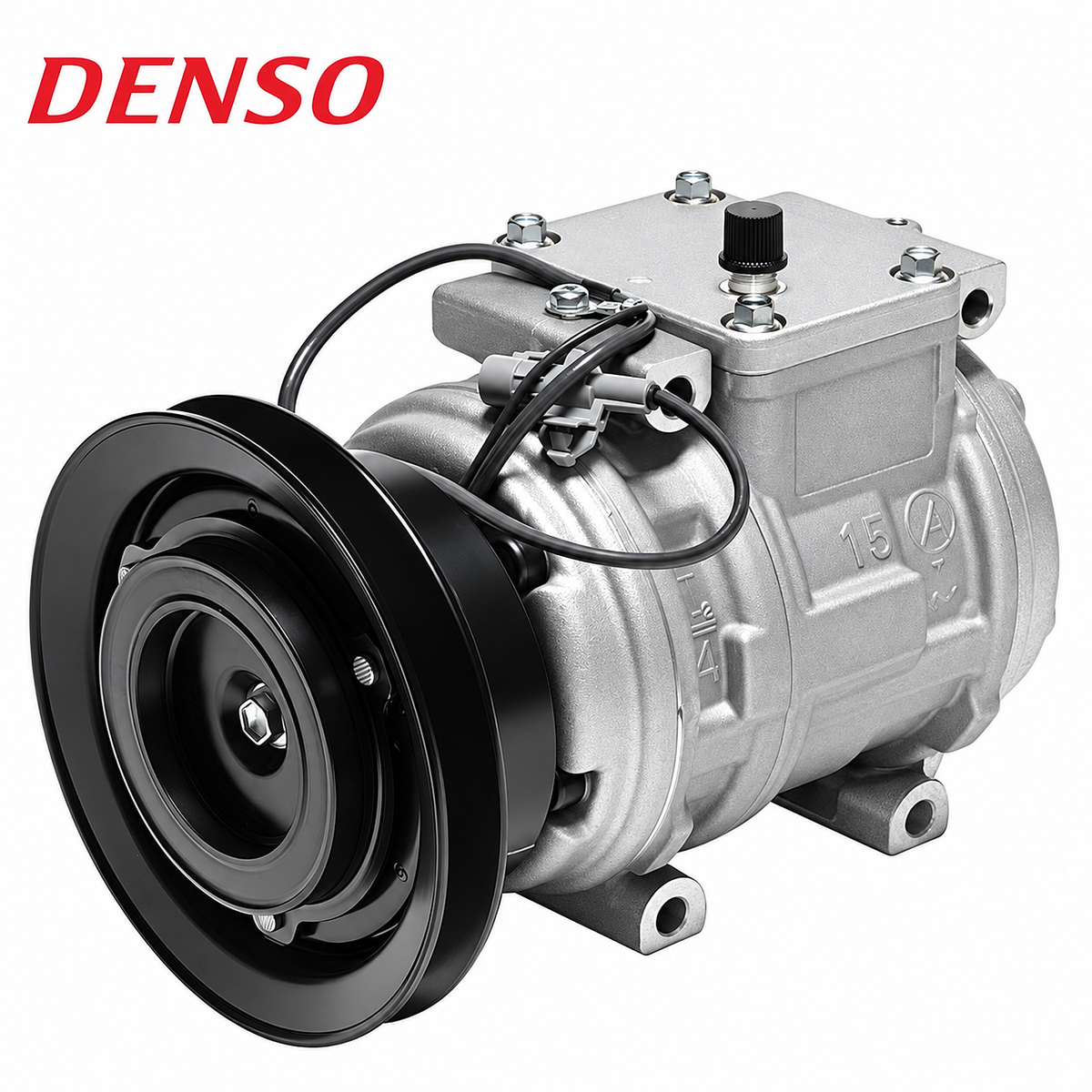

DENSO OE A/C Compressor With Clutch

For 1989–01/1994 Toyota Pickup with 3.0L 3VZ-E engine and factory R12 A/C

Overview

DENSO is an original-equipment A/C compressor supplier to Toyota, making this factory-new compressor a direct-fit choice for restoring the original A/C compressor configuration.

This compressor includes the clutch and is built for the 3.0L 3VZ-E Toyota Pickup R12 application through the January 1994 production split.

Key Features

• OE-supplier replacement from DENSO
• Factory-new compressor assembly with clutch installed
• 140 mm clutch maximum diameter
• Original R12 refrigerant application
• V-belt pulley design
• Four-bolt tangent mounting
• OE-specified O-rings, seals, and compressor oil included

Vehicle Fitment

All applications require: 3.0L 3VZ-E engine and factory R12 A/C.

Toyota Pickup

• 1989–01/1994 Toyota Pickup – 3rd Gen – 3.0L 3VZ-E

Fitment Notes

• 1994 fitment is limited to the R12 application through 01/1994 production. Factory R134a-equipped 3.0L trucks use a different compressor.
• Use in a properly converted R134a system requires compatible service fittings, seals, receiver drier, compressor oil, evacuation procedure, and refrigerant charge.
• 1995 Toyota Pickup applications are not covered.
• Toyota 4Runner applications are excluded.

Product Specifications

Brand: DENSO
Product Type: HVAC
Component Type: A/C Compressor
Clutch: Included
Original Refrigerant Application: R12
Clutch Maximum Diameter: 140 mm
Pulley Belt Type: V-Belt
Mounting: Four-Bolt Tangent
Oil: OE-Specified Compressor Oil Included
Condition: New
Manufacturer Type: OE-Supplier Replacement

Supporting Components

Install a new DENSO OE A/C receiver drier when replacing the compressor.

What's Included

• (1) DENSO A/C compressor assembly with clutch
• OE-specified O-rings and seals
• OE-specified compressor oil
