DENSO OE A/C Compressor With Clutch | 22R / 22RE, 135 mm Single-Groove (1989-94 Pickup)

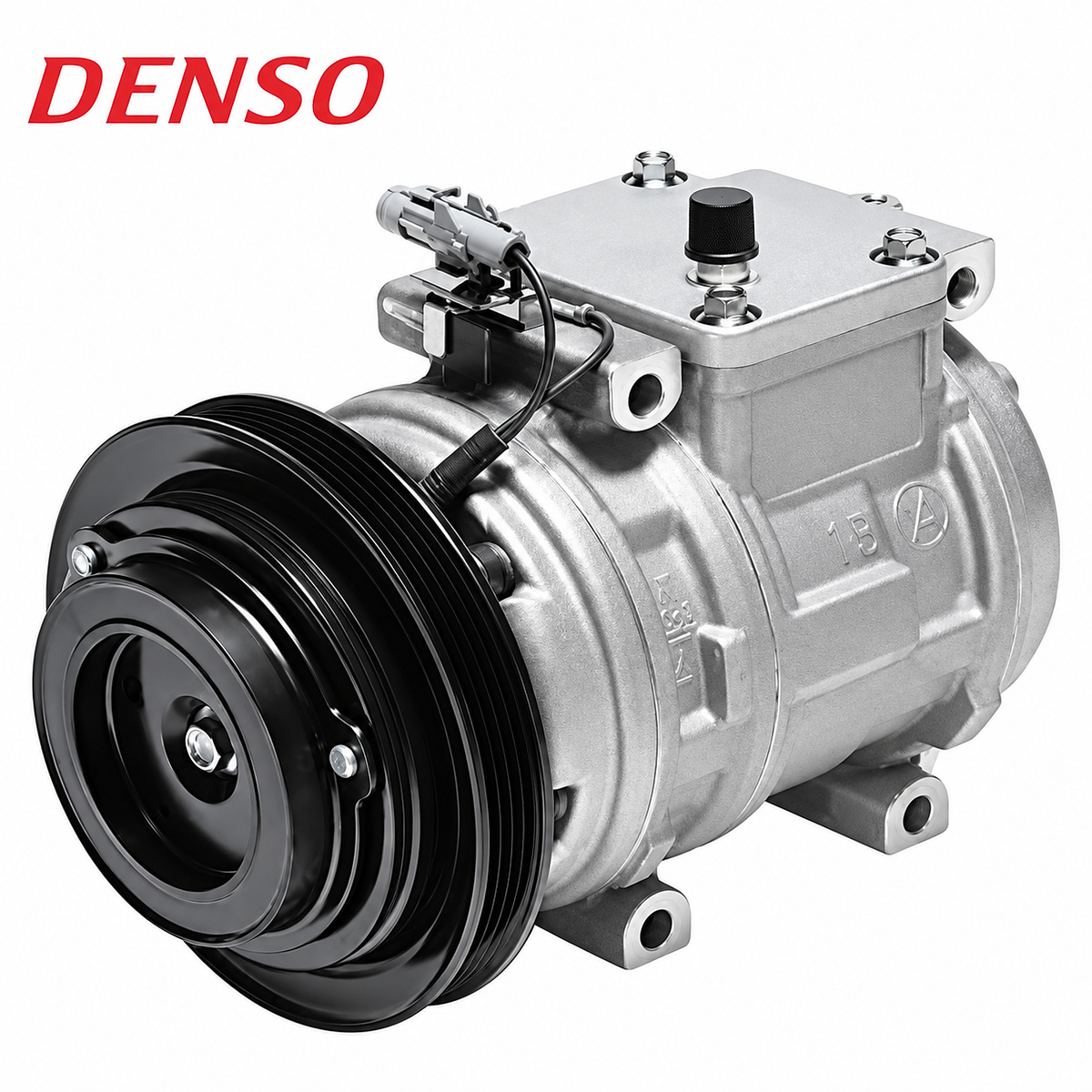

DENSO OE A/C Compressor With Clutch

For 1989–1994 Toyota Pickup 22R / 22RE applications with 135 mm single-groove compressor pulley

Overview

DENSO is an original-equipment A/C compressor supplier to Toyota, making this factory-new compressor a direct-fit choice for restoring the original A/C compressor configuration.

This compressor includes the clutch and is built for the applicable 22R / 22RE Toyota Pickup applications using the 135 mm single-groove pulley configuration.

Key Features

• OE-supplier replacement from DENSO
• Factory-new compressor assembly with clutch installed
• 135 mm single-groove V-belt pulley
• Original R12 refrigerant application
• Four-bolt tangent mounting
• OE-specified O-rings, seals, and compressor oil included

Vehicle Fitment

Toyota Pickup

• 1989–1990 Toyota Pickup – 3rd Gen – 22R / 22RE – 135 mm single-groove compressor pulley
• 1991–1994 Toyota Pickup – 3rd Gen – 22RE – 135 mm single-groove compressor pulley

Fitment Notes

• Verify the installed pulley before ordering. Other compressor and pulley configurations were used during the same model years.
• R134a conversion compatible: Although originally specified for R12, this compressor can be used in a properly converted R134a system when the required conversion steps are completed, including compatible service fittings, seals / O-rings, receiver drier, compressor oil, system evacuation, and the correct R134a refrigerant charge.
• 1995 Toyota Pickup applications are not covered.
• Toyota 4Runner applications are excluded.

Product Specifications

Brand: DENSO
Product Type: HVAC
Component Type: A/C Compressor
Clutch: Included
Original Refrigerant Application: R12
Clutch Maximum Diameter: 135 mm
Pulley: Single-Groove V-Belt
Mounting: Four-Bolt Tangent
Oil: OE-Specified Compressor Oil Included
Condition: New
Manufacturer Type: OE-Supplier Replacement

Supporting Components

Install a new DENSO OE A/C receiver drier when replacing the compressor.

What's Included

• (1) DENSO A/C compressor assembly with clutch
• OE-specified O-rings and seals
• OE-specified compressor oil
