AE86 CUSCO Formula Link Adjustable Rear Panhard Rod (1983-87 Corolla)

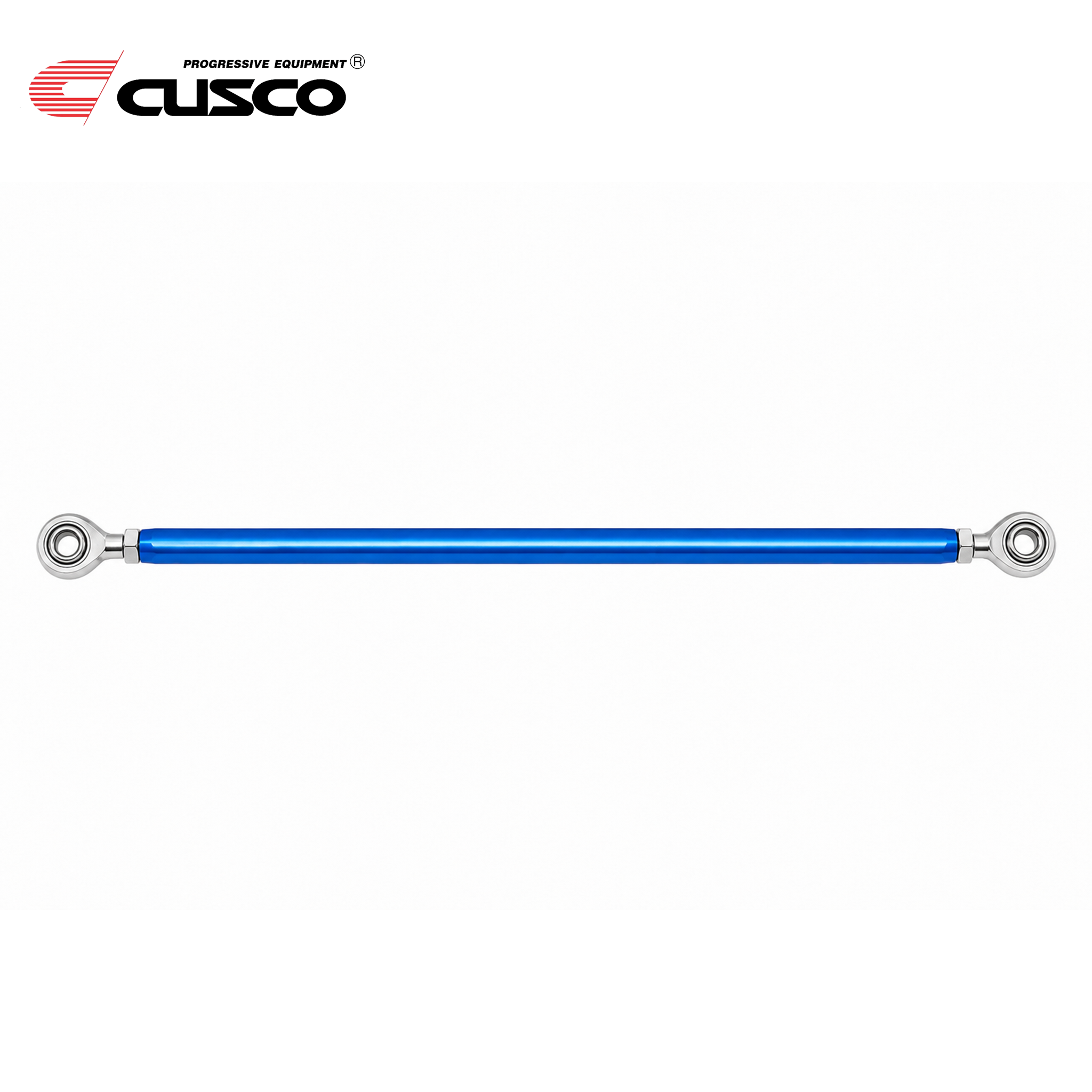

CUSCO Formula Link Adjustable Rear Panhard Rod

For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1984–1987 Toyota Corolla Sport SR5 / 1985–1987 Toyota Corolla Sport GT-S AE86

Overview

The CUSCO Formula Link Adjustable Rear Panhard Rod is a performance-focused rear suspension upgrade for the Toyota AE86. Also known as a rear lateral rod, it controls the side-to-side position of the solid rear axle and provides adjustment for correcting axle position after changes to suspension ride height.

Lowering an AE86 changes the operating angle of the factory Panhard rod, which can move the rear axle away from its centered position. The Formula Link provides a +10 mm to -10 mm adjustment range, allowing the axle to be repositioned laterally for the vehicle's suspension setup.

Unlike CUSCO's rubber-bushed adjustable lateral rod, the Formula Link uses metal pillowball rod ends at both ends. This minimizes rubber-bushing deflection and creates a more direct connection between the chassis and rear axle, making it well suited to performance-oriented street, autocross, drift, and track AE86 builds.

Key Features

• Adjustable rear Panhard / lateral rod for Toyota AE86 applications
• CUSCO Formula Link performance design
• Metal pillowball rod ends at both mounting points
• +10 mm to -10 mm adjustment range
• Steel rod construction
• Allows the solid rear axle to be centered after ride-height changes
• Reduces joint movement associated with conventional rubber bushings
• Vehicle-specific rear suspension fitment
• Bolt-on replacement for the factory rear lateral rod

Formula Link Pillowball Design

The Formula Link design replaces conventional rubber mounting points with metal pillowball rod ends on both sides of the Panhard rod. The rigid joint arrangement reduces deflection under suspension load and provides a more immediate mechanical connection between the rear axle and chassis.

This design prioritizes suspension precision and response over the additional vibration and noise isolation provided by rubber bushings. It is particularly suited to AE86 builds where handling feedback and rear suspension control are higher priorities than maximum street comfort.

Vehicle Fitment

North American Toyota Corolla Sport

• 1984–1987 Toyota Corolla Sport SR5 –  AE86
• 1985–1987 Toyota Corolla Sport GT-S – AE86

Japanese-Market Toyota Corolla Levin

• 1983–1987 Toyota Corolla Levin – AE86

Japanese-Market Toyota Sprinter Trueno

• 1983–1987 Toyota Sprinter Trueno – AE86

Fitment Notes

• Rear suspension application
• Designed for the AE86 solid rear axle lateral-rod mounting arrangement
• Adjustment range: +10 mm to -10 mm
• Uses metal pillowball / rod-end joints at both ends
• Bolt-on replacement for the factory rear lateral rod
• Pillowball joints can transmit more road and suspension noise than rubber-bushed designs
• Rear axle position should be checked and properly centered after installation or ride-height adjustment

Product Specifications

Brand: CUSCO
Series: Formula Link
Product Type: Adjustable Rear Lateral Rod / Panhard Rod
Position: Rear
Material: Steel
Joint Design: Metal Pillowball Rod Ends
Joint Configuration: Pillowball / Rod End at Both Ends
Adjustment Range: +10 mm to -10 mm
Fit Type: Vehicle Specific / Direct Fit
Installation: Bolt-On

What's Included

• (1) CUSCO Formula Link Adjustable Rear Panhard Rod
• Metal pillowball rod-end joints at both ends

Which CUSCO Rear Panhard Rod Is Right for You?

Both CUSCO rear Panhard rods allow the AE86's rear axle position to be fine-tuned after suspension or ride-height changes, but each is designed for a slightly different type of build.

CUSCO Adjustable Rear Panhard Rod

A great choice for street, restoration, and OEM+ AE86 builds. Its adjustable turnbuckle design makes rear axle positioning easy to fine-tune, while the rubber-bushed mounting arrangement provides a more conventional suspension connection.

Why choose it:

• +15 mm to -10 mm adjustment range
• Convenient center turnbuckle adjustment
• Rubber-bushed design well suited to street-driven AE86s
• Helps properly center the rear axle after ride-height changes
• Excellent balance of adjustability and everyday usability

CUSCO Formula Link Rear Panhard Rod

Designed for enthusiasts looking for a more performance-focused rear suspension setup. The Formula Link uses metal pillowball rod ends at both ends, creating a highly direct connection between the rear axle and chassis for precise suspension response.

Why choose it:

• +10 mm to -10 mm adjustment range
• Pillowball rod ends at both mounting points
• Direct and precise rear axle location
• Excellent choice for performance, autocross, drift, and track-oriented AE86 builds
• Premium Formula Link construction

Quick Comparison

Choose the CUSCO Adjustable Rear Panhard Rod for a versatile setup that works especially well with street-driven, restoration, and OEM+ AE86 builds.

Choose the CUSCO Formula Link Rear Panhard Rod for a more performance-oriented setup with pillowball rod ends and a highly direct rear suspension connection.

Both are quality CUSCO upgrades—the best choice depends on how you plan to build and drive your AE86.
