CSF 3-Row All-Metal Radiator | 4WD (1984-89 4Runner)

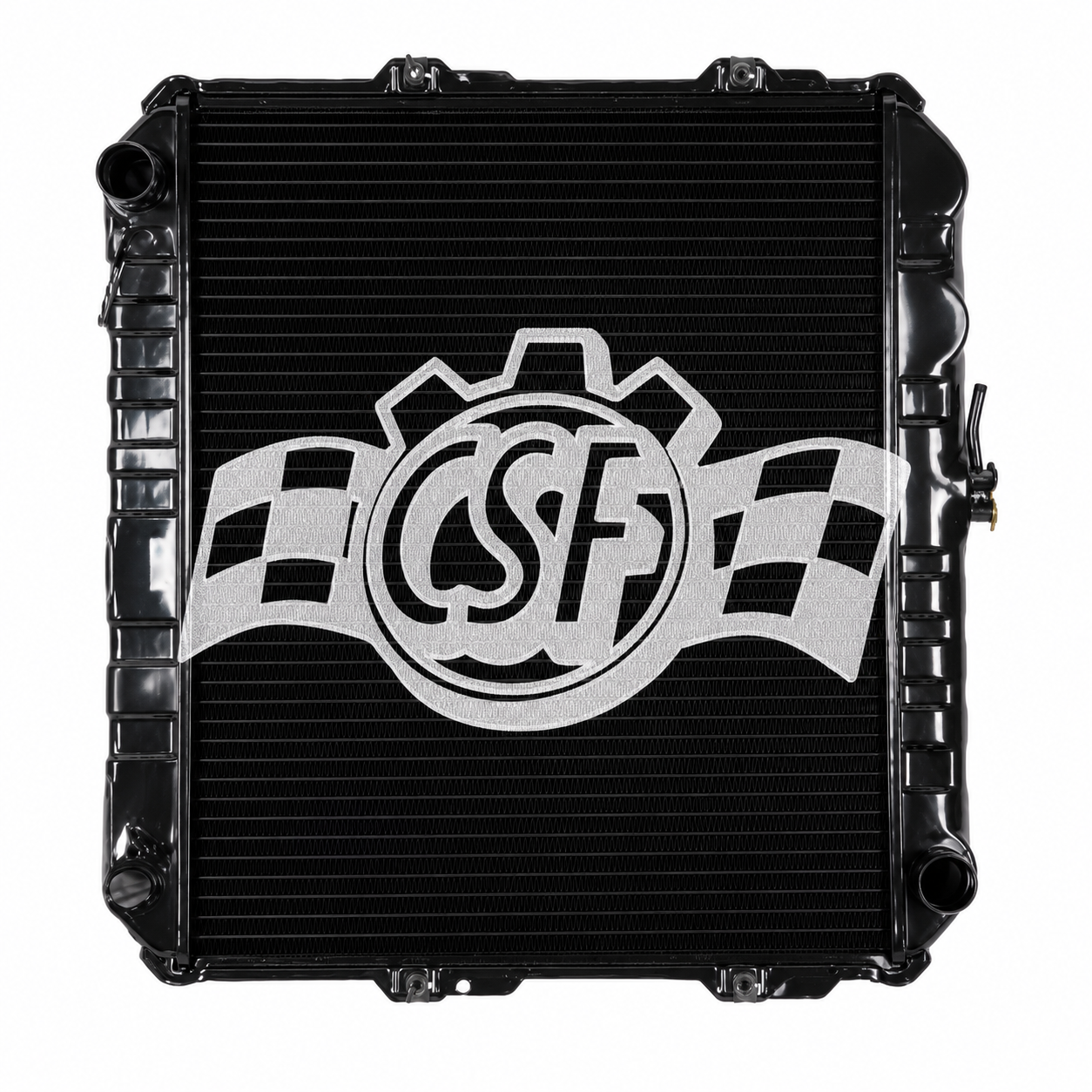

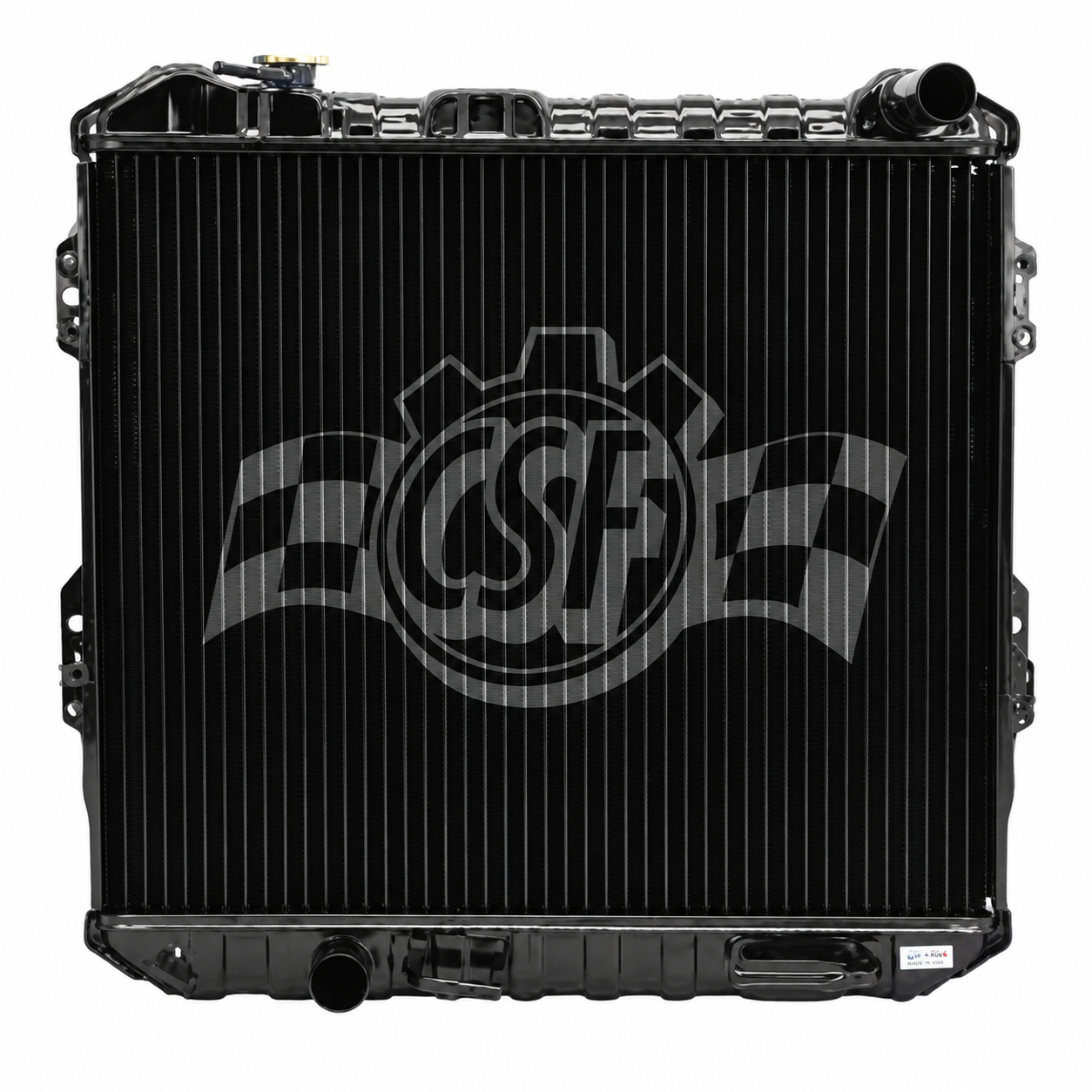

CSF 3-Row All-Metal Radiator

For 1984–1989 1st Gen Toyota 4Runner 4WD with 22R / 22RE or 3VZ-E

Overview

The CSF 3-Row All-Metal Radiator is a heavy-duty copper/brass cooling upgrade for the supported 1st Gen Toyota 4Runner 4WD applications. Its traditional all-metal construction combines a 3-row copper core with brass tanks for durable cooling-system service and repairability.

Two existing engine/year configurations are offered. Select the Vehicle Fitment option that matches the vehicle before ordering.

Key Features

• 3-row copper radiator core
• Brass tank construction with all-metal design
• Downflow radiator configuration
• 1 3/8-inch inlet and outlet connections
• Direct-fit replacement design for the applicable vehicle configuration
• Traditional copper/brass construction that can often be serviced or recored by a qualified radiator shop
• Radiator cap not included

Vehicle Fitment

All applications require: 4WD.

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 22R / 22RE – Naturally aspirated 2.4L application
• 1988–1989 Toyota 4Runner – 1st Gen – 3VZ-E – 3.0L V6 application

Fitment Notes

• 4WD models only
• Does not fit factory 22R-TE turbo applications
• Select the existing engine/year configuration that matches the vehicle
• Radiator cap is not included
• Inspect hoses, mounts, fan shroud, and surrounding cooling-system components during installation

Product Specifications

Brand: CSF
Product Type: Radiator
Construction: All-Metal
Core Design: 3-Row
Core Material: Copper
Tank Material: Brass
Radiator Design: Downflow
Inlet Diameter: 1 3/8 in.
Outlet Diameter: 1 3/8 in.
Drivetrain: 4WD
Radiator Cap: Not Included

CSF 3-Row All-Metal vs. Koyorad HH 48mm Aluminum Radiator

Both are cooling upgrades for 1984–1989 Toyota 4Runner applications, but they use different construction methods and are best suited to different priorities.

CSF 3-Row All-Metal Radiator

• Traditional 3-row copper core with brass tanks
• Heavier than the Koyorad aluminum radiator
• Available for 22R / 22RE and 3VZ-E V6 applications within the supported year range
• Traditional copper/brass construction can often be repaired, soldered, or recored by a qualified radiator shop
• Best suited to owners prioritizing heavy-duty construction, broader engine coverage, and long-term serviceability

Koyorad HH Series 48mm Aluminum Radiator

• All-aluminum construction with a 48 mm high-density core
• Lighter than a traditional copper/brass radiator
• Designed for naturally aspirated 22R / 22RE manual-transmission applications
• Does not include an integrated automatic-transmission cooler
• Designed to retain the factory fan shroud on supported applications
• Best suited to owners prioritizing lightweight construction and a performance-oriented cooling upgrade

Important: Do not compare these radiators by row count alone. The CSF uses a traditional three-row copper/brass core, while the Koyorad uses a thick 48 mm high-density aluminum core. They use different core technologies to increase cooling capacity.

Choose the CSF if you want traditional all-metal construction, broader engine coverage, and serviceability. Choose the Koyorad HH if you have a naturally aspirated 22R / 22RE with a manual transmission and want a lighter, performance-oriented all-aluminum radiator.

Available Configurations

1984–1989 | 22R / 22RE

• Naturally aspirated 2.4L 4-cylinder configuration
• Does not fit factory 22R-TE turbo applications

1988–1989 | 3VZ-E

• 3.0L V6 configuration
