Big 7 22RE Battery Cable Upgrade Kit
For 1984–1995 Toyota 4Runner & Toyota Pickup with 22RE Engine
Overview
The Big 7 22RE Battery Cable Upgrade Kit replaces the primary power, charging, starting, and grounding cables on Toyota 4Runner and Pickup models equipped with the 2.4L 22RE engine.
Aging factory battery cables can develop internal corrosion, deteriorated insulation, and increased electrical resistance that contribute to voltage drop, slow cranking, inconsistent charging, and unreliable electrical performance. This vehicle-specific kit replaces those critical circuits with high-capacity pure copper cables for a stronger electrical foundation.
Choose between 2 AWG for stock and mildly modified vehicles or 1/0 AWG for higher-demand electrical systems and future accessory upgrades.
Key Features
- Complete Big 7 power and ground cable upgrade
- Vehicle-specific design for Toyota 22RE applications
- Pure copper fine-strand cable with no copper-clad aluminum

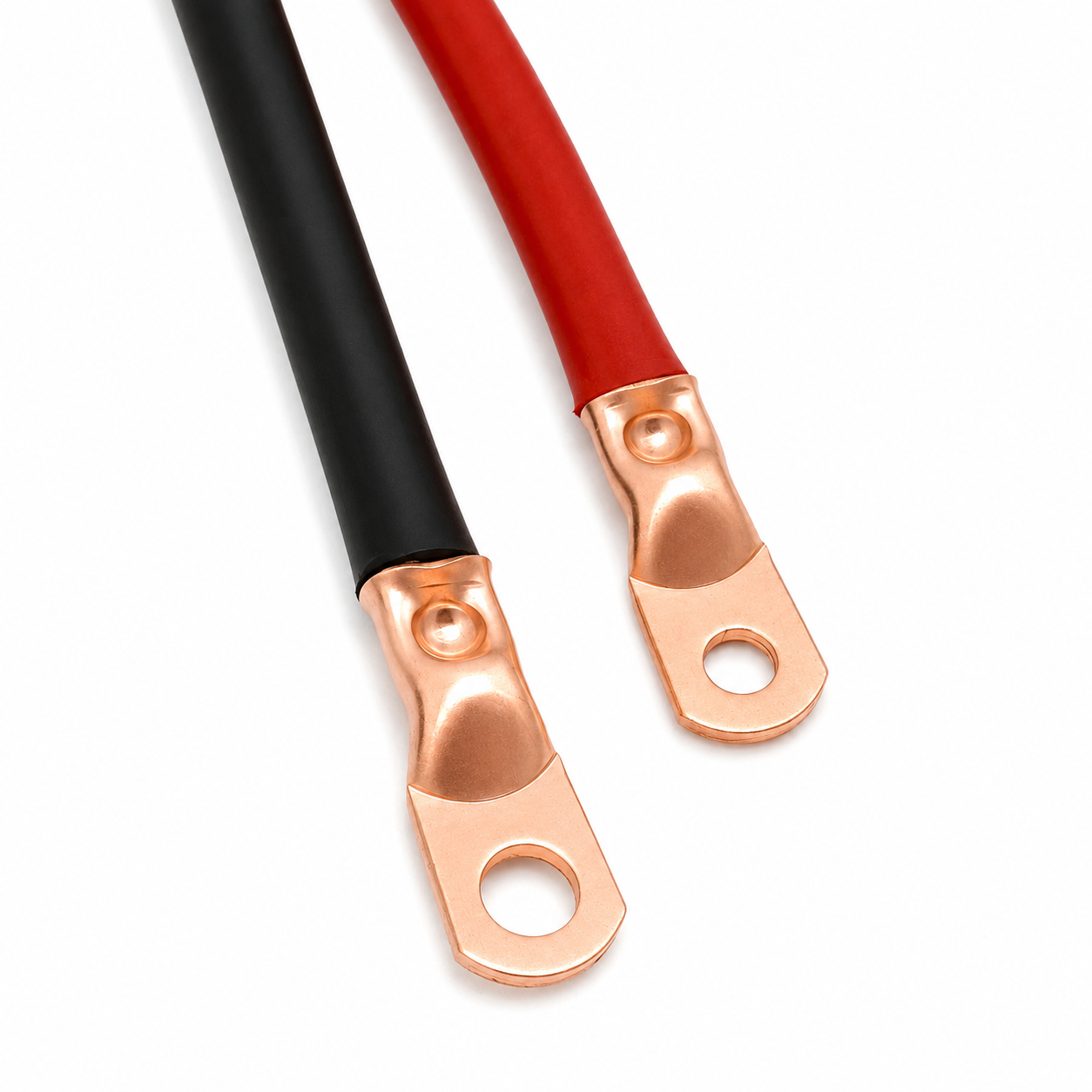

- Solid copper crimp terminals
- Marine-grade adhesive-lined heat shrink

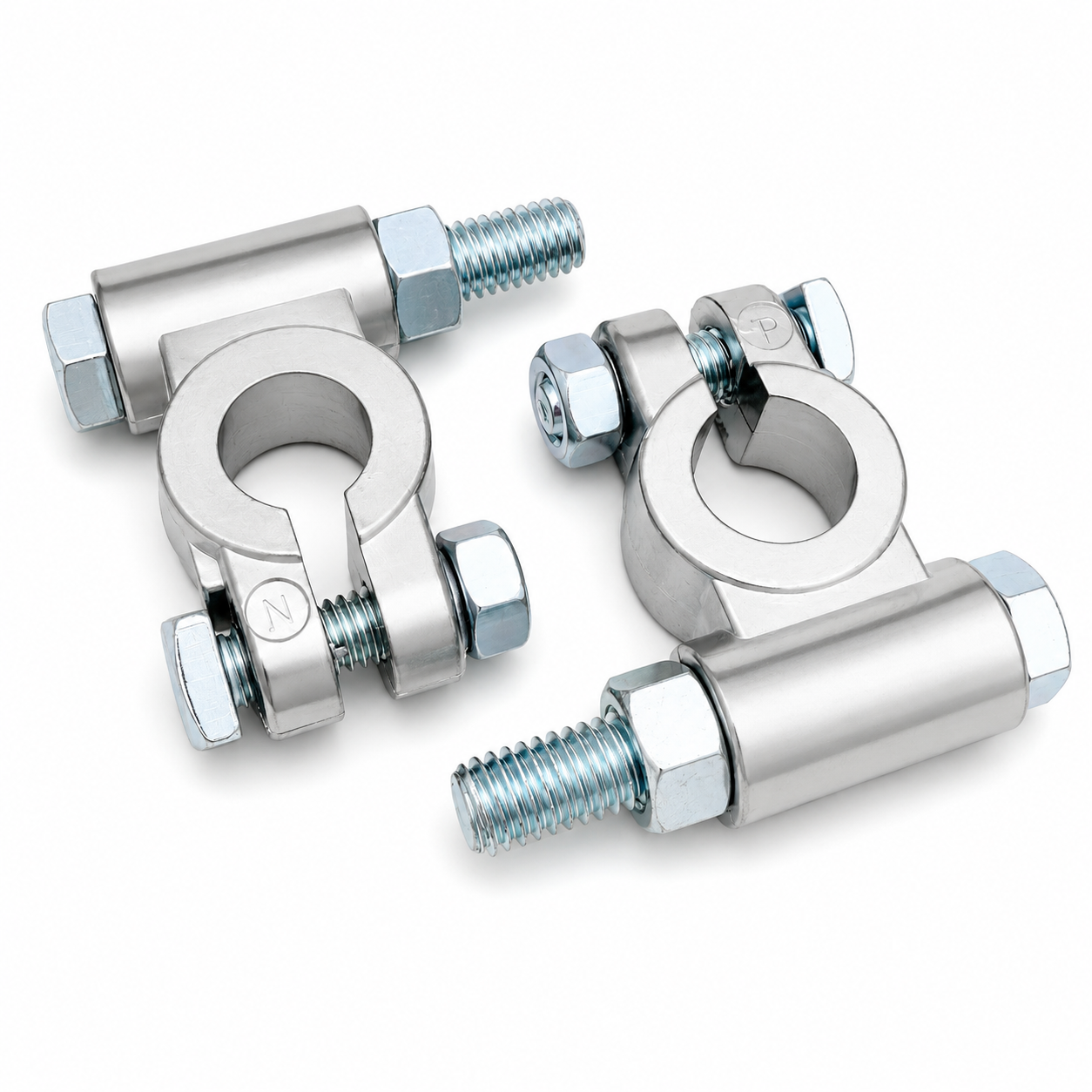

- Corrosion-resistant military-style battery terminals
- High-temperature, abrasion-resistant cable insulation
- Pre-labeled cables for easier installation

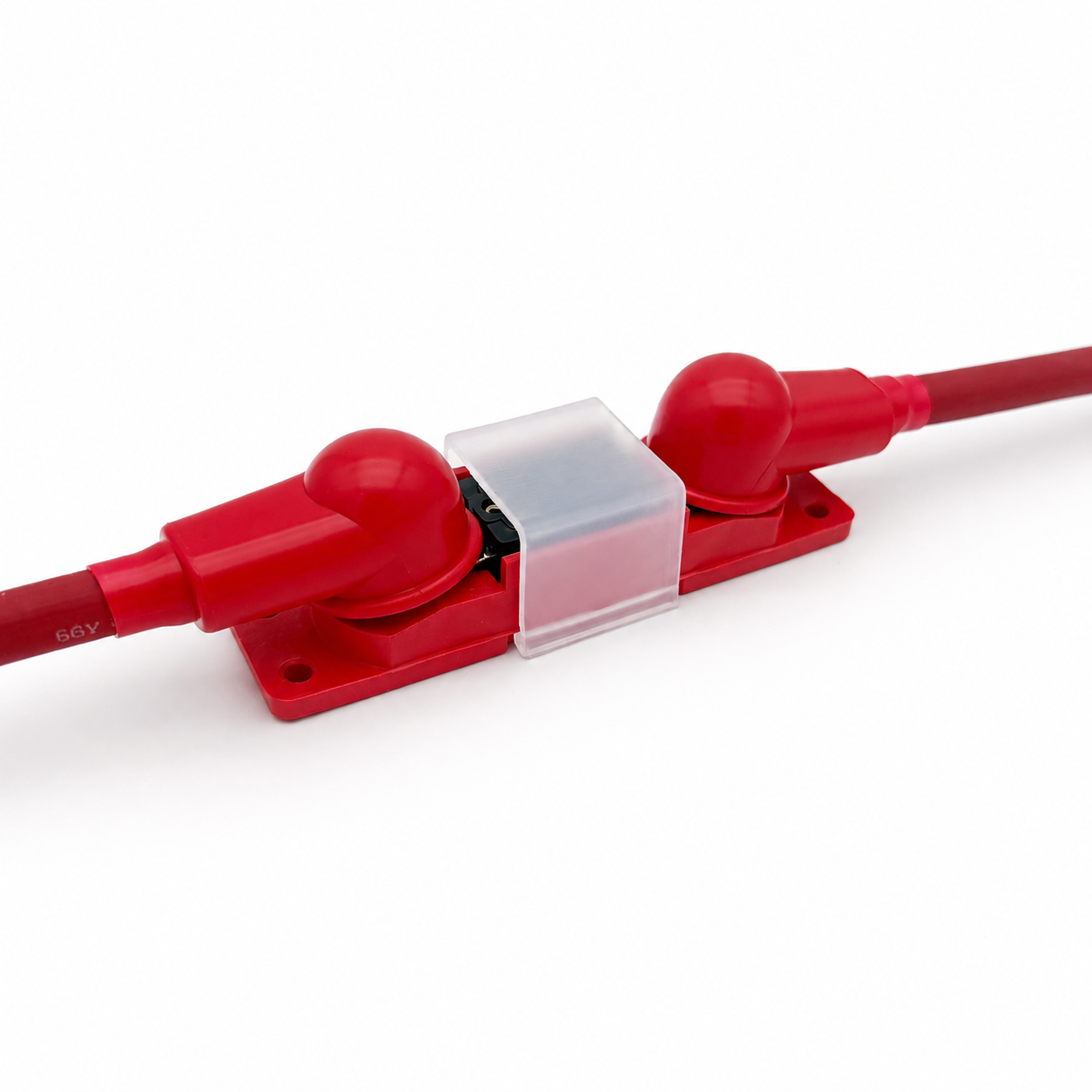

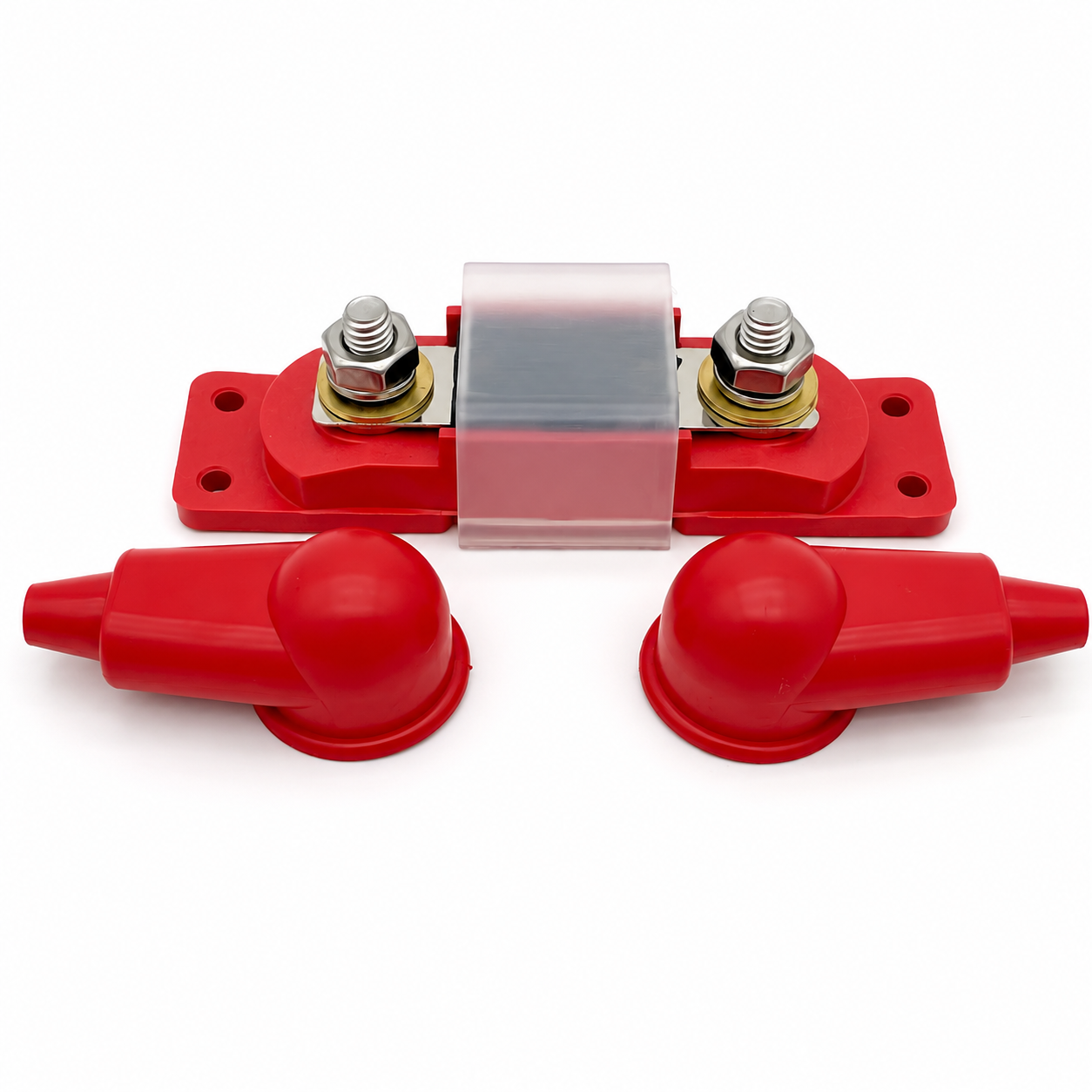

- Includes external ANL fuse and fuse holder
- Available in 2 AWG and 1/0 AWG
Big 7 Electrical Upgrade
Unlike a traditional Big 3 upgrade, the Big 7 kit replaces additional primary electrical connections throughout the starting and charging system.
The kit upgrades:
- Alternator to battery positive
- Battery negative to chassis ground
- Engine block to chassis ground
- Starter power cable
- Fuse box power feed
- Relay box power feed
- Additional fused power connection
Replacing these aging circuits helps reduce electrical resistance and voltage loss while improving current delivery throughout the vehicle.

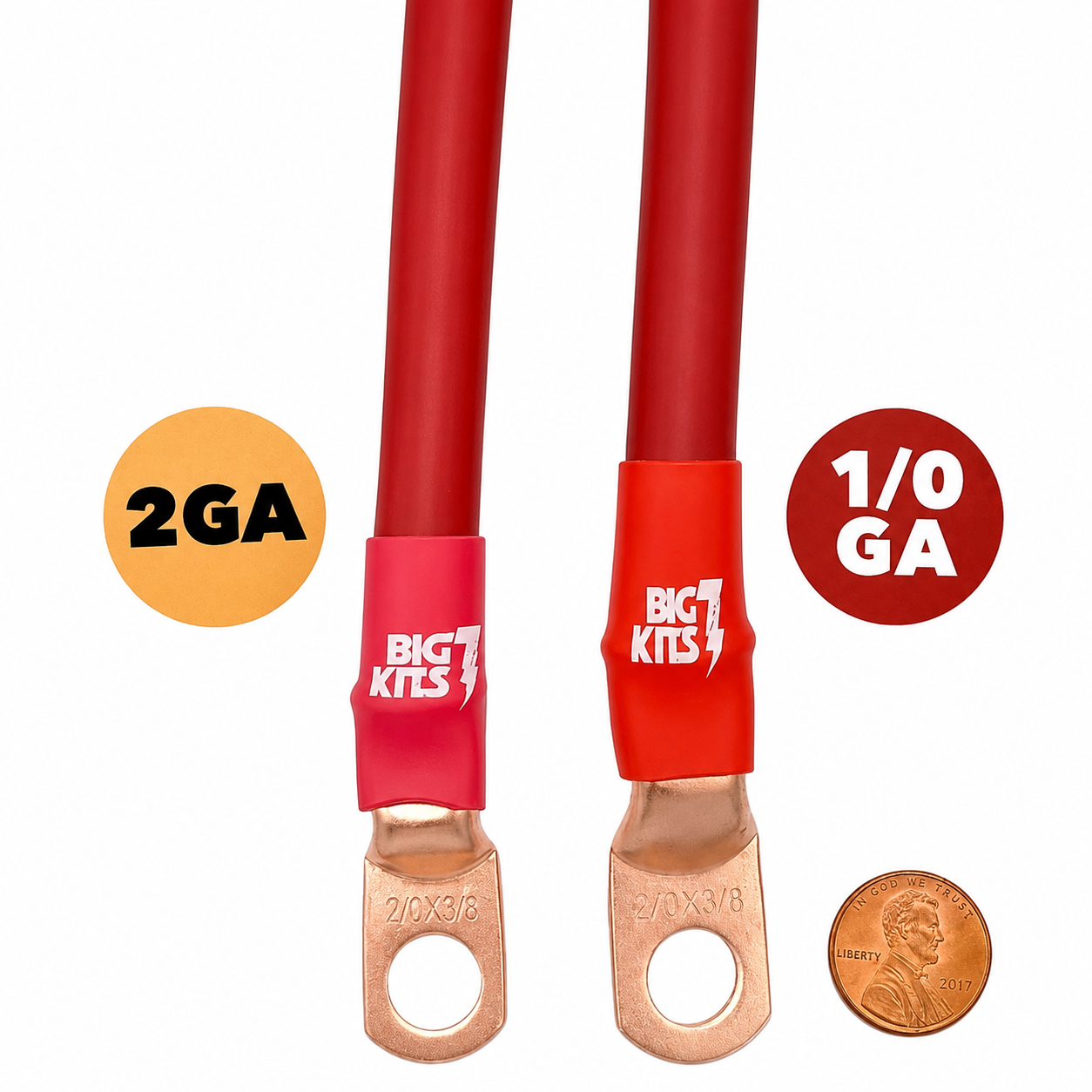

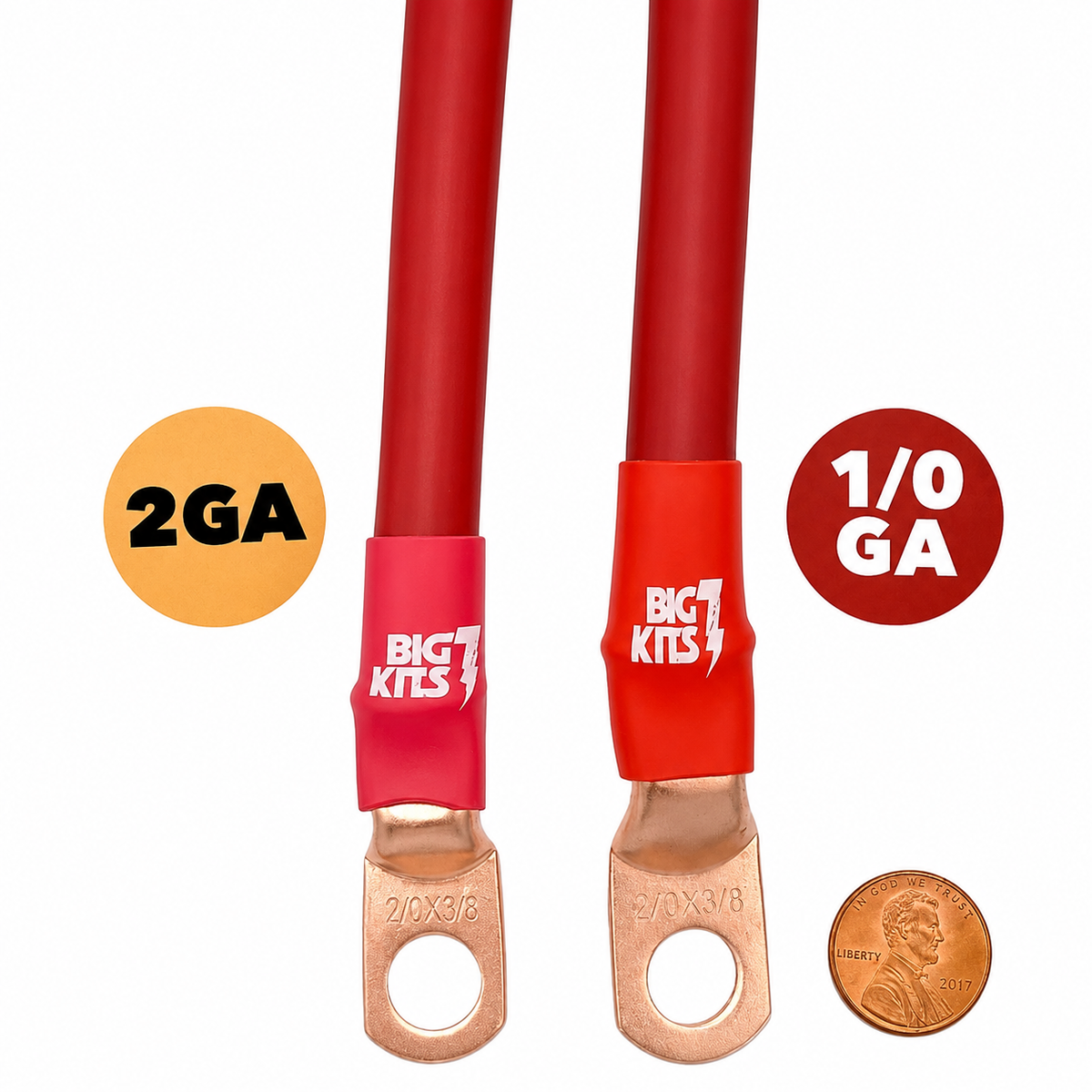

Choosing the Correct Cable Size
2 AWG
Best suited for:
- Stock vehicles
- Daily drivers
- Mildly modified trucks
- Factory or standard-output charging systems
1/0 AWG
Best suited for vehicles with higher electrical demand, including:
- Winches
- Auxiliary lighting
- Air compressors
- High-power audio systems
- Dual-battery systems
- Additional electrical accessories
- Planned future electrical upgrades
The larger 1/0 AWG option provides additional current-carrying capacity for more demanding electrical systems.
Vehicle Fitment
Toyota 4Runner
- 1984–1989 Toyota 4Runner – 1st Gen – 2.4L 22RE
- 1990–1995 Toyota 4Runner – 2nd Gen – 2.4L 22RE
Toyota Pickup
- 1984–1988 Toyota Pickup – 2nd Gen – 2.4L 22RE
- 1989–1995 Toyota Pickup – 3rd Gen – 2.4L 22RE
Fitment Notes
- 22RE engine only
- Designed to replace the vehicle's primary factory battery, charging, starting, and ground cables
- Available in 2 AWG and 1/0 AWG
- Vehicle-specific cable lengths
- No alternator upgrade required
- Supports stock and properly configured aftermarket electrical accessories
- Verify that the vehicle is equipped with the 2.4L 22RE before ordering
- Professional installation recommended
Product Specifications
Product Type: Battery Cable Upgrade Kit
Engine: 2.4L 22RE
Cable Material: Pure Copper Fine-Strand Cable
Terminal Material: Solid Copper
Battery Terminals: Military Style
Heat Shrink: Marine-Grade Adhesive Lined
Cable Size Options: 2 AWG, 1/0 AWG
Fuse Type: ANL
Installation: Vehicle Specific / Direct Replacement
Alternator Upgrade Required: No
Available Configurations
Choose the appropriate Cable Size for your electrical system.
2 AWG
- Recommended for stock and mildly modified vehicles
- Suitable for standard electrical demand and charging systems
1/0 AWG
- Recommended for higher-demand electrical systems
- Provides additional capacity for winches, lighting, audio systems, dual batteries, and other accessories

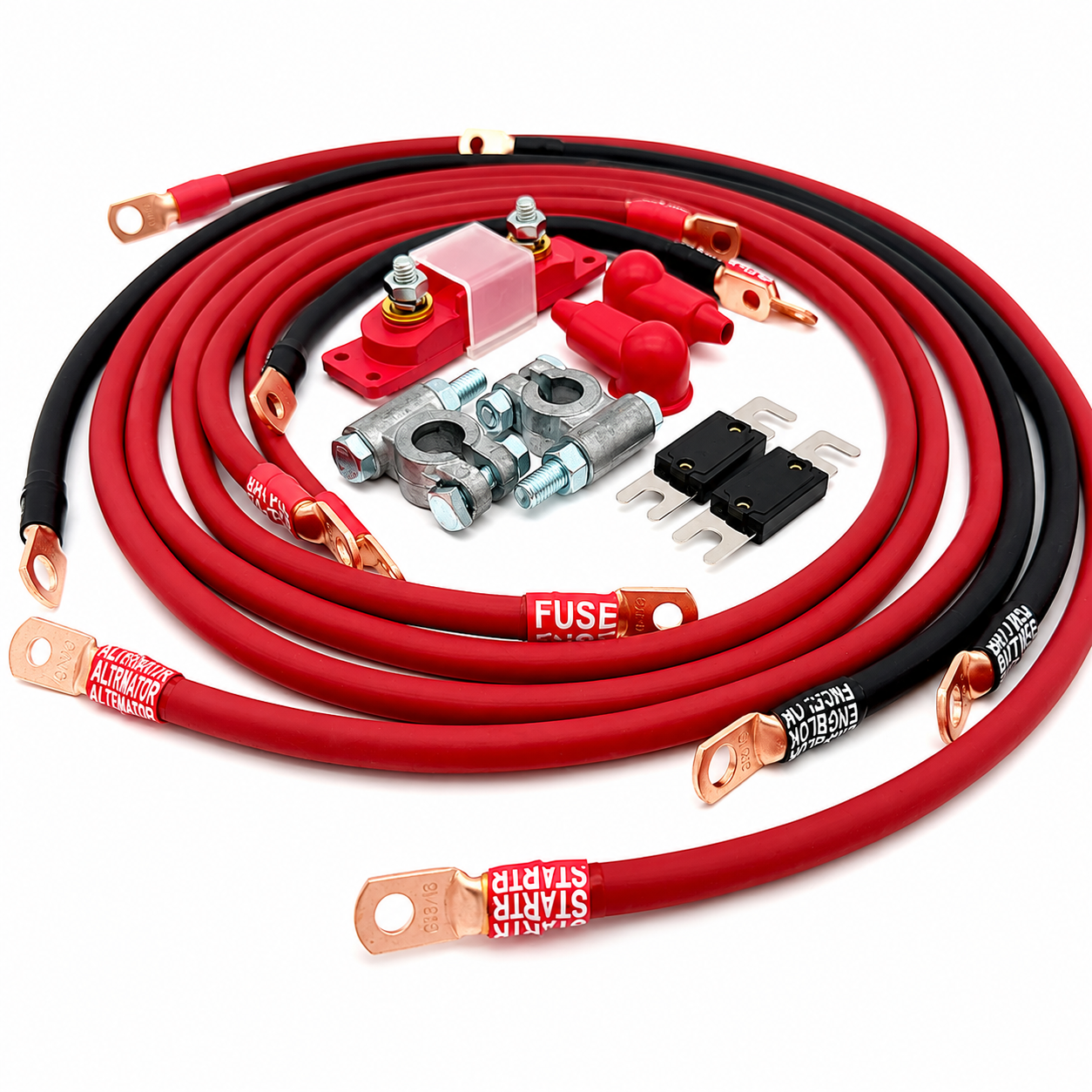

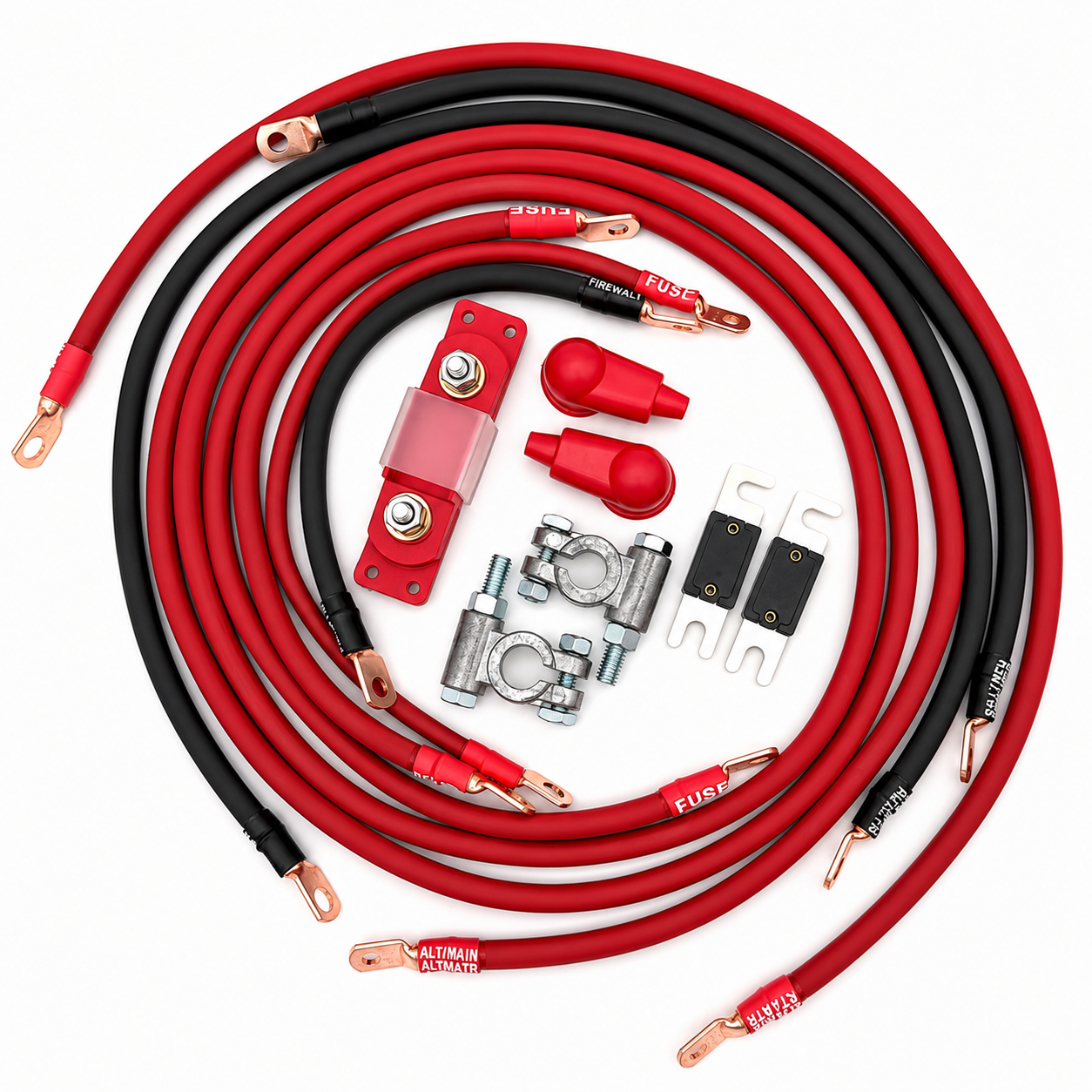

Each configuration includes:

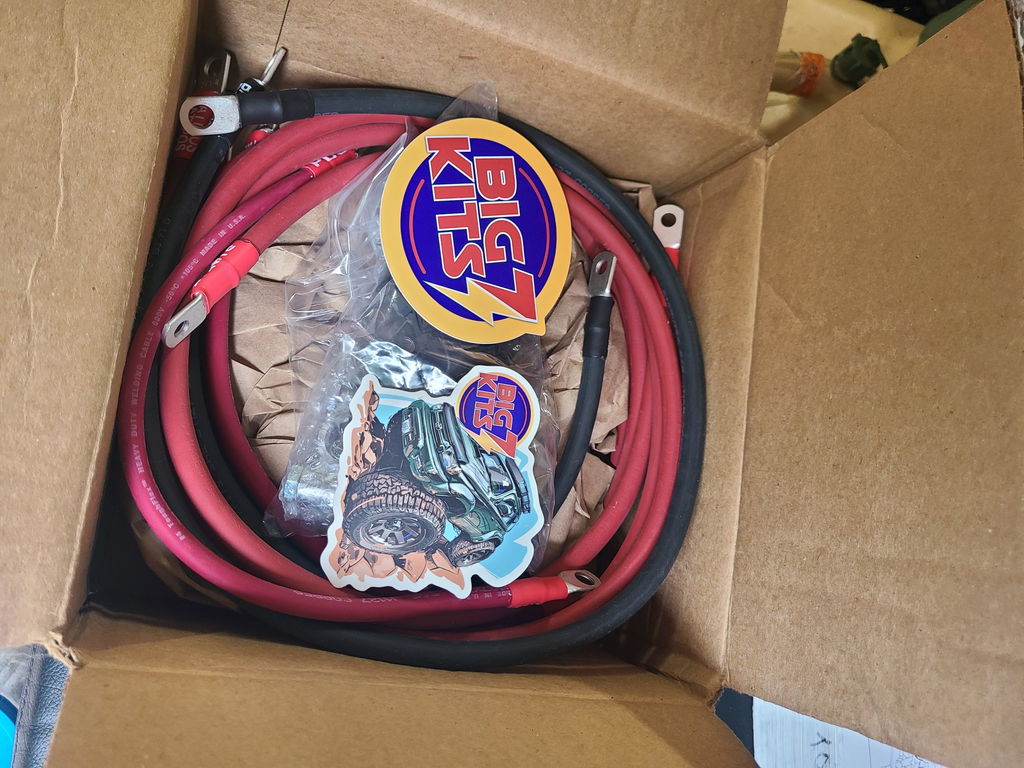

- Complete Big 7 battery cable upgrade set
- ANL fuse holder
- ANL fuse
- Military-style battery terminals
- Pre-labeled installation cables
