ARP Flywheel Bolt Kit

For 1983–1987 Toyota Corolla AE86, 1984–1989 Toyota MR2 AW11, and 1987–1991 Toyota Corolla AE92 coupe equipped with 4A-GE / 4A-GZE engines and manual-transmission flywheels.

Overview

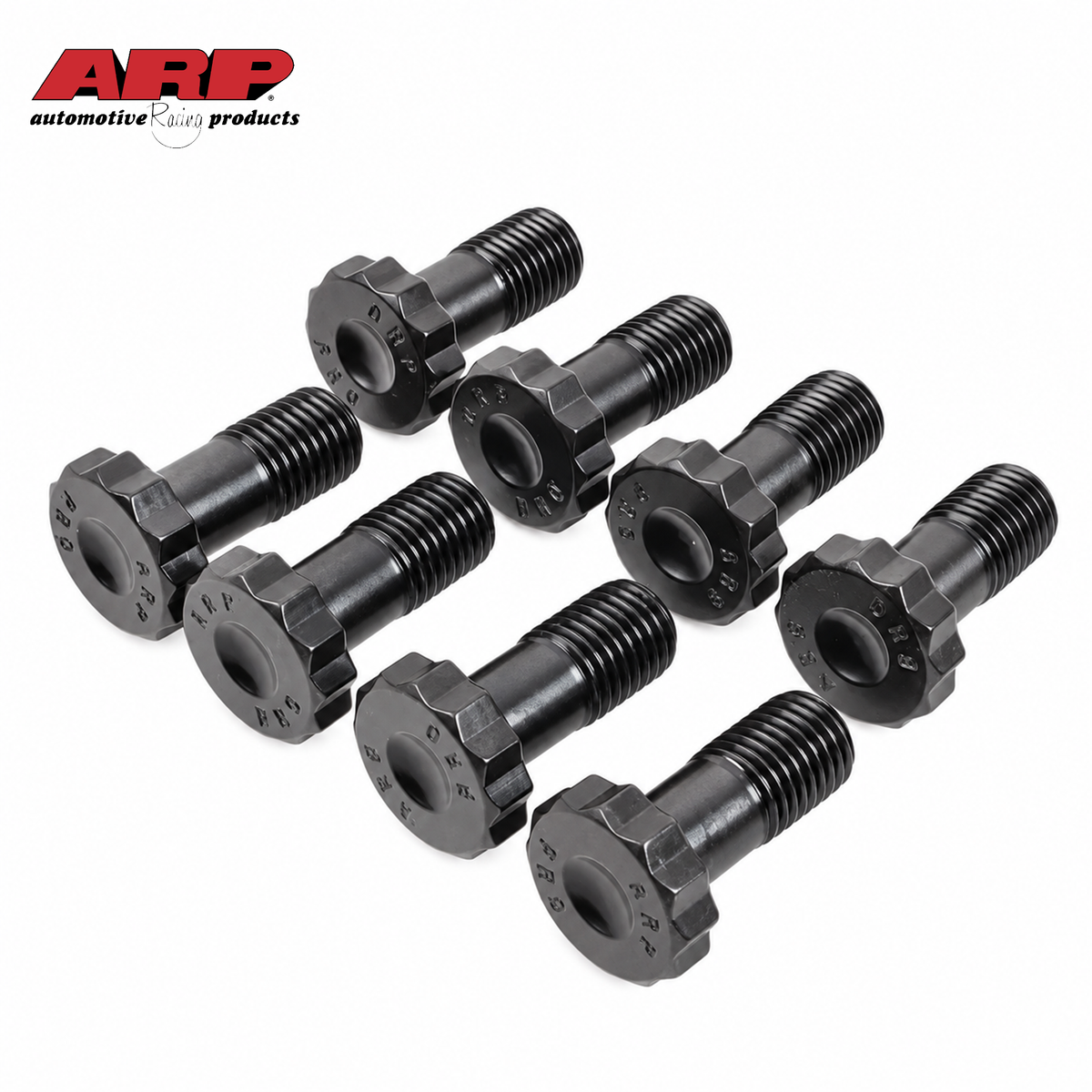

The ARP 4A-GE / 4A-GZE Flywheel Bolt Kit is a high-strength fastener set for 1983–1987 JDM Toyota Corolla AE86, 1985–1987 U.S.-Market Corolla Sport GT-S, 1984–1989 Toyota MR2 AW11, and 1987–1991 JDM Toyota Corolla AE92 coupes and 1988–1991 U.S.-Market Corolla GT-S AE92 coupe manual-flywheel applications. Factory AE86 fitment is for the 4A-GE; supported MR2 applications use either the naturally aspirated 4A-GE or supercharged 4A-GZE.

Forged from heat-treated 8740 chrome-moly steel, the eight fasteners replace the crankshaft-to-flywheel bolts during clutch service, flywheel replacement, or engine rebuilding. Their low-profile 12-point heads and larger-than-stock shanks provide a strong, precisely registered flywheel connection.

Key Features

• Complete eight-bolt set for Toyota 4AG manual flywheels
• Forged 8740 chrome-moly steel construction
• Heat-treated before thread rolling and final machining
• Low-profile 12-point bolt heads
• Larger-than-stock shanks for strength and flywheel registration
• M10 x 1.25 thread size
• 1.050-inch underhead length and black oxide finish
• Manufactured in the USA

Vehicle Fitment

All applications require a manual-transmission flywheel.

Toyota Corolla — AE86

• 1983–1987: Trueno (JDM) / 4A-GE
• 1983–1987: Levin (JDM) / 4A-GE
• 1985–1987: GT-S (U.S.-Market) / 4A-GE

Toyota MR2 — AW11 / MK1

• 1984–1989: JDM / 4A-GE
• 1985–1989: U.S.-Market / 4A-GE
• 1986–1989: JDM Supercharged / 4A-GZE
• 1988–1989: U.S.-Market Supercharged / 4A-GZE

Toyota Corolla / Sprinter — AE92 — Coupe

• 1987–1991: Corolla Levin / Sprinter Trueno (JDM) / 4A-GE 16V
• 1987–1991: Corolla Levin / Sprinter Trueno GT-Z (JDM) / 4A-GZE
• 1988–1991: GT-S coupe (U.S.-Market) / 4A-GE 16V

Fitment Notes

• Manual-transmission flywheels only. Does not replace automatic-transmission flexplate bolts.
• Factory AE86 applications require the 4A-GE. The factory 4A-C-powered SR5 flywheel is not covered.
• Factory AE86 models were not equipped with the 4A-GZE; suitability for a swapped 4A-GZE engine depends on its fitted manual flywheel.
• MR2 4A-GZE: JDM Supercharged models began in 1986; U.S.-Market Supercharged models began in 1988.
• Not for AE92 SR5 4A-F / 4A-FE flywheels.
• Specialty aftermarket flywheels can require different bolt specifications.
• Washerless design; flywheel bolt holes require clearance for the larger under-head radius.

Product Specifications

Brand: ARP
Product Type: Flywheel Bolt Kit
Engine Family: Toyota 4AG
Engine Applications: 4A-GE / 4A-GZE
Thread Size: M10 x 1.25
Underhead Length: 1.050 in.
Head Style: 12-Point
Material: 8740 Chrome-Moly Steel
Finish: Black Oxide
Quantity: 8 Bolts
Application: Manual Flywheel
Country of Manufacture: USA

AE86 Flywheel Upgrade

For an AE86 4A-GE flywheel upgrade, the AE86 Fidanza Lightweight Aluminum Flywheel is an optional, separately sold 200 mm flywheel option. Specialty aftermarket flywheels may have different fastener requirements.

What's Included

• (8) ARP Flywheel Bolts
