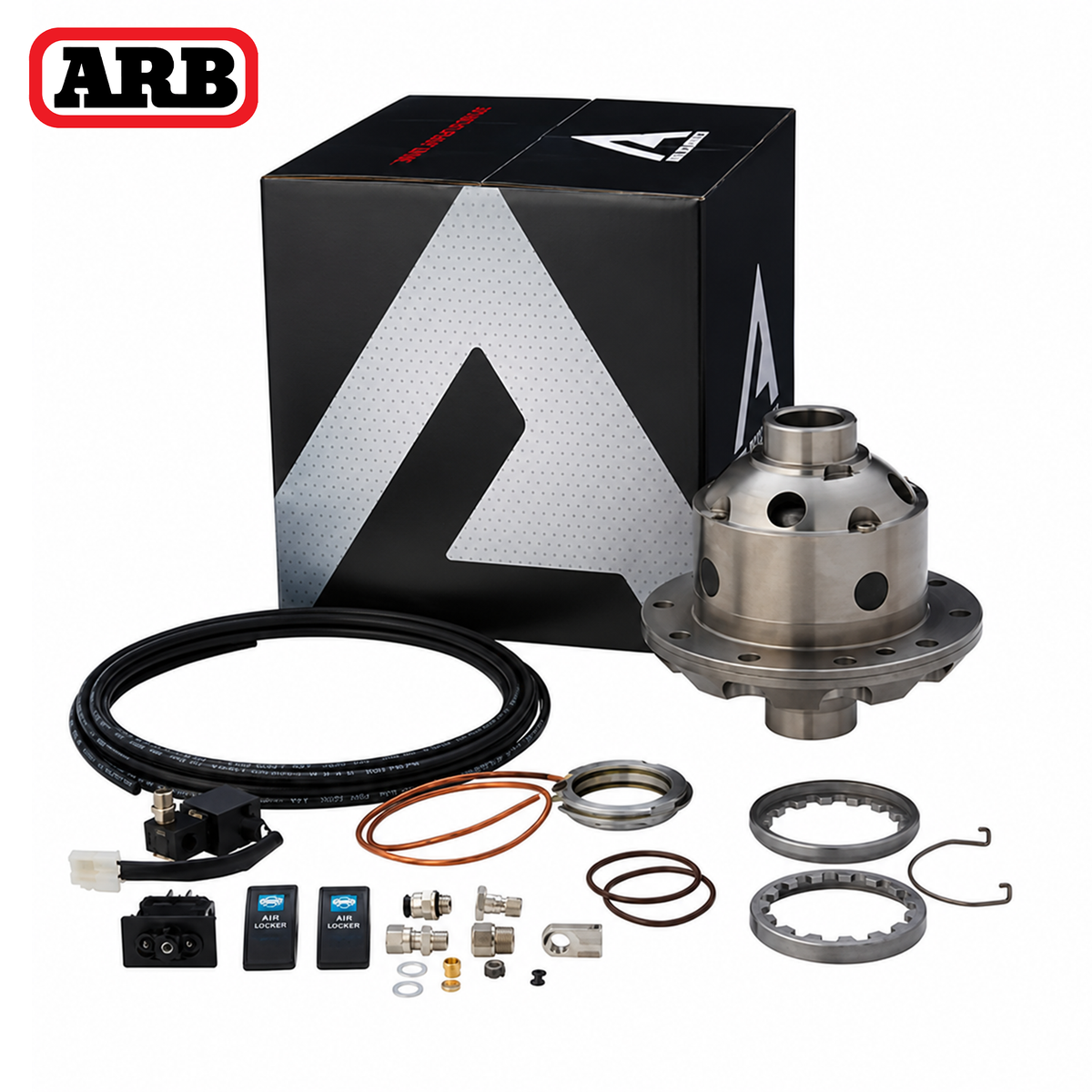

ARB Air Locker | Toyota 8" Rear Differential / 30-Spline (1984-95 4Runner 4WD / 1979-95 Pickup 4WD)

ARB Air Locker | Toyota 8" Rear Differential / 30-Spline

For 1984–1995 Toyota 4Runner 4WD and 1979–1995 Toyota Pickup 4WD with a Toyota 8" rear differential, 30-spline axle shafts, and an open-differential third member

Overview

The ARB Air Locker is a driver-selectable pneumatic locking differential for Toyota 8-inch rear axle applications using 30-spline, 1.31-inch axle shafts. With the locker disengaged, the differential operates like a conventional open differential for normal street driving. When activated with compressed air, the locker mechanically couples both axle shafts to the ring gear so both rear wheels receive drive torque together.

This application uses a 50 mm carrier-bearing journal, a 10-bolt Toyota 8-inch ring gear, and supports all gear ratios used with the applicable differential. It is designed for open-differential third members and does not replace a factory locker-equipped third member.

Key Features

• Driver-selectable pneumatic locking differential
• Toyota 8-inch rear differential application
• 30-spline / 1.31-inch axle shafts
• 50 mm carrier-bearing journal
• 10-bolt ring gear configuration
• Supports all applicable Toyota 8-inch gear ratios
• Open-differential operation when disengaged
• Full axle locking when activated
• Steel construction
• 5-year limited warranty

Differential & Carrier Bearing Compatibility

The Air Locker uses a 50 mm carrier-bearing journal. Bearing outside diameter must match the third-member housing.

4-Cylinder Toyota 8" Housing

Earlier 4-cylinder Toyota 8-inch third members originally use a smaller carrier journal. Installing this locker in those housings requires 50 mm ID × 80 mm OD conversion carrier bearings.

V6 / Turbo Toyota 8" Housing

V6/Turbo-style Toyota 8-inch third members use the larger carrier arrangement and require 50 mm ID × 83 mm OD carrier bearings.

Air System Requirements

An ARB air compressor is required to engage and disengage the locker and is sold separately. The locker includes the pneumatic activation hardware required at the differential, including the activation switch, solenoid valve, air line, and bulkhead fitting.

Vehicle Fitment

Toyota 4Runner

• 1984–1989 Toyota 4Runner – 1st Gen – 4WD – Rear – Toyota 8" – 30-Spline
• 1990–1995 Toyota 4Runner – 2nd Gen – 4WD – Rear – Toyota 8" – 30-Spline

Toyota Pickup

• 1979–1983 Toyota Pickup – 1st Gen – 4WD – Rear – Toyota 8" – 30-Spline
• 1984–1988 Toyota Pickup – 2nd Gen – 4WD – Rear – Toyota 8" – 30-Spline
• 1989–1995 Toyota Pickup – 3rd Gen – 4WD – Rear – Toyota 8" – 30-Spline

Fitment Notes

• 4WD rear differential applications only.
• Toyota 8-inch rear differential and 30-spline axle shafts are required.
• Designed for open-differential third members.
• Does not replace factory locker-equipped third members.
• 4-cylinder housings require the correct 50 mm conversion carrier bearings.
• V6/Turbo housings require the correct 50 mm carrier bearings for the larger housing bore.
• Does not fit Toyota 7.5-inch IFS front differentials.
• ARB air compressor required and sold separately.
• Professional differential setup is recommended to establish correct bearing preload, ring-and-pinion backlash, and gear contact pattern.

Product Specifications

Brand: ARB
Product Type: Selectable Locking Differential
Position: Rear
Differential: Toyota 8 in
Engagement: Pneumatic / Driver Selectable
Axle Spline Count: 30
Axle Shaft Diameter: 1.31 in
Carrier Journal: 50 mm
Ring Gear Diameter: 8 in
Ring Gear Bolt Count: 10
Gear Ratio Compatibility: All Applicable Ratios
Material: Steel
Color: Silver
Air Compressor: Required, Sold Separately
Warranty: 5-Year Limited Warranty

Air Locker Installation Components

An ARB High Output On-Board 12V Air Compressor is required to engage and disengage the Air Locker and is sold separately.

For a complete differential rebuild or locker installation, use the master overhaul kit that matches the installed Toyota 8-inch third member. The master kits include the application-specific carrier bearings, so a separate carrier-bearing add-on is not required when purchasing the correct master kit.

• Yukon Gear Master Differential Overhaul Kit | Toyota 8" 4-Cylinder 4WD (1984–85 4Runner / 1979–85 Pickup) — select the 50mm Carrier (ARB / Yukon Zip / V6-Style Locker) configuration when installing this Air Locker.
• Yukon Gear Master Differential Overhaul Kit | Toyota 8" 4-Cylinder 4WD (1986–95 4Runner / 1986–95 Pickup) — select the 50mm Carrier (ARB / Yukon Zip / V6-Style Locker) configuration when installing this Air Locker.
• Yukon Gear Master Differential Overhaul Kit | Toyota 8" V6 / Turbo 4WD (1986–95 4Runner / 1986–95 Pickup) — for the larger V6/Turbo-style Toyota 8-inch rear third member.

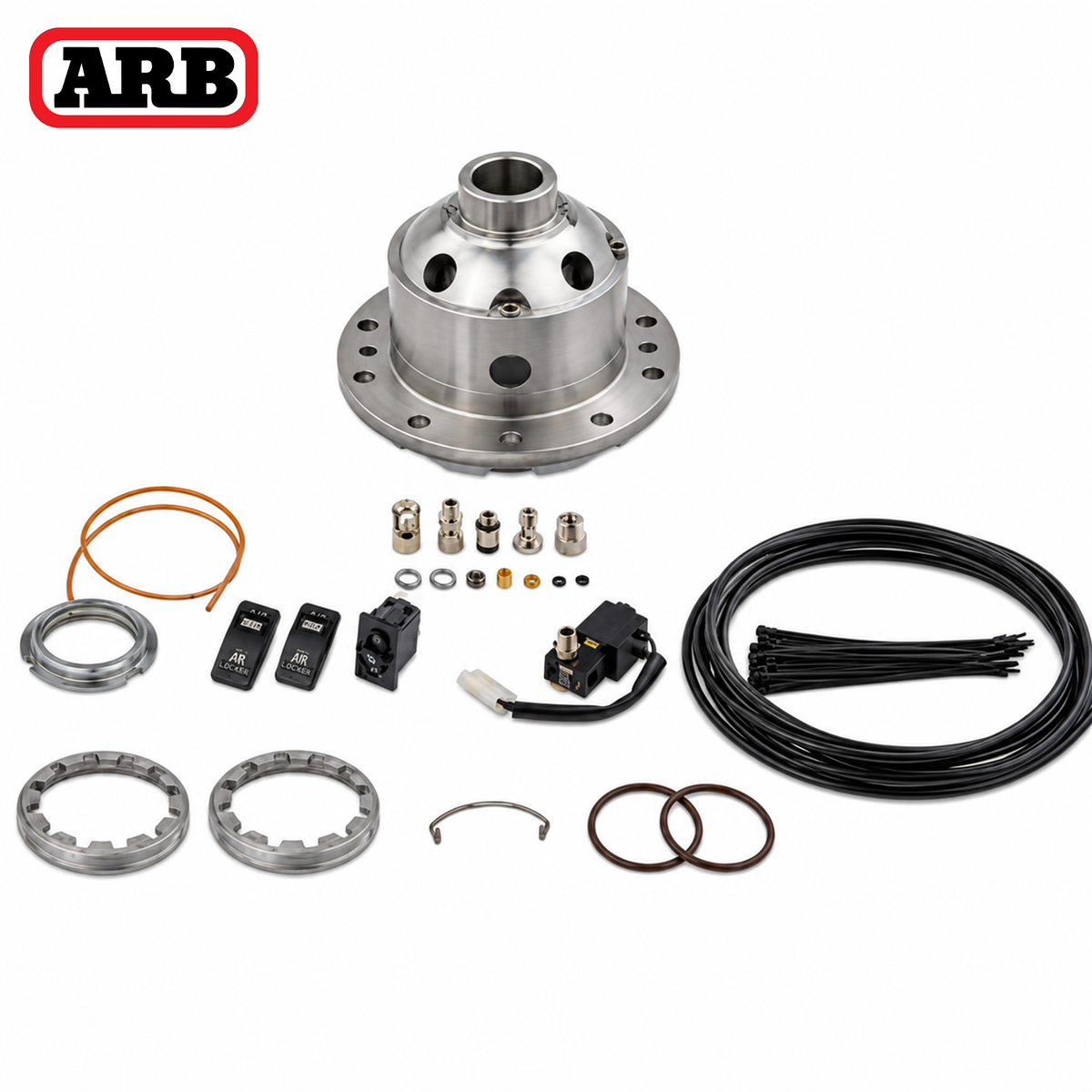

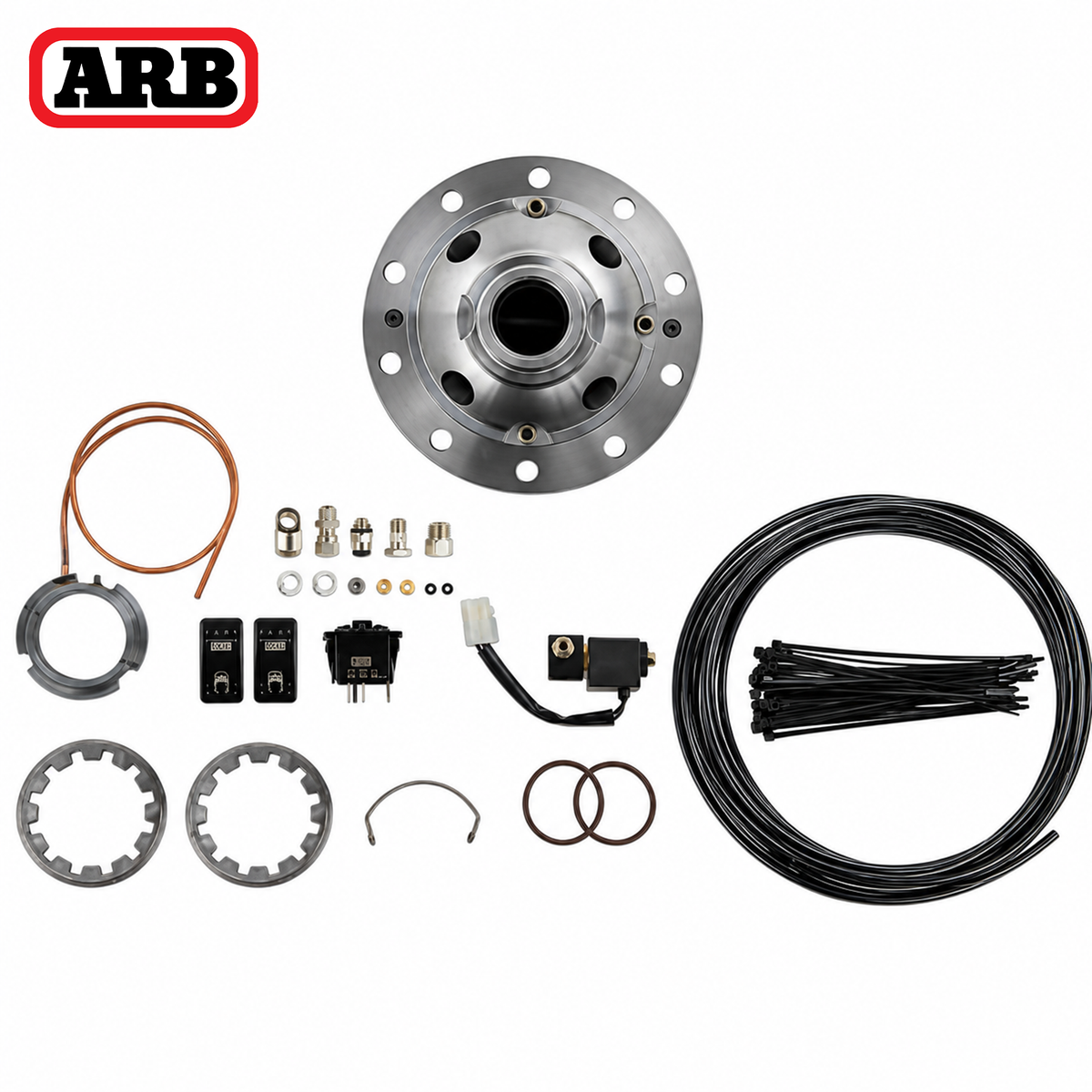

What's Included

• (1) ARB Air Locker differential
• (1) Activation switch
• (1) Solenoid valve
• Air line and bulkhead fitting
• Carrier bearings are not included with the Air Locker.
